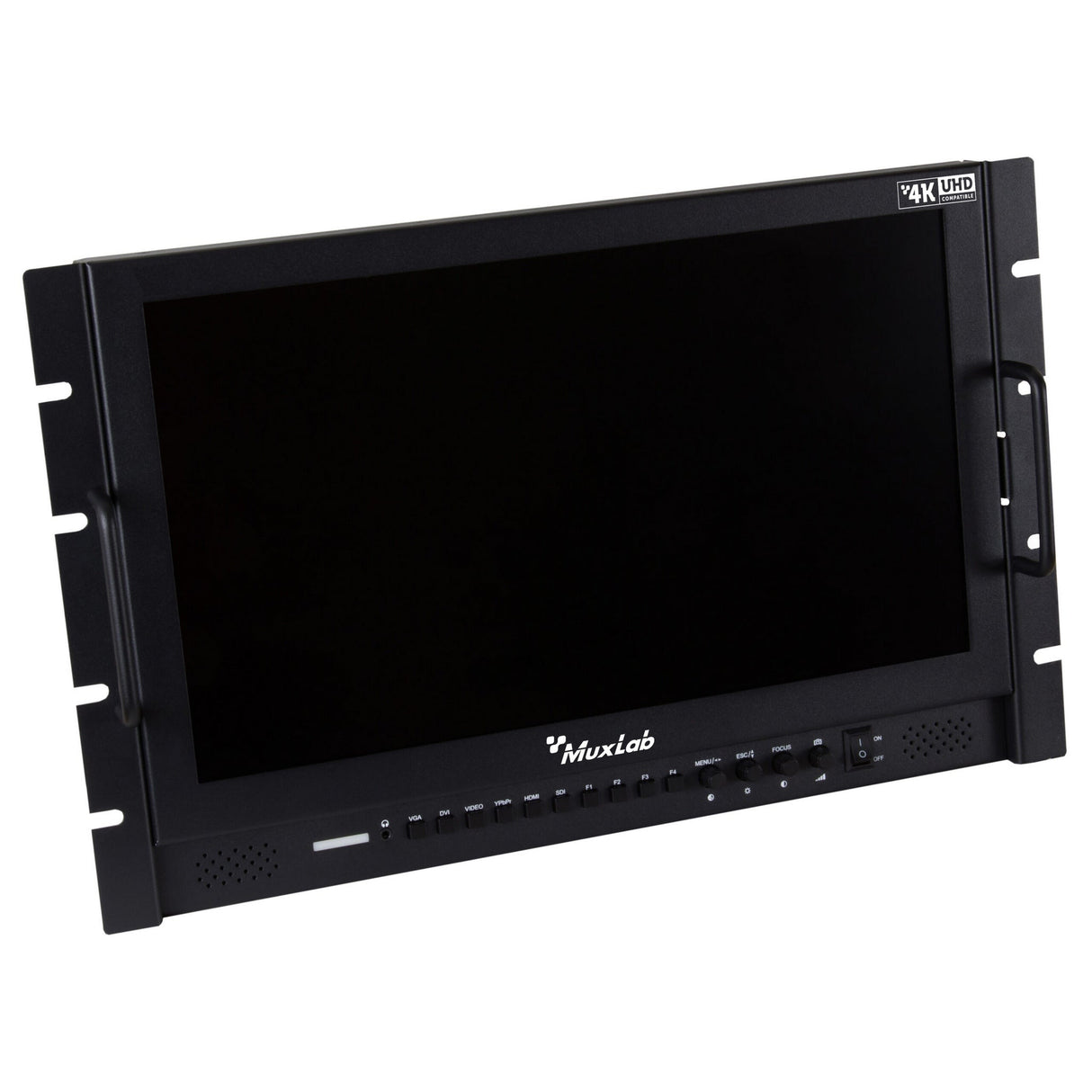

MuxLab 500842 HDMI 4K/30 and 3G-SDI 17.3-Inch Display
The MuxLab HDMI 3G-SDI Single Display 17.3 inch 4K/30 is a professional rack-mounted monitor designed for broadcast, AV testing, and studio environments. It features a 17.3-inch IPS LCD panel mounted into a 19-inch 7 RU rack enclosure, delivering reliable monitoring for high-resolution video sources.
This display supports HDMI input and loop-out up to 4K/30, SDI signals up to 3G-SDI, and DVI-I VGA and CVBS signals with audio. It includes a tri-color tally light indicator and advanced monitoring tools such as Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P, and Image Freeze.
Engineered for stability and consistent performance, this single display monitor provides high brightness, low power consumption, and customizable front-panel buttons. It is ideal for broadcast studios, television facilities, and AV testing environments requiring accurate signal analysis.
Key Features
- Large IPS Display: 17.3-inch IPS LCD panel for professional monitoring
- Multi-Format Support: Supports HDMI 4K/30, 3G-SDI, DVI-I VGA, and CVBS with audio
- Rack-Mount Design: Fits 19-inch rackmount at 7 RU height
- Tally Indicator: Tri-color tally light for production environments
- Advanced Monitoring Tools: Includes Center Marker, Focus Assist, Aspect Ratio, P2P, and Image Freeze
Technical Specifications
Screen Size17.3" IPS
Display Colors
16.7M
Dot Pitch
0.1989(H) x 0.1989(V) mm
Aspect Ratio
16:9
Brightness
300cd/m2
Contrast
700:1
Backlight
LED
Response Time
Tr + Tf = 25ms
Viewing Angle
89°/89° (L/R) 89°/89° (U/D)
Inputs
3G-SDI, HDMI, YPbPr, Video, Audio (L/R), DVI-I (VGA), Tally, USB Upgrade
Outputs
3G-SDI, HDMI, YPbPr, Video
Audio
3.5mm Stereo Headphone, Speaker
SDI Support Format
480i/576i
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sf/23.98/23.98sf)
HDMI Support Format
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sf/23.98/23.98sf)
4K UHD 3840x2160p (30/29.97/25/24/23.98Hz)
4096x2160p (24Hz)
Power Consumption
≤26W
Input Voltage Range
9.0 to 24 VDC
Power Source
100/240VAC to 12VDC 3A power supply
Working Temperature
-10°C to 50°C
Storage Temperature
-20°C to 60°C
Dimensions
481.6L x 297H x 35D mm
Weight
3.40kg
Warranty
2 years
