MuxLab 500850 KVM HDMI Over IP PoE Extender Deluxe 4K30 for Networked AV Systems - RX
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
MuxLab KVM HDMI Over IP PoE Extender Deluxe 4K30 for Networked AV Systems
The MuxLab KVM HDMI over IP PoE Extender Deluxe 4K30 allows HDMI and USB equipment to be connected up to 330ft (100m) over an Ethernet LAN. It supports HDMI up to 4K at 30Hz (4:4:4) and 4K at 60Hz (4:2:0) via Cat5e or Cat6 cabling in point-to-point and point-to-multipoint configurations. This solution is designed for scalable KVM and AV over IP deployments.

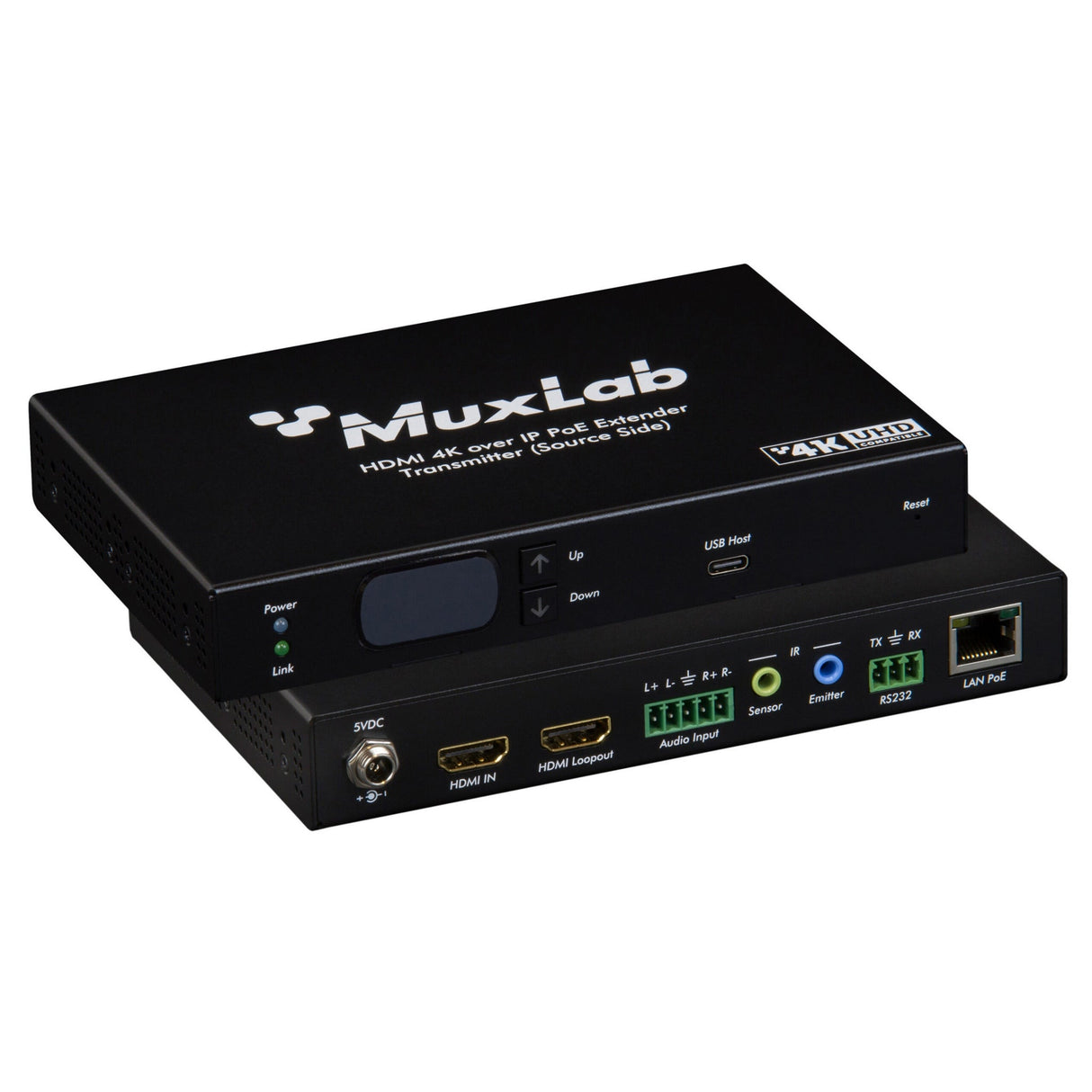

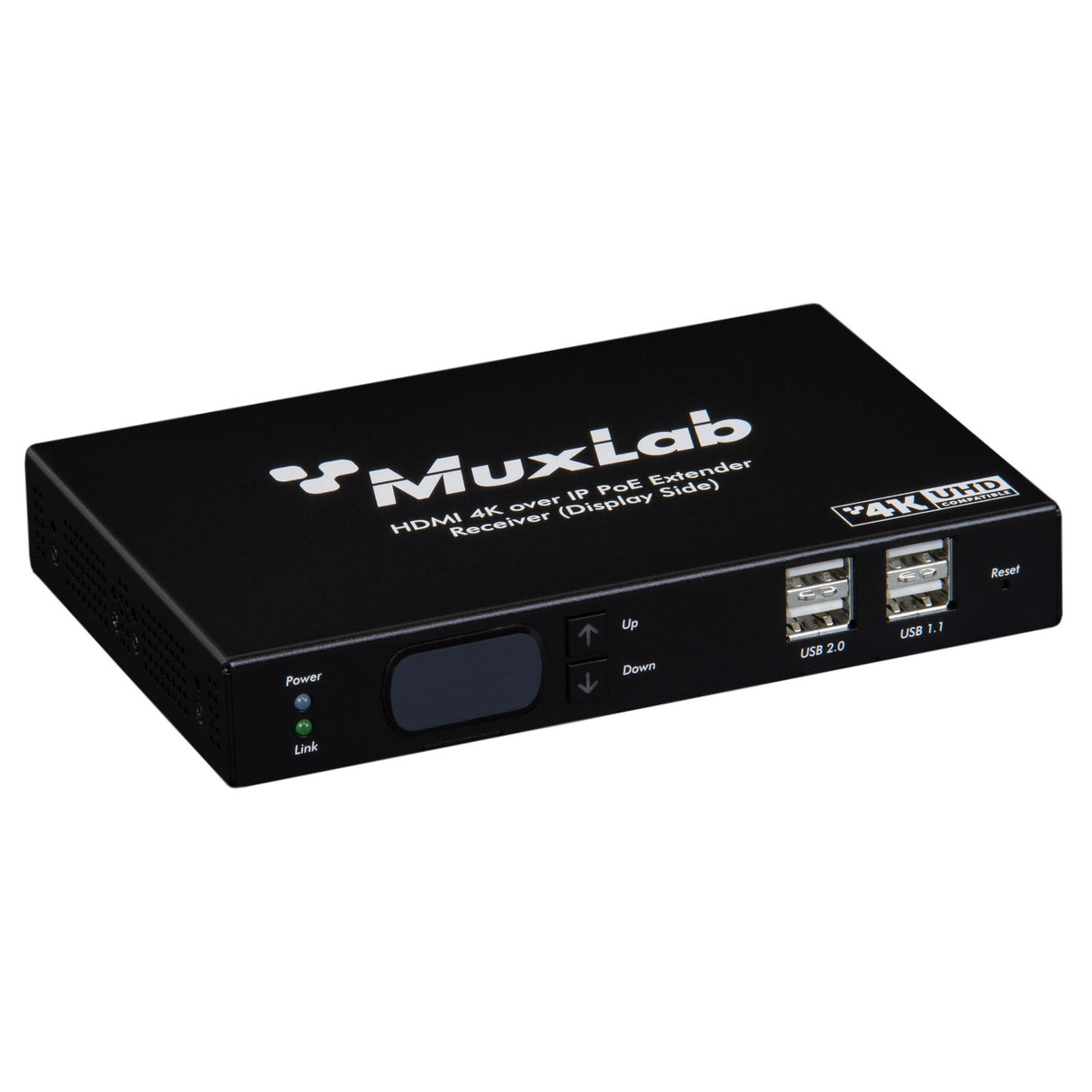

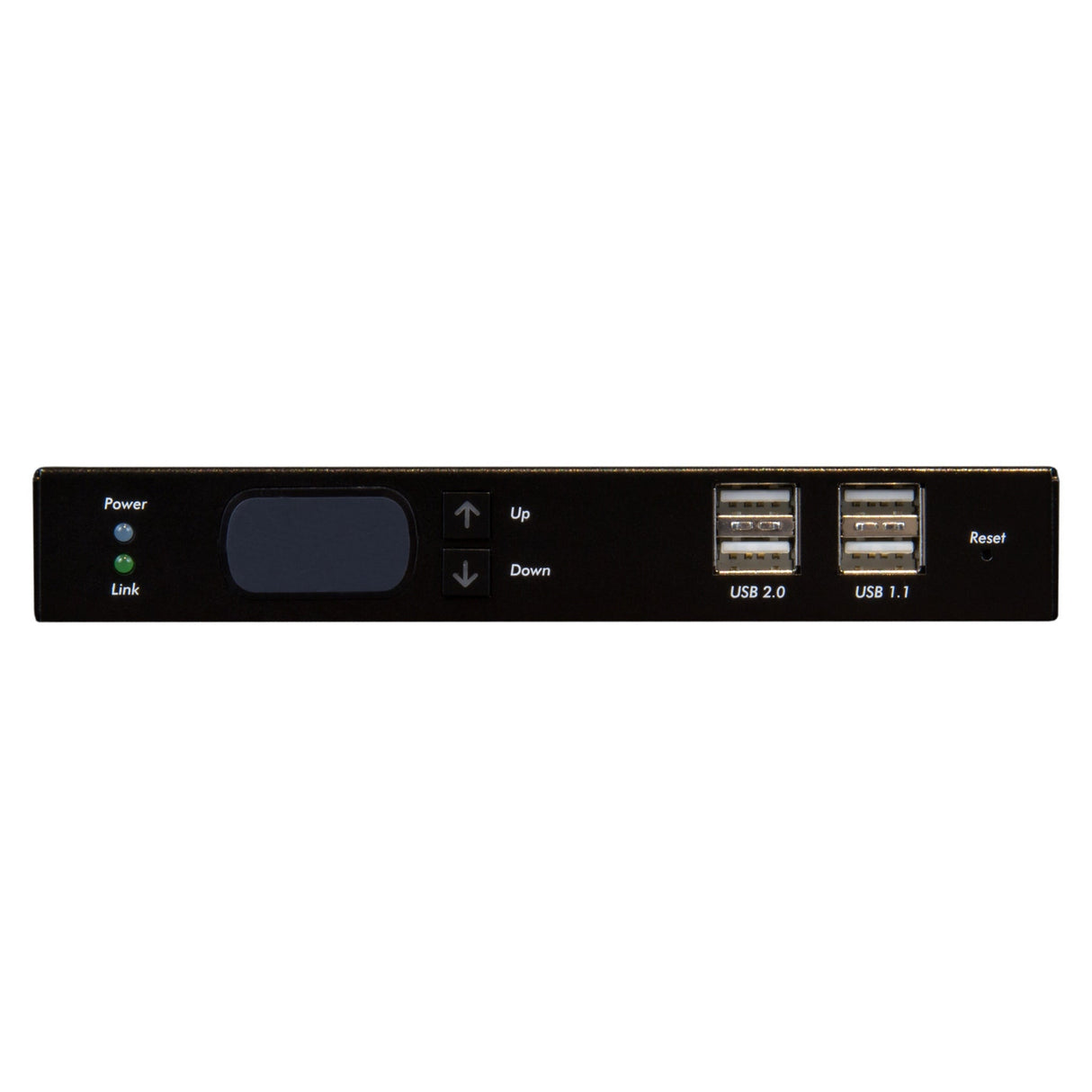

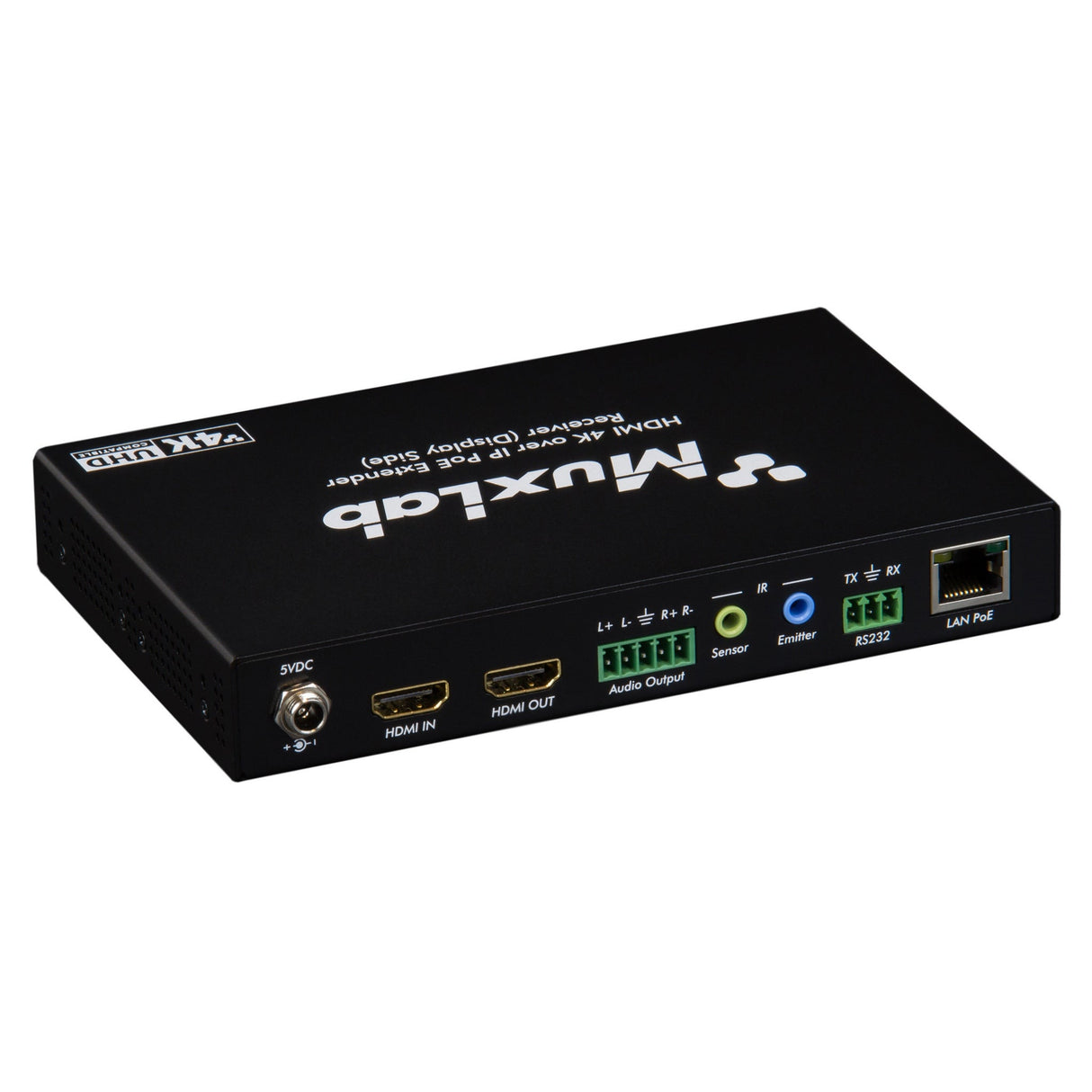

The transmitter terminates to a computer server or workstation via HDMI and USB, while the receiver terminates to an HDMI display and up to four USB devices such as keyboard, mouse, printer, drawing pad, or storage device via a USB hub. The transmitter features an HDMI loop out for connecting a local TV, and the receiver features an HDMI input for connecting a local video source.
This extender is ideal for KVM and AV systems in classrooms, digital signage, boardrooms, collaborative PC systems, and medical information systems. It supports PoE powered operation when used with a PoE Ethernet switch and provides flexible control for distributed environments. The system is built for reliable performance in professional AV applications.
Key Features
- 4K Video Support: Supports HDMI up to 4K at 30Hz (4:4:4) and 4K at 60Hz (4:2:0).
- Extended Distance: Up to 330ft (100m) over Cat5e or Cat6 cable.
- KVM Functionality: Receiver includes a 4 port USB hub for KVM applications.
- HDMI Loop and Local Input: HDMI loop out on TX and HDMI local input on RX.
- PoE Powered: Supports PoE powered operation.
- Flexible Deployment: Supports point-to-point and point-to-multipoint applications.
Technical Specifications
OverviewKVM HDMI over IP PoE Extender Deluxe, 4K30
Transmission Distance
Up to 330ft (100m) over Ethernet LAN
Video Support
HDMI up to 4K at 30Hz (4:4:4) and 4K at 60Hz (4:2:0)
Network Cable
Cat5e or Cat6
Configuration
Point-to-point and point-to-multipoint
USB Support
Up to 4 USB devices via USB hub on RX
HDMI Loop Out
Available on TX
HDMI Local Input
Available on RX
Power
Supports PoE (PD) when used with a PoE (PSE) Ethernet Switch
Applications
KVM and AV systems, classroom training systems, digital signage, boardroom systems, collaborative PC systems, medical information systems
