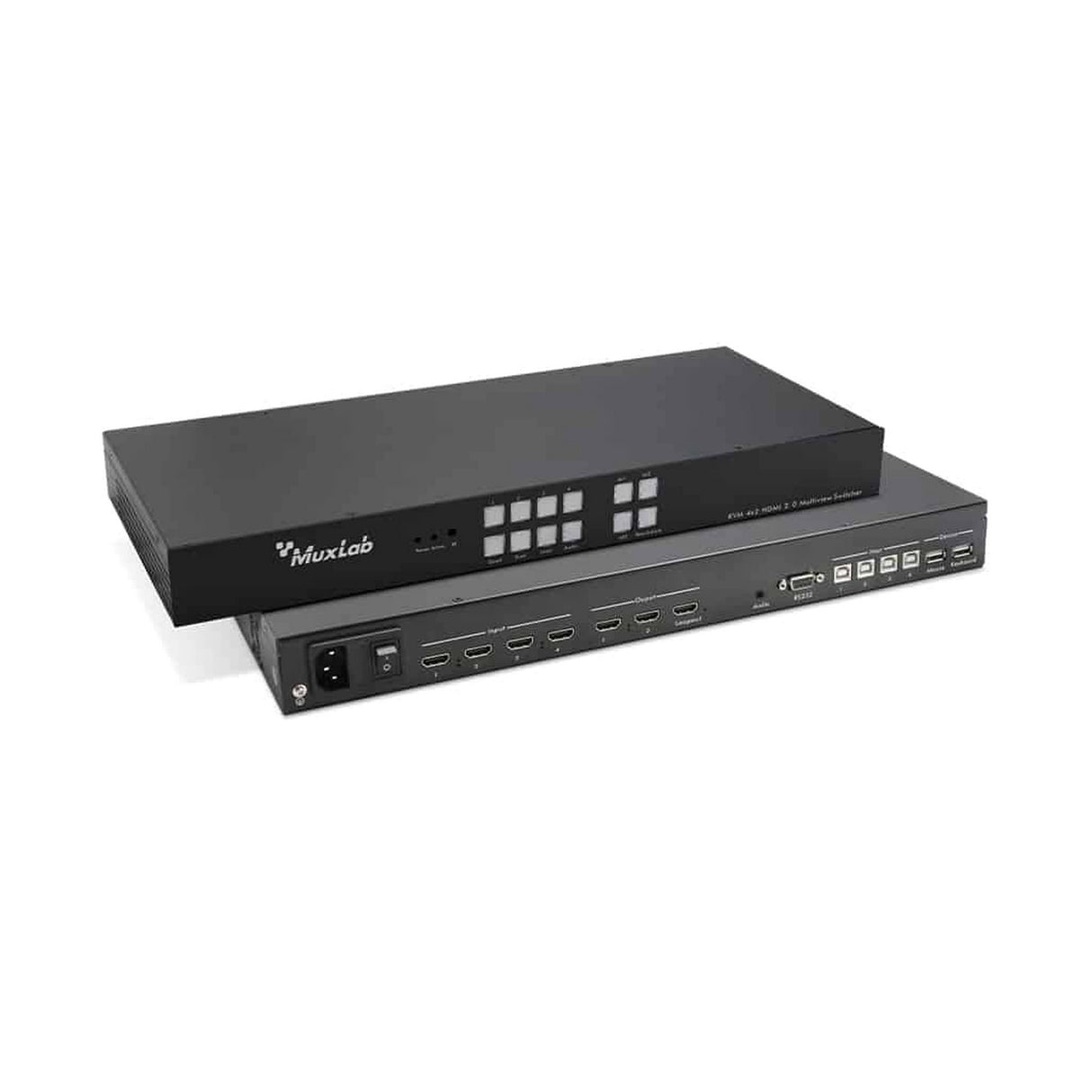

MuxLab 500870 KVM 4x2 HDMI 2.0 Multiview Switcher
The MuxLab KVM 4x2 HDMI 2.0 Multiview Switcher is a professional video processing and control solution designed for multi-source monitoring and management. It allows up to four HDMI 4K sources to be displayed on one or two displays in a multiview configuration for advanced control room and IT environments.
This multiview switcher supports real-time control of multiple computers without requiring source switching, enabling seamless monitoring and interaction. Users can take control of a specific computer by moving the mouse over the corresponding window, improving workflow efficiency and operational speed.
Designed with a pure hardware architecture, the system operates without the need for a computer or startup software. It delivers high stability, reliable performance, and high-quality video output for mission-critical professional applications.
Key Features
- Multiview KVM Control: One operator can manage multiple servers or computers simultaneously
- HDMI 2.0 Support: Supports four HDMI 2.0 signal inputs and three HDMI 2.0 signal outputs
- Flexible Display Modes: Supports dual-screen and independent dual-screen configurations
- Advanced Window Control: Supports window size, transparency, and signal switching via mouse and keyboard
- Standalone Operation: Pure hardware design with no computer or startup software required
Technical Specifications
Input Port4 x HDMI 2.0
Max Input Resolution
4096x2160P/60Hz
Output Port
5 x HDMI 2.0
Supported Output Resolutions
4096x2160P/60Hz
4096x2160P/30Hz
3840x2160P/60Hz
3840x2160P/30Hz
2560x1600P/60Hz
2560x1440P/60Hz
2560x1080P/60Hz
2048x1152P/60Hz
1920x1440P/60Hz
1920x1200P/60Hz
1920x1080P/60Hz
Control Methods
Keyboard and mouse, remote control, panel buttons, and RS232
Audio
HDMI audio follow, 3.5mm audio separation
Product Dimensions
435mm x 178mm x 44.5mm
Packaging Dimensions
530mm x 285mm x 100mm
Product Weight
1.32KG
Packaging Weight
3KG
Accessories
1 x Power Cable
1 x Remote Control
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
