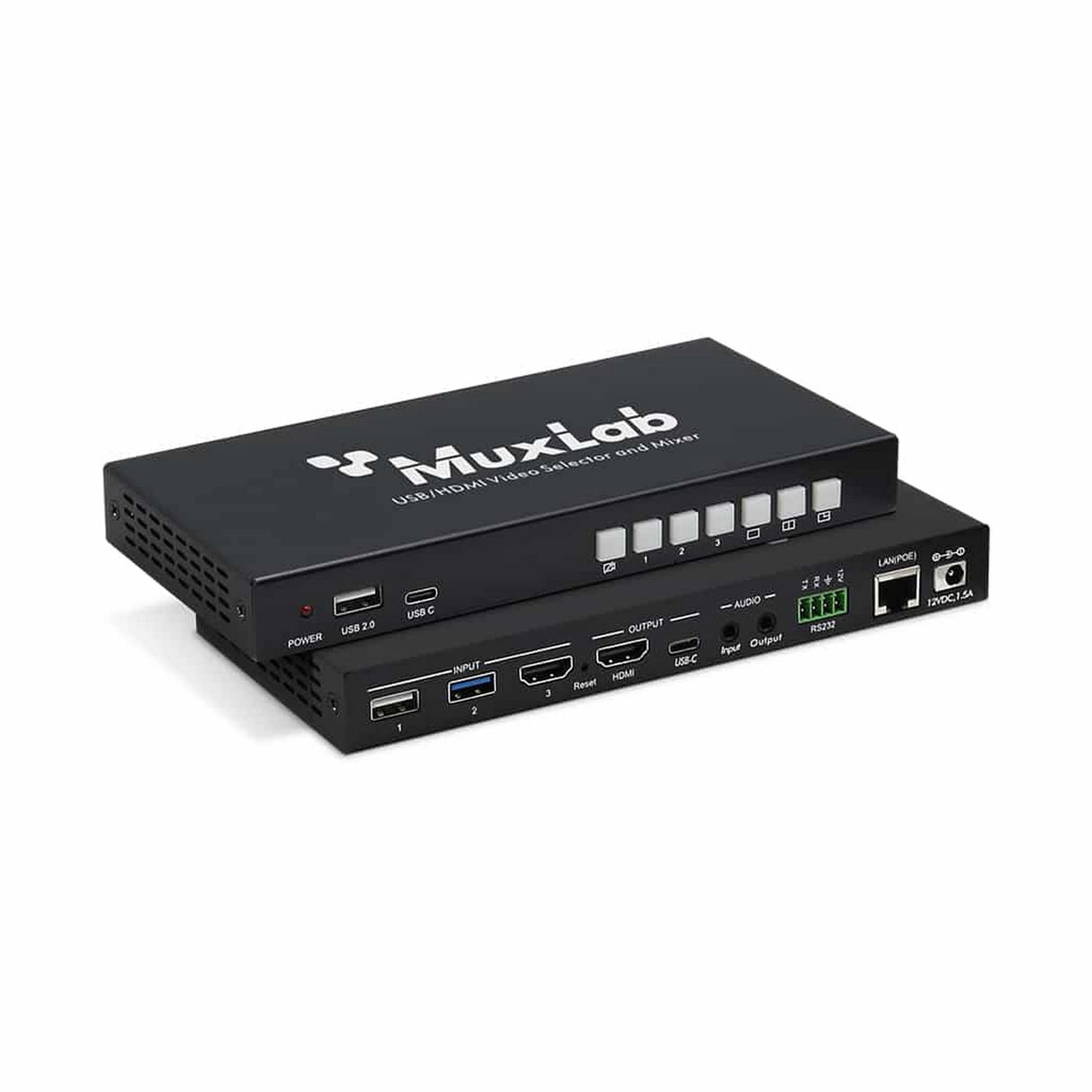

MuxLab 500882 USB HDMI Video Selector and Mixer
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
MuxLab 500882 USB HDMI Video Selector and Mixer
The MuxLab USB HDMI Video Selector and Mixer is a professional source switching and mixing solution designed for modern conferencing and streaming environments. It enables seamless switching between USB and HDMI sources while mixing multiple inputs into a single output. This device is ideal for video conferencing, live broadcasting, and presentation applications.
The unit supports three input sources and allows mixing of video feeds into picture in picture, side by side, and composite layouts. It provides HDMI output for local monitoring and USB-C UAC UVC output for computer-based conferencing and streaming. Flexible signal handling ensures reliable performance in professional AV workflows.
Management is available via front panel push buttons, RS232, and Ethernet for easy system integration. With integrated audio mixing and extraction, the device delivers synchronized audio and video output. Its compact metal enclosure makes it suitable for conference rooms, education spaces, and command and control environments.
Key Features
- Multi-Source Video Mixing: Supports mixing of three input sources into one output
- USB and HDMI Connectivity: Supports USB 3.0, USB 2.0, and HDMI input sources
- Flexible Layout Modes: Supports picture in picture, side by side, and mixed layouts
- Streaming Ready Output: Provides USB-C UAC UVC output for computer streaming
- Advanced Control Options: Managed via front panel buttons, RS232, and Ethernet
Technical Specifications
EnvironmentHDMI 1.4 (1080p)
HDMI 2.0 (4K/60)
USB (UAC/UVC)
HDMI Devices
Cameras, PCs/Laptops, projectors/monitors/TVs
Transmission
Transparent to the user
Frequency
Up to 594 MHz
Video Signal
HDMI 1.4/2.0 protocol and HDCP 1.4 and 2.2
Connectors
(2) HDMI connectors for video (one HDMI 1.4 inputs and one HDMI 2.0 outputs)
(1) USB 2.0 input for UAC/UVC Stream
(1) USB 3.0 input for UAC/UVC Stream
(1) USB-C 3.0 output for UAC/UVC Stream
(2) 3.5mm jack for Analog Stereo audio input and output
(1) 4-POS terminal block for RS232 control
(1) RJ45 PoE Ethernet port for IP and Web control
Management
Locally via front panel push buttons, RS232 and Ethernet
Audio extraction
2CH Analog Audio
Power Supply
12VDC,1.5A
Power Consumption
12W (max)
Temperature
Operating: 0Ā° to 40Ā°C
Storage: -20Ā° to 60Ā°C
Humidity
up to 90% non-condensing
Enclosure
Metal enclosure
Unit Dimensions
7.48 x 3.54 x 0.87 (190mm x 90mm x 22mm)
Shipping Weight
1.1 lbs (0.5 Kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
