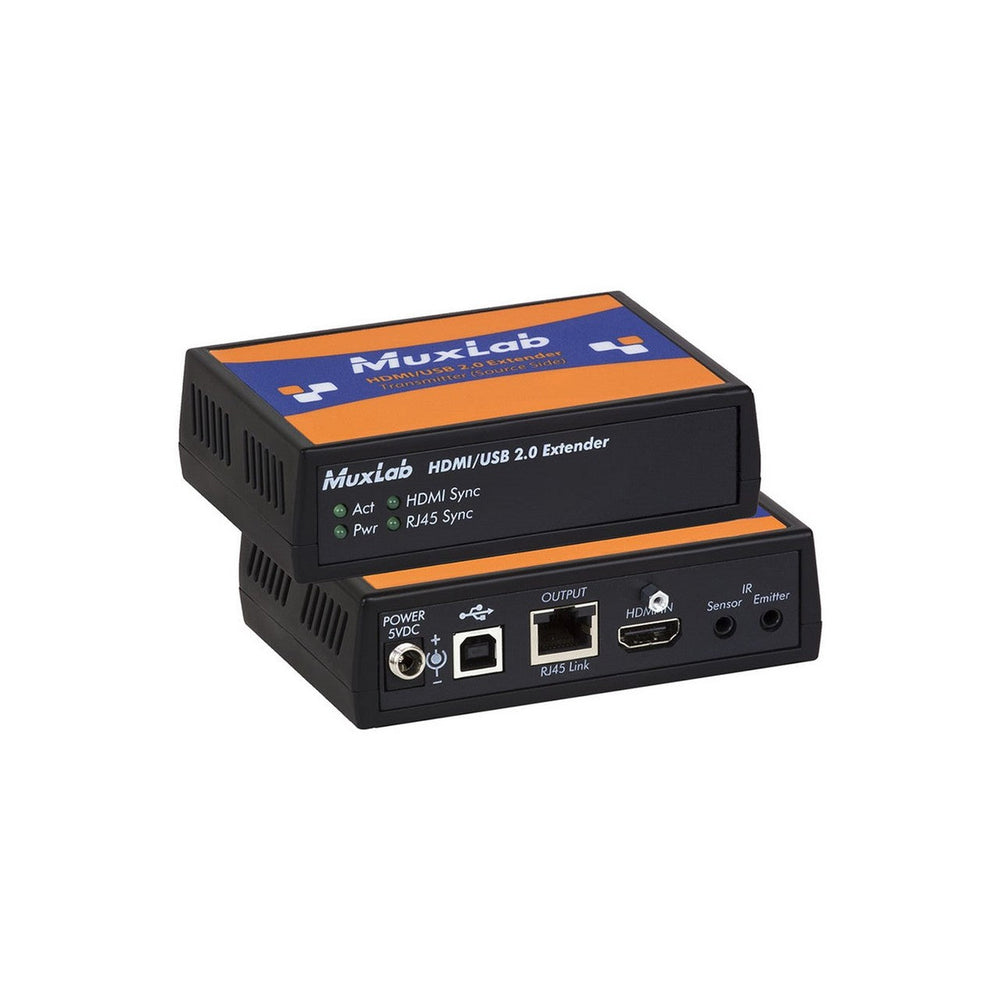

MuxLab HDMI USB 2.0 Extender Kit 500457 HDMI USB 2.0 HDBT 4K60 Video Extender Kit Cat5e/6 RJ45 Plug Cable Bidirectional IR Transmitter and Receiver
The HDMI/USB 2.0 Extender Kit allows one HDMI 1.4 and one USB 2.0 channel to be transmitted up to 330ft (100m) at all resolutions up to 1920×1200 @ 60Hz via one (1) Cat 5e/6 cable in a point-to-point configuration. The receive side includes a 4-port USB 2.0 hub, supporting KVM applications. Bi-directional IR transmission is supported.
Key Features
- Supports HDMI 4K @ 30fps (4:4:4)
- Supports HDMI 4K @ 60fps (4:2:0)
- Uncompressed signal transmission
- USB 2.0 (250Mbps max)
- Receiver side includes a 4-port USB hub, supporting KVM applications
- Up to 330ft (100m) over Cat5e/6 at 4K30
- Supports bi-directional IR transmission
Technical Specifications
Environment:
KVM, HDMI 1.4 & USB 2.0
Devices:
KVM, Monitors, TV, PC, laptops, mouse, keyboard
Transmission:
Transparent to the user
Bandwidth:
340 MHz
Signals:
HDMI 1.4 protocol and USB 2.0
USB:
One input on TX side and 4 outputs on RX side.
Bandwidth available: Up to 250 Mb/s
Connectors (Cables Not Included):
One (1) HDMI receptacle.
One (1) RJ45 for Cat 5e/6 unshielded or shielded twisted pair.
On TX: 1 standard USB connector, type B.
On RX: 4 standard USB connectors, type A
Maximum Distance:
Cat 5e/6: 330ft (100m) up to 1920 X 1200 resolution, up to 60Hz
330ft (100m) for 4K (3840 X 2160) up to 30Hz
Note: A minimum CAT5e/6 cable length of 12ft (4m) is required. When installed in an
electrically noisy environment, an STP cable must be used
RJ45 Pin Configuration:
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable:
One (1) Cat 5e/6 or better twisted pair cable required
Power Supply:
Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption:
Transmitter: 3 Watts Receiver: 7 Watts + USB power
Temperature:
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure:
Aluminum casting with plastic side panel
Dimensions:
4.50 x 3.00 x 1.25 (11.4 x 7.6 x 3.2 cm)
Weight:
2.6 lb. (1.2 kg)
Compliance:
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty:
2 years
