MXL AC-360-A USB Conference Microphone with 360 Degree Coverage

MXL AC-360-A USB Conference Microphone

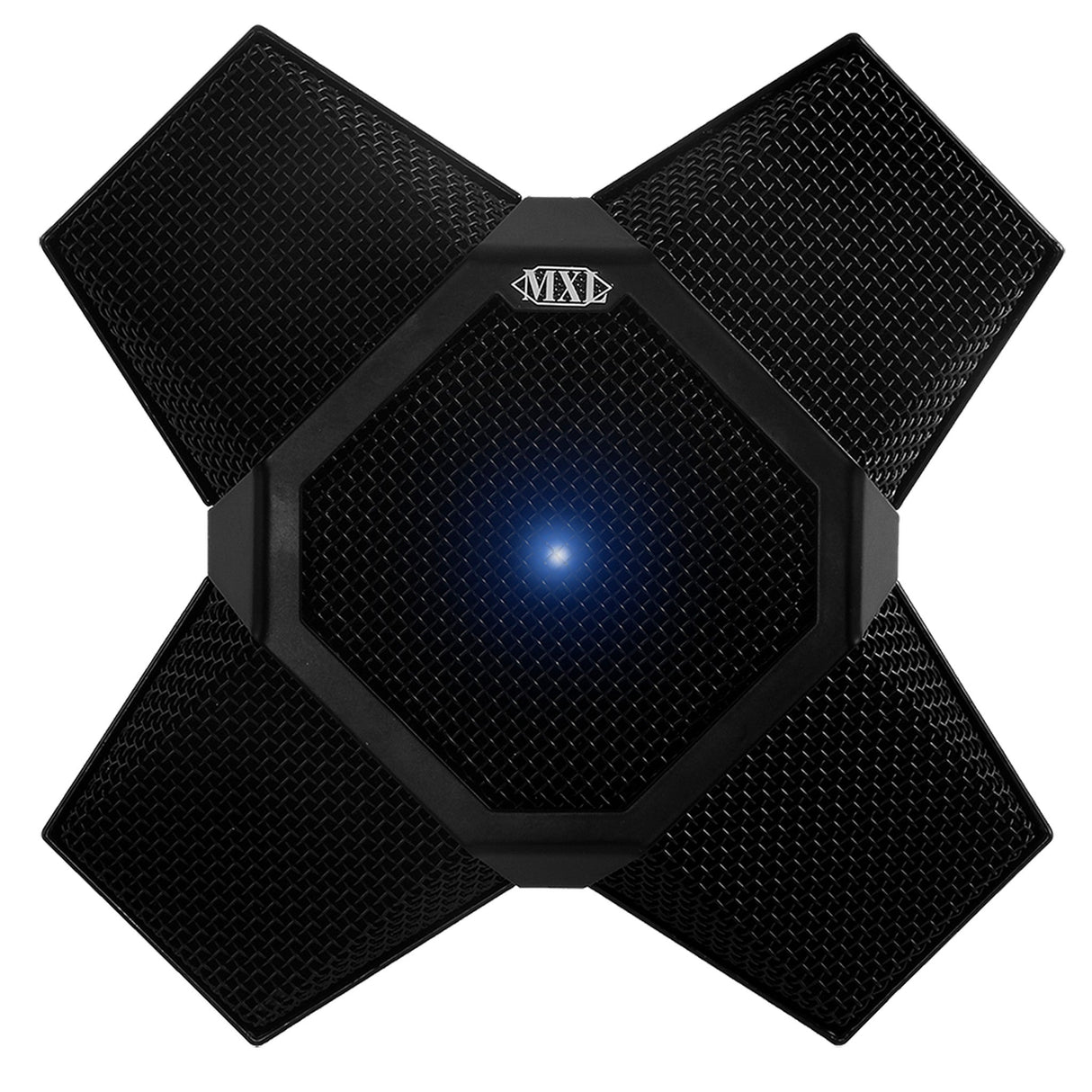

The MXL AC-360-A USB Conference Microphone is a 360-degree microphone array designed to capture speech throughout professional meeting rooms. Twelve internal microphone capsules arranged across four quadrants provide coverage across a 25' diameter, while the array captures speech from participants positioned up to 5' away in any direction.

Designed for conference rooms, collaborative workspaces, and remote meetings, the AC-360-A offers plug-and-play operation with Microsoft Teams, Zoom, and Google Meet without requiring additional drivers. USB bus power keeps setup straightforward, while the compact all-metal enclosure works as a standalone conferencing microphone for tabletop installations where broad room coverage is required.

For larger meeting spaces, multiple units can be expanded through daisy-chain connections using standard 3.5mm TRS cables. Removable rubber feet and mounting pads support tabletop placement, while an optional AC-360-CM adapter enables ceiling installation. These flexible mounting and expansion options allow the microphone system to accommodate different conference-room layouts and installation requirements.

Key Features

• 360-Degree Coverage: Captures participants around the conference table with coverage across a 25' diameter.
• 12-Capsule Microphone Array: Uses twelve internal capsules arranged across four quadrants for room-wide speech pickup.
• Up to 5' Speech Pickup: Captures speech from participants positioned up to 5' away in any direction.
• USB Plug-and-Play Operation: Connects as a bus-powered USB conference microphone without requiring additional drivers.
• Conference Platform Compatibility: Supports use with Microsoft Teams, Zoom, and Google Meet.

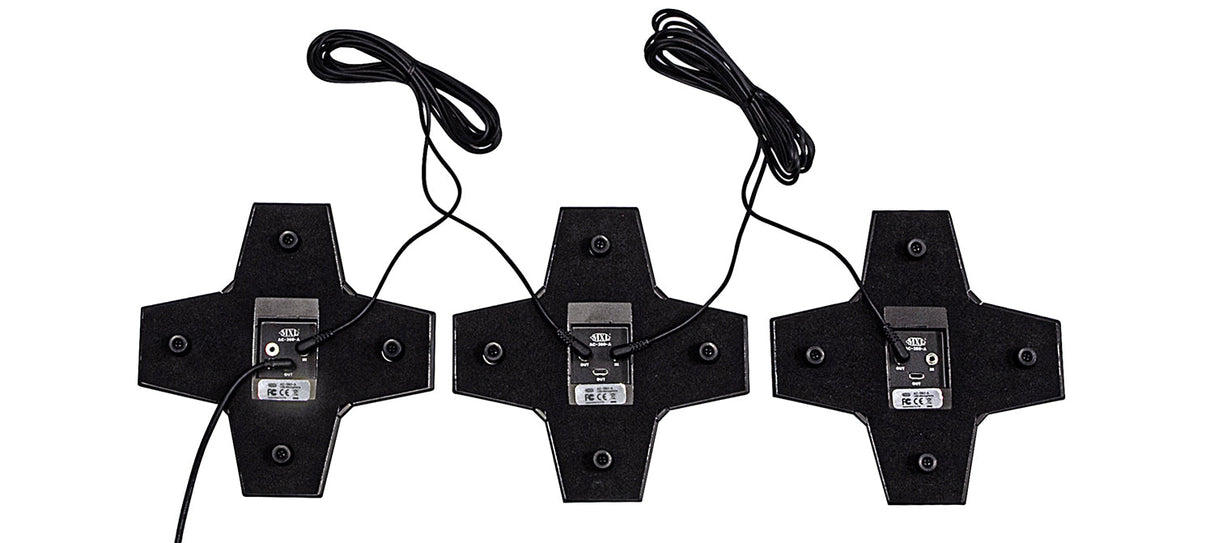

• Daisy-Chain Expansion: Connects multiple units through standard 3.5mm TRS cables for larger meeting spaces.
• Flexible Tabletop Placement: Includes removable rubber feet and mounting pads for conference-table installation.
• Optional Ceiling Mounting: Supports overhead installation with the optional AC-360-CM mounting adapter.

Technical Specifications

• Product Type: USB Conference Microphone
• Microphone Array: 12 internal microphone capsules
• Array Configuration: 4 quadrants
• Coverage Pattern: 360 degrees
• Coverage Diameter: 25'
• Speech Pickup Distance: Up to 5' in any direction
• Computer Connection: USB
• Power: USB bus powered
• Expansion Connection: 3.5mm TRS
• Expansion: Daisy-chain capable
• Software Compatibility: Microsoft Teams, Zoom, Google Meet
• Driver Requirement: No additional drivers required
• Construction: All-metal enclosure
• Tabletop Installation: Removable rubber feet and mounting pads
• Ceiling Installation: Compatible with optional AC-360-CM adapter
