Napco NA-1 NA Series Single-Door Smart Access Controller
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

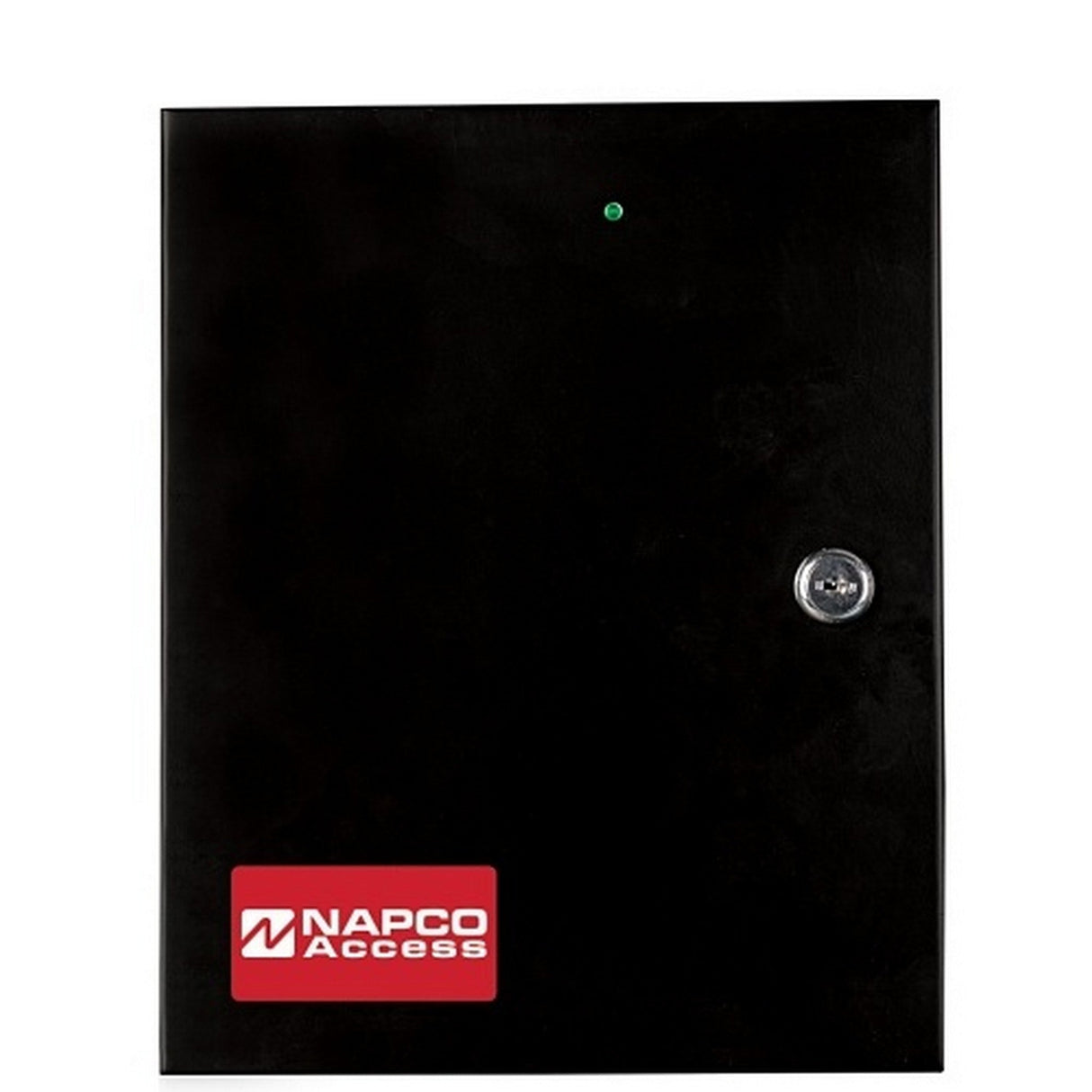

Napco NA-1 NA Series Single-Door Smart Access Controller
The Napco NA-1 NA Series Single-Door Smart Access Controller is a cloud-ready one-door access control panel for MVP Access and MVP EZ systems. It supports local access decisions, Wiegand and OSDP-compatible readers, built-in Ethernet, and up to 12,500 cardholders for scalable single-door security control.
Built for professional security integrators, the NA-1 fits single-door access control upgrades, commercial entry points, small facilities, and distributed multi-site deployments. Buyers looking to install a cloud-ready access controller, expand Napco MVP access control, or manage one secured door can configure and control the panel through compatible MVP platforms.
The NA-1 combines mobile-friendly setup with practical field wiring support, including door position, request-to-exit, alarm input, and Form-C relay connections. Its 12VDC operation, AES 128-bit encryption, 16MB flash memory, and onboard Ethernet interface support reliable access management in professional security environments.
Key Features
- Single-Door Control: Manages one secured door for commercial access control installations.
- MVP Cloud Ready: Works with MVP Access and MVP EZ platforms for compatible cloud-based control.
- Large Credential Capacity: Stores up to 12,500 cardholders for scalable access management.
- Reader Compatibility: Supports one five-wire Wiegand reader input and one OSDP V1/RS485 reader connection.
- Built-In Ethernet: Includes a 10/100Base-T Ethernet interface for network connectivity and updates.
- AES Encryption: Uses AES 128-bit encryption for secure system communication.
- Flexible Inputs: Includes door position, request-to-exit, alarm, and supervised input support.
- Backup Power Support: Supports a 4AH backup battery for standby operation when installed.
Technical Specifications
- Product Name: Napco NA-1 NA Series Single-Door Smart Access Controller
- Manufacturer: Napco Security Technologies
- Manufacturer Part Number: NA-1
- ADI Part Number: NA-NA1
- Product Series: NA
- Product Type: Single-door access control panel
- Door Capacity: 1 door
- Cardholder Capacity: 12,500 cardholders
- Access Groups: 1,000
- Event Transaction Buffer: 625 events
- Time Schedules: 256
- Memory: 16MB flash
- Reader Input: 1 Wiegand reader input, five wire
- OSDP Connection: 1 OSDP V1/RS485 reader connection
- Door Position Input: 1
- Request-to-Exit Input: 1
- Alarm/Supervised Input: 1
- Relay: Form-C relay
- Network Interface: Built-in 10/100Base-T Ethernet
- Encryption: AES 128-bit
- Reader Power: 12VDC at 200mA total
- Power Supply: 12VDC
- Backup Battery Support: 4AH battery support
- Standby Power: Up to 4 hours with maximum reader load
- Standby Power with EM Locks: Up to 2 hours with maximum reader load and 800mA EM locks
- Real-Time Clock Battery: Replaceable 3V lithium battery
- Compliance: UL/ETL standards
- Dimensions: 8.25" L x 3" W x 10.1875" H
- Weight: 4 lbs, not including battery
