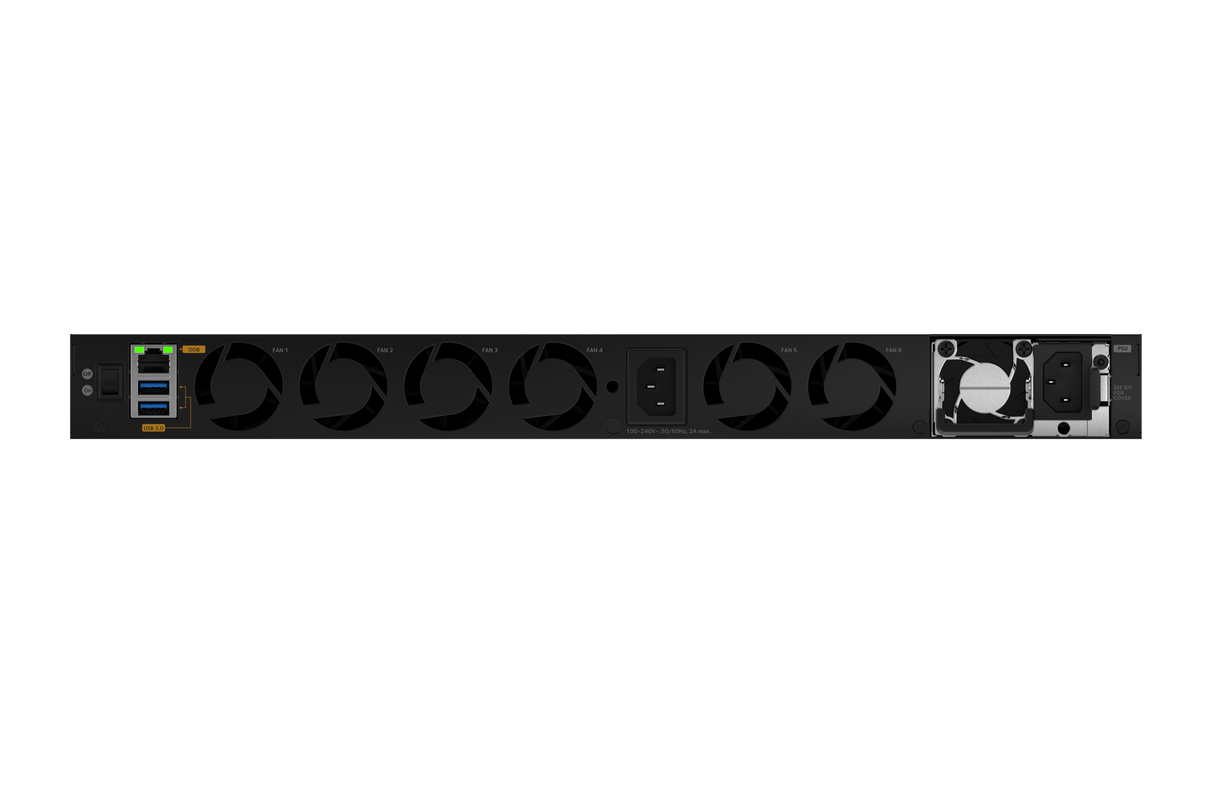

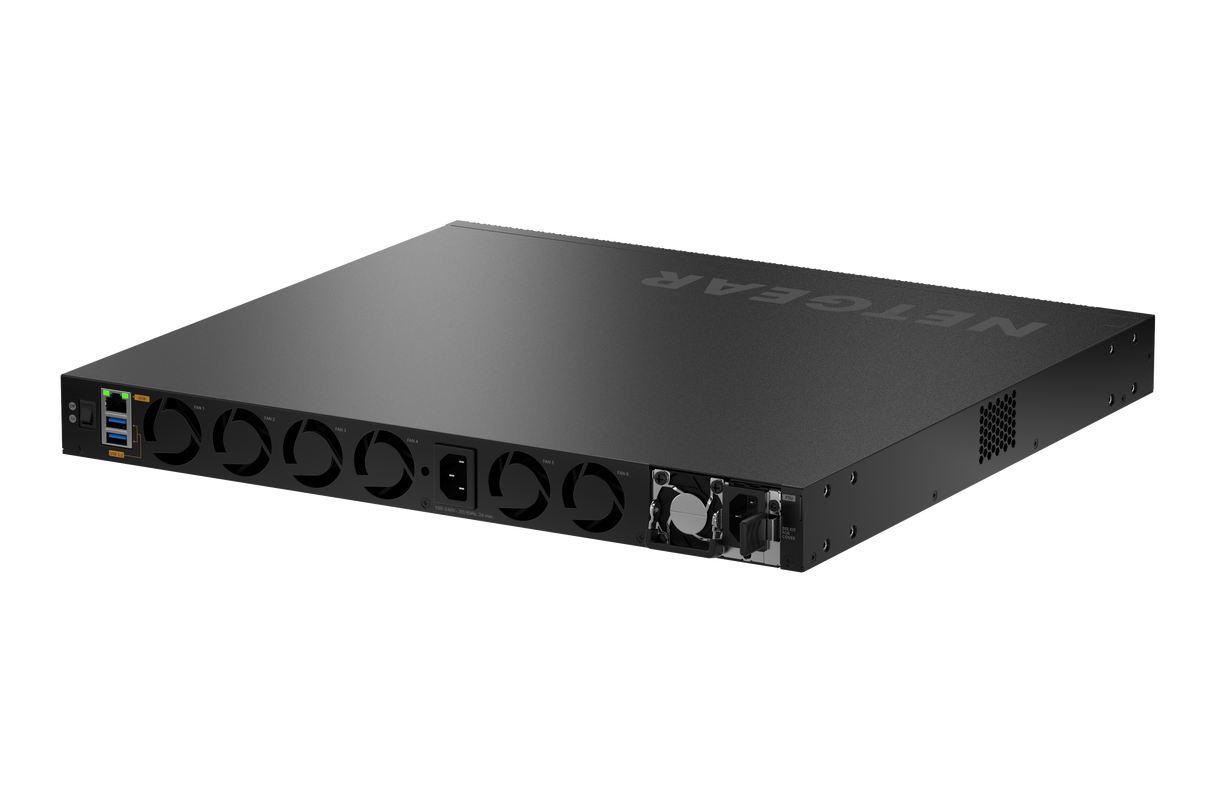

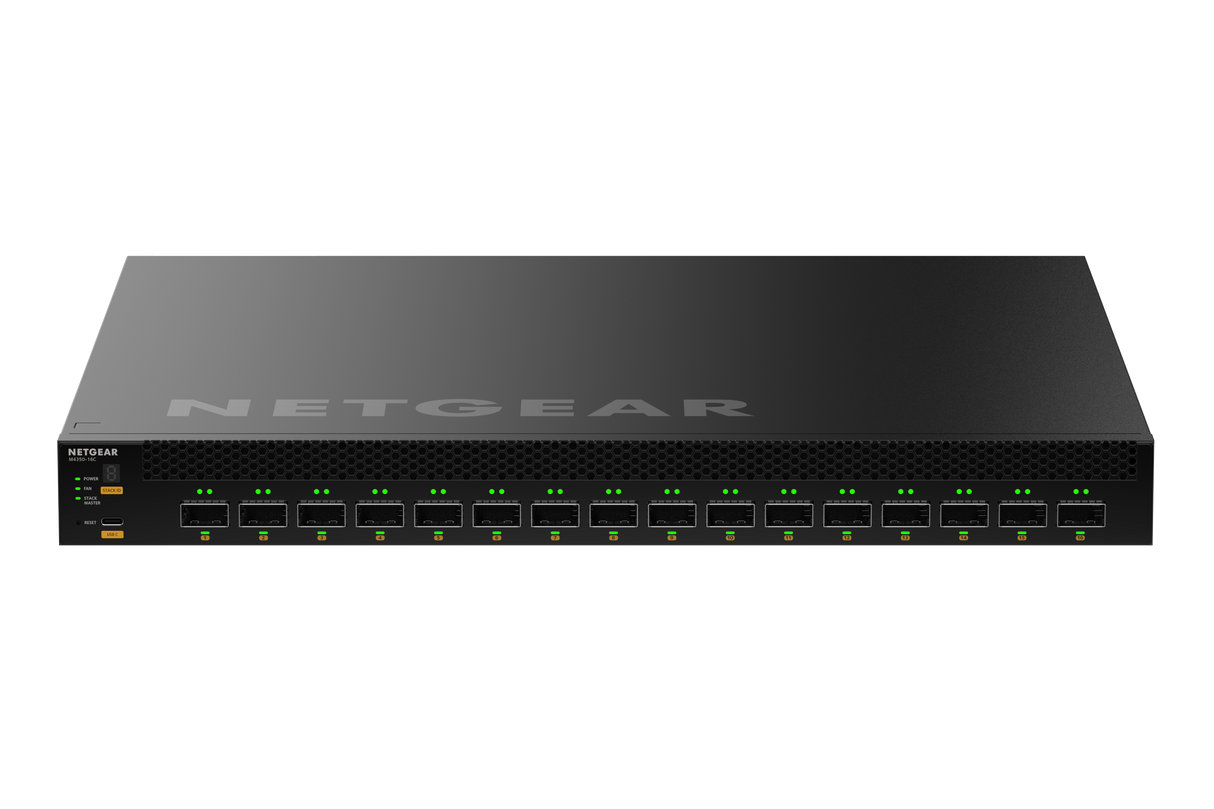

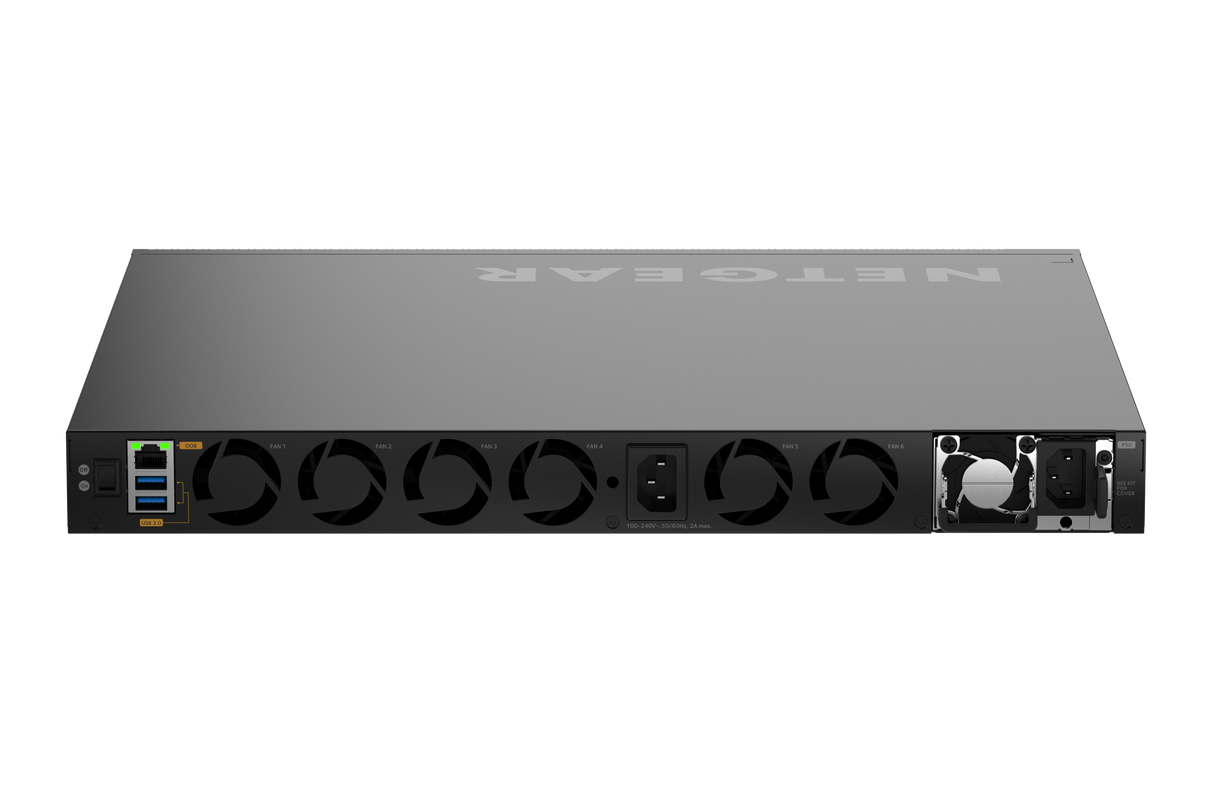

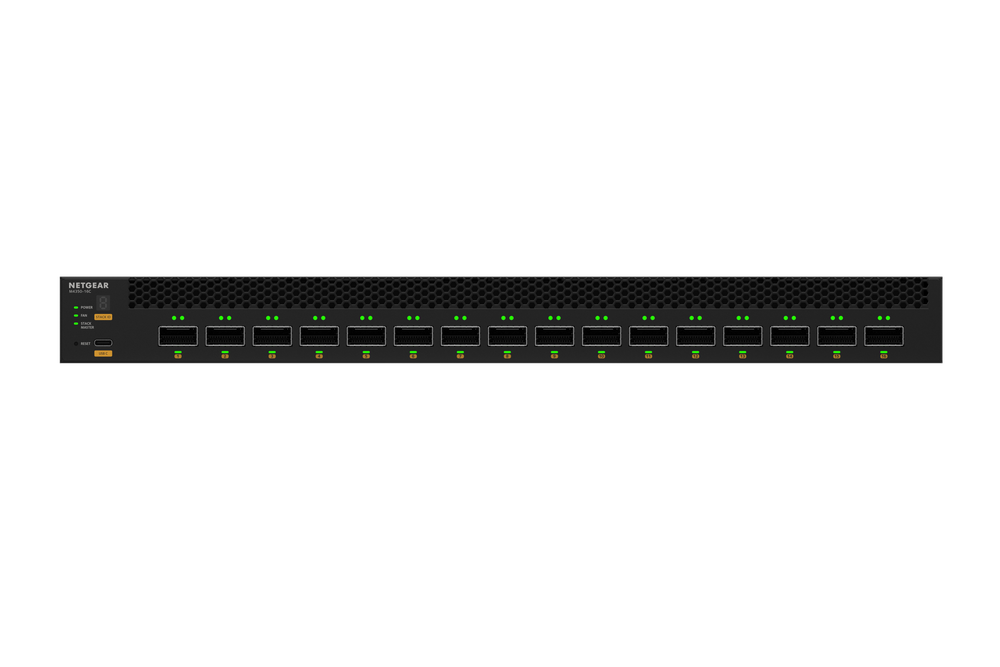

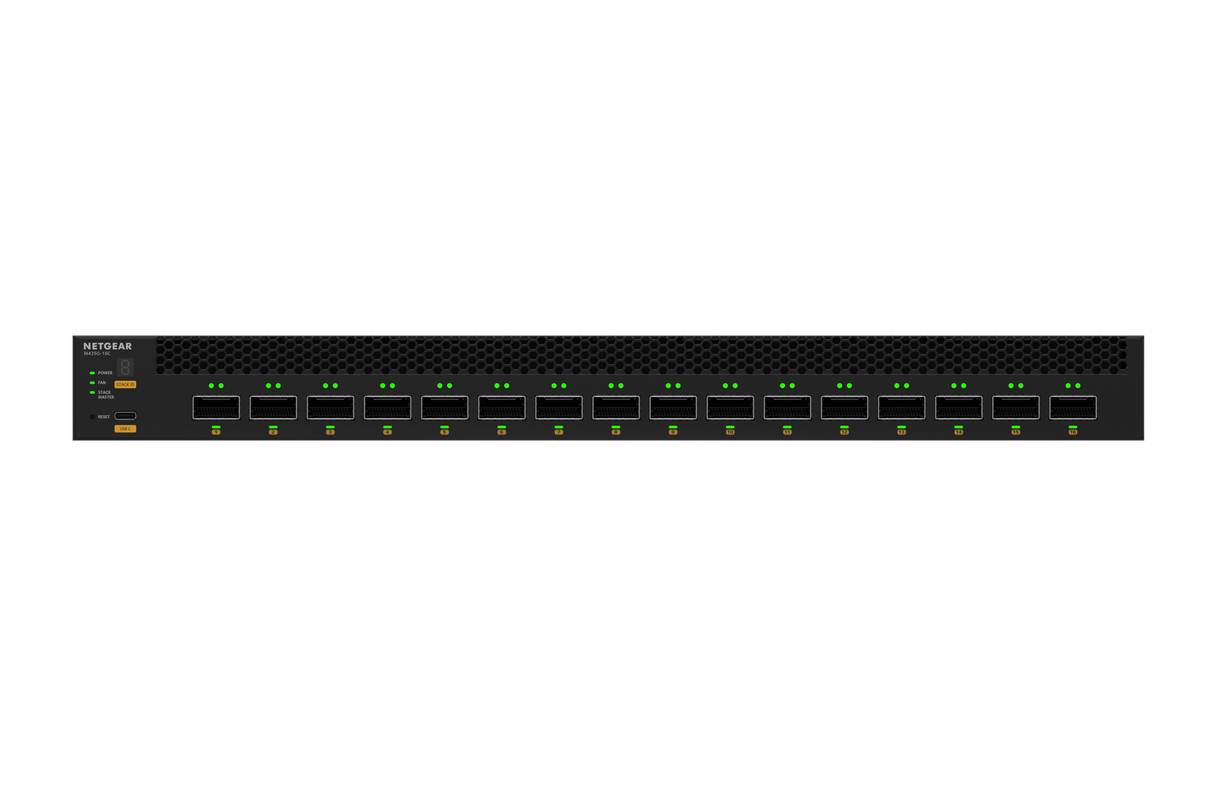

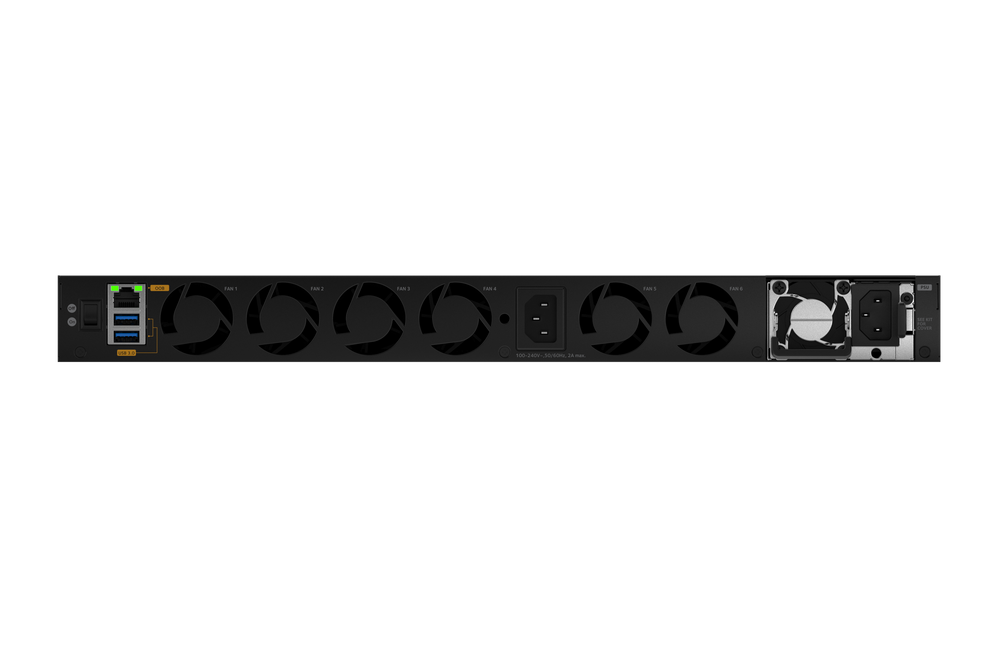

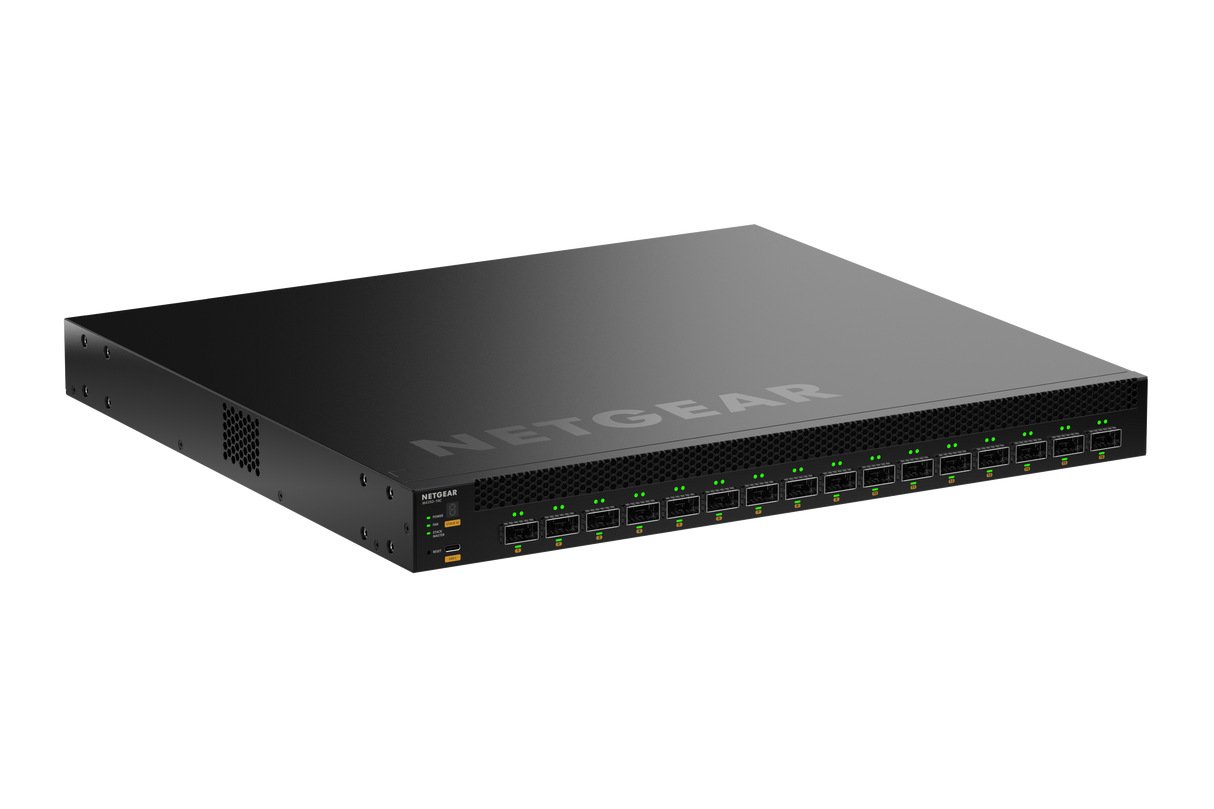

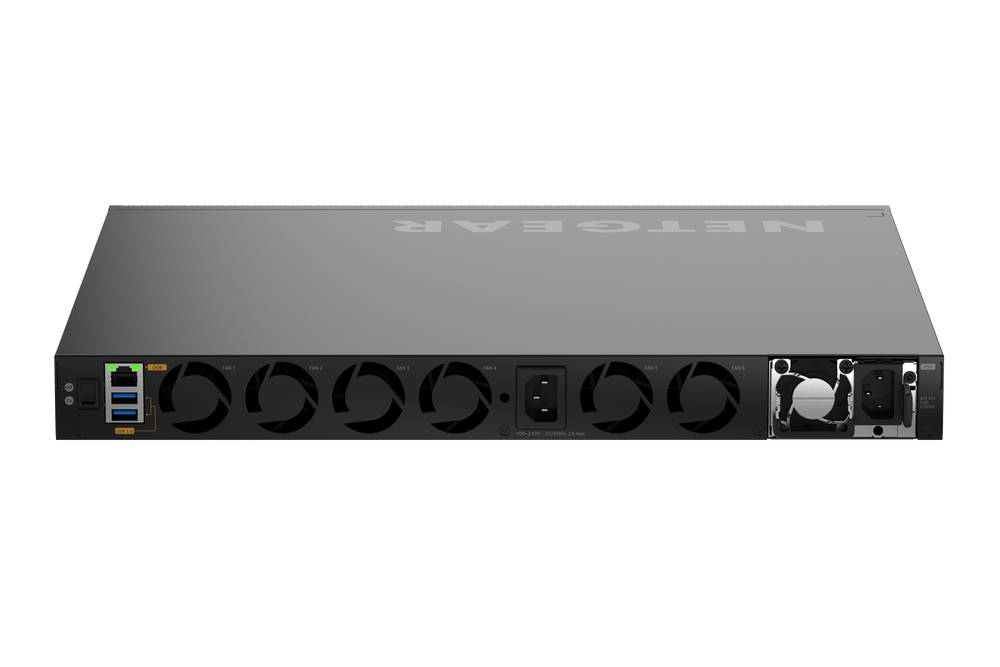

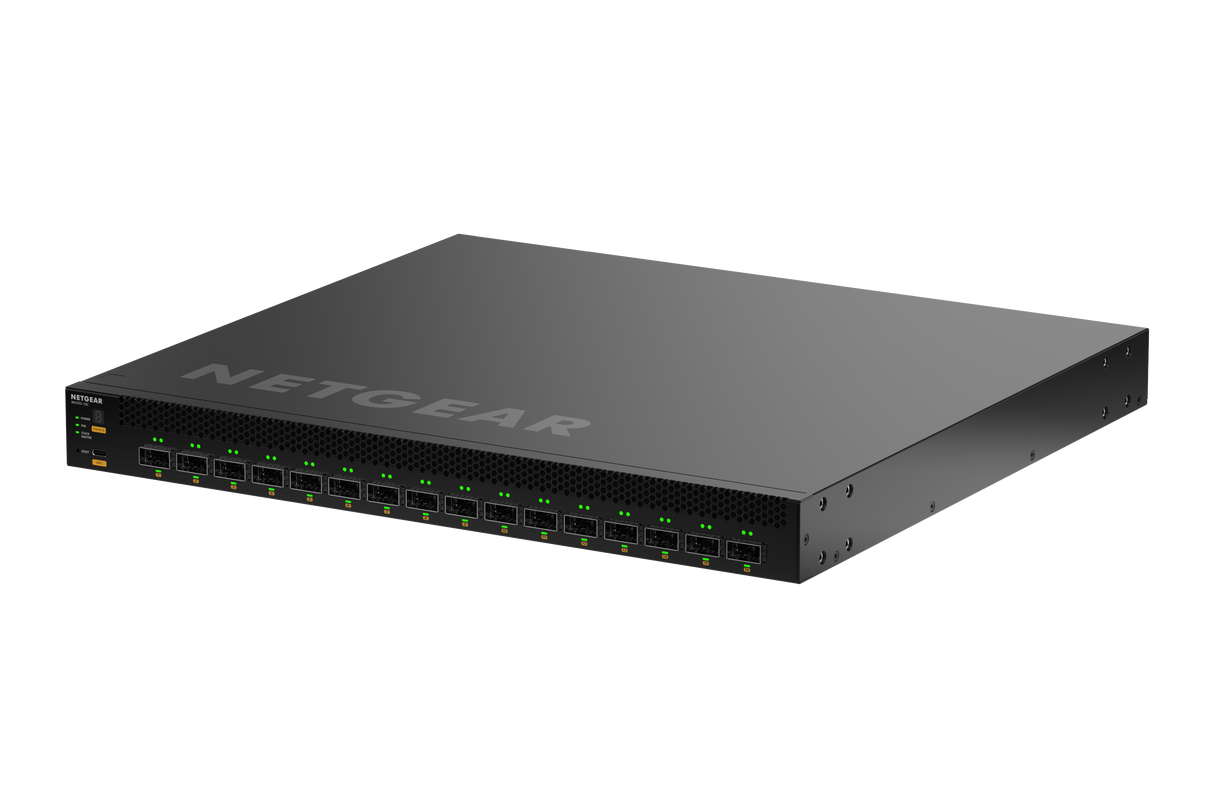

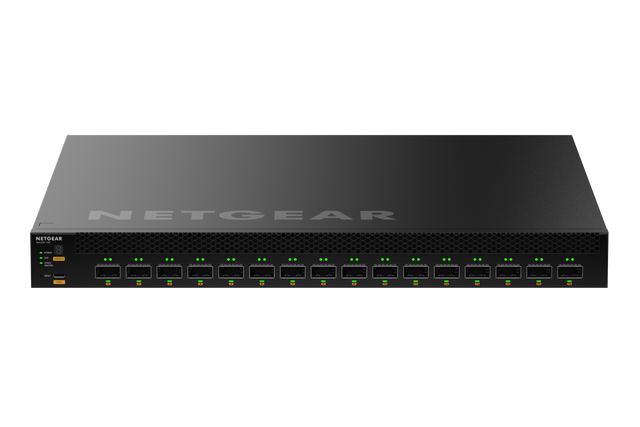

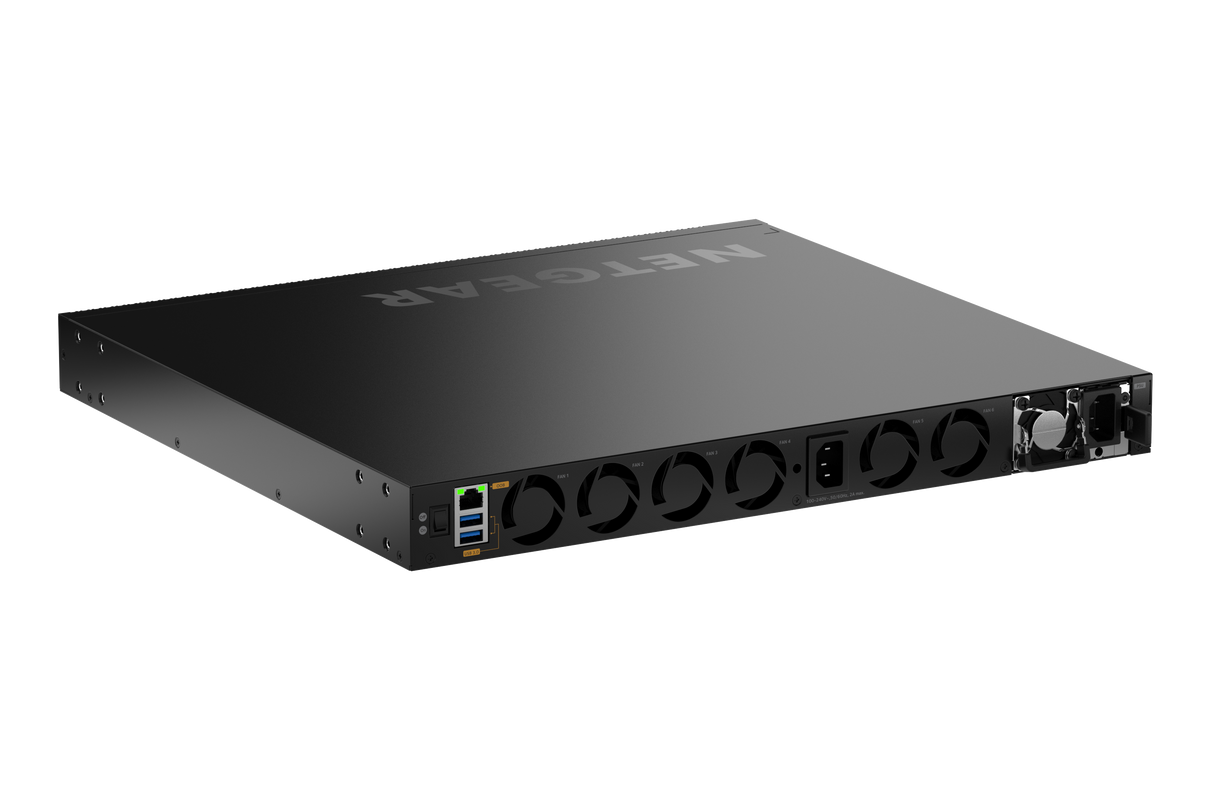

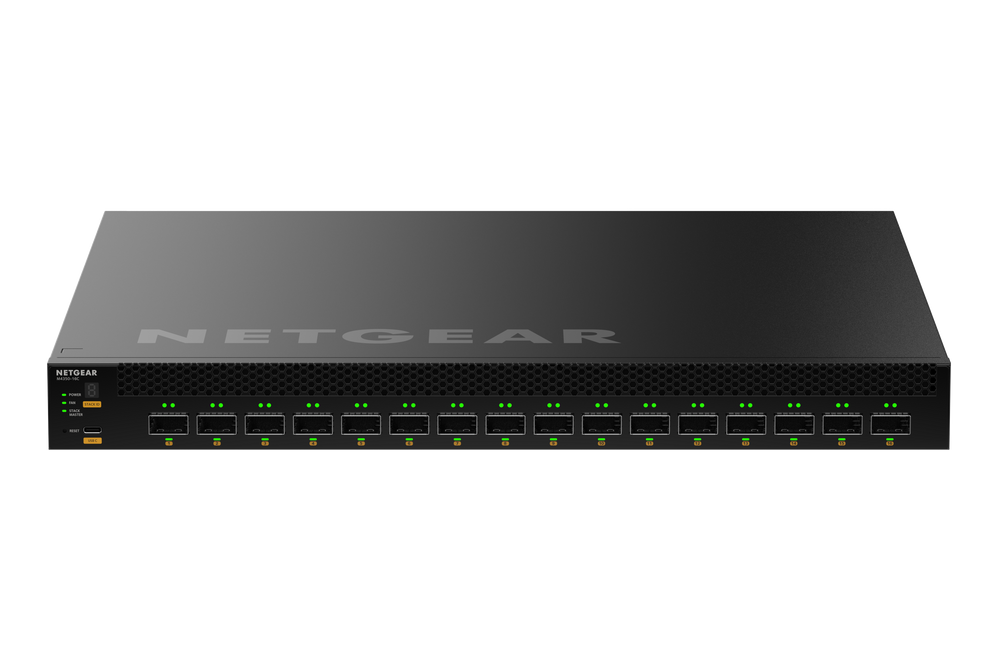

NETGEAR CSM4316 16x 100G QSFP28 Fully Managed Switch
The NETGEAR CSM4316 is a fully managed switch providing sixteen 100G QSFP28 ports for core duty in demanding AV-over-IP and broadcast networks. Part of the M4350 line, it pairs high throughput with AV-focused tooling, letting integrators stand up multicast-heavy video and audio systems without lengthy manual switch configuration.
NETGEAR IGMP Plus enables multicast out of the box, while NETGEAR AV OS, certified port profiles, and the Engage Controller speed installations; SMPTE ST 2110 grandmaster and boundary clock support covers AES67 and ST 2059-2 timing applications. A 420 W internal supply gains 1+1 redundancy through a modular PSU slot, Virtual Chassis stacking delivers non-stop forwarding with hitless failover, and Layer 3 routing spans static, policy-based, and dynamic.
Key Features
- 16 x 100G QSFP28 ports in a fully managed platform
- SMPTE ST 2110 Grandmaster and Boundary Clock for AES67 and ST 2059-2
- NETGEAR IGMP Plus multicast functionality out of the box
- NETGEAR AV OS with certified profiles and Engage Controller support
- 420 W internal PSU plus slot for 1+1 redundant modular supply
- Virtual Chassis stacking with non-stop forwarding and hitless failover
- ProSAFE Limited Lifetime Warranty with next business day replacement
Specifications
- Width: 440mm
- Depth: 400mm
- Height: 43.2mm
- Weight: 8.03kg (17.70lb)
- Primary Port Speed: 100 Gigabit
- Number of Ports: 16 (16 x 100G QSFP28)
- IGMP Support: Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support: Yes, up to 12kb
- AVB Support: Yes, included.
- Acoustics: Quiet Mode 30.4dB@25ºC
- Power Consumption Maximum: 161.9W/552.40Btu/hr
- Standby (no port connection): 69.1W/235.43Btu/hr
- PSU Compatible Models APS600Wv3A
- APS1200Wv2
- APS2000Wv2
What's Included
- 1x M4350-16C (CSM4316)
- 1x Power cord(s)
- 1x Console USB Type-C cable
- 1x Rack-mounting standard bracket set
- 1x Set of longer brackets for recessed mounting
- 4x Rubber footpads for tabletop installation
- 1x Installation guide
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase.
