Description

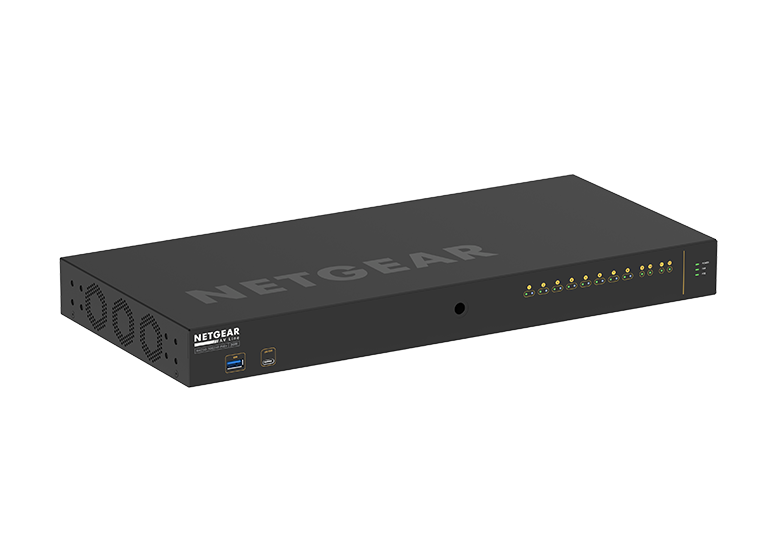

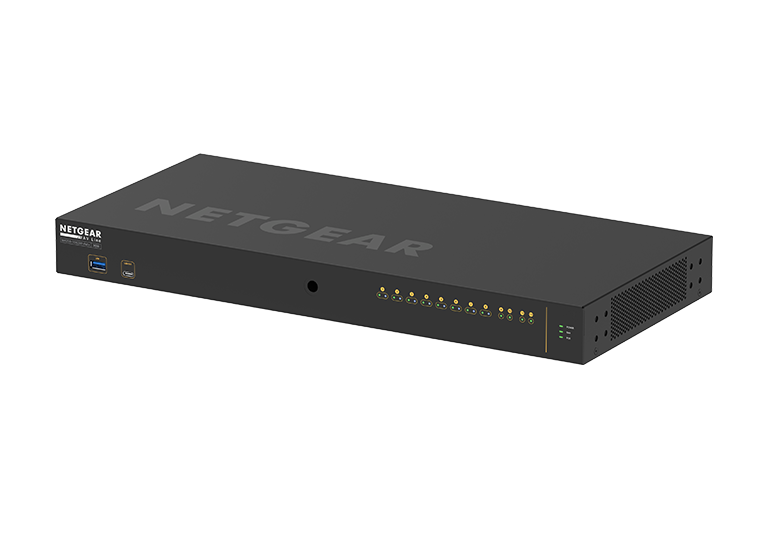

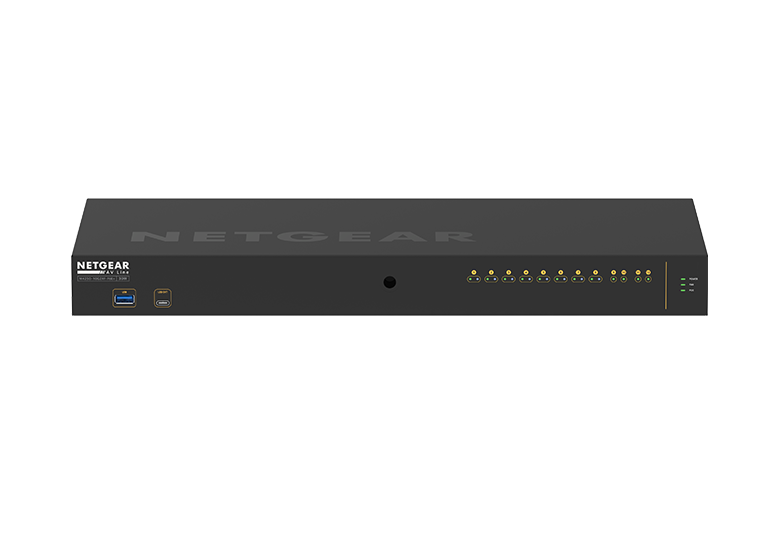

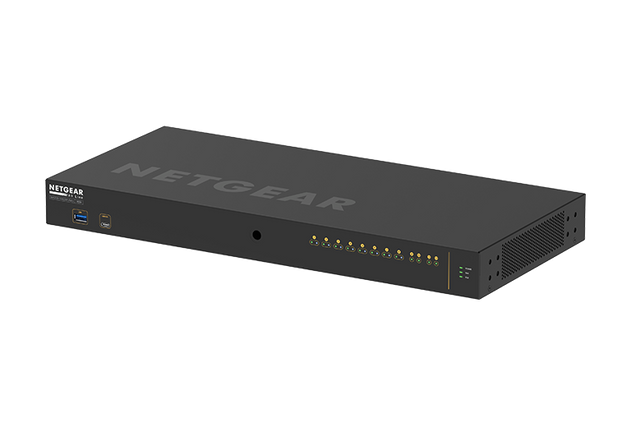

NETGEAR M4250-10G2XF-PoE+ AV Switch
NETGEAR's M4250-10G2XF-PoE+ comes from the AV Line of M4250 switches, engineered specifically for AV-over-IP at the widespread 1Gbps codec tier. With ten 1G ports, two SFP slots, and eight PoE+ ports sharing a 240W budget, it fits compact installs where preconfigured audio and video profiles for Dante, Q-SYS, AES67, NVX, NDI, and more shorten commissioning time.
A dedicated web-based AV GUI applies color-coded, port-based profiles, while IGMP Plus automates multicast when multiple M4250, M4300, or M4500 switches interconnect. The shared Layer 2 and Layer 3 engine adds static, RIP, and PIM routing, DHCP Server, and PTPv2, and AVB transmission is enabled by an emailed activation key, included at no extra cost since the November 2023 firmware. The switch runs fanless or at 39.22dB.
Key Features

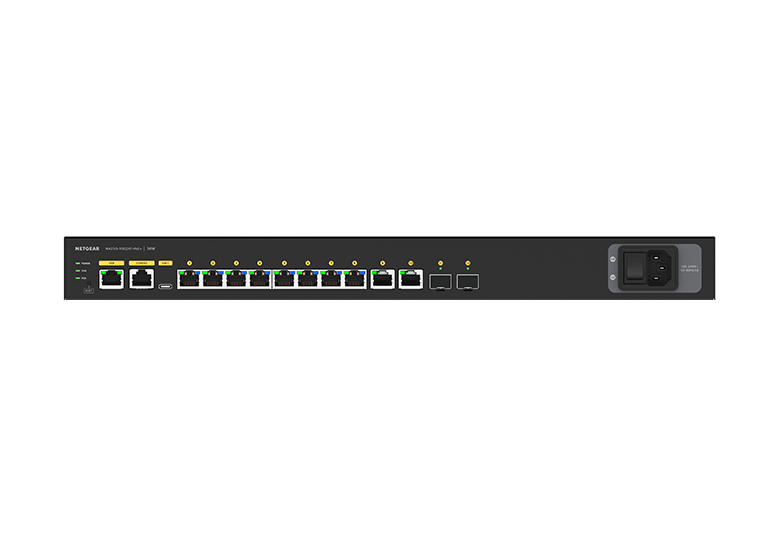

- 12 ports: 10x 1G plus 2x SFP, with 8 PoE+ ports at 30W per port
- 240W total PoE budget for cameras, encoders, and powered AV endpoints
- Preset AV profiles for Dante, Q-SYS, AES67, NVX, SVSI, NDI, and mixed signals
- IGMP Plus automates multicast across connected M4250, M4300, and M4500 switches
- AVB support via electronic license, included at no added cost since November 2023 firmware
- Layer 3 features include static, RIP, and PIM routing, DHCP Server, and PTPv2
- Fanless operation or 39.22dB acoustics with standard or recessed mounting
Specifications
- Dimensions (WxDxH) : 440 x 200 x 43.2mm
- Weight : 2.9Kg (6.39lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 12 (10x 1G, 2x SFP)
- PoE Ports / Budget : 8 PoE+ (30W/port), 240W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 39.22dB@25ºC
- Power Consumption : With PoE: 306.4W/1046.050Btu/hr; Without PoE: 25W/85.35Btu/hr; Standby without any port connection: 12.96W/44.245Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212PX-10000S)
- Now with AVB License! New M4250 firmware released in Nov 2023 includes the ability to transmit AVB at no additional cost
- PHYSICAL SPECIFICATION
- TECHNICAL SPECS
What's Included
- M4250-10G2XF-PoE+ (GSM4212PX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
