Description

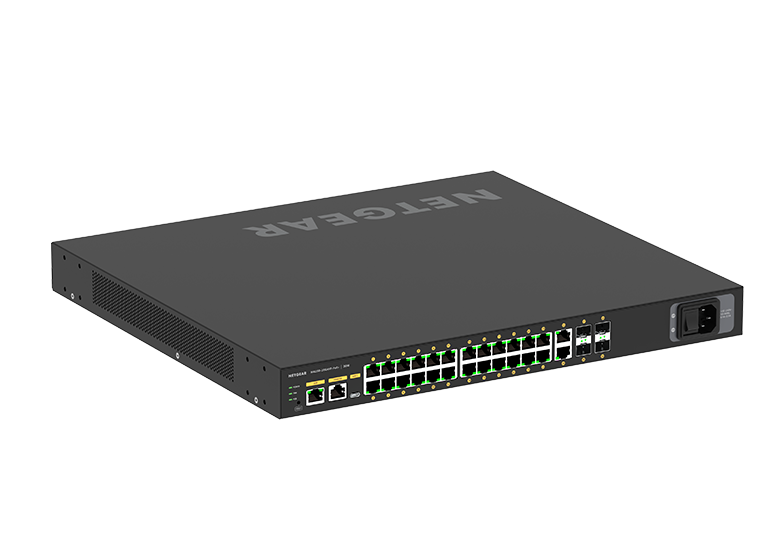

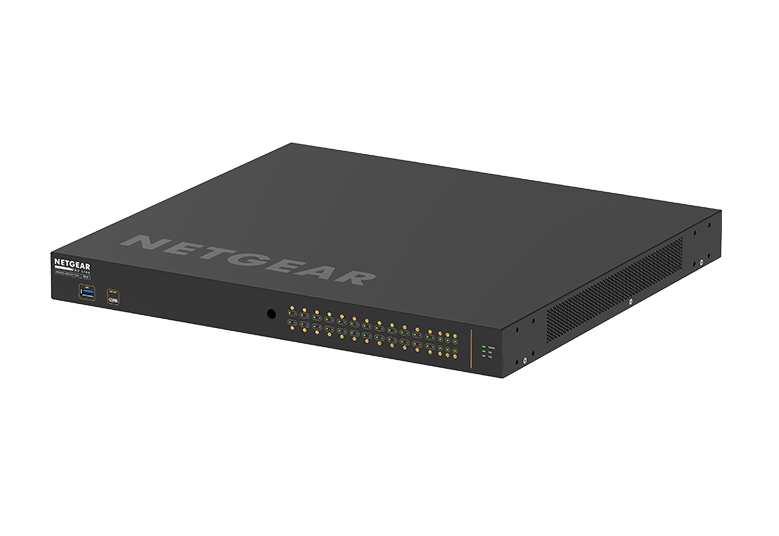

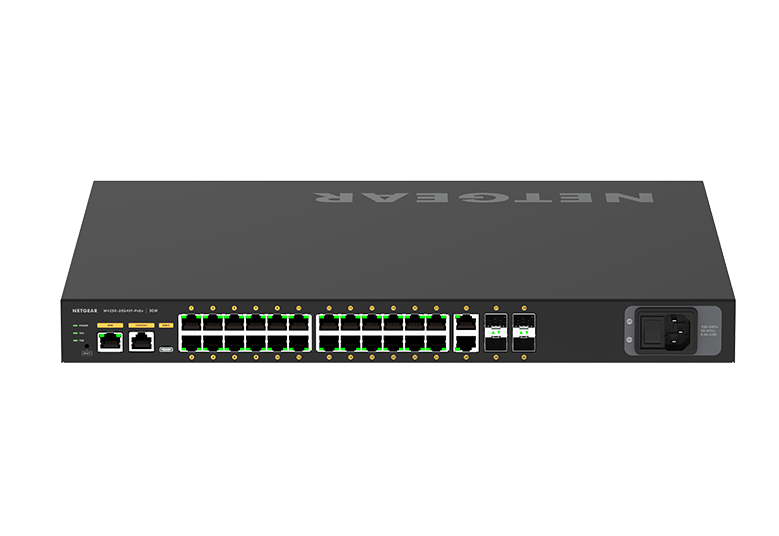

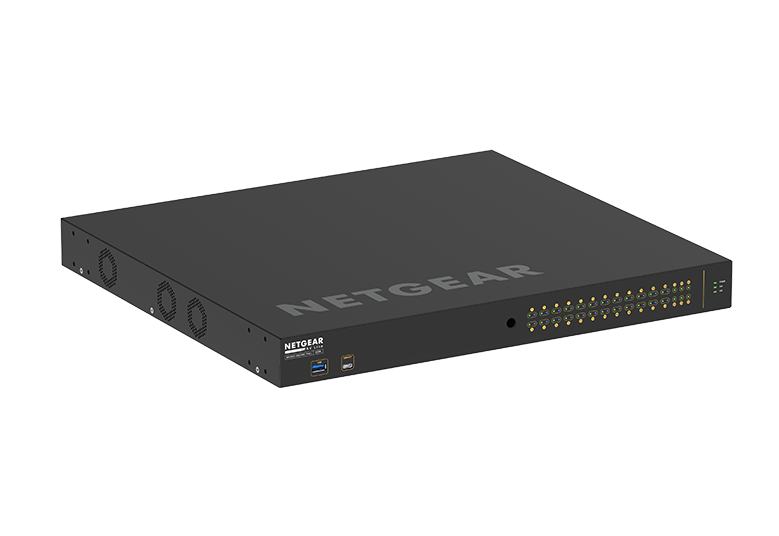

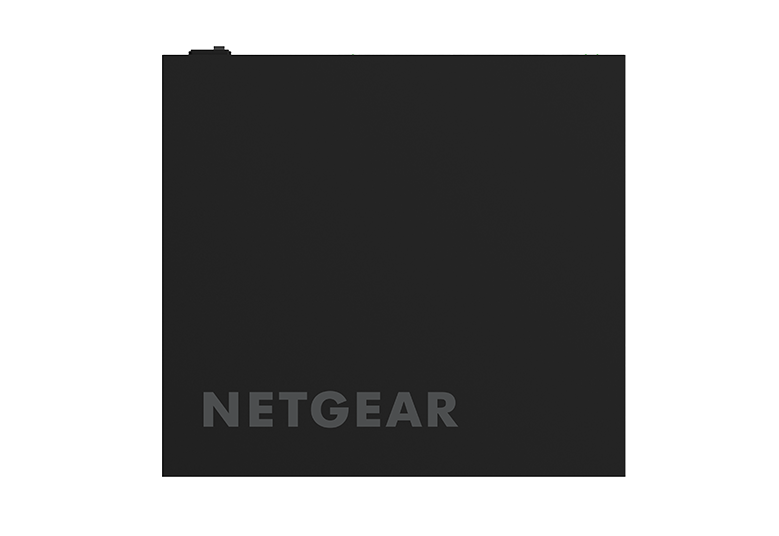

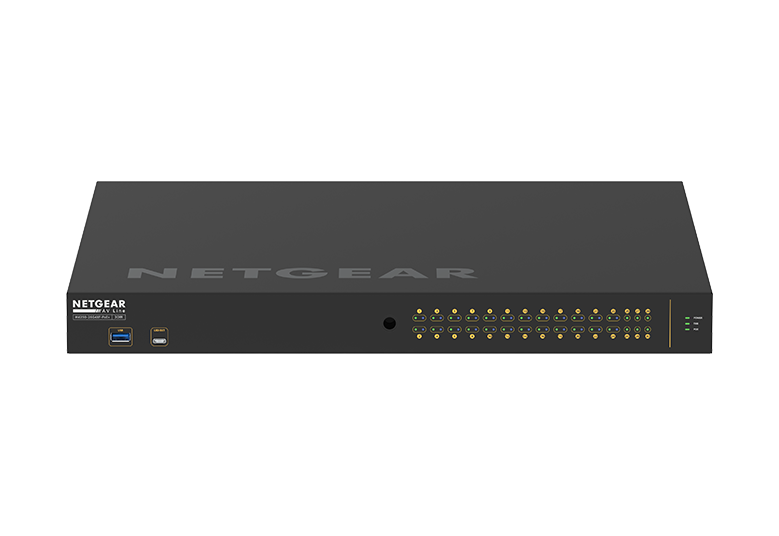

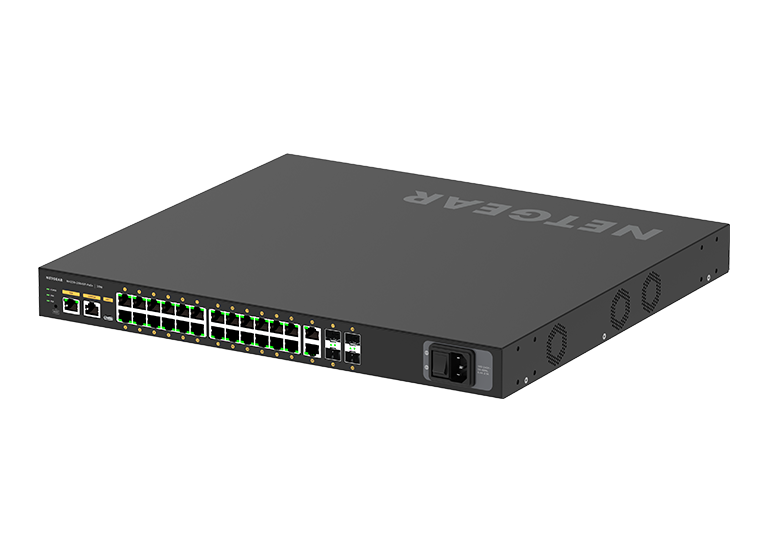

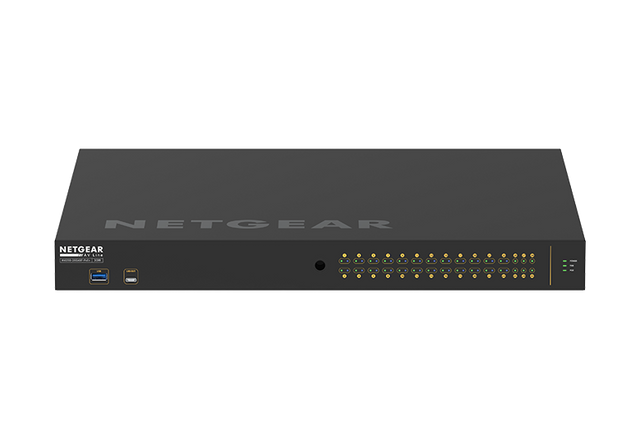

NETGEAR M4250-26G4XF-PoE+ Managed Switch
The M4250-26G4XF-PoE+ is a mid-size member of NETGEAR's AV Line, purpose-built for AV-over-IP systems running 1Gbps codecs. Twenty-four 1G PoE+ ports with a 480W budget power cameras, decoders, and control hardware, while two additional 1G ports and four SFP+ slots handle uplinks. It suits conference centers, houses of worship, and venues standardizing on networked audio and video.
Ports arrive preconfigured for standard AV signals, and the dedicated AV GUI assigns color-based profiles covering Dante, Q-SYS, and AES67 audio plus NVX, SVSI, NDI, and Dante video. IGMP Plus interconnects multiple switches automatically alongside Auto-Trunk and Auto-LAG. The common Layer 2 and Layer 3 engine provides static, RIP, and PIM routing, DHCP Server, and PTPv2, with AVB enabled by an electronic license included following the November 2023 firmware.
Key Features
- 30 ports: 24x 1G PoE+, 2x 1G, and 4x SFP+ uplinks
- 480W PoE budget at 30W per port across 24 PoE+ ports
- Color-based AV profiles for Dante, Q-SYS, AES67, NVX, SVSI, and NDI
- IGMP Plus, Auto-Trunk, and Auto-LAG automate multi-switch interconnect
- Layer 3 feature set with static, RIP, and PIM routing, DHCP Server, and PTPv2
- AVB transmission included at no added cost since November 2023 firmware
- Fanless operation or 42dB acoustics; standard or recessed rack mounting
Specifications
- Dimensions (WxDxH) : 440 x 400 x 43.2 mm
- Weight : 5.45 kg (12.02lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
- PoE Ports / Budget : 24 PoE+ (30W/port), 480W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230PX-10000S)
- Acoustics : Fanless or 42dB@25ºC
- TBD Power Consumption : -With PoE: 614W/2096.2Btu/hr -Without PoE: 46.8W/159.78Btu/hr -Standby without any port connection: 33.9W/115.73Btu/hr
- Now with AVB License! New M4250 firmware released in Nov 2023 includes the ability to transmit AVB at no additional cost
- PHYSICAL SPECIFICATION
- TECHNICAL SPECS
What's Included
- M4250-26G4XF-PoE+ (GSM4230PX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
