NETGEAR M4350-24F4X (MSM4328F) 24x1G/2.5G SFP and 4x10G Combo Copper / SFP+ Fully Managed Switch

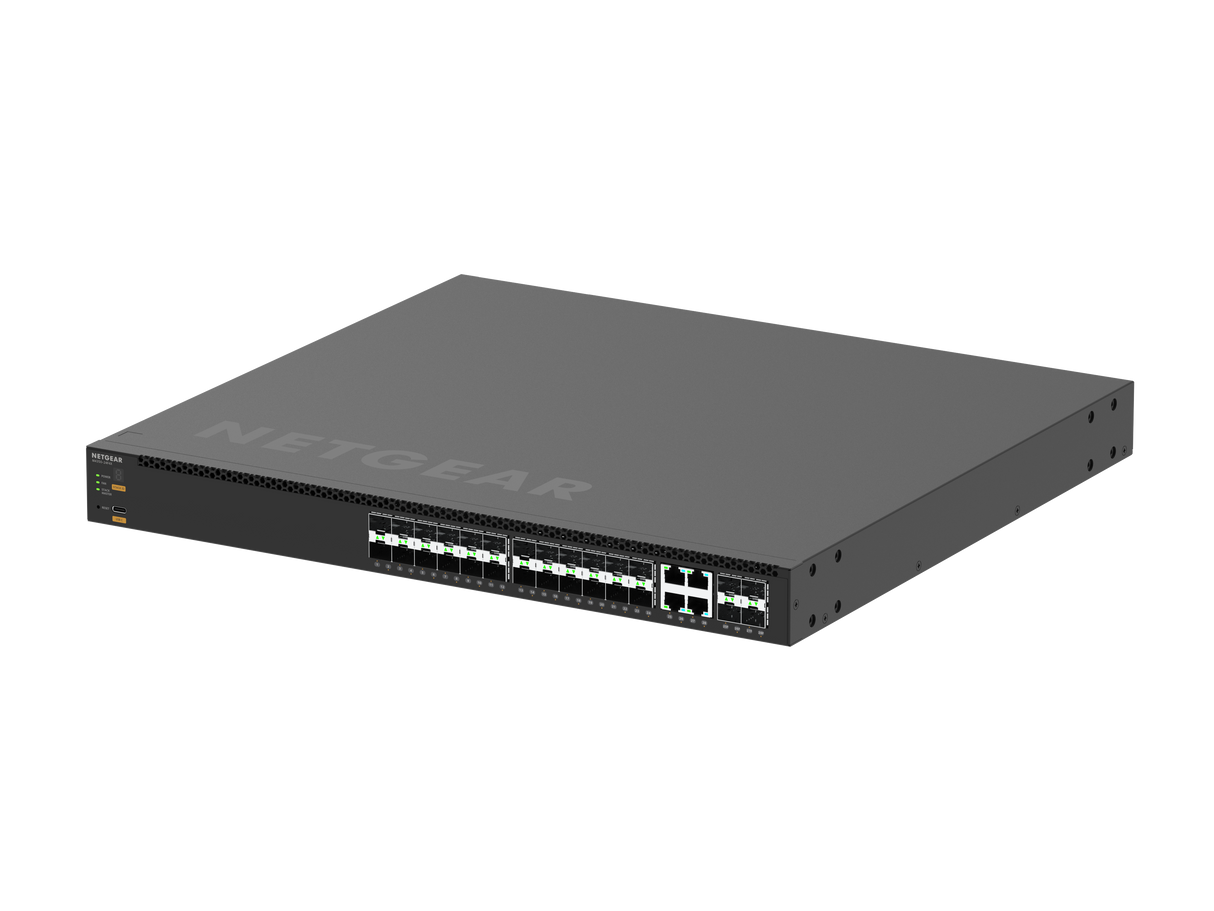

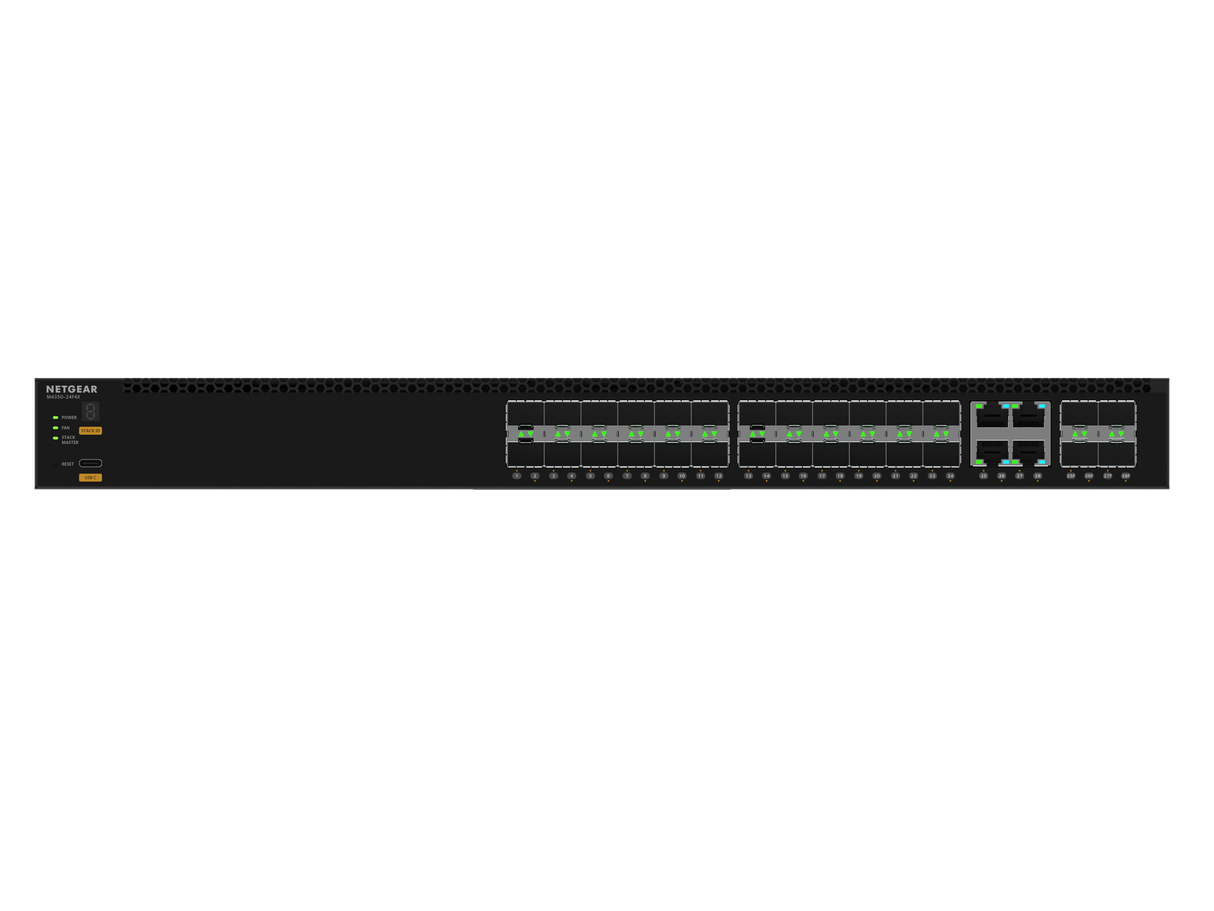

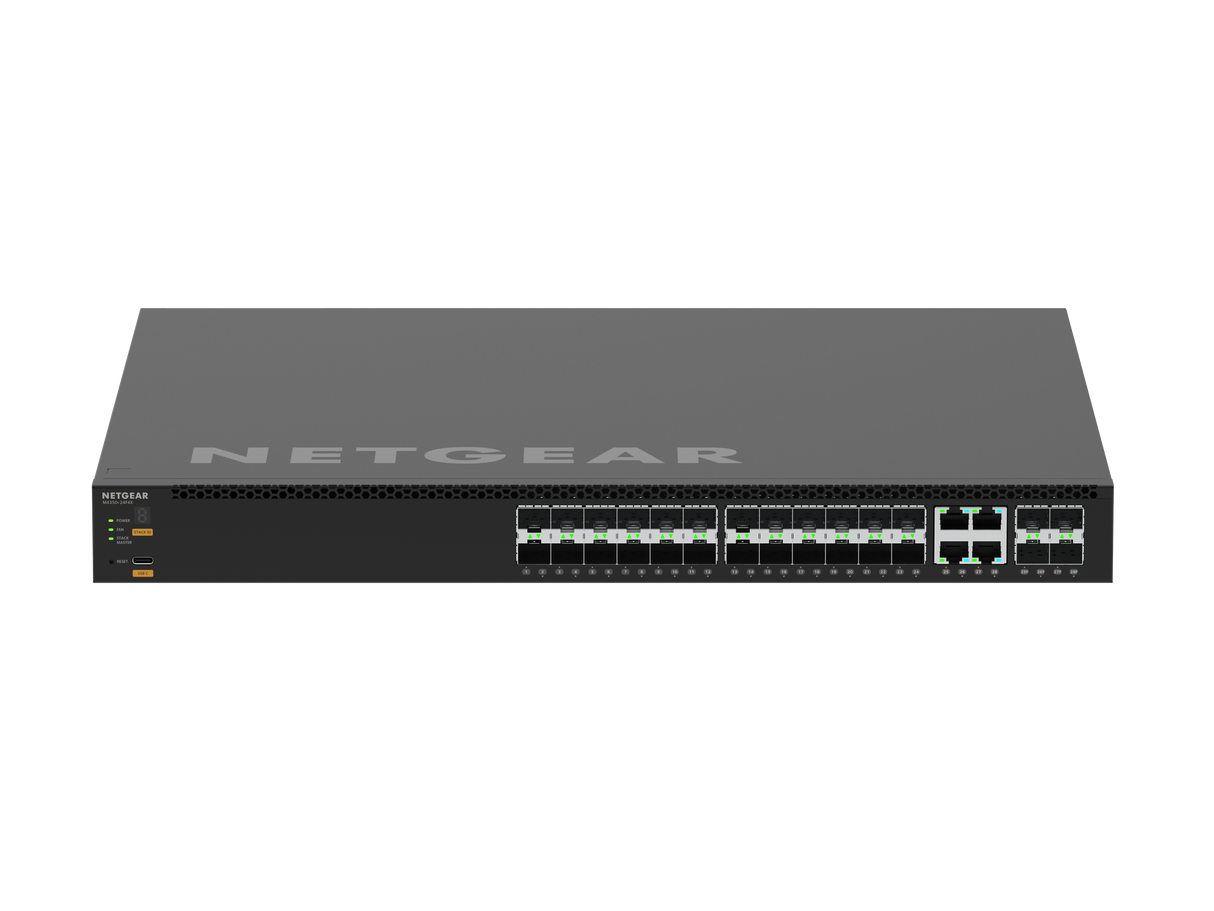

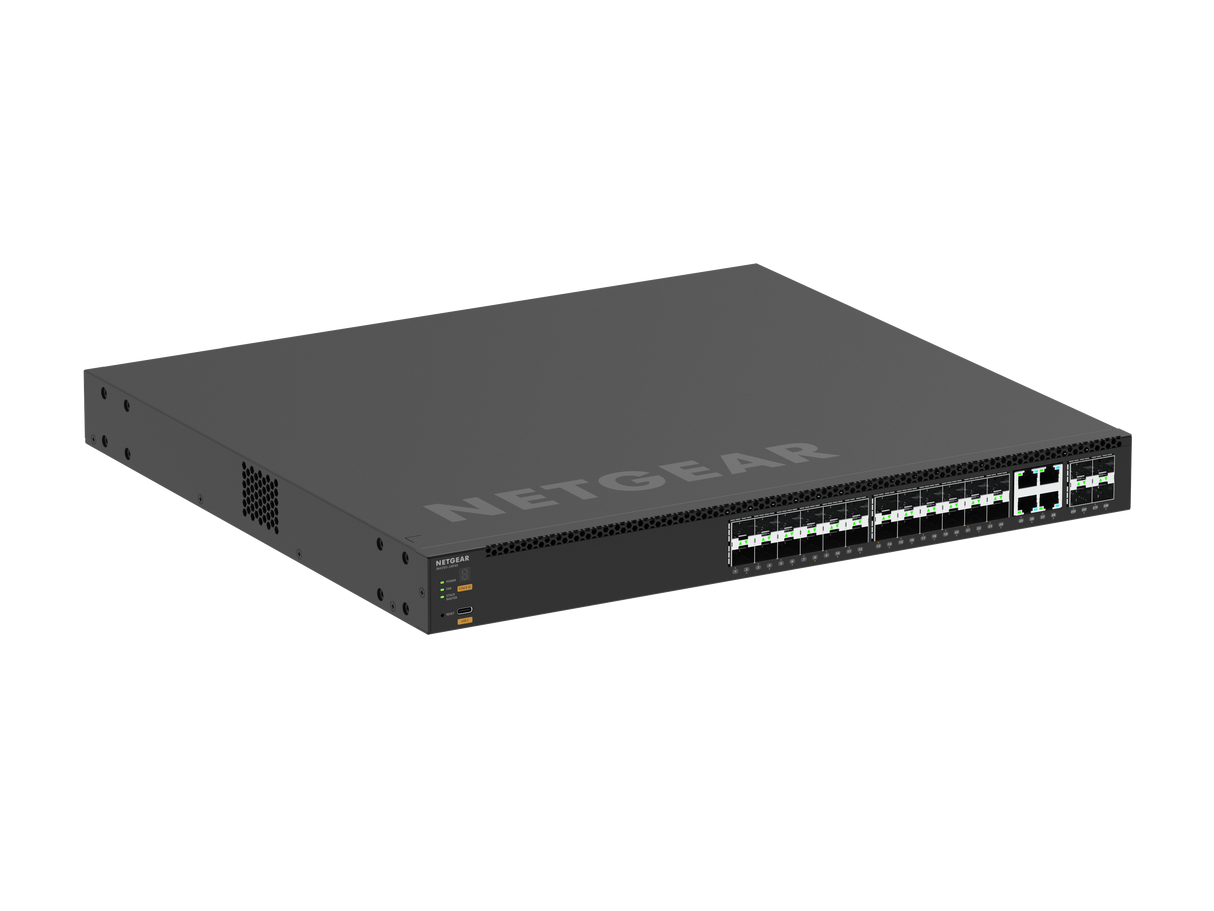

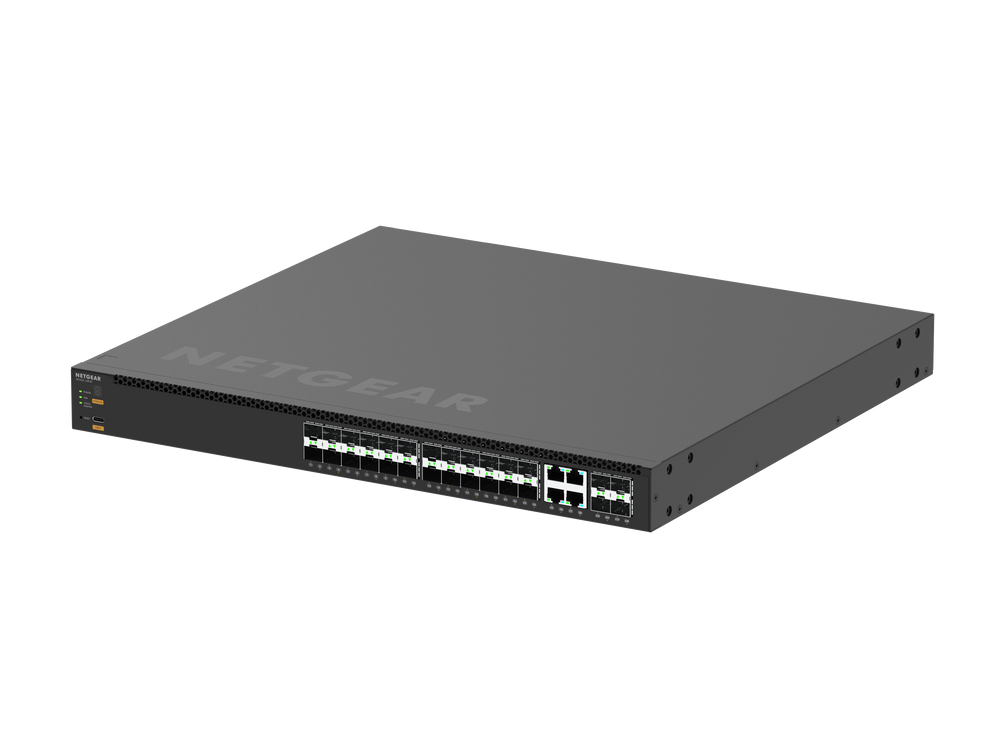

The NETGEAR M4350-24F4X is an all-fiber managed switch aimed at audio-over-IP cores and AV backbone duty. Twenty-four 1G/2.5GBASE-X SFP ports connect downstream switches and endpoints over fiber, while four combo ports offer either 10GBASE-T copper or 10G SFP+ uplinks. NETGEAR positions it as an ideal core for tying 1G M4250 edge switches together through their SFP ports.

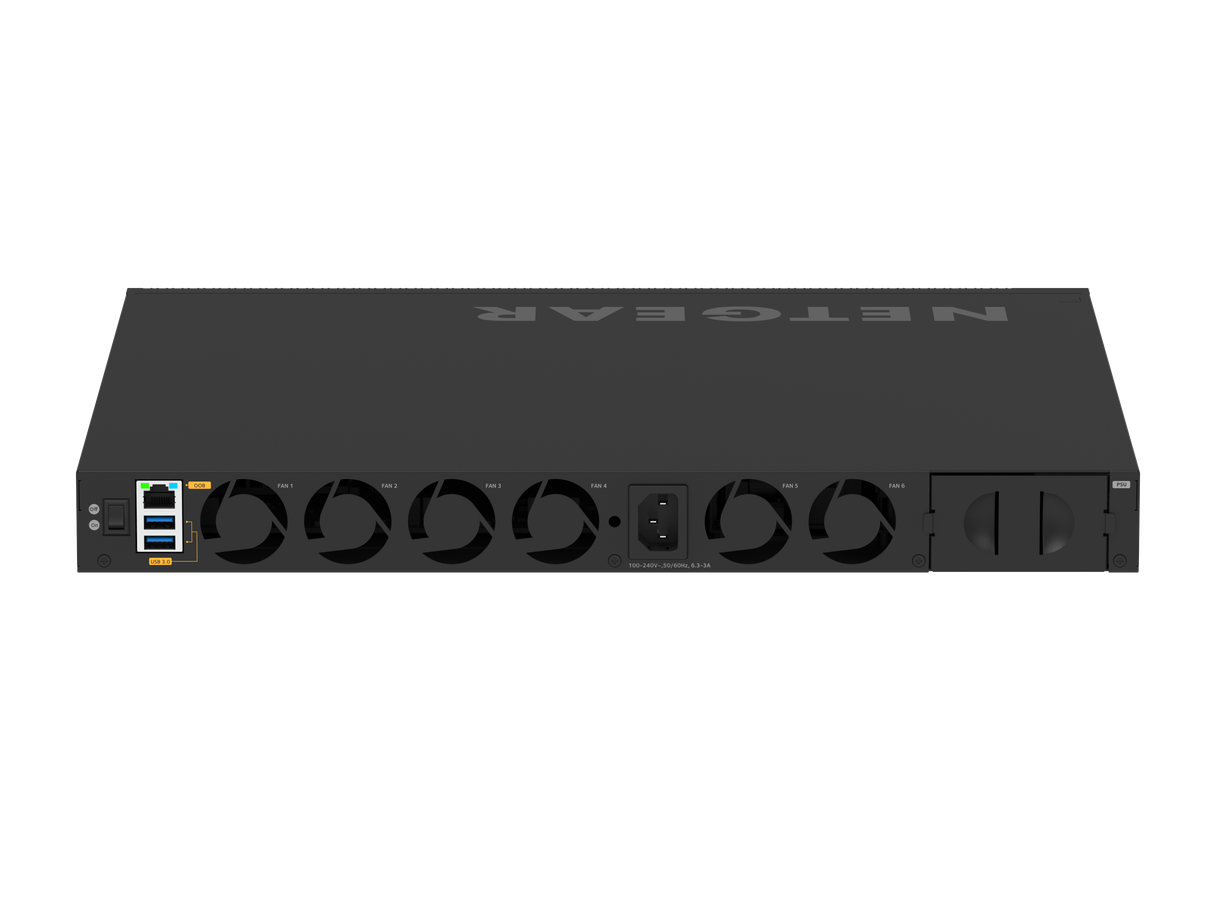

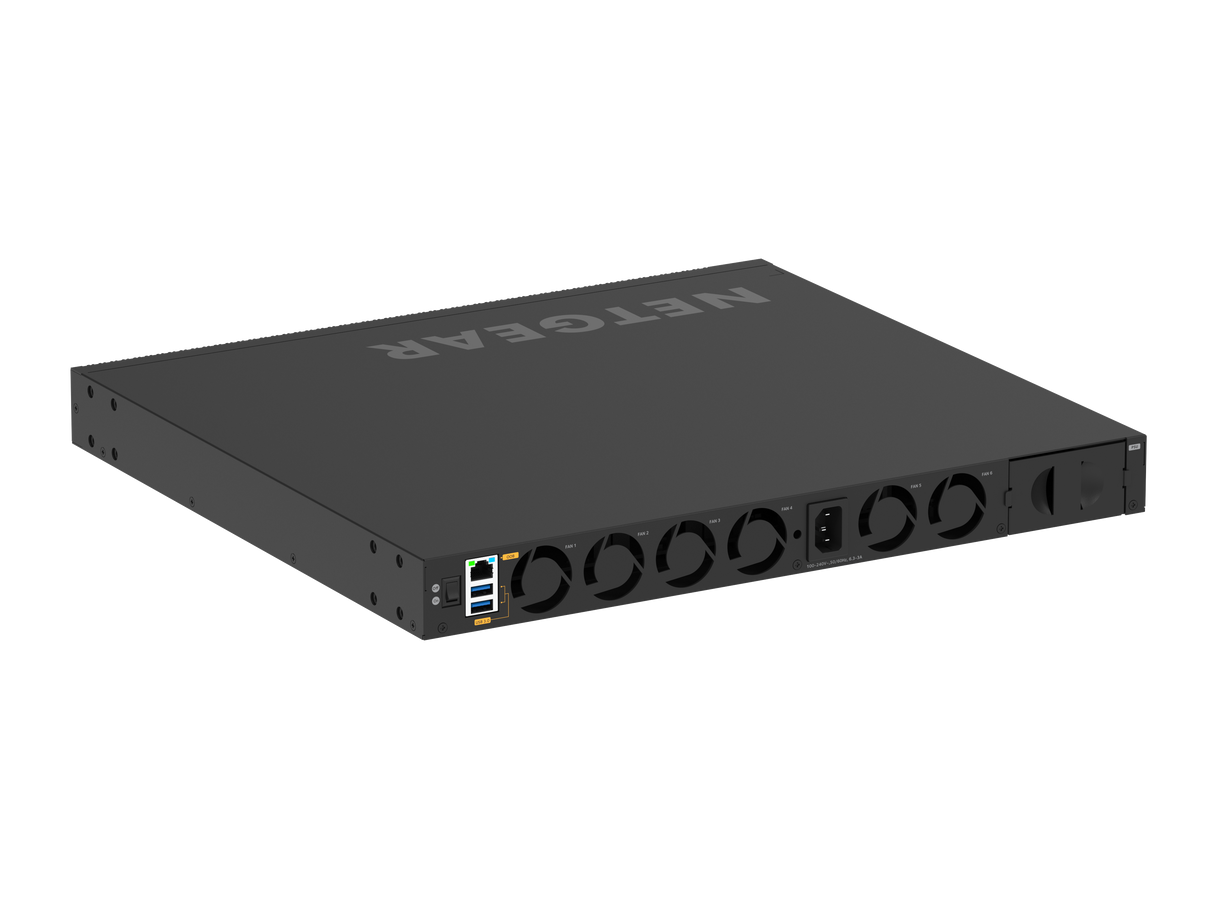

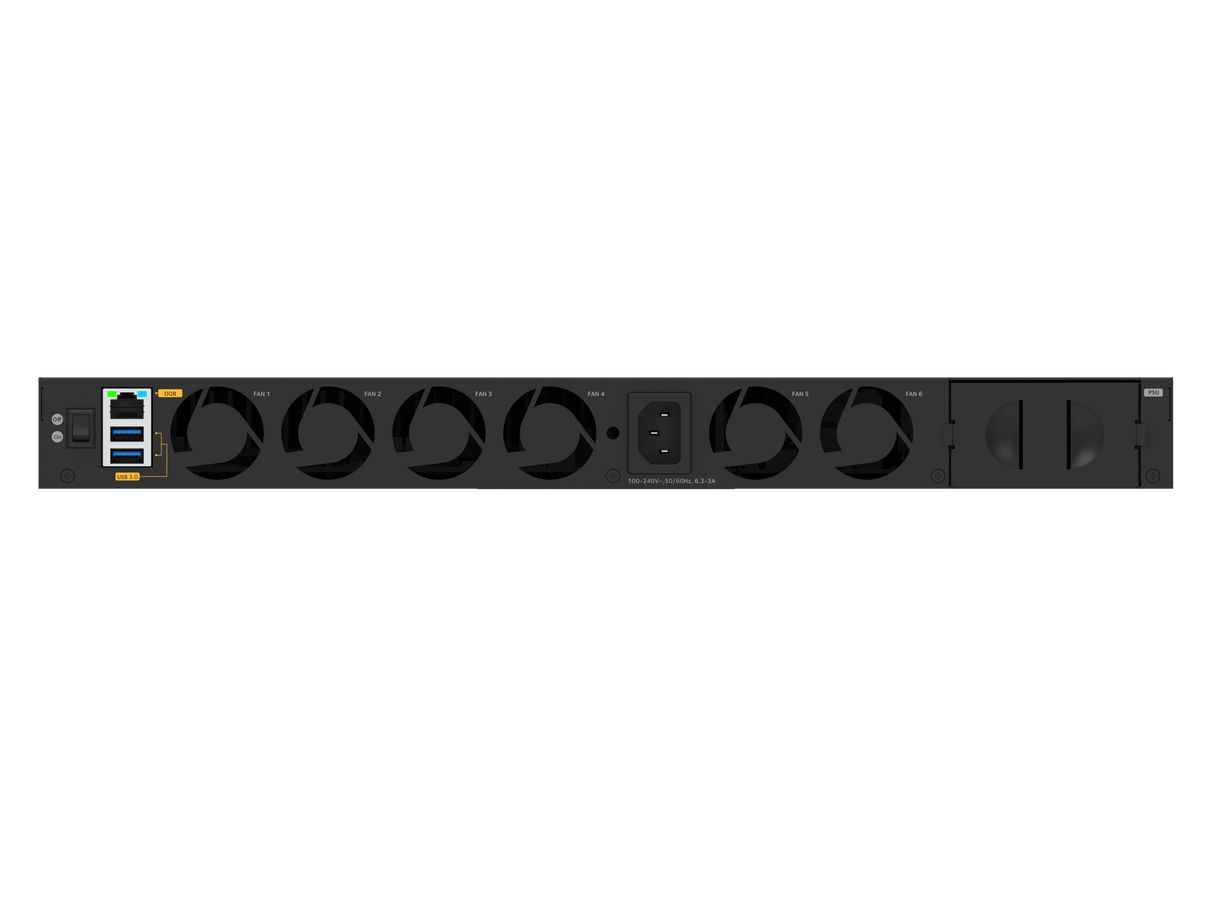

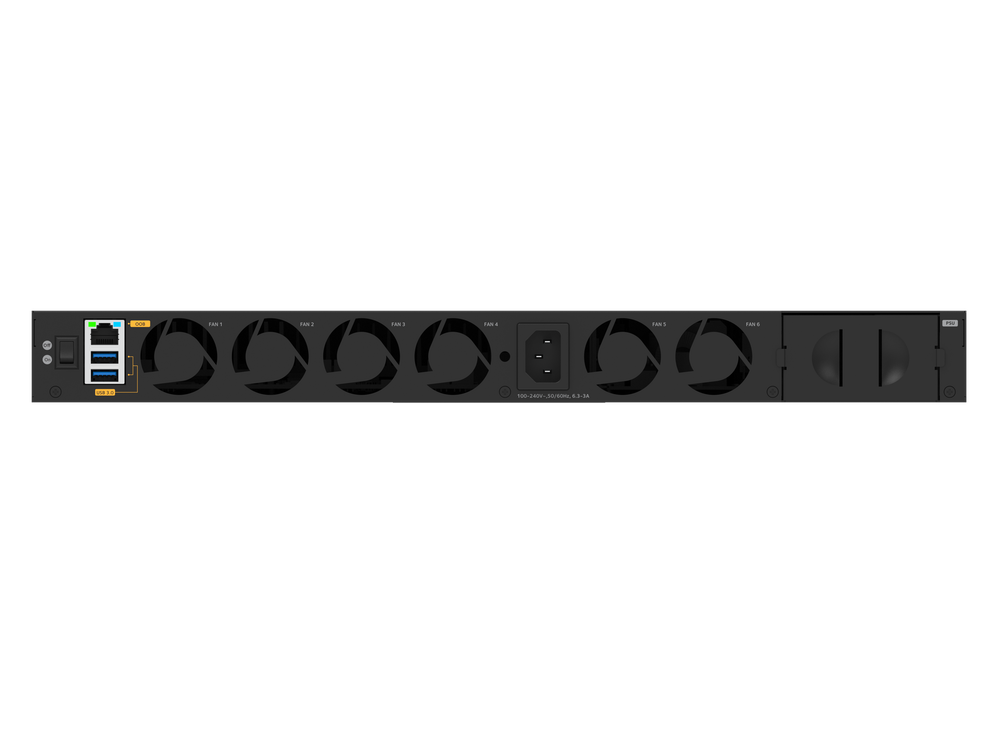

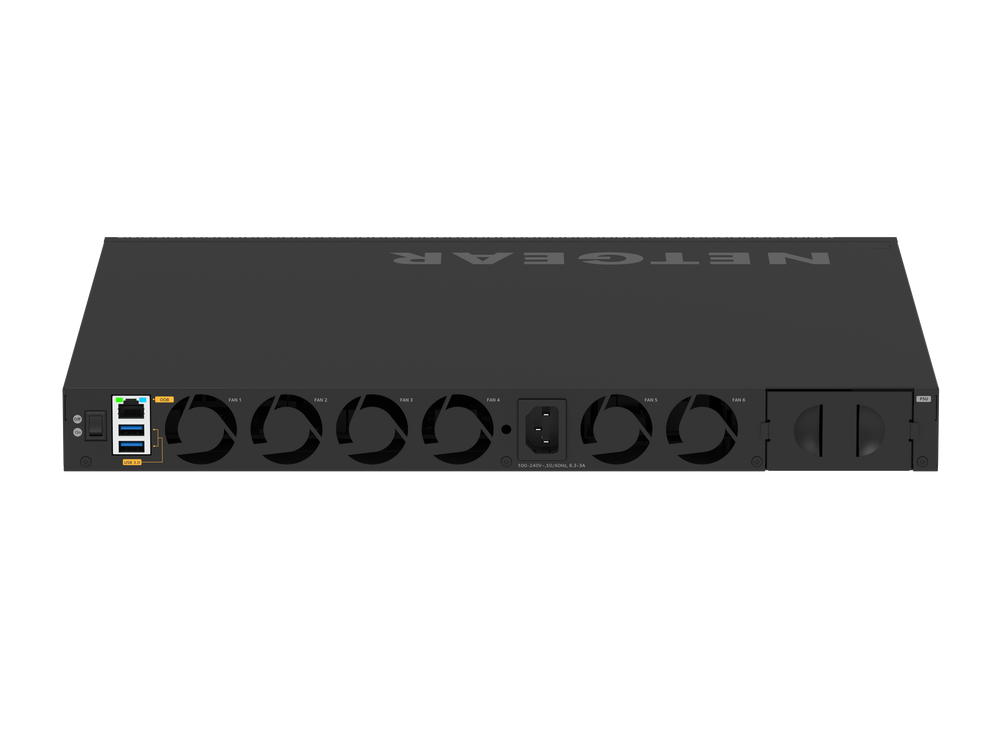

A 240W internal supply powers the switch, and one modular slot accepts an APS600Wv3, APS1200Wv2, or APS2000Wv2 for 1+1 redundancy. SMPTE ST 2110 Grand Master and Boundary Clock support AES67 and ST 2059-2 timing, IGMP Plus handles multicast without manual setup, and Layer 3 routing, Virtual Chassis stacking with hitless failover, and 30dB quiet-mode acoustics complete a platform built for AV-over-IP deployment.
Key Features

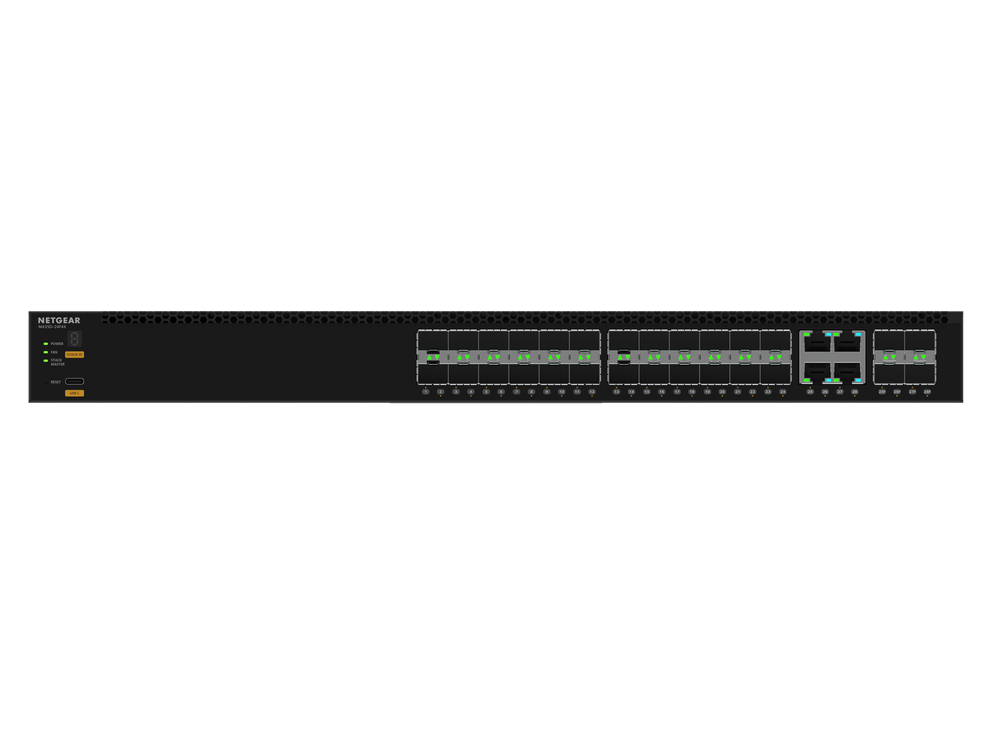

- 28 ports: 24x 1G/2.5GBASE-X SFP plus 4 combo 10GBASE-T copper / 10G SFP+ ports
- Positioned as an Audio over IP core linking 1G M4250 switches via SFP
- 240W internal PSU with one modular slot for 1+1 power redundancy
- SMPTE ST 2110 Grand Master and Boundary Clock for AES67 and ST 2059-2
- IGMP Plus multicast and color-coded AV OS port profiles
- Quiet mode rated 30dB at 25 degrees C in a 1U rack chassis
- Layer 3 static, policy-based, and dynamic routing with Virtual Chassis stacking
Specifications
- Width: 440mm
- Depth: 400mm
- Height: 43.2mm
- Weight: 7.38Kg (16.26lb)
- Primary Port Speed: 1 / 2.5 Gigabit
- Number of Ports: 28 (24 x 1G/2.5G SFP, 4 Combo 10GBASE-T Copper / 10G SFP+)
- IGMP Support: Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support:Yes, up to 12kb
- AVB Support: Yes, included
- Acoustics: Quiet Mode 30dB@25ºC
- Power Consumption: Max: 115.5W/393.84Btu/hr, Standby without any port connection: 39W/132.87Btu/hr
- PSU Compatible Models: APS600Wv3, APS1200Wv2, APS2000Wv2
- NETGEAR Engage Controller: Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
- WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase. Intended for indoor use only.
What's Included
- 1x M4350-24F4X (MSM4328F)
- 1x Power cord(s)
- 1x Console USB Type-C cable
- 1x Rack-mounting standard bracket set
- 1x Set of longer brackets for recessed mounting
- 4x Rubber footpads for tabletop installation
- 1x Installation guide
- WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase. Intended for indoor use only.
