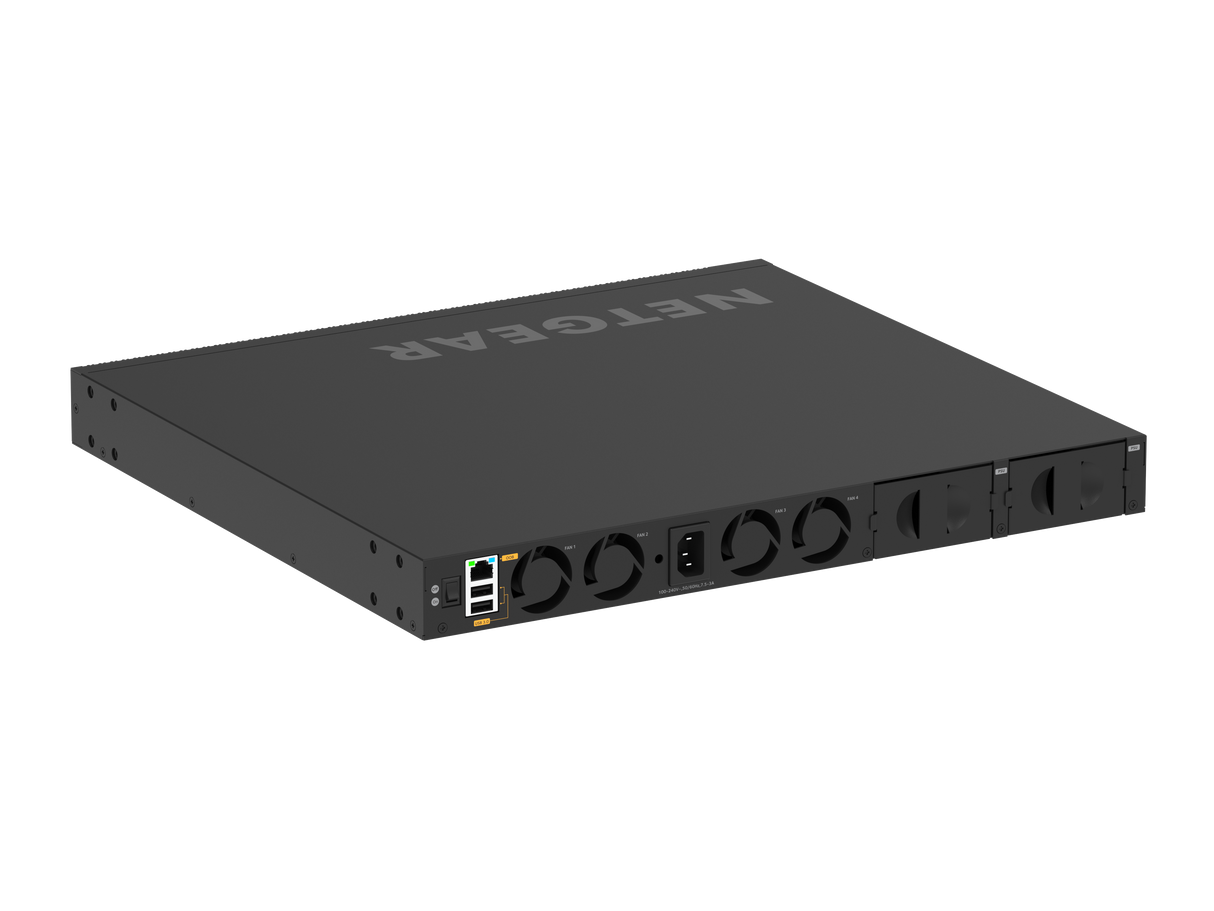

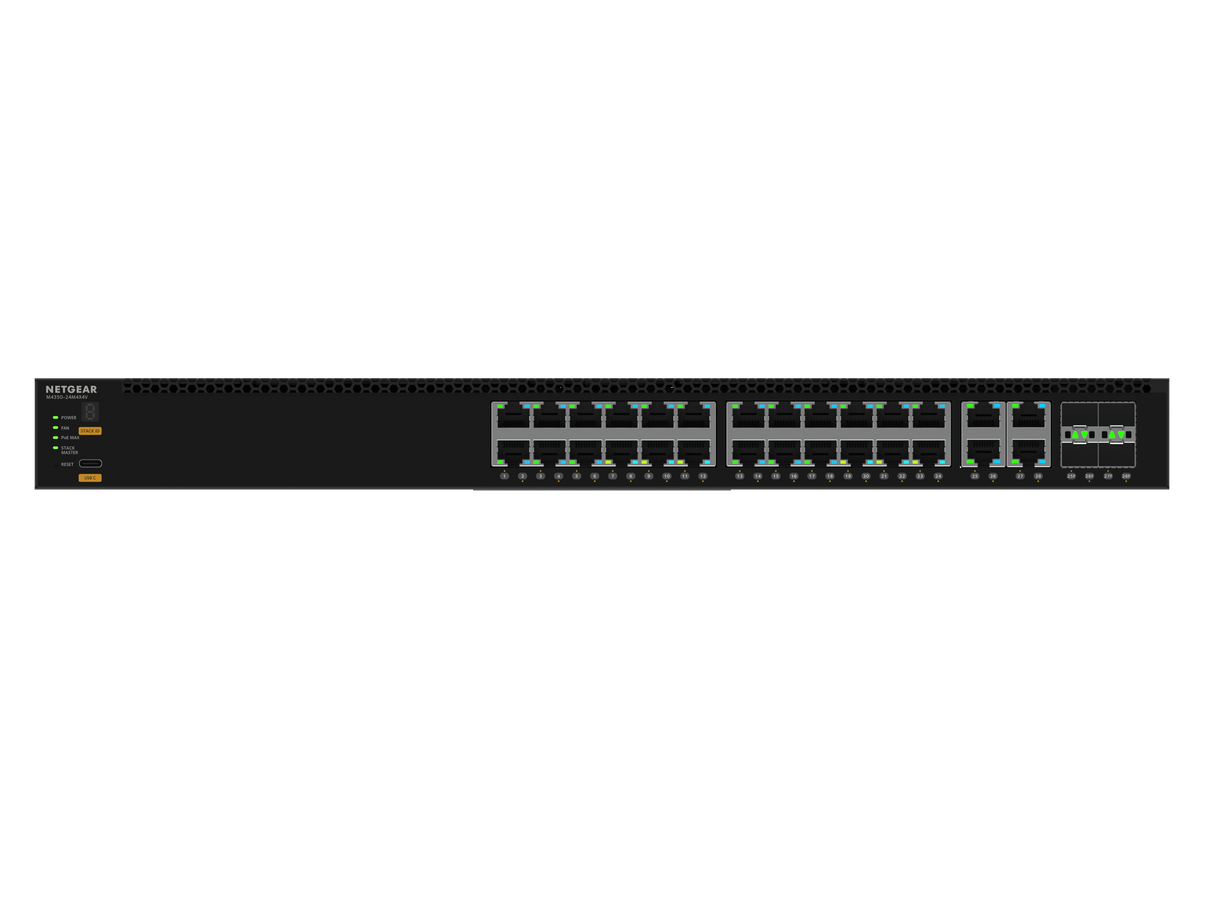

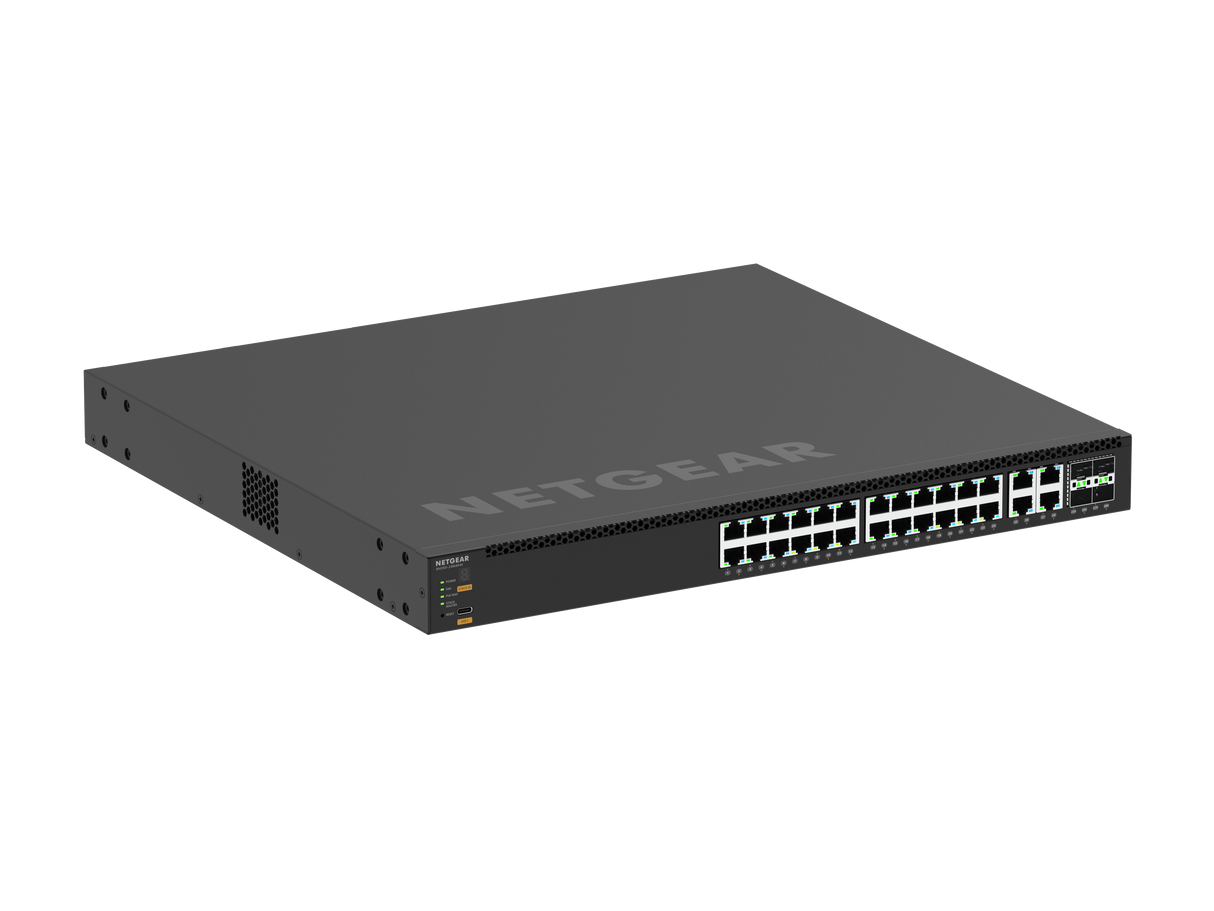

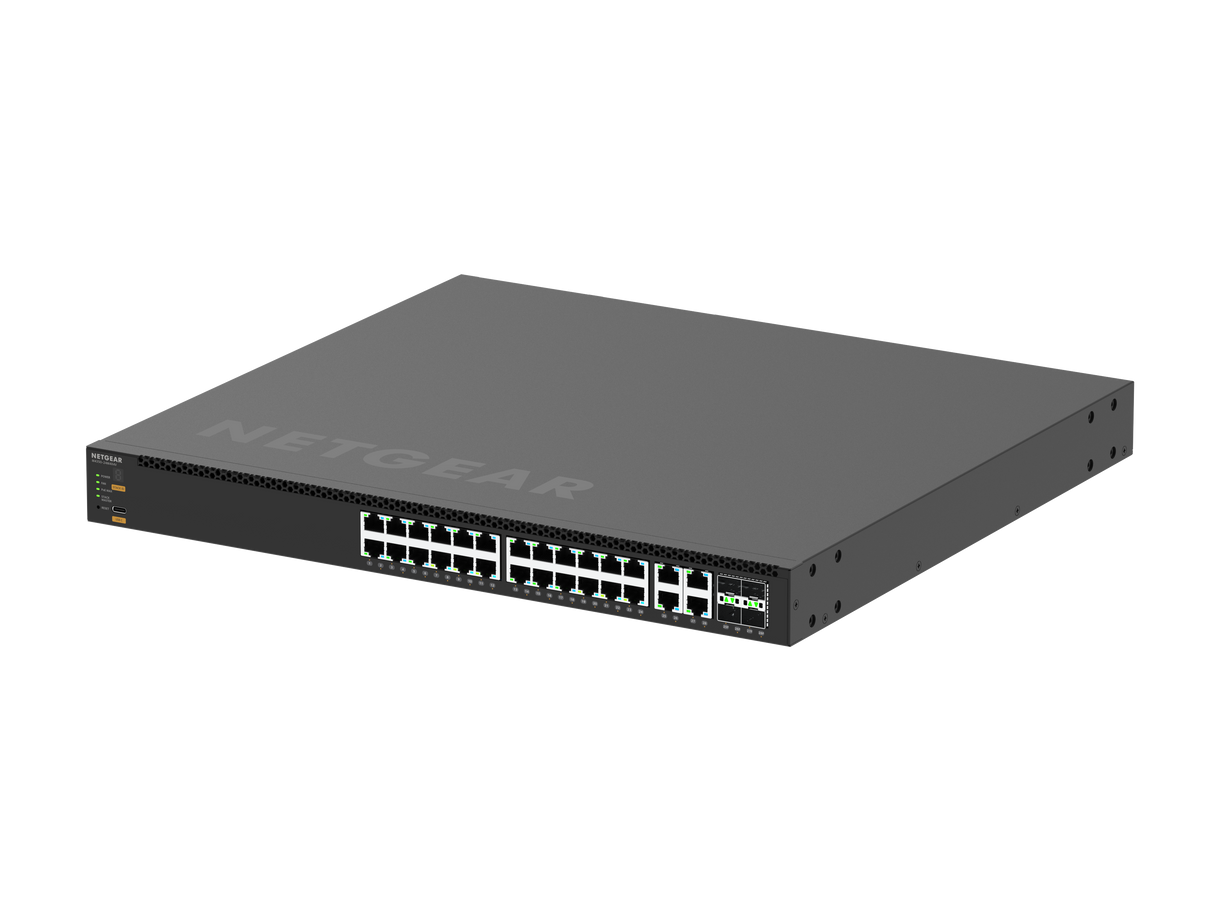

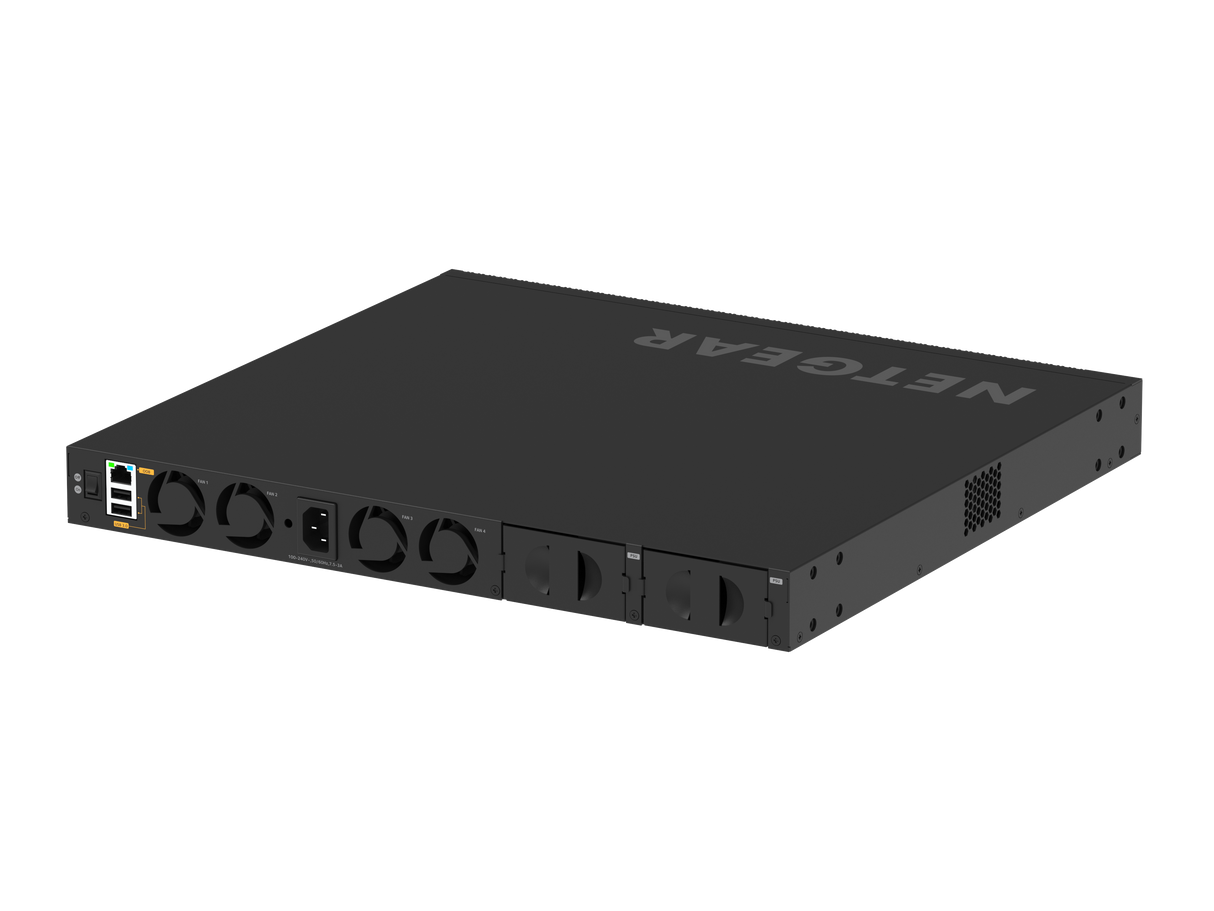

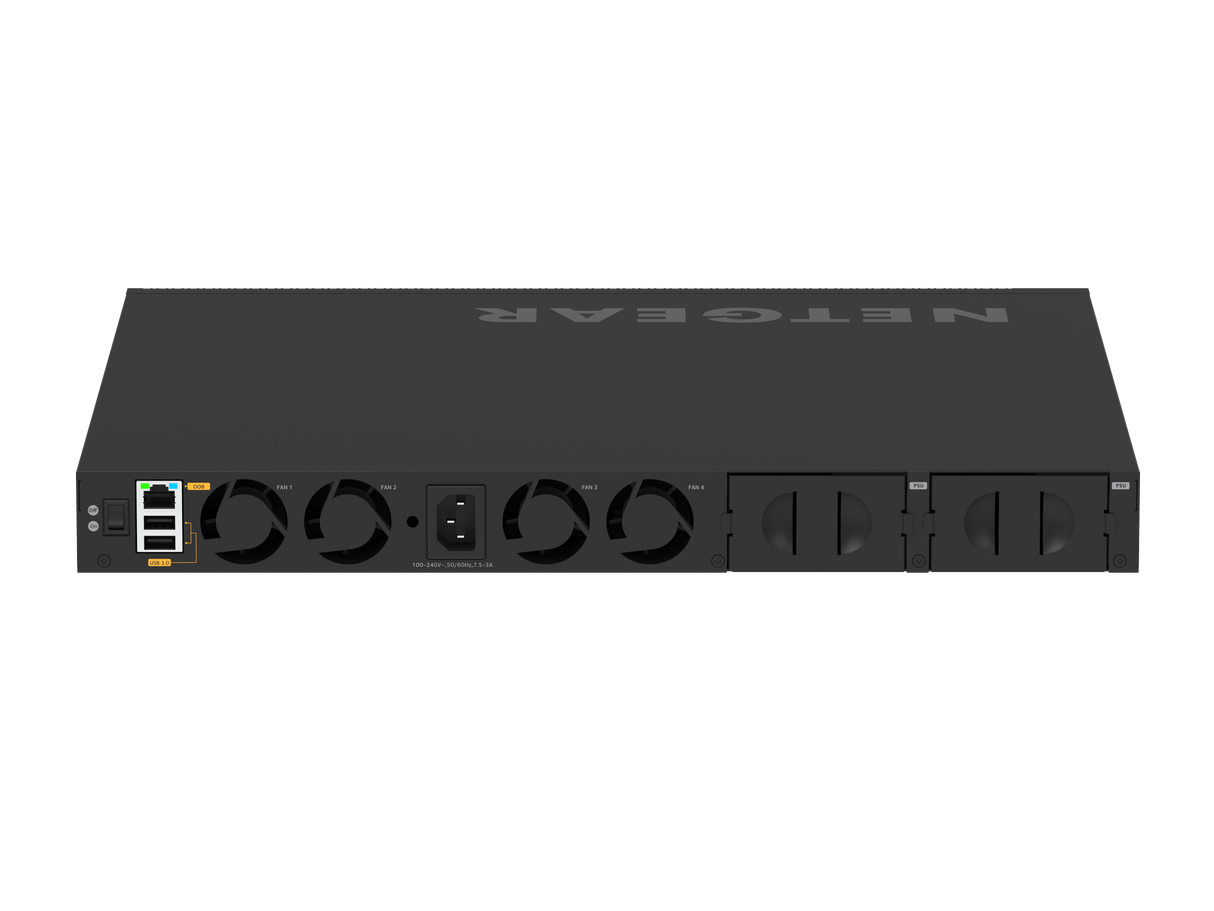

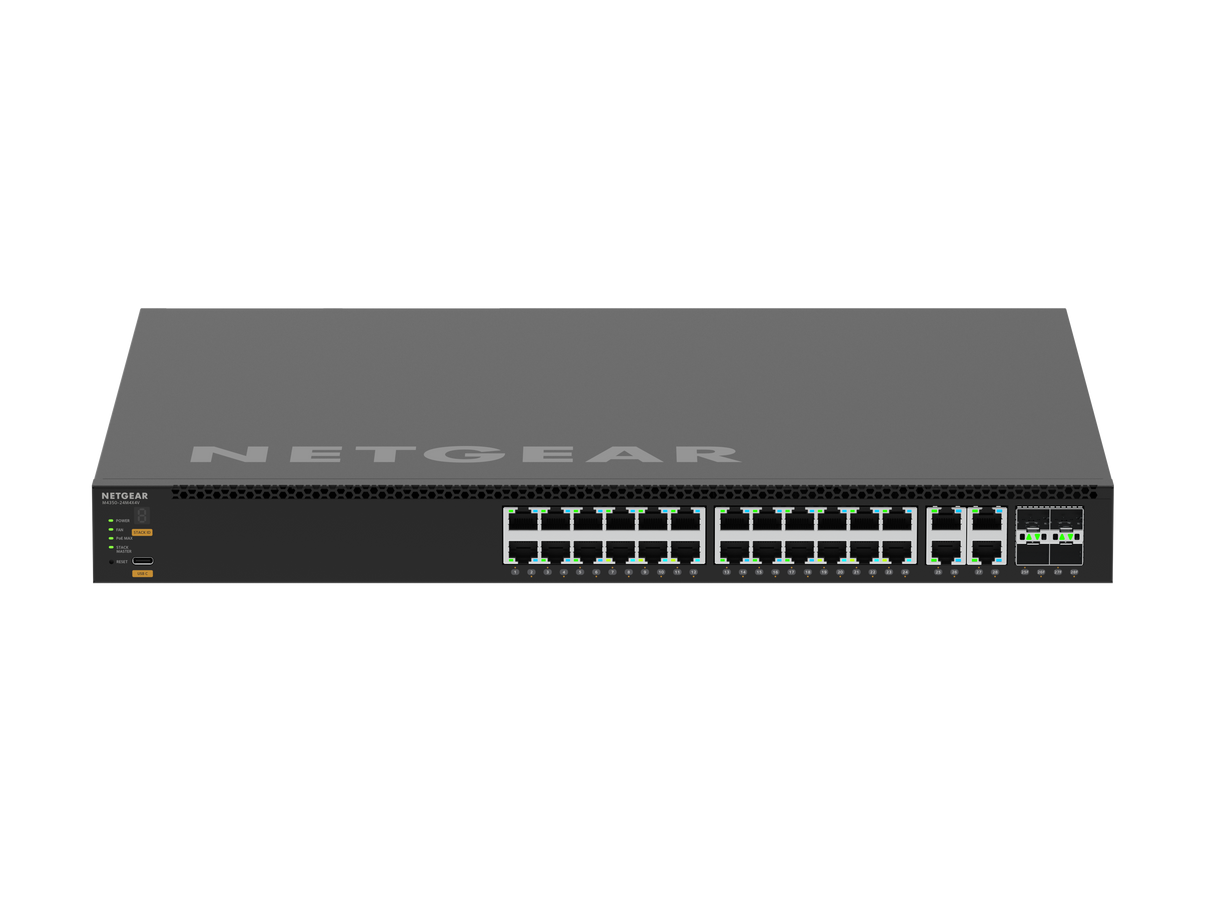

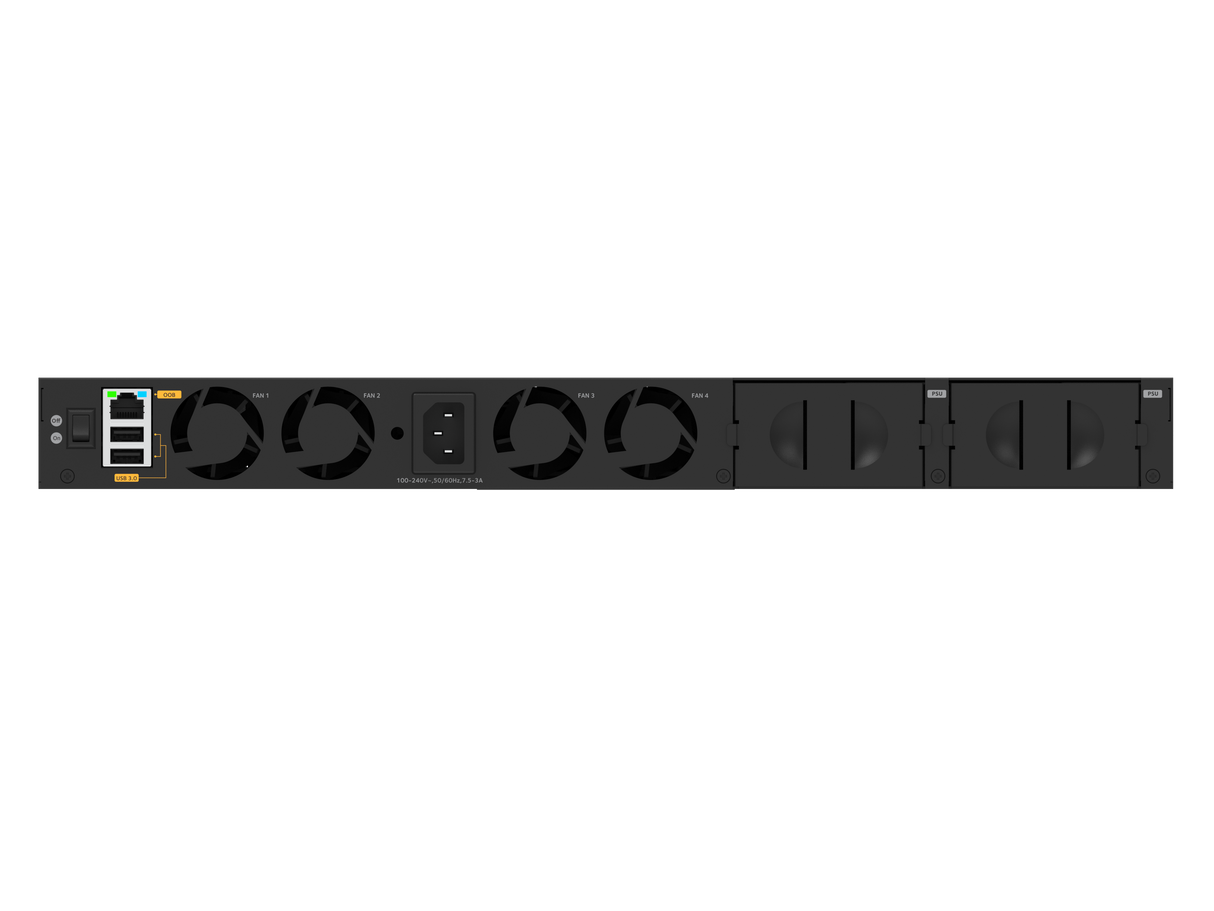

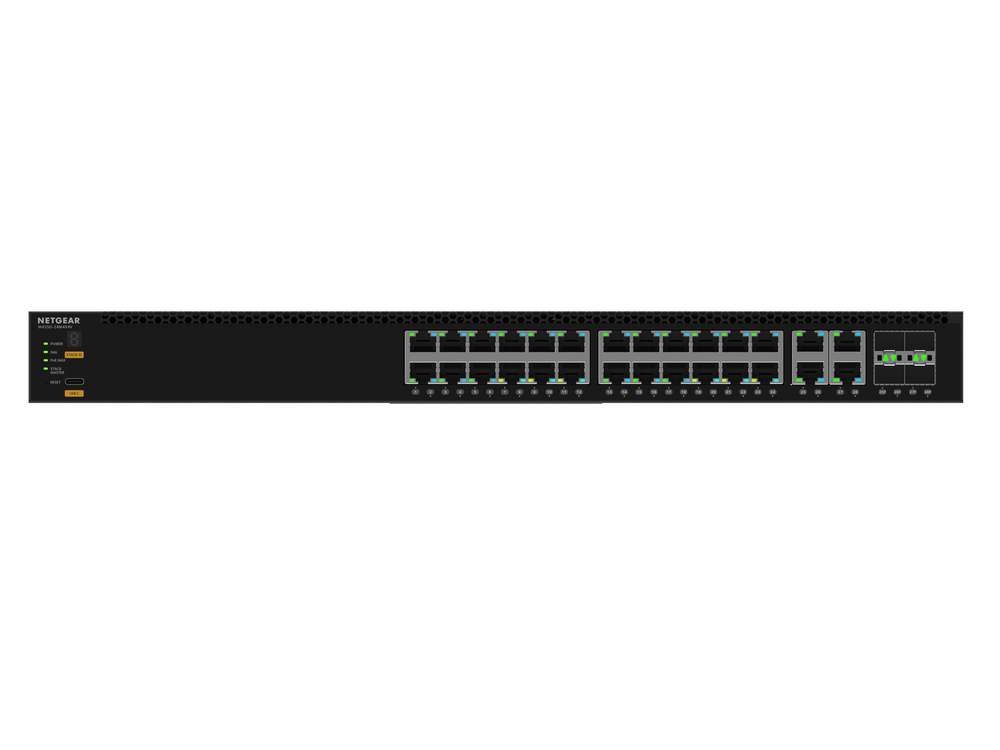

NETGEAR M4350-24M4X4V (MSM4332) 24x2.5G, 4x10G/Multi-gig PoE++ (522W base, up to 2,520W) and 4xSFP28 25G Fully Managed Switch

NETGEAR M4350-24M4X4V (MSM4332) 24x2.5G, 4x10G/Multi-gig PoE++ (522W base, up to 2,520W) and 4xSFP28 25G Fully Managed Switch

Built for dense AV-over-IP deployments, the NETGEAR M4350-24M4X4V combines 24 2.5G PoE++ ports and four 10G/Multi-gig PoE++ ports with four 25G SFP28 uplinks in a single 1U chassis. It targets installations powering large counts of cameras, encoders, and displays, where 28 PoE++ ports and multi-gigabit headroom keep endpoint connections and uplink traffic on one switch.

An 800W internal supply yields a 522W base PoE budget, and two modular slots accept APS600Wv3, APS1200Wv2, or APS2000Wv2 units to push capacity to 2,520W with up to 1,972W of redundant budget. The switch carries SMPTE ST 2110 Grand Master and Boundary Clock for AES67 and ST 2059-2, IGMP Plus multicast, Layer 3 routing, Virtual Chassis stacking with hitless failover, and 34.8dB quiet-mode acoustics.

Key Features

• 32 ports: 24x 2.5G PoE++, 4x 10G/Multi-gig PoE++, and 4x 25G SFP28 uplinks
• 28 total PoE++ ports with a 522W base budget, expandable to 2,520W
• Two modular PSU slots support redundancy or expanded power sharing
• SMPTE ST 2110 Grand Master and Boundary Clock for AES67 and ST 2059-2
• IGMP Plus delivers multicast for AV-over-IP without manual configuration
• Virtual Chassis stacking with non-stop forwarding and hitless failover
• ProSAFE Limited Lifetime Hardware Warranty and next business day replacement

Specifications

• Width: 440mm
• Depth: 400mm
• Height: 43.2mm
• Weight: 7.38Kg (16.26lb)
• Primary Port Speed: 2.5 Gigabit
• Number of Ports: 32 (24 x 2.5G PoE++, 4 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)
• Total PoE++ Ports: 28
• Total PoE++ Budget: 522W Base, up to 2,520W Budget
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• Acoustics: Quiet Mode 34.8dB@25ºC
• Power Consumption: With max PoE: 2,845W/9,702.59Btu/hr, Without PoE: 123.4W/420.95Btu/hr, Standby without any port connection: 53W/180.94Btu/hr
• PSU Compatible Models: APS600Wv3, APS1200Wv2, APS2000Wv2
• WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase. Intended for indoor use only.

What's Included

• 1x M4350-24M4X4V(MSM4332)
• 1x Power cord(s)
• 1x Console USB Type-C cable
• 1x Rack-mounting standard bracket set
• 1x Set of longer brackets for recessed mounting
• 4x Rubber footpads for tabletop installation
• 1x Installation guide
• WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase. Intended for indoor use only.
