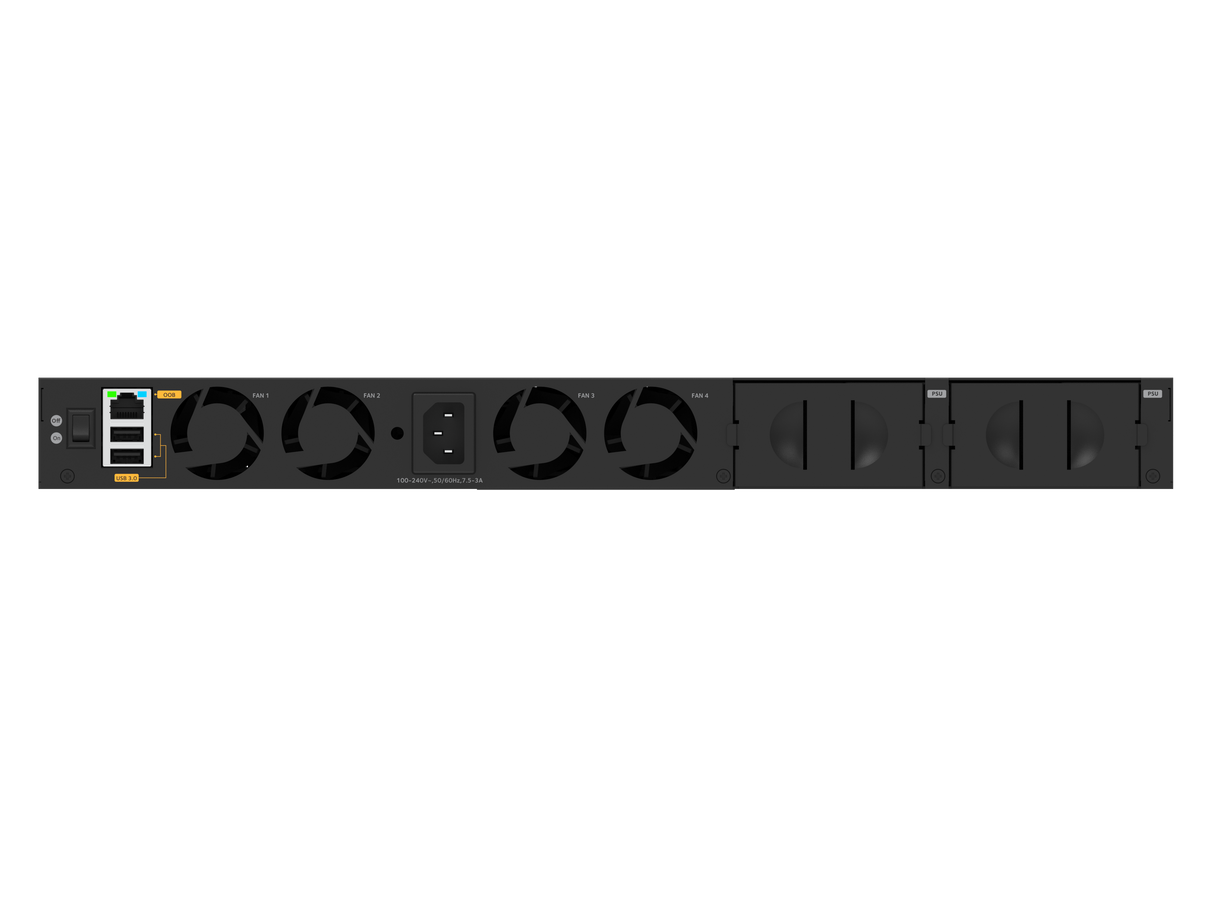

NETGEAR M4350-24M4X4V (MSM4332) 24x2.5G, 4x10G/Multi-gig PoE++ (522W base, up to 2,520W) and 4xSFP28 25G Fully Managed Switch TAA Compliant

NETGEAR M4350-24M4X4V (MSM4332) 24x2.5G, 4x10G/Multi-gig PoE++ (522W base, up to 2,520W) and 4xSFP28 25G Fully Managed Switch TAA Compliant

For projects bound by Trade Agreements Act sourcing rules, this TAA-compliant M4350-24M4X4V delivers the same high-density AV switching as the standard model. Twenty-four 2.5G PoE++ ports, four 10G/Multi-gig PoE++ ports, and four 25G SFP28 uplinks give government facilities and federally funded campuses a single 1U platform for powered endpoints and fast aggregation alike.

Base PoE capacity of 522W comes from the 800W internal supply, while dual modular slots take APS600Wv3, APS1200Wv2, or APS2000Wv2 units to reach a 2,520W maximum budget or 1,972W redundant. Timing features include SMPTE ST 2110 Grand Master and Boundary Clock for AES67 and ST 2059-2, joined by IGMP Plus multicast, Layer 3 routing, Virtual Chassis stacking, and per-port multi-color LEDs tied to AV OS profiles.

Key Features

• TAA compliant configuration for federal and government purchasing
• 24x 2.5G PoE++ and 4x 10G/Multi-gig PoE++ ports, 28 PoE++ ports in total
• 4x 25G SFP28 uplinks for high-bandwidth aggregation
• PoE budget grows from 522W base to as much as 2,520W with modular PSUs
• SMPTE ST 2110 clocking for AES67 and ST 2059-2 broadcast workflows
• IGMP Plus, AV OS, and Engage Controller accelerate AV installations
• 1U rack mount with quiet mode acoustics of 34.8dB at 25 degrees C

Specifications

• Width: 440mm
• Depth: 400mm
• Height: 43.2mm
• Weight: 7.38Kg (16.26lb)
• Primary Port Speed: 2.5 Gigabit
• Number of Ports: 32 (24 x 2.5G PoE++, 4 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)
• Total PoE++ Ports: 28
• Total PoE++ Budget: 522W Base, up to 2,520W Budget
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• Acoustics: Quiet Mode 34.8dB@25ºC
• Power Consumption: With max PoE: 2,845W/9,702.59Btu/hr, Without PoE: 123.4W/420.95Btu/hr, Standby without any port connection: 53W/180.94Btu/hr
• PSU Compatible Models: APS600Wv3, APS1200Wv2, APS2000Wv2
• WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase. Intended for indoor use only.

What's Included

• 1x M4350-24M4X4V(MSM4332)
• 1x Power cord(s)
• 1x Console USB Type-C cable
• 1x Rack-mounting standard bracket set
• 1x Set of longer brackets for recessed mounting
• 4x Rubber footpads for tabletop installation
• 1x Installation guide
