NETGEAR M4350-40X4C (XSM4344FC) 40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Fully Managed Switch

NETGEAR M4350-40X4C (XSM4344FC​​) 40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Fully Managed Switch

The NETGEAR M4350-40X4C anchors the core of large AV-over-IP and broadcast networks with 40 10GBASE-X SFP+ ports and four 100GBASE-X QSFP28 uplinks. It serves integrators and facilities aggregating many 10G fiber links from edge switches, encoders, and production systems into a spine with 100G capacity, all within a 1U managed platform from the M4350 AV line.

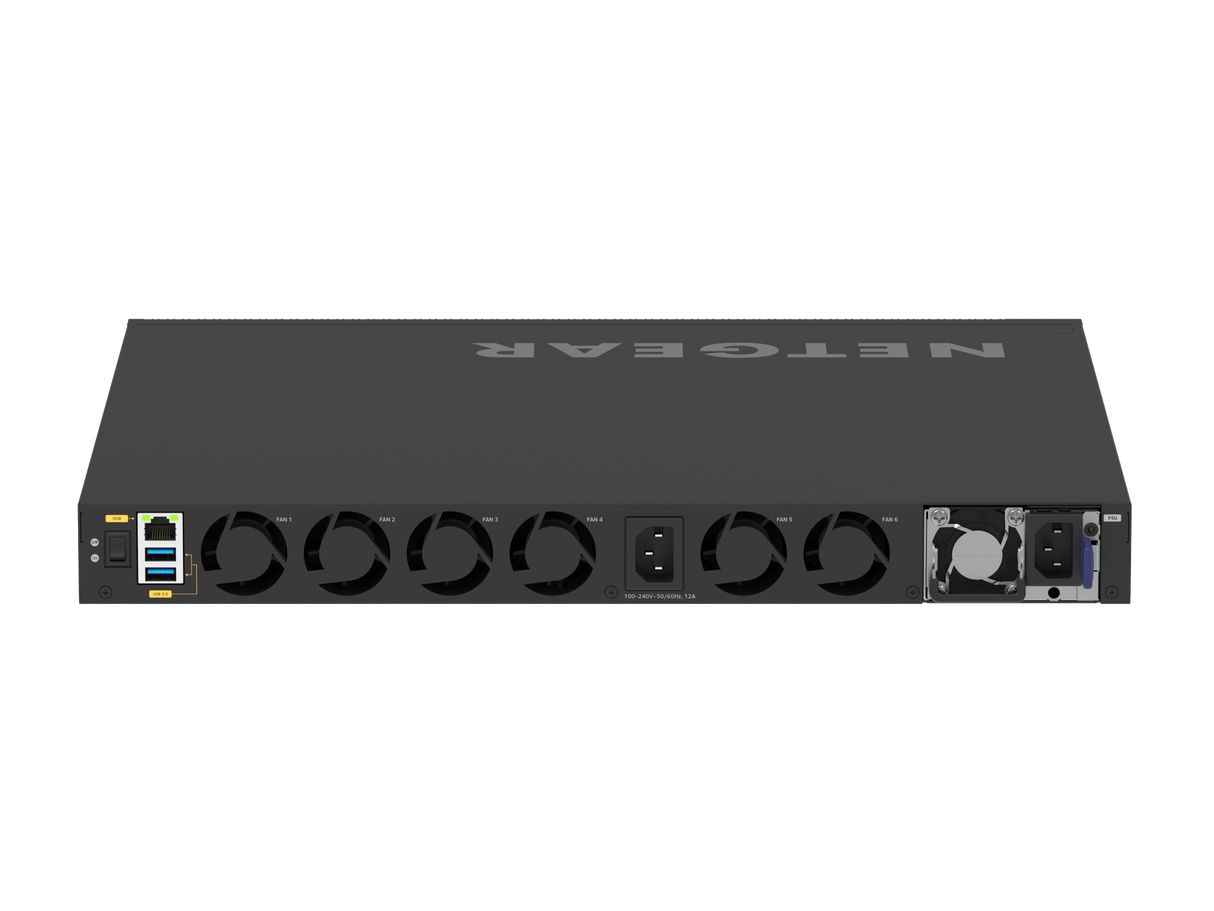

A 420W internal supply is backed by one modular slot accepting APS600Wv3, APS1200Wv2, or APS2000Wv2 units for 1+1 redundancy. SMPTE ST 2110 Grand Master and Boundary Clock functions cover AES67 and ST 2059-2 timing, NETGEAR IGMP Plus brings immediate multicast, and the Layer 3 feature set spans static, policy-based, and dynamic routing. Virtual Chassis stacking provides non-stop forwarding with hitless failover, and quiet mode runs at 34.2dB.

Key Features

• 44 ports: 40x 10G SFP+ with 4x 100G QSFP28 uplinks
• 420W internal PSU plus modular slot for 1+1 power redundancy
• SMPTE ST 2110 Grand Master and Boundary Clock for AES67 and ST 2059-2
• IGMP Plus multicast out of the box for AV-over-IP cores
• Layer 3 routing with Virtual Chassis stacking and hitless failover
• Multi-color port LEDs mirror profile colors in AV OS and Engage Controller
• Quiet mode acoustics of 34.2dB at 25 degrees C; jumbo frames to 12kb

Specifications

• Width :440mm
• Depth: 400mm
• Height : 43.2mm
• Weight : 7.38Kg (16.26lb)
• Primary Port Speed : 10 Gigabit
• Number of Ports : 44 (40 x 10G SFP+, 4 x 100G QSFP28)
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• Acoustics: Quiet Mode 34.2dB@25ºC
• Power Consumption: Max: 213.6W/728.21Btu/hr
• Standby without any port connection: 65W/221.12Btu/hr
• PSU Compatible Models : APS600Wv3; APS1200Wv2; APS2000Wv2
• WARRANTY: : This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support is provided for 90 days from the purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

What's Included

• M4350-40F4C (XSM4344FC) X1
• Power cord(s) X1
• Console USB Type-C cable X1
• Rack-mounting standard bracket set X1
• Set of longer brackets for recessed mounting X1
• Rubber footpads for tabletop installation X4
• Installation guide X1
