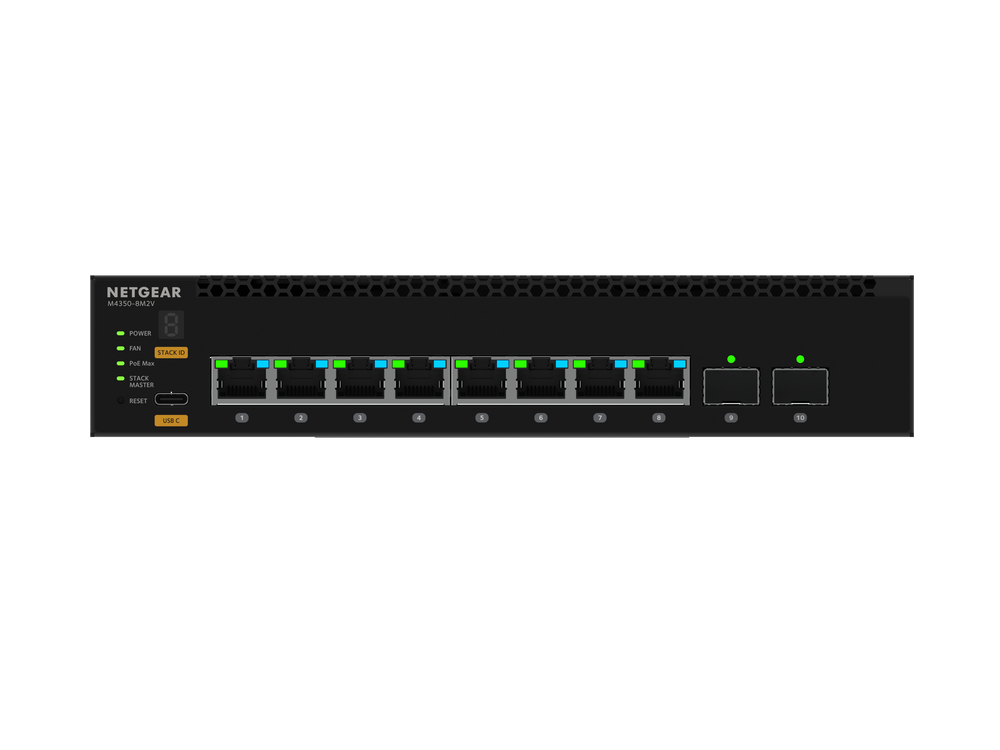

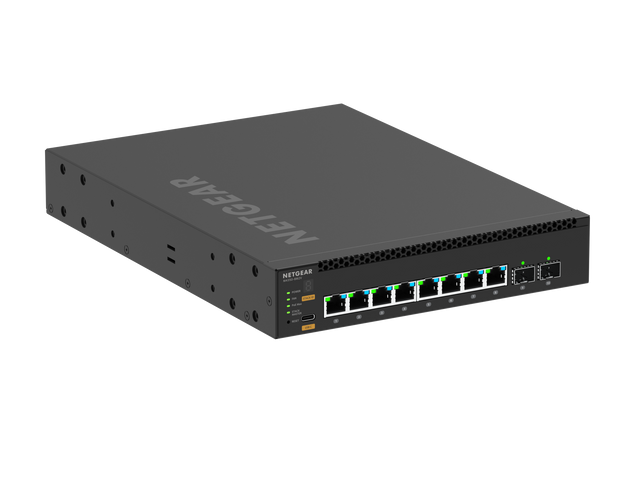

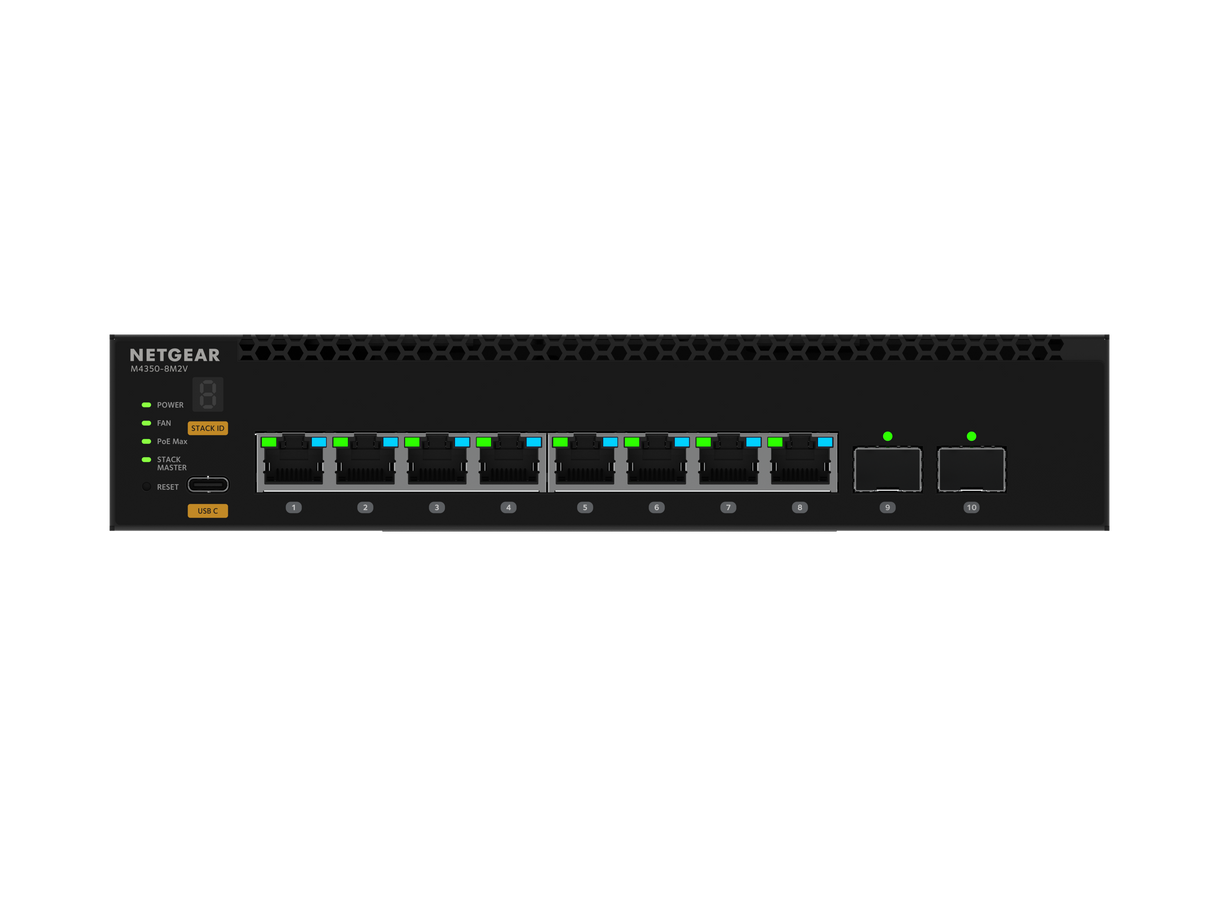

NETGEAR M4350-8M2V (MSM4310) 8x2.5G PoE++ (119W base, up to 551W) and 2x25G SFP28 Fully Managed Switch

NETGEAR M4350-8M2V (MSM4310) 8x2.5G PoE++ (119W base, up to 551W) and 2x25G SFP28 Fully Managed Switch

NETGEAR's M4350-8M2V is a compact, fully managed switch that brings 2.5G PoE++ connectivity to AV-over-IP systems in a half-width chassis, allowing one or two units per rack space. With eight 2.5G PoE++ ports and two 25G SFP28 uplinks, it suits huddle rooms, small studios, and distributed installs that need substantial bandwidth and endpoint power without a full-width switch.

The included APS254W adapter provides a 119W base PoE budget, and up to three adapters raise it to 551W or add N+1 redundancy. SMPTE ST 2110 Grand Master and Boundary Clock functions support AES67 and ST 2059-2 timing, IGMP Plus enables out-of-the-box multicast, and the Layer 3 feature set covers static, policy-based, and dynamic routing. Virtual Chassis stacking adds non-stop forwarding with hitless failover.

Key Features

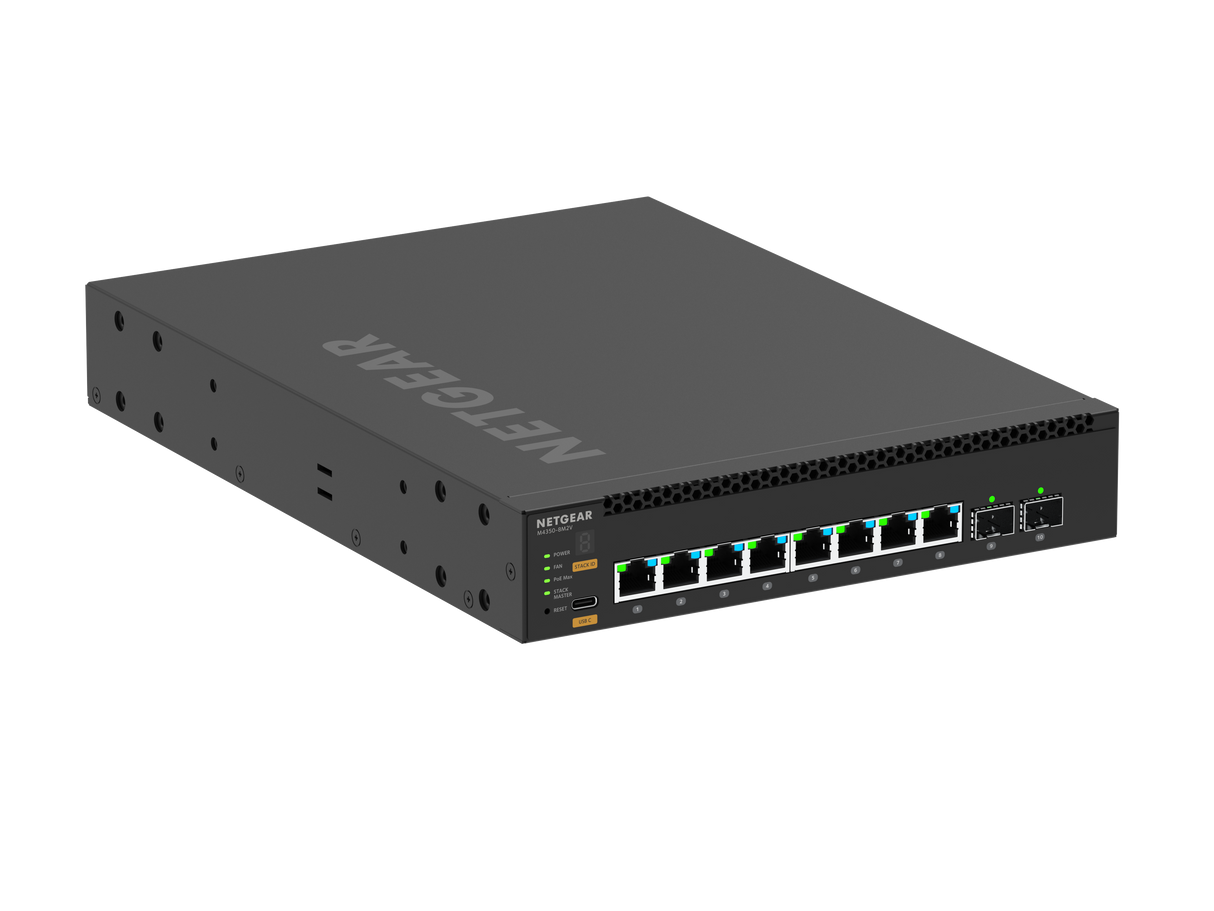

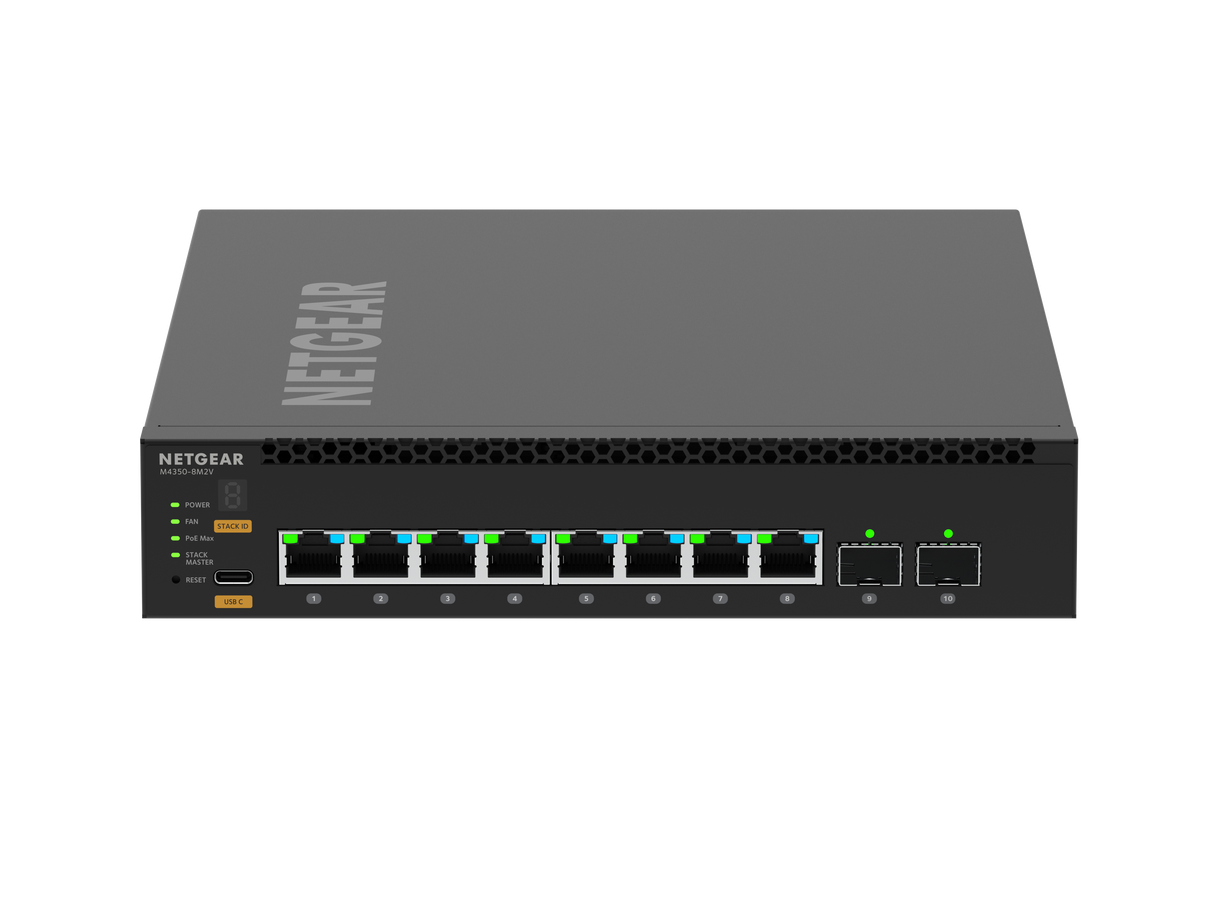

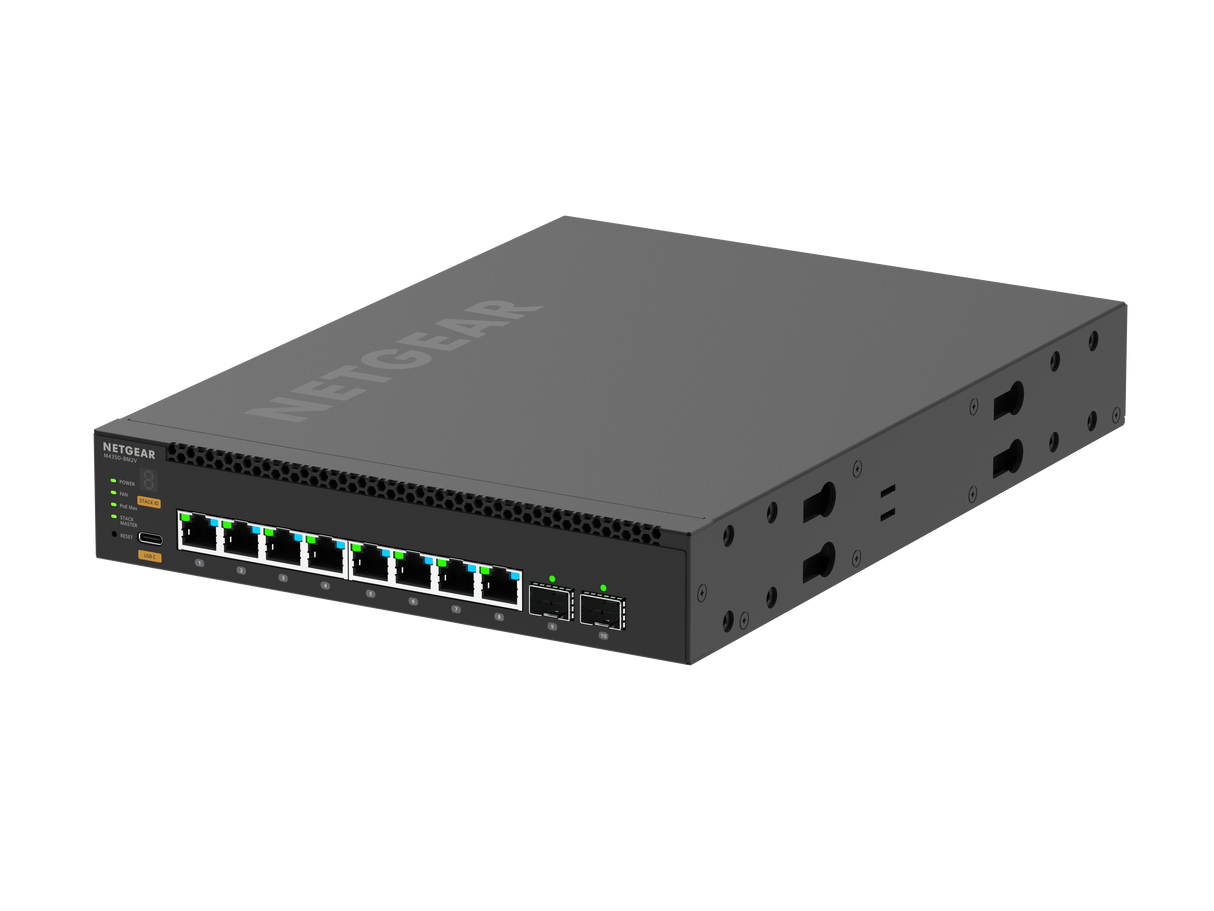

• 10 total ports: 8x 2.5G PoE++ plus 2x 25GBASE-X SFP28 uplinks
• Half-width 1U form factor fits one or two switches in a single rack space
• 119W base PoE budget, expandable to 551W with up to three APS254W adapters
• SMPTE ST 2110 Grand Master and Boundary Clock for AES67 and ST 2059-2
• IGMP Plus, AV OS, and Engage Controller streamline AV-over-IP configuration
• Quiet mode operation rated at 32.1dB at 25 degrees C
• ProSAFE Limited Lifetime Hardware Warranty with next business day replacement

Specifications

• Width: 220mm
• Depth: 300mm
• Height: 43.2mm
• Weight: 2.9Kg (6.39lb)
• Primary Port Speed: 2.5 Gigabit
• Number of Ports: 10 (8 x 2.5G PoE++, 2 x 25G SFP28)
• Total PoE++ Ports: 8
• Total PoE++ Budget: 119W Base, up to 551W
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• Acoustics: Quiet Mode 32.1dB@25ºC
• Power Consumption: With max PoE: 682W/2,324.93Btu/hr, Without PoE: 82W/27.95Btu/hr, Standby without any port connection: 61.2W/208.6Btu/hr

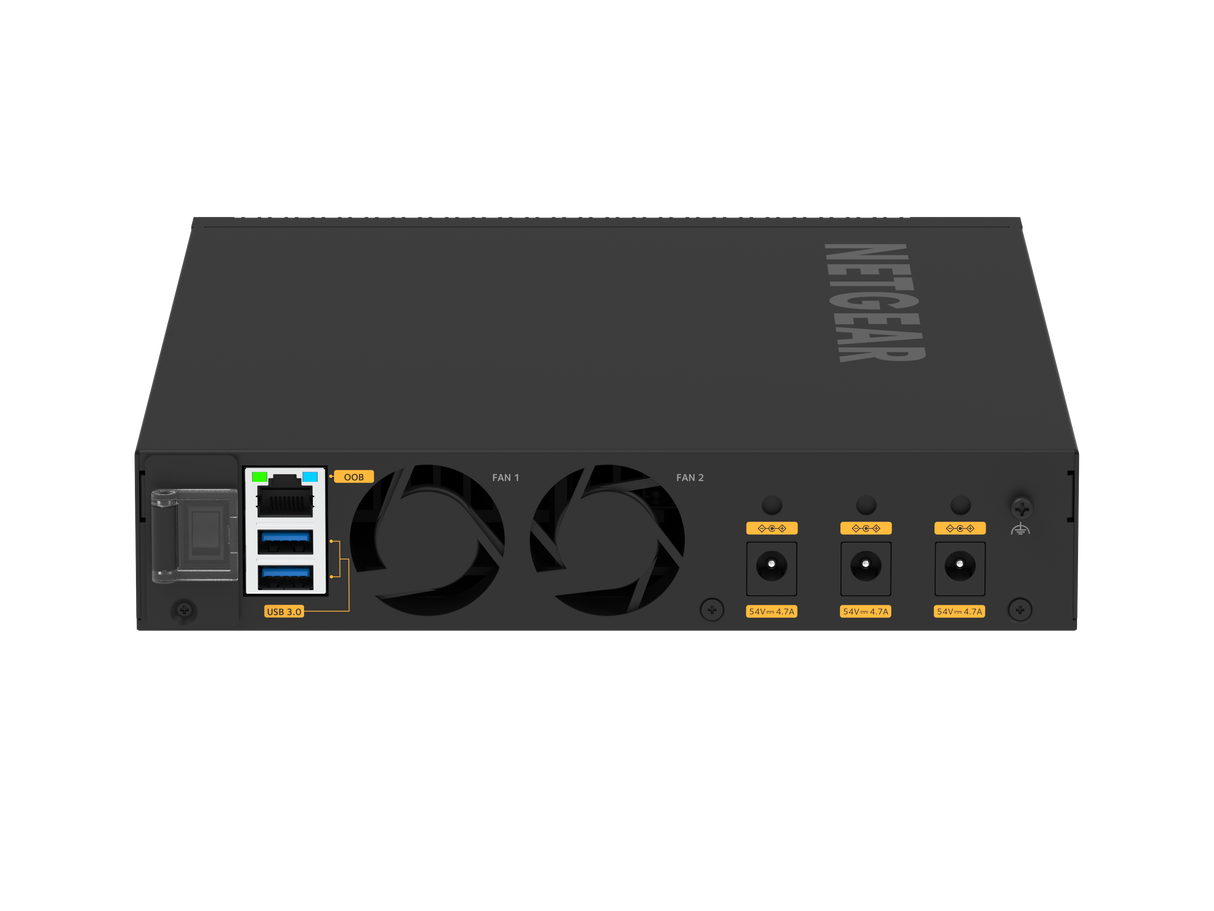

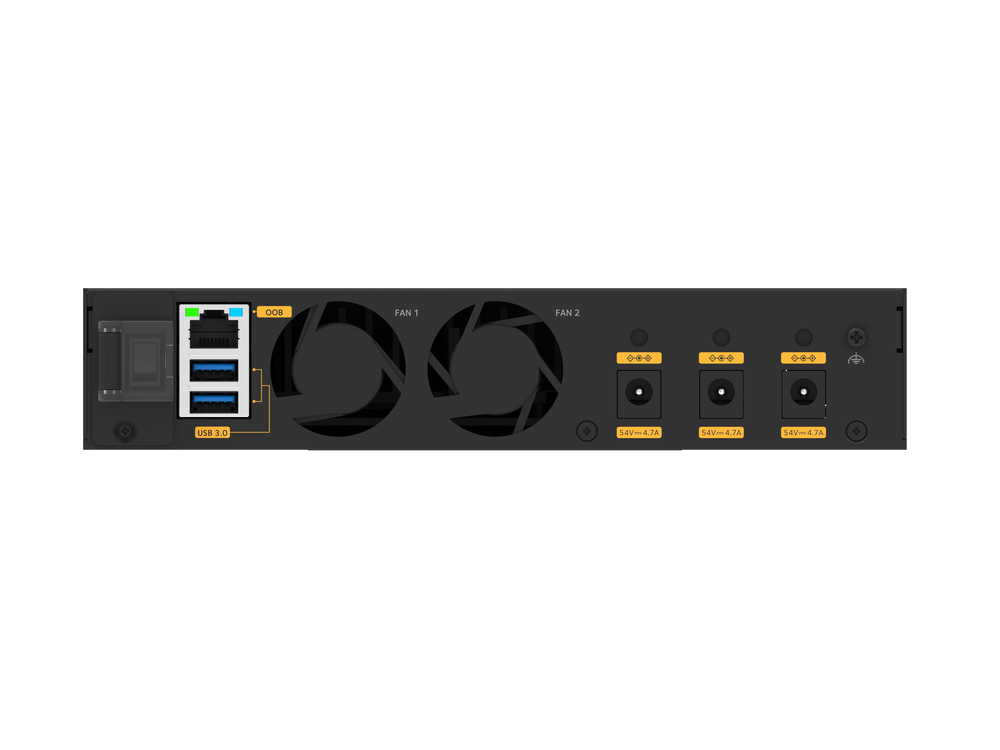

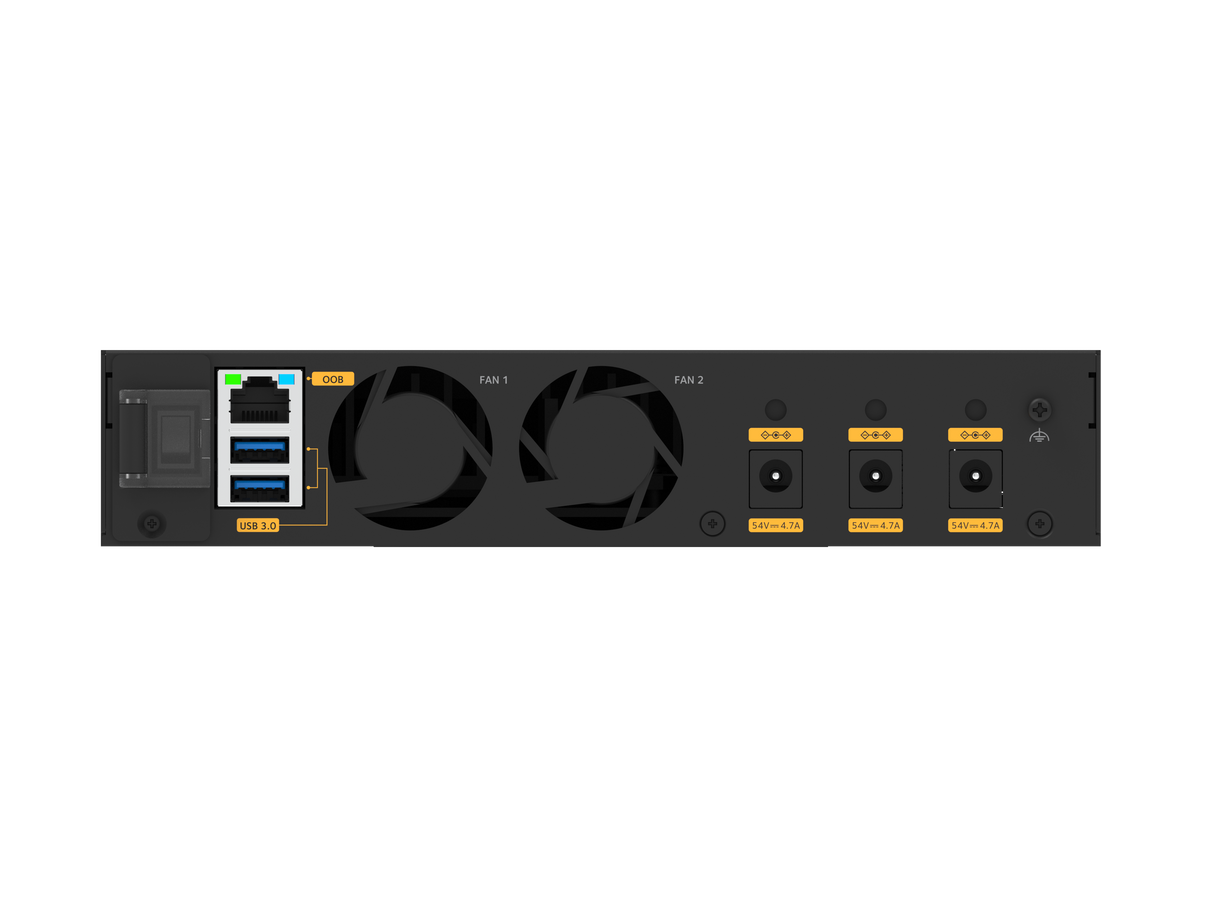

• PSU Compatible Models: APS254W external power adapter (max. 3)
• NETGEAR Engage Controller: Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
• WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase

What's Included

• 1x M4350-8M2V (MSM4310)
• 1x Power cord(s)
• 1x Console USB Type-C cable
• 1x Rack-mounting standard bracket set
• 1x Set of longer brackets for recessed mounting
• 4x Rubber footpads for tabletop installation
• 1x Installation guide
• WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase
