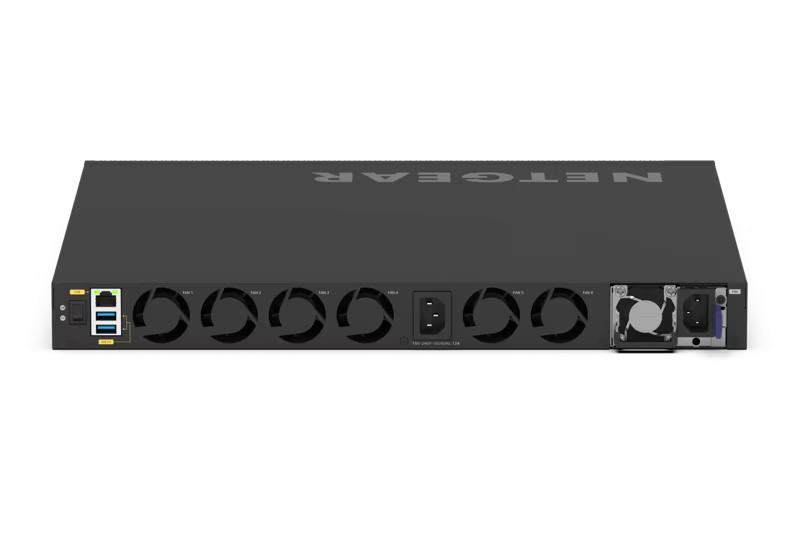

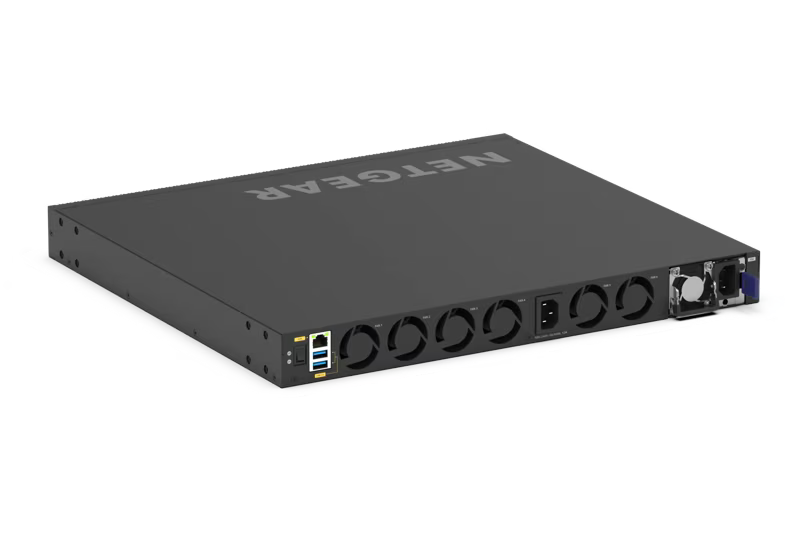

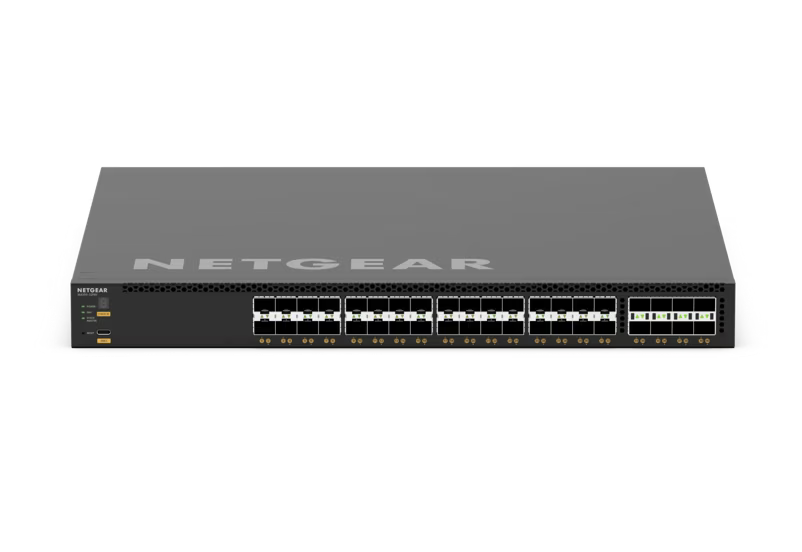

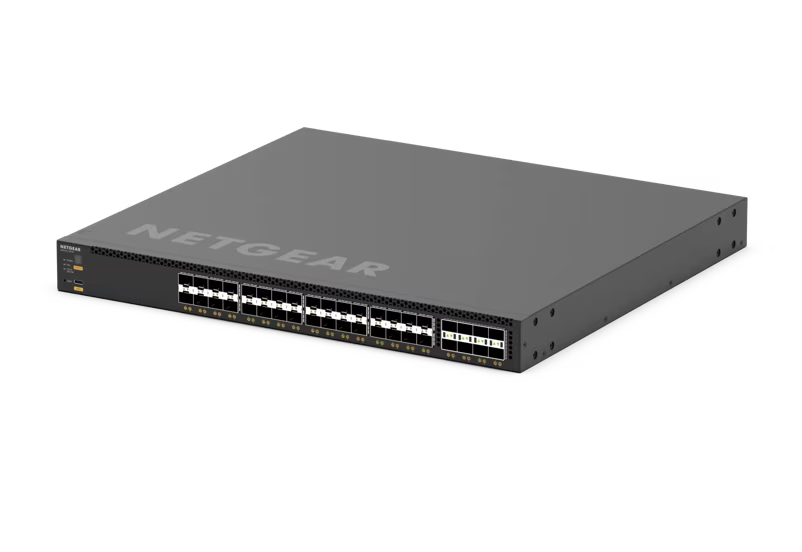

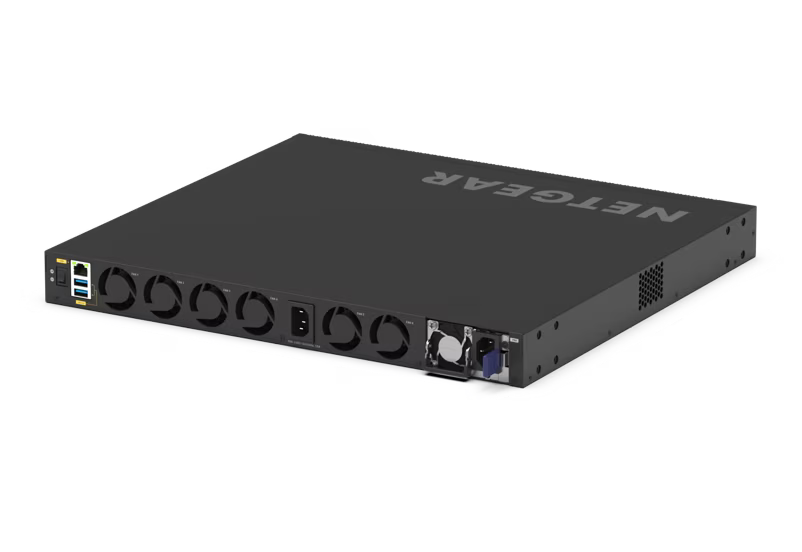

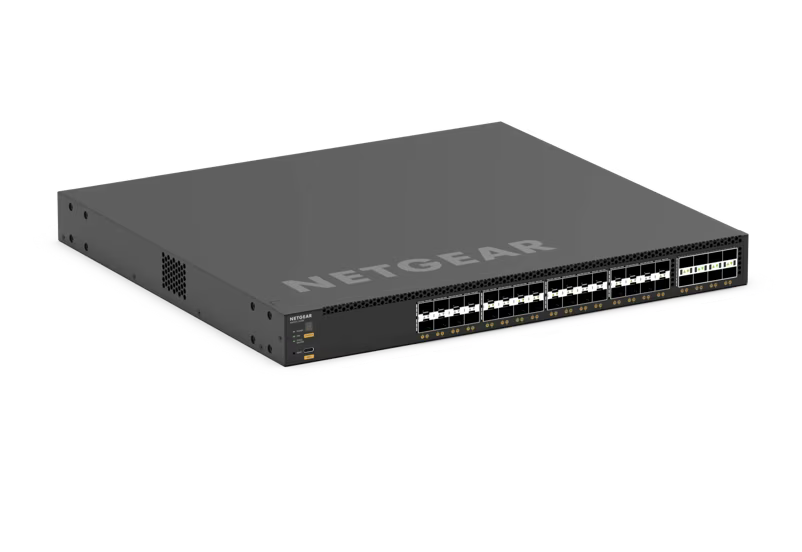

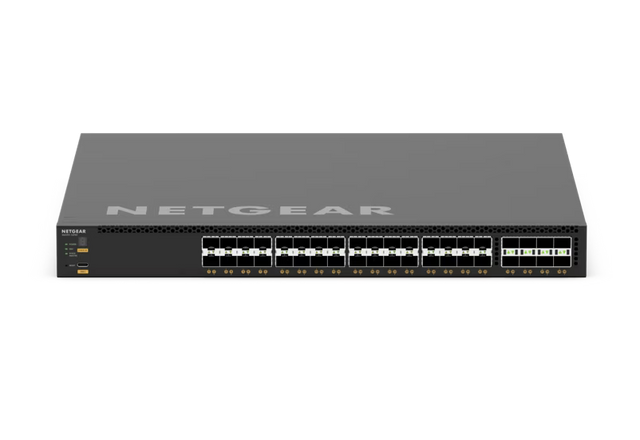

NETGEAR M4350 XSM4340FV 40-Port 32xSFP+ and 8xSFP28 25G Managed Switch
An all-fiber aggregation platform in the M4350 line, the NETGEAR XSM4340FV carries 32 10GBASE-X SFP+ ports and eight 25GBASE-X SFP28 uplinks in one rack unit. It is built for the spine of AV-over-IP and media networks, collecting 10G links from edge switches and production gear and handing traffic upstream over 25G, within a stackable edge-to-core architecture.
Power comes from a 420W internal supply with one modular slot for an APS600Wv3, APS1200Wv2, or APS2000Wv2 in 1+1 redundancy. The feature set includes AVB, jumbo frames to 12kb, IGMP Plus multicast, the AV User Interface and Engage Controller, and Layer 3 static, policy-based, and dynamic routing. Virtual Chassis stacking supplies non-stop forwarding and hitless failover, and quiet mode measures 32.7dB at 25 degrees C.
Key Features
- 40 ports: 32x 10G SFP+ and 8x 25G SFP28 uplinks
- Stackable edge-to-core platform within a 400mm-deep 1U chassis
- 420W internal PSU with modular slot for 1+1 power redundancy
- Virtual Chassis stacking with non-stop forwarding and hitless failover
- IGMP Plus multicast and AV User Interface for fast AV deployment
- AVB support included; jumbo frames up to 12kb
- Quiet mode acoustics of 32.7dB at 25 degrees C
Specifications
- Width: 440mm
- Depth 400mm
- Height 43.2mm
- Weight 6.95kg (15.32lb)
- Primary Port Speed 10 Gigabit
- Number of Ports 40 (32 x 10G SFP+, 8 x 25G SFP28)
- PoE Ports / Budget N/A
- IGMP Support Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support Yes, up to 12kb
- AVB Support Yes, included
- Acoustics Quiet Mode 32.7dB@25ºC
- Power Consumption 156.4W/491.1Btu/hr Standby without any port connection: 42.6W/133.76Btu/hr
- PSU Compatible Models: APS600Wv3; APS1200Wv2; APS2000Wv2
What's Included
- M4350-32F8V (XSM4340FV)
- Power cord(s)
- Console USB Type-C cable
- Rack-mounting standard bracket set
- Set of longer brackets for recessed mounting
- Rubber footpads for tabletop installation (4x)
- Installation guide
