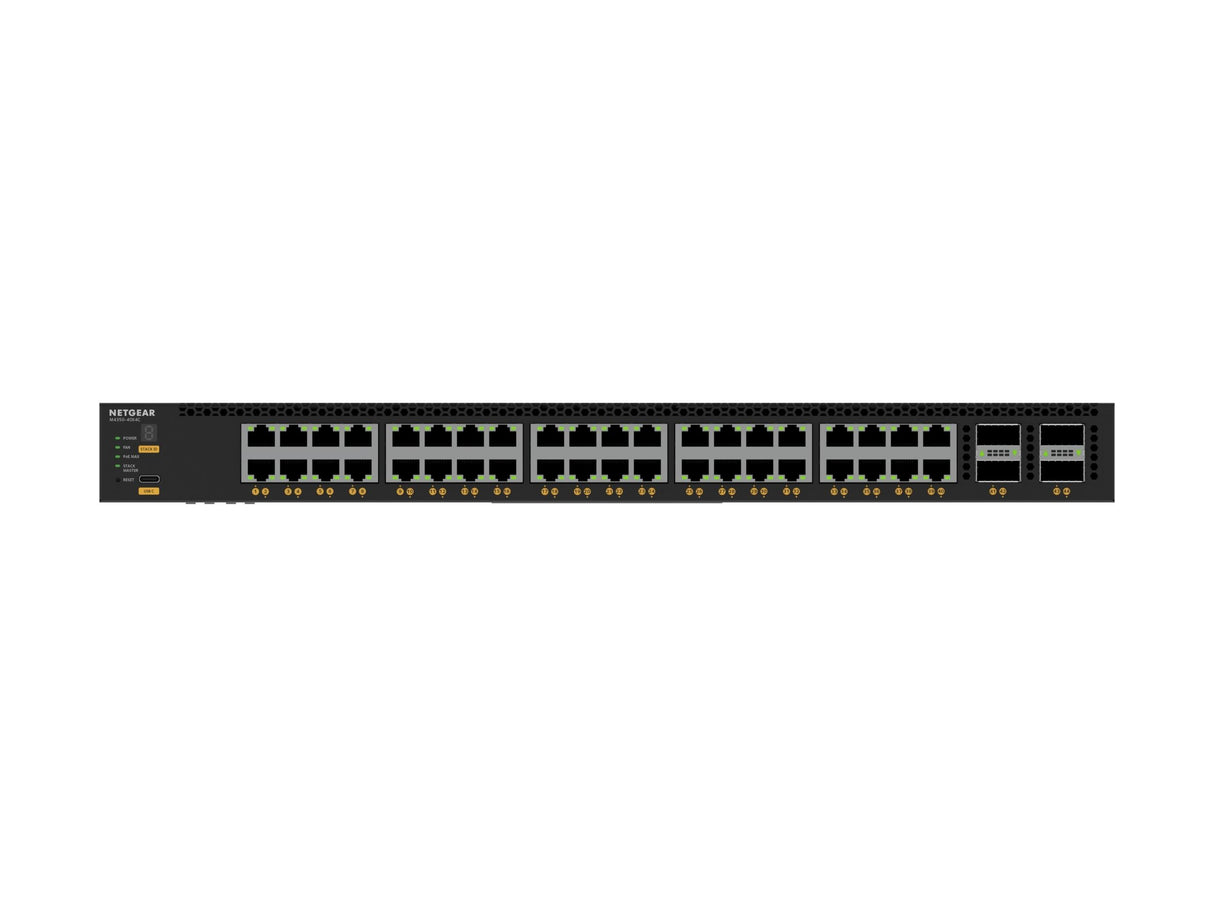

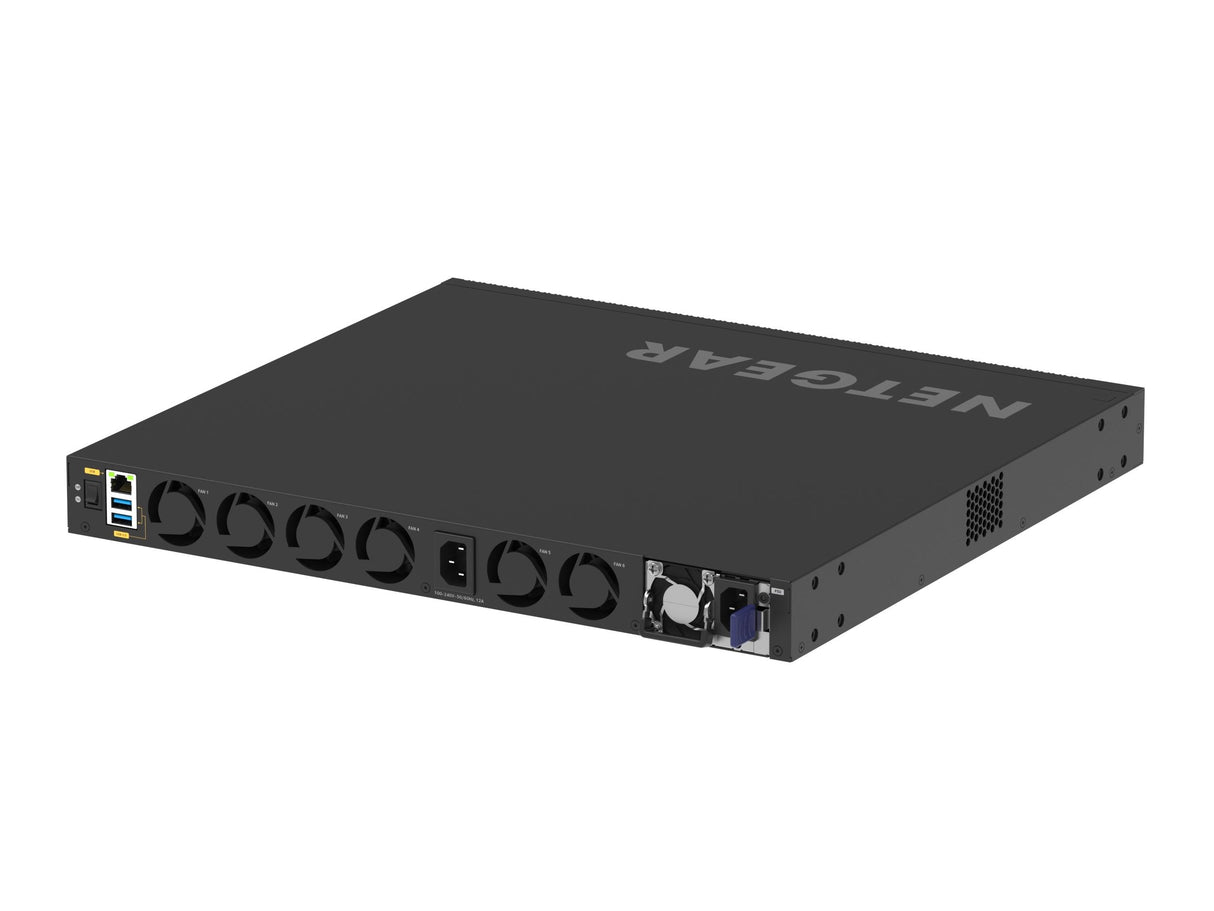

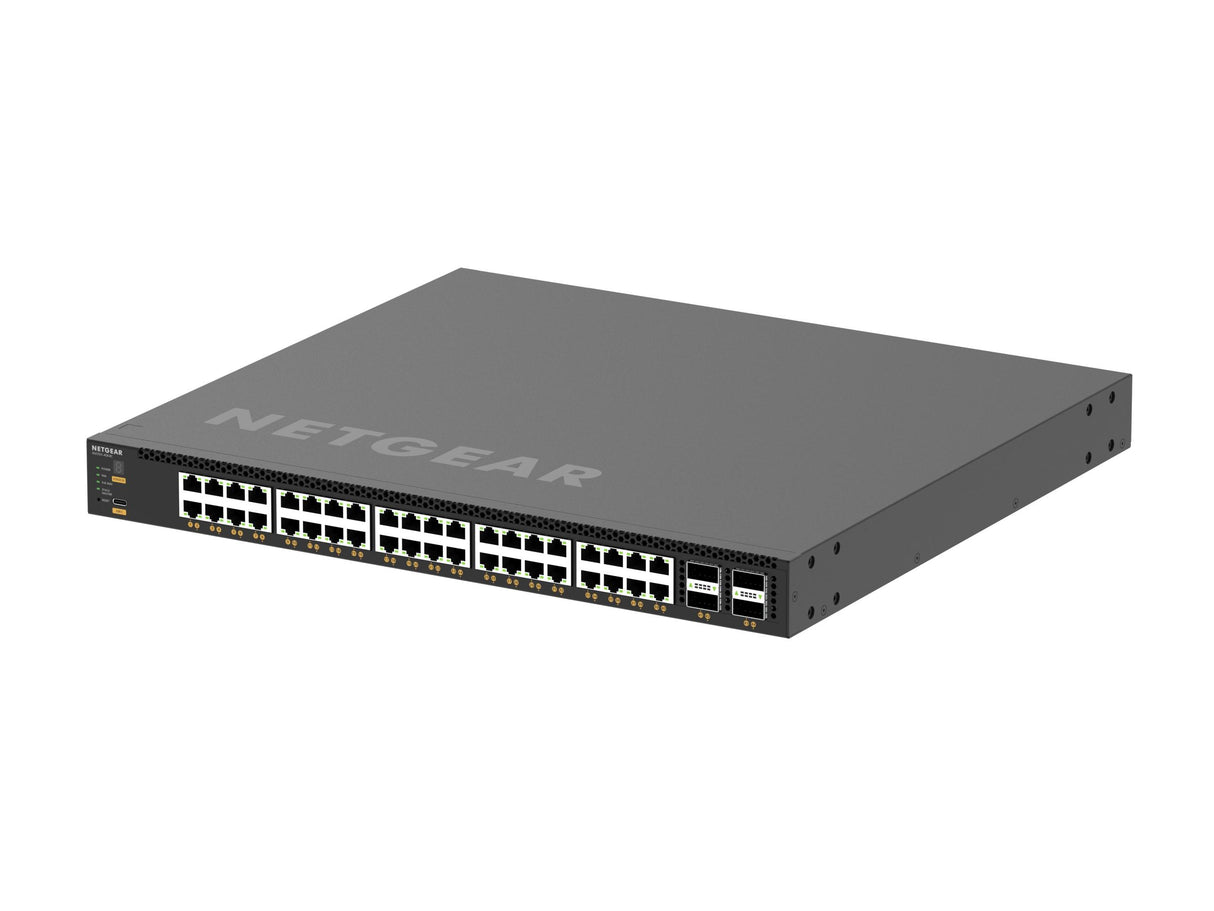

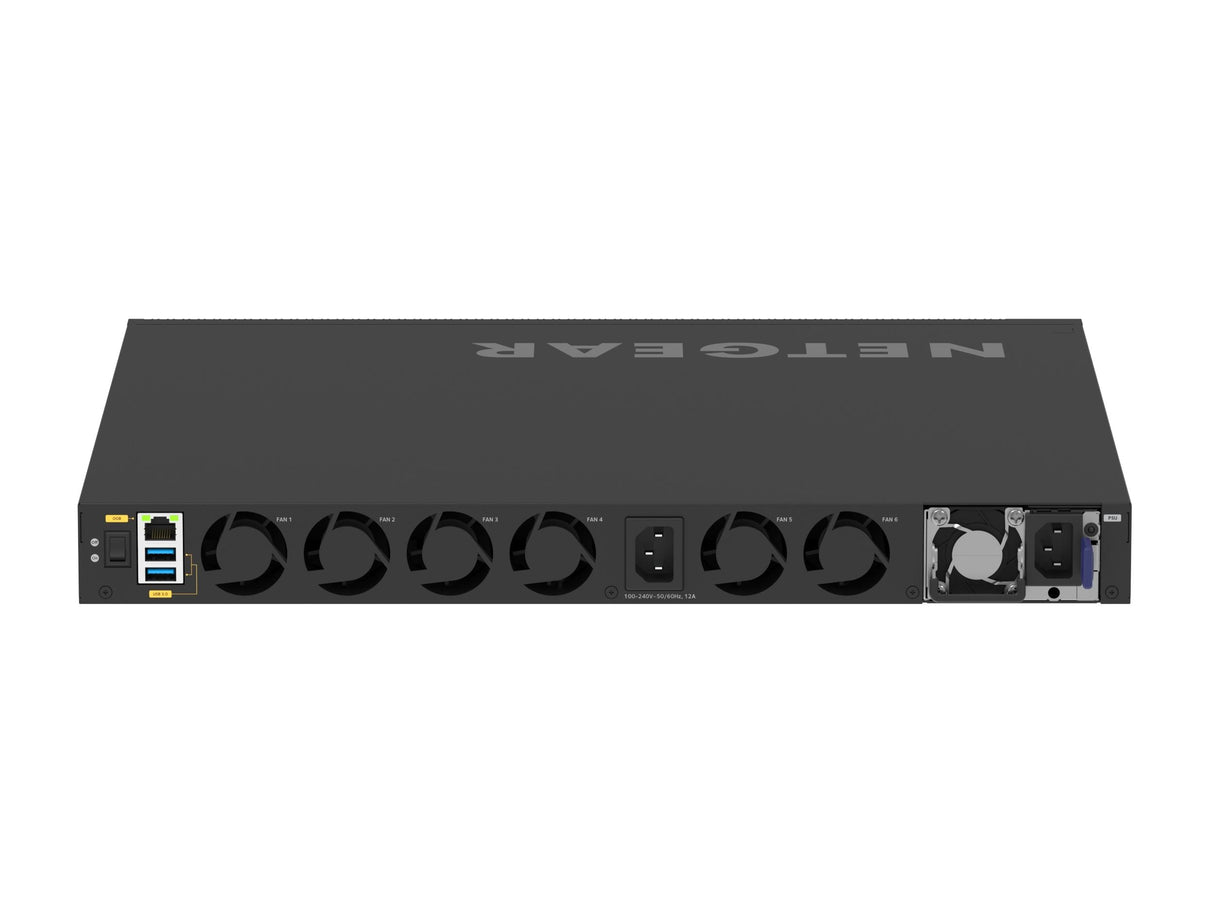

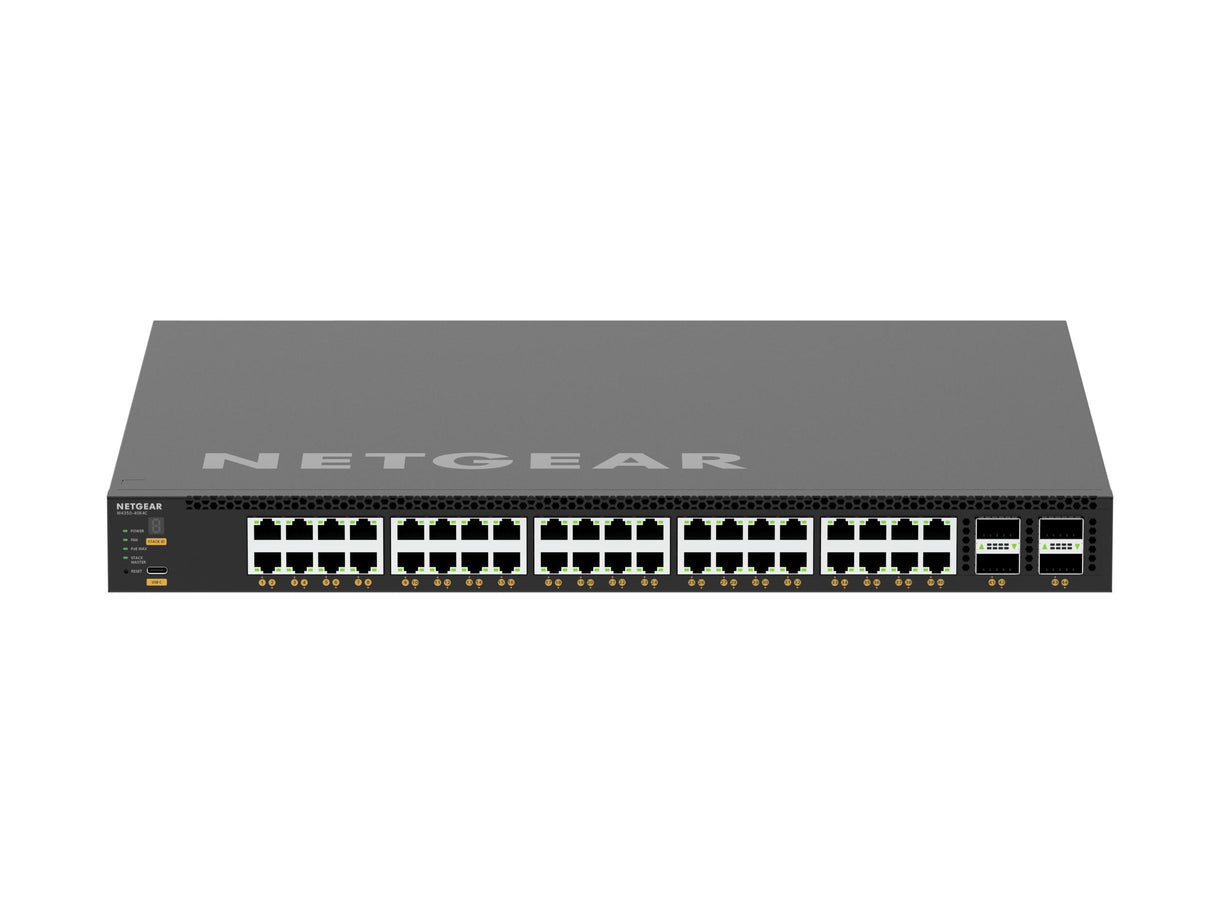

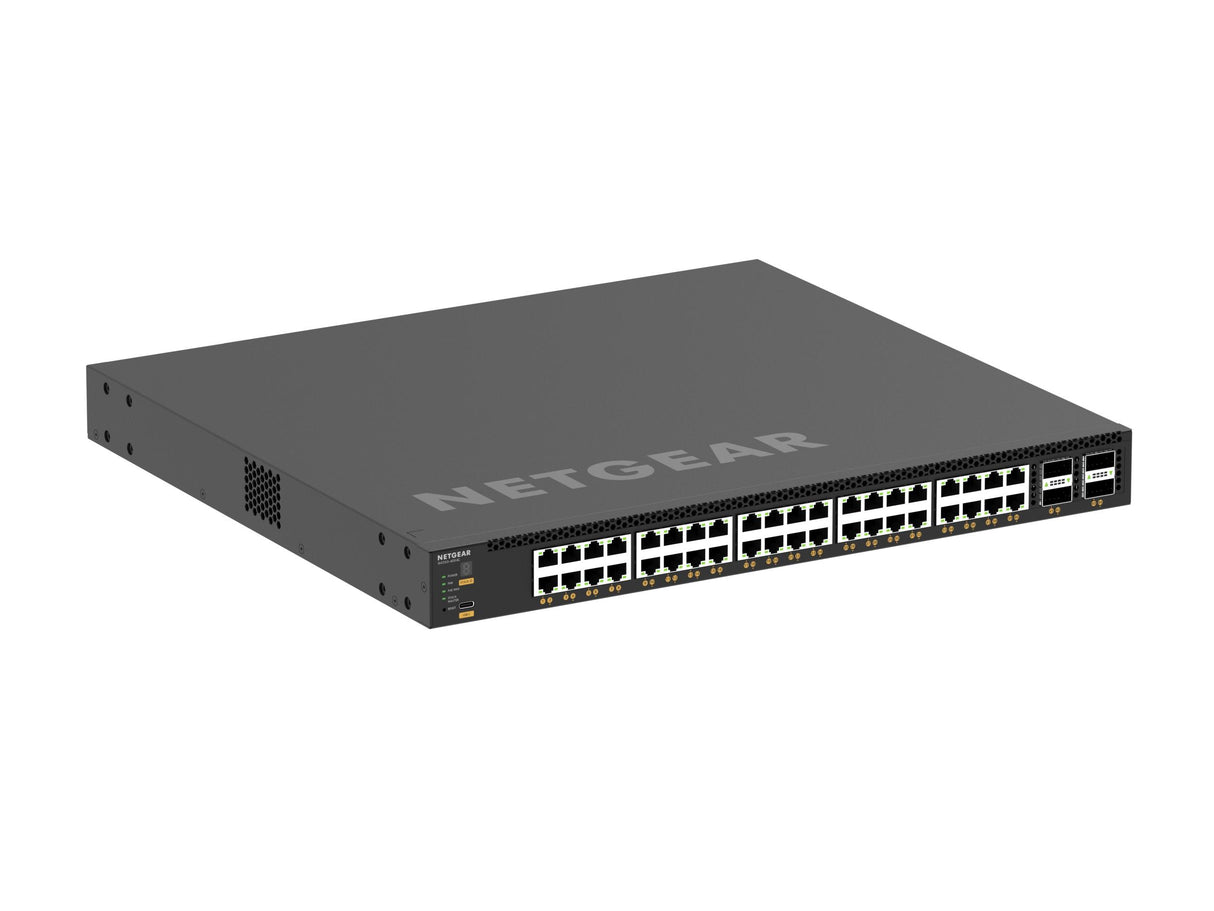

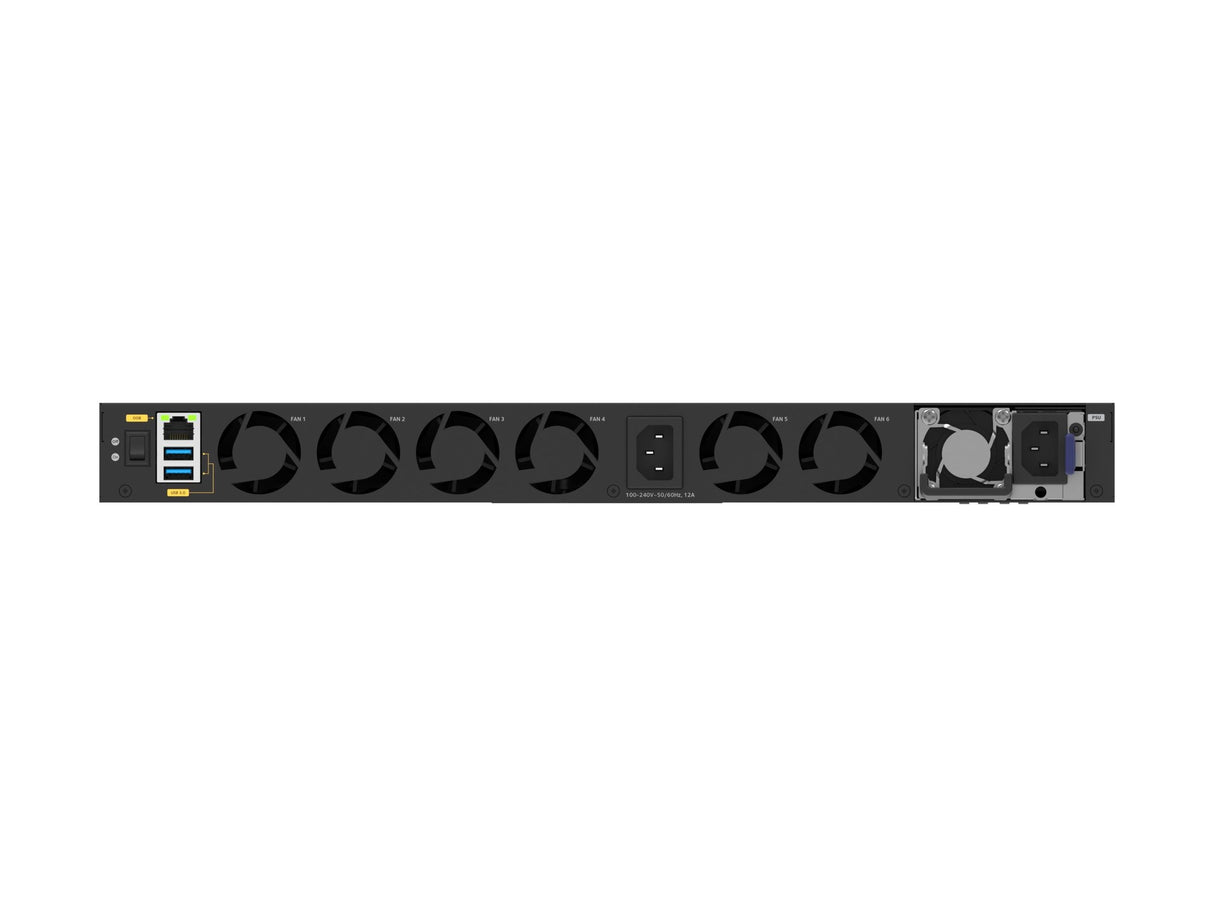

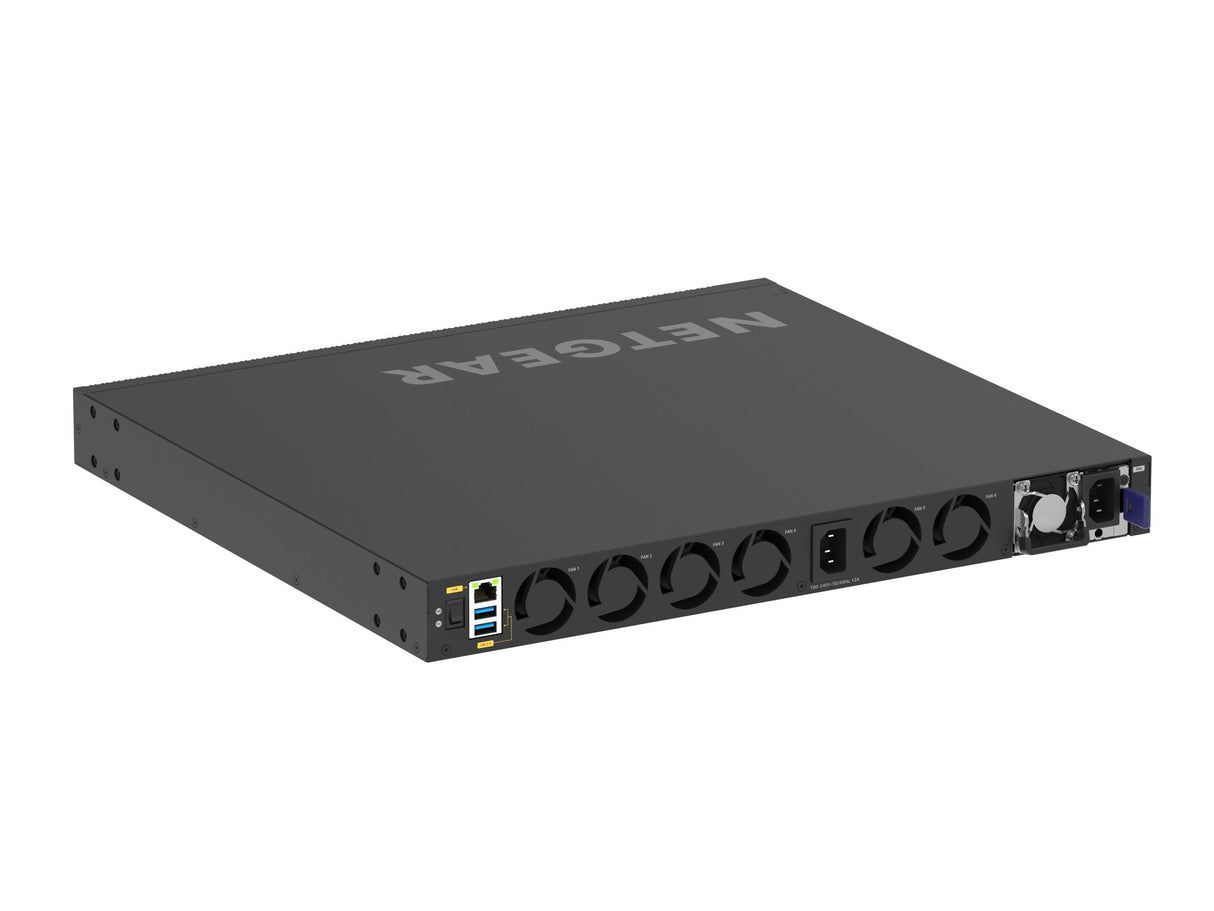

NETGEAR M4350 XSM4344C 44-Port 40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
NETGEAR M4350 XSM4344C 44-Port 40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch
The NETGEAR M4350 XSM4344C is a 1U managed switch engineered for AV-over-IP networks that need both high port density and serious power delivery. Forty 10G/Multi-Gig ports supply PoE++ at up to 90W per port, while four QSFP28 100G ports handle high-bandwidth links, making it suited to edge-to-core deployments in production facilities, campuses, and large integrated AV systems.
The PoE budget starts at 196W from the 420W internal supply and scales to 1,676W using APS600Wv3, APS1200Wv2, or APS2000Wv2 modular supplies in the second bay for 1+1 redundancy. Virtual Chassis stacking provides non-stop forwarding with hitless failover, the Layer 3 feature set covers static, policy-based, and dynamic routing, and NETGEAR IGMP Plus, the AV user interface, and Engage Controller shorten configuration. Quiet mode runs at 34.1dB.
Key Features
- 40 x 10G/Multi-Gig PoE++ ports (90W per port) plus 4 x QSFP28 100G ports
- 196W base PoE budget, expandable to 1,676W with APS600Wv3, APS1200Wv2, or APS2000Wv2 modular supplies
- Second PSU slot supports 1+1 power redundancy alongside the 420W internal supply
- Virtual Chassis stacking with non-stop forwarding and hitless failover
- Layer 3 feature set with static, policy-based, and dynamic routing
- NETGEAR IGMP Plus, AV user interface, and Engage Controller speed up AV-over-IP setup
- 1U chassis at 40cm depth with quiet mode rated 34.1dB at 25 degrees C
Specifications
- Width: 440mm
- Depth 400mm
- Height 43.2mm
- Weight 7.76kg (17.11lb)
- Primary Port Speed 10 Gigabit / Multi-Gig
- Number of Ports 44 (40 x 10G/Multi-Gig PoE++, 4 x 100G QSFP28)
- PoE Ports / Budget 40 PoE++ (90W/port), 196W Base, up to 1,676W Budget
- IGMP Support Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support Yes, up to 12kb
- AVB Support Yes, included
- Acoustics Quiet Mode 34.1dB@25ºC
- Power Consumption With PoE: 413W/1408.33Btu/hr Without PoE: 200.4W/629.26Btu/hr Standby without any port connection: 98.8W/310.23Btu/hr
- PSU Compatible Models: APS600Wv3; APS1200Wv2; APS2000Wv2
What's Included
- M4350-40X4C (XSM4344C)
- Power cord(s)
- Console USB Type-C cable
- Rack-mounting standard bracket set
- Set of longer brackets for recessed mounting
- Rubber footpads for tabletop installation (4x)
- Installation guide
