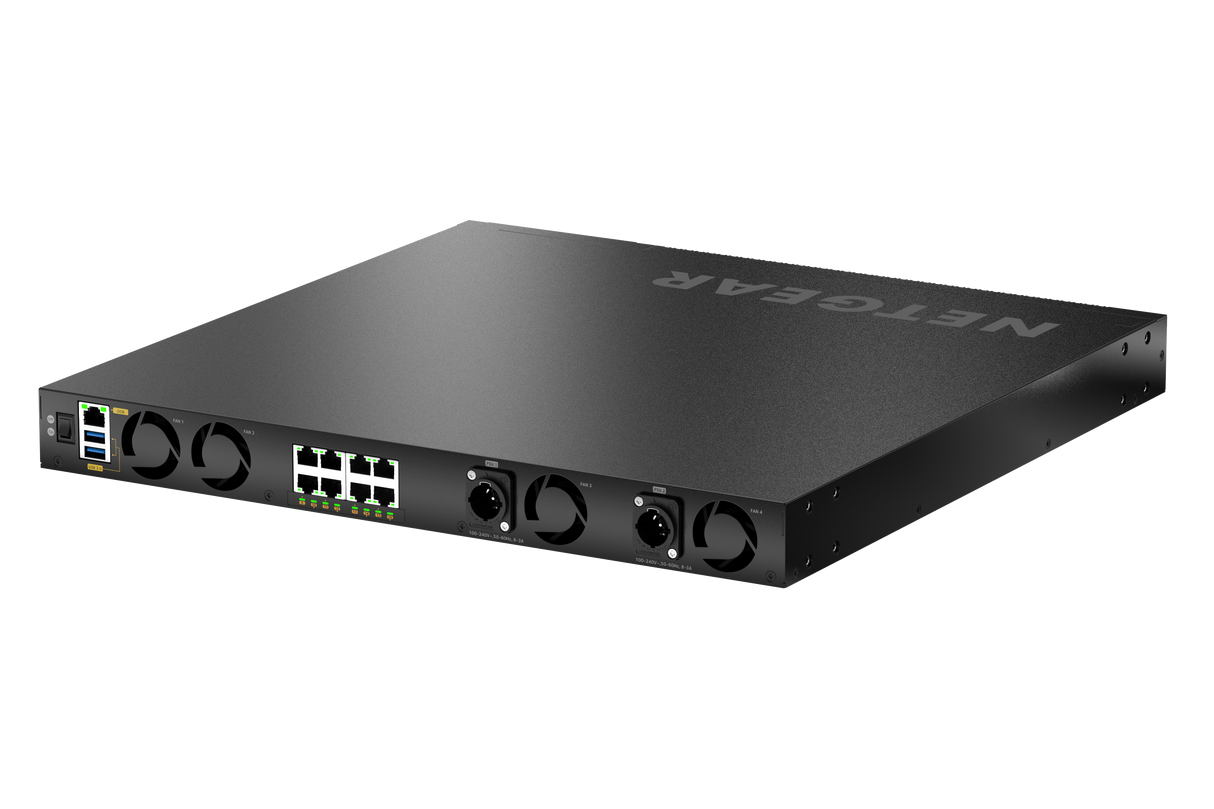

NETGEAR MSM4320 16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4xSFP28 25G Managed Switch

NETGEAR MSM4320 16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4xSFP28 25G Managed Switch

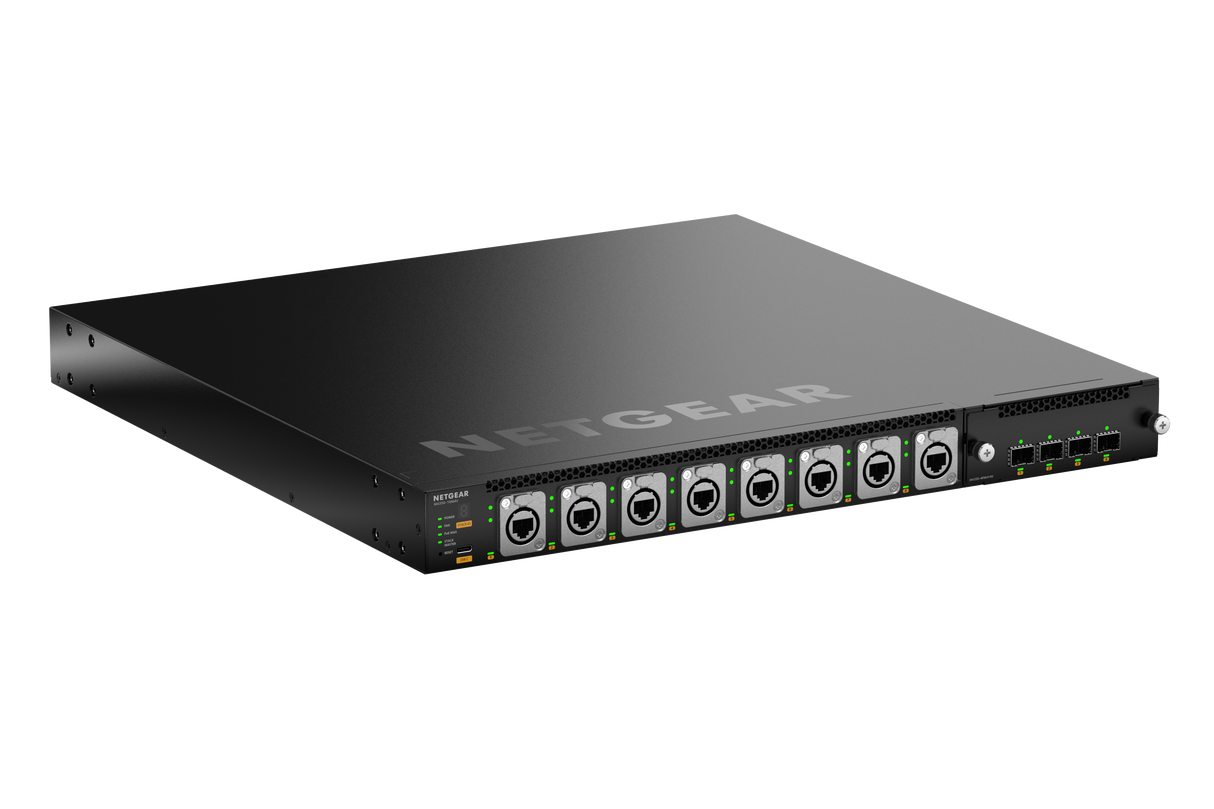

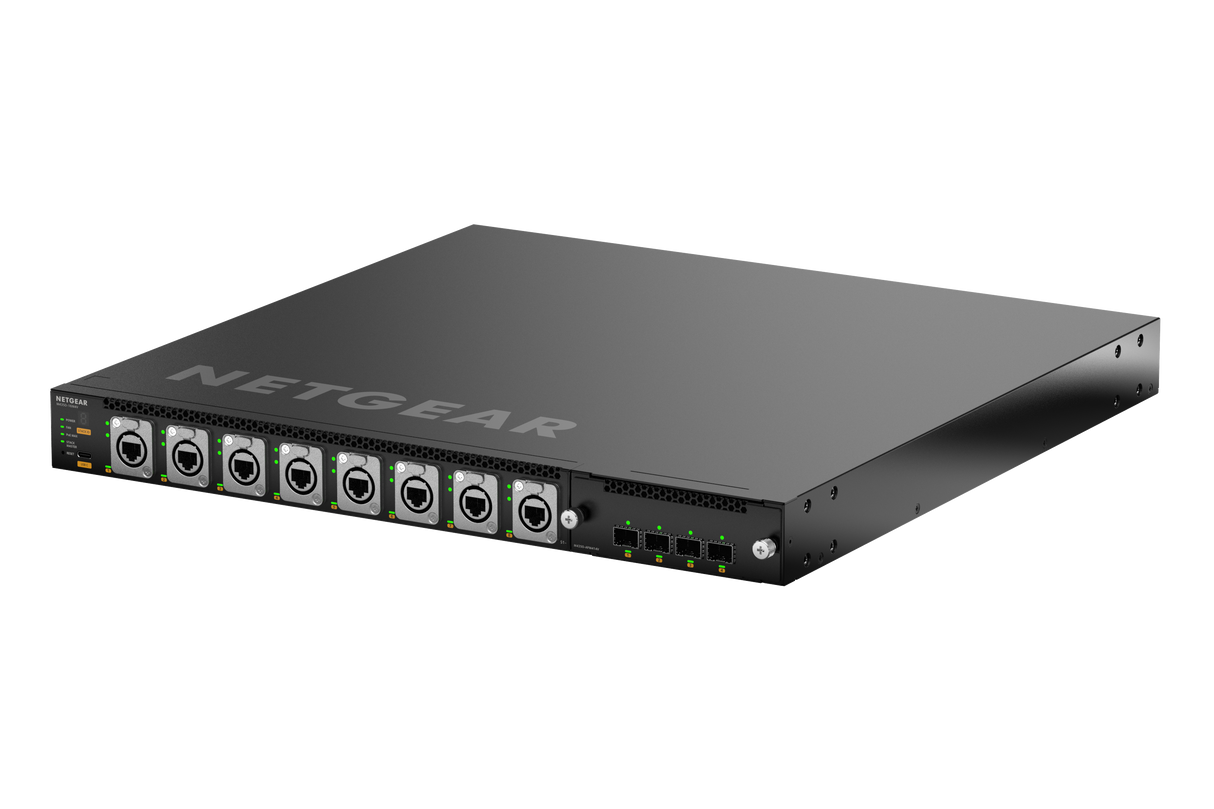

The NETGEAR MSM4320 is a managed AV-over-IP switch built around 16 2.5G PoE++ ports, eight of which use locking Neutrik etherCON connectors, plus four 25G SFP28 uplinks. Designed for professional audio and video networks in touring rigs, broadcast facilities, and fixed installations, it pairs stage-ready connectivity with a PoE budget that starts at 530W redundant and scales to 1,130W total.

Two internal 800W power supplies feed the switch through Neutrik powerCON inputs, and a modular card slot ships with the APM414V 4x 25G SFP28 card, with optional 10G RJ-45 and opticalCON DUO fiber cards available. SMPTE ST 2110 Grandmaster and Boundary Clock support AES67 and ST 2059-2 workflows, while NETGEAR IGMP Plus, AV OS profiles, Layer 3 routing, and Virtual Chassis stacking with hitless failover round out the platform.

Key Features

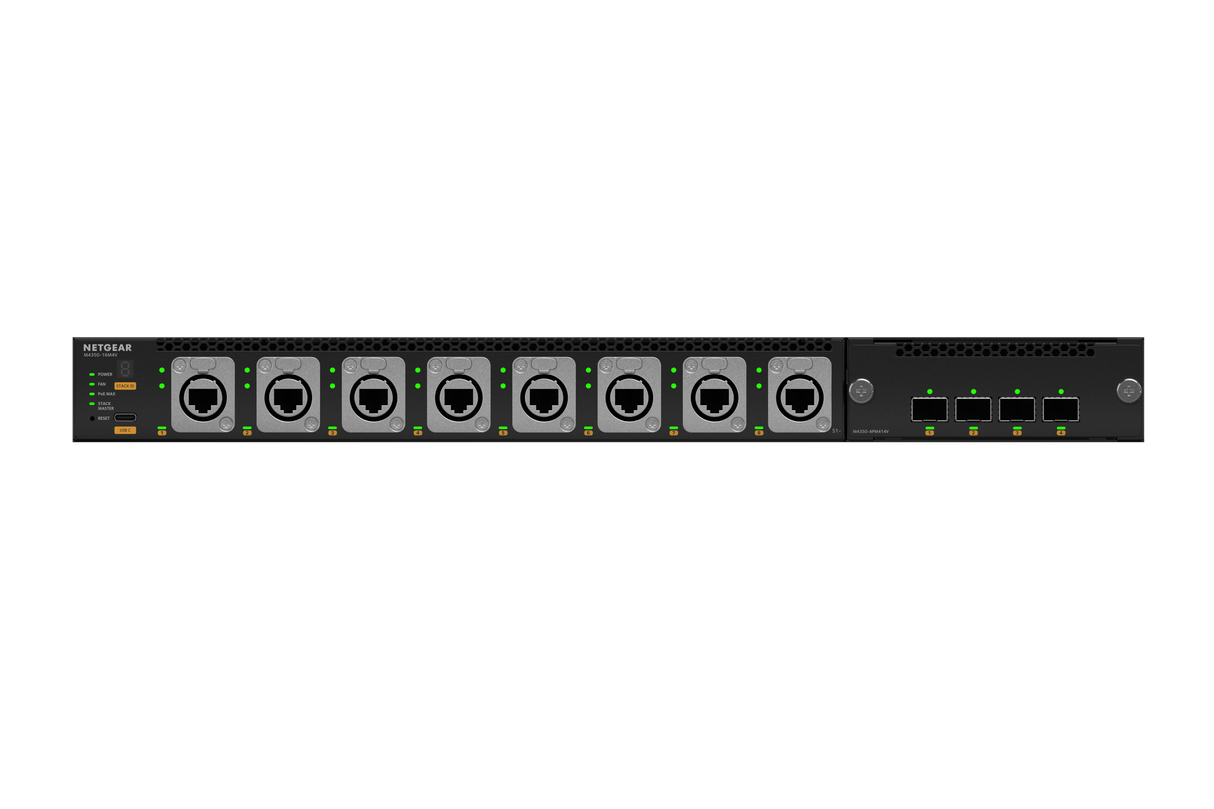

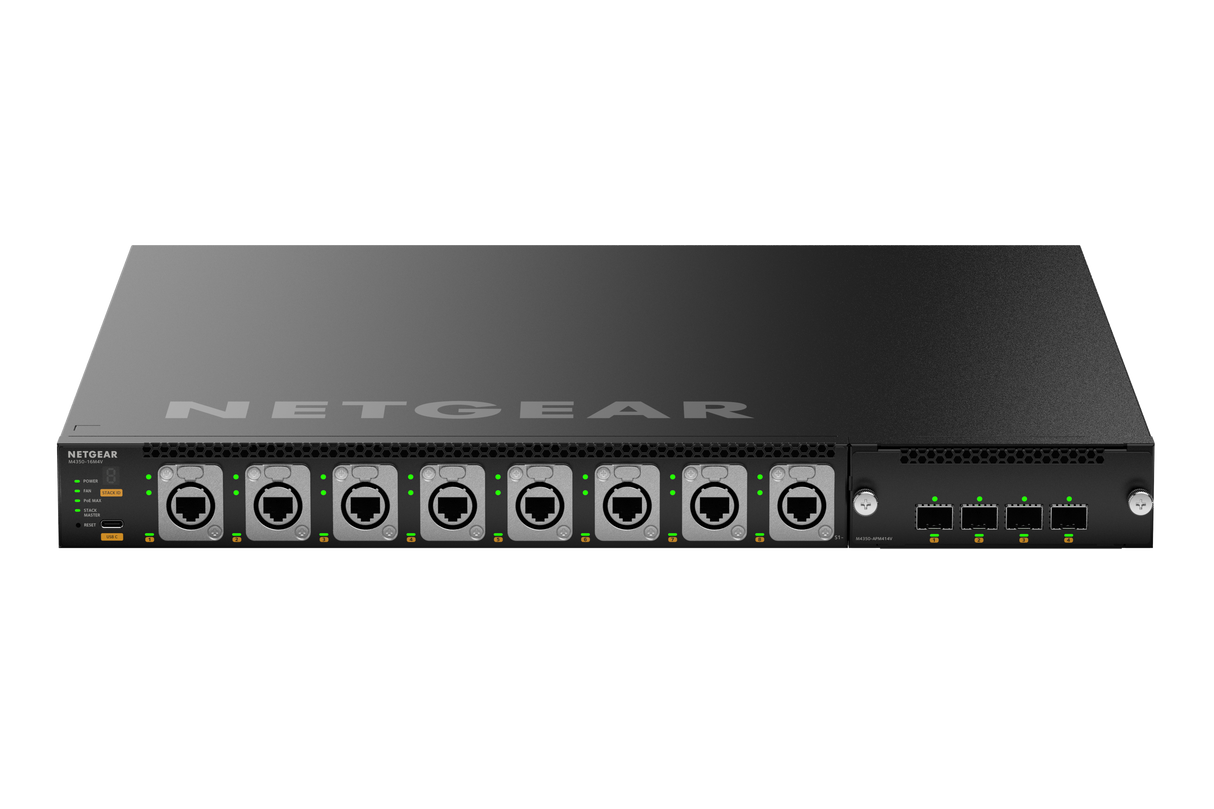

• 20 ports: 16x 2.5G PoE++ including 8x Neutrik etherCON, plus 4x 25G SFP28 uplinks
• Dual internal 800W supplies deliver 530W redundant base PoE, expandable to 1,130W total
• Neutrik powerCON power inputs with included C14 adapters for standard IEC C13 cords
• Modular interface slot ships with APM414V 25G card; 10G RJ-45 and opticalCON DUO fiber cards optional
• SMPTE ST 2110 Grandmaster and Boundary Clock for AES67 and ST 2059-2 applications
• IGMP Plus multicast, AV OS port profiles, and Engage Controller simplify AV-over-IP setup
• Virtual Chassis stacking with non-stop forwarding and hitless failover; Layer 3 routing included

Specifications

• Width: 440mm
• Depth: 432mm
• Height: 43.2mm
• Weight: 7.85kg (17.31lb)
• Primary Port Speed: 2.5 Gigabit
• Number of Ports: 20 (16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28)
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• Acoustics: Quiet Mode 35.6dB@25ºC
• Power Consumption With max PoE: 1359.8W/4,639.64Btu/hr
• Without PoE: 109.6W/373.96Btu/hr
• Standby w/o any port connection: 50.6W/170.60Btu/hr
• PSU Compatible Models: Internal only

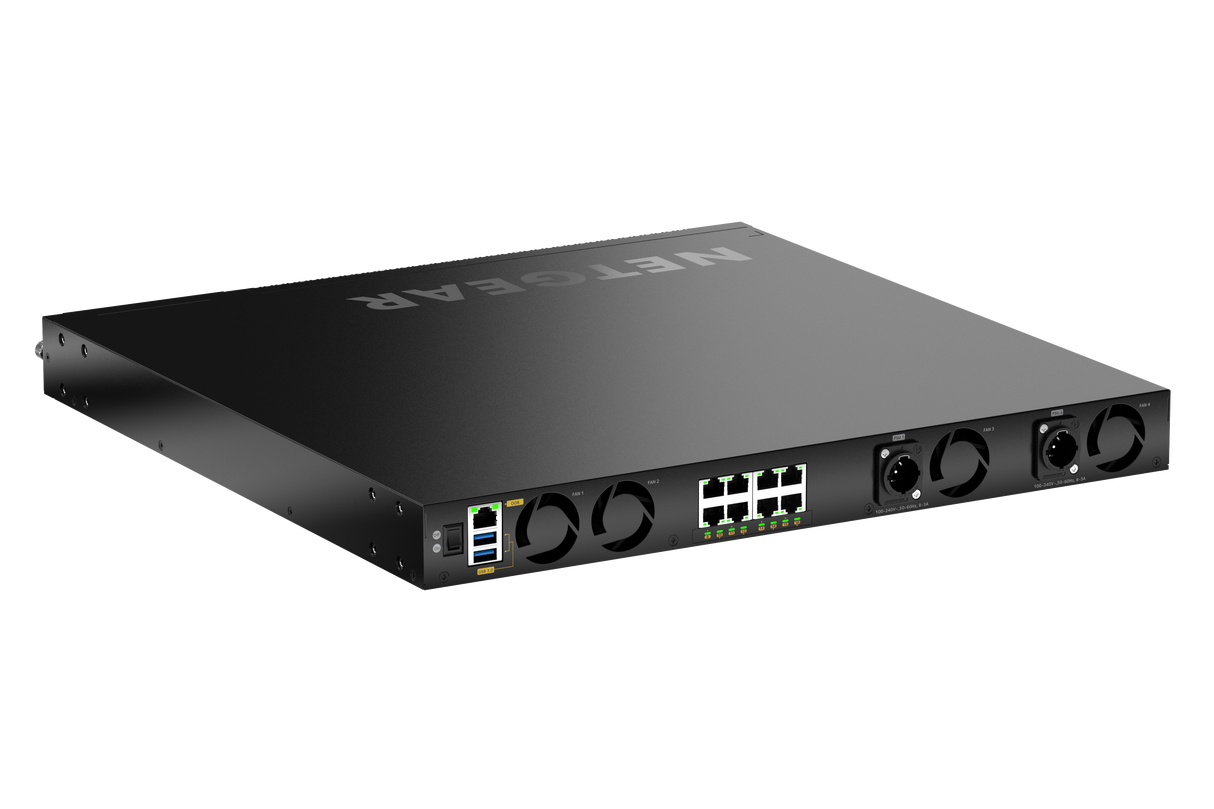

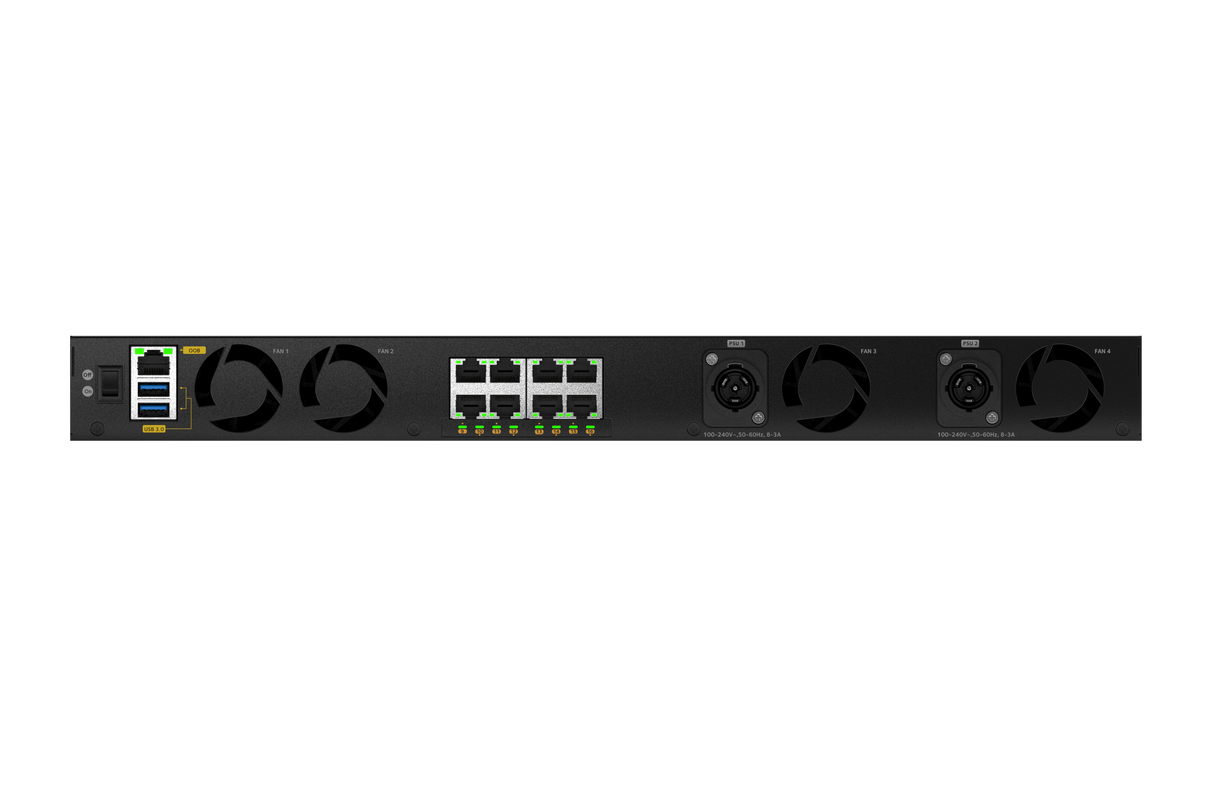

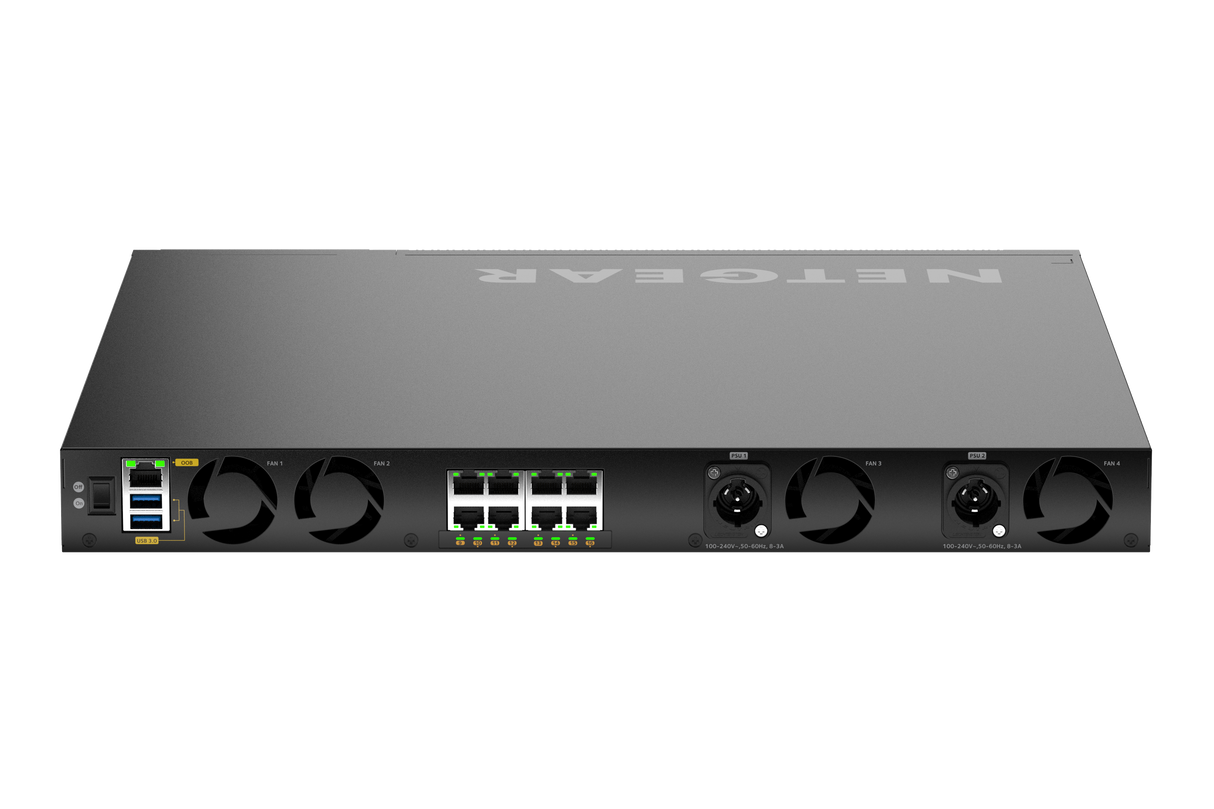

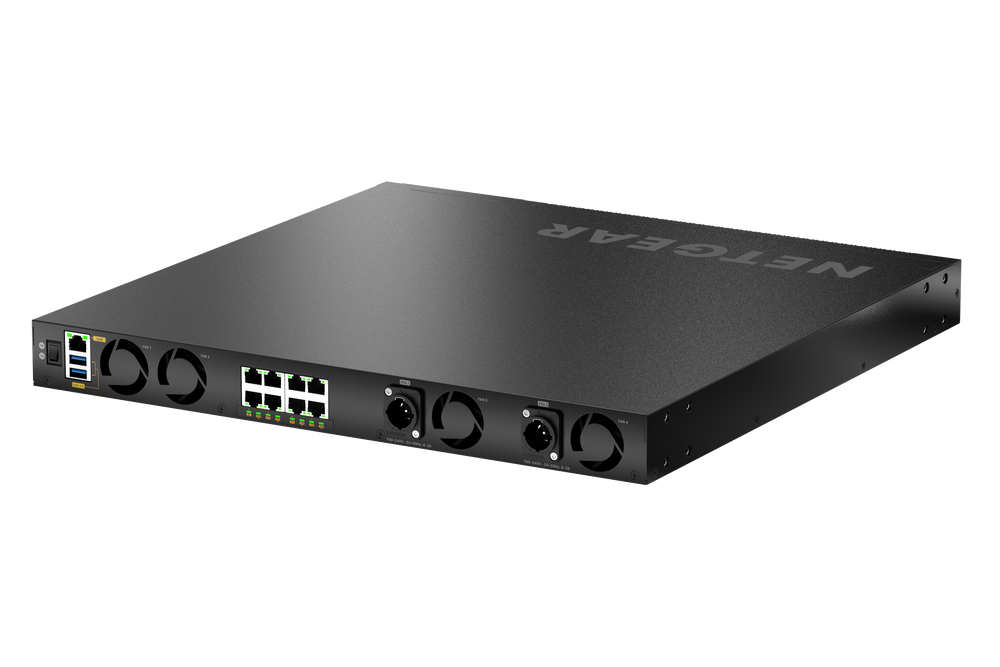

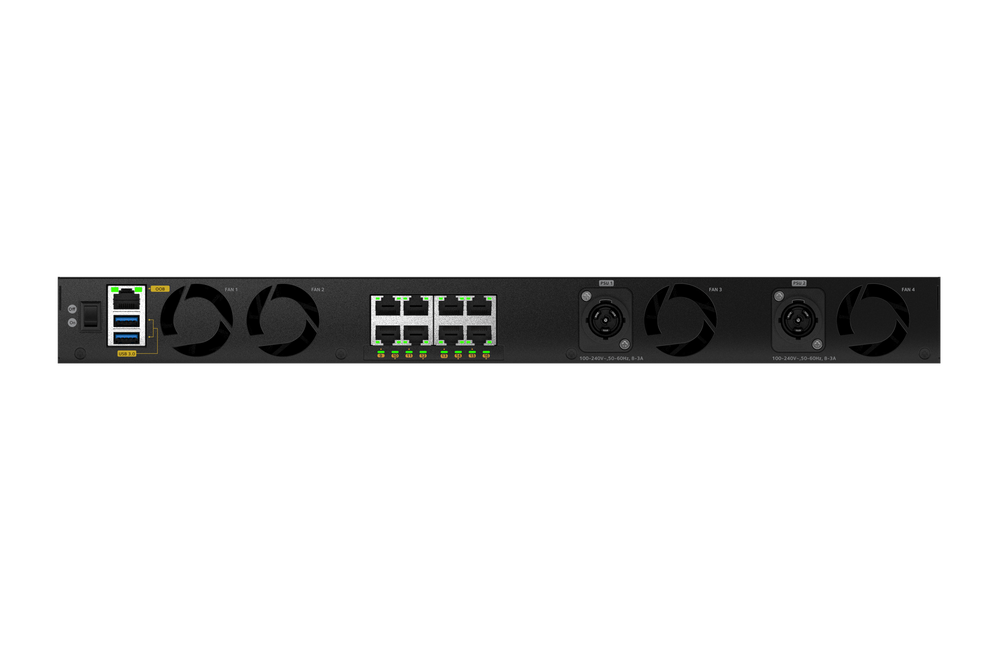

• Internal PSUs: 2 internal 800W PSUs with PowerCON connectors
• Compatible Interface Cards APM414SD (2x Neutrik opticalCON DUO for 4x MMF Transceivers)
• APM414LD (2x Neutrik opticalCON DUO for 4x SMF Transceivers)
• APM414V (4x Standard 25G SFP28 ports) ships with the switch
• APM414C (4x Standard 10G RJ5 ports)

What's Included

• 1x M4350-16M4V (MSM4320)
• 1x Power Cord (Standard AC to C13)
• 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
• 1x Console USB Type-C cable
• 1x Rack-mounting standard bracket set
• 1x Set of longer brackets for recessed mounting
• 4x Rubber footpads for tabletop installation
• 1x Installation guide
• Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase.
