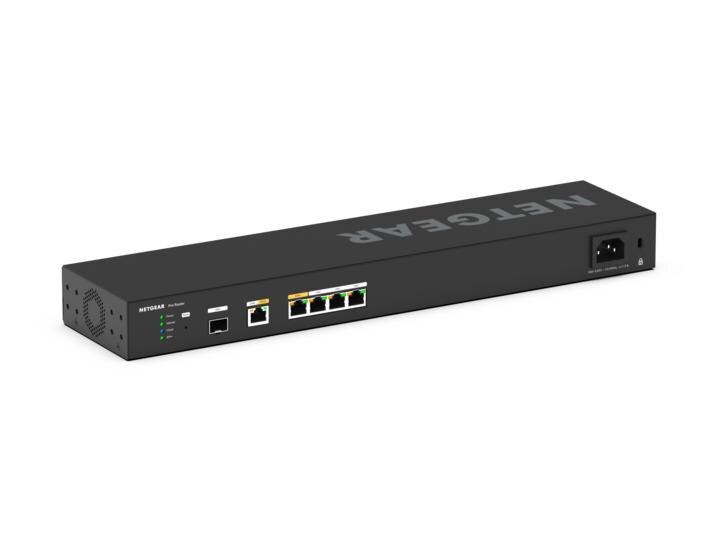

Netgear | PR460X 6-Port 10G / 2.5G Dual-WAN Pro Router

Netgear | PR460X 6-Port 10G / 2.5G Dual-WAN Pro Router

The NETGEAR PR460X is a six-port dual-WAN pro router designed for business networks that cannot afford a dropped internet connection. 10G/Multi-Gig and 2.5G WAN ports provide failover between two services, and the platform integrates with NETGEAR Pro WiFi access points and select Smart switches under Insight cloud management. A rack-mountable chassis fits industry-standard enclosures.

A quad core ARM A73 processor at 2.2 GHz with 2GB DDR4 and 4GB eMMC drives the routing engine. Connectivity spans one 10G/Multi-Gig copper port (configurable LAN/WAN), one 2.5G/1G WAN, three 2.5G/1G LAN ports, and a 10G/1G SFP+ port for long-distance backhaul or ISP fiber modems. IPSec site-to-site VPN, stateful packet inspection, DoS prevention, and a five-year warranty round out the platform.

Key Features

• Dual-WAN failover across 10G/Multi-Gig and 2.5G WAN ports

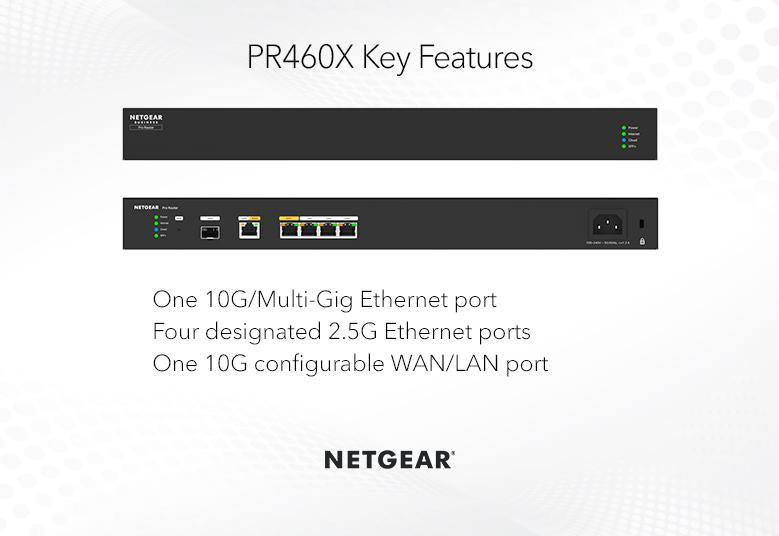

• 1 x 10G/Multi-Gig copper (configurable LAN/WAN), 3 x 2.5G/1G LAN, 1 x 2.5G/1G WAN, 1 x 10G/1G SFP+
• Quad core ARM A73 at 2.2 GHz, 2GB DDR4, 4GB eMMC flash
• IPSec site-to-site VPN with 3DES/AES encryption and IKEv1/IKEv2 key exchange
• Firewall with stateful packet inspection, DoS prevention, and traffic rules/scheduling
• Control, management, and monitoring through NETGEAR Insight

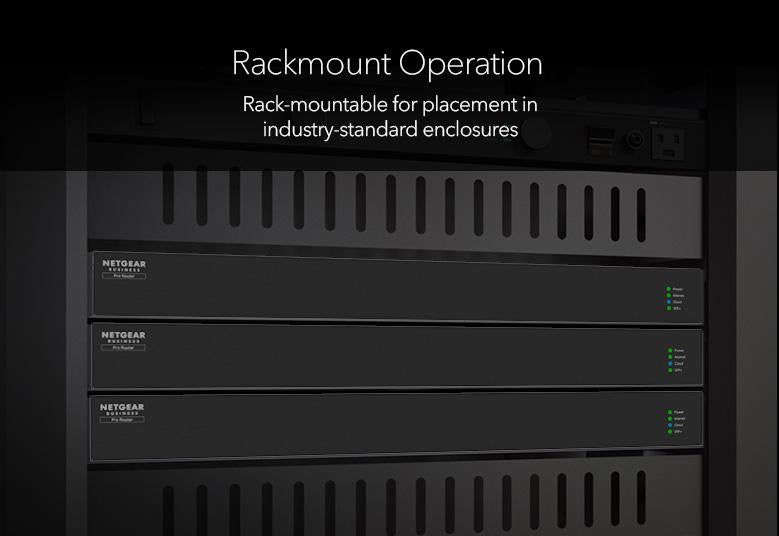

• Rack-mountable; 5-year hardware warranty with next business day replacement

Specifications

• Width: 440mm
• Depth: 100mm
• Height: 43.2mm
• Weight: 3.27lb (1484g)
• Hardware: Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC
• Connectivity: Network Switching Subsystem (NSS) processor
• 1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
• 1 x 2.5G/1G RJ-45 (WAN)
• 3 x 2.5G/1G RJ-45 (LAN)
• 1 x 10G/1G SFP+ (LAN)
• Performance: WAN/LAN speed at 2.5G or 10G port wired speed.
• LAN/VLAN: Maximum Number of VLANs is 8, DHCP Server (limit is 8), VLANs 802.1Q
• Security: Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention,
• Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port.
• VoIP SIP ALG: Yes
• Networking: ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
• VPN: IPSec
• Encryption/Authentication: 3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
• Key Exchange: IKEv1, IKEv2, Pre-shared Key
• Management Options: Insight Cloud, Logging Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
• Major Regulatory Compliance Environment: RoHS
• Safety: CE/LVD, CSA
• EMI: CE/LVD, CSA
• Temperatures Operating Temperature: 0° - 40°C (32°-104° F)
• Storage Temperature: -20° - 70° C (-4° - 158° F)
• Humidity: humidity 90% maximum relative humidity, non-condensing, Storage humidity 95% maximum relative humidity, non-condensing, Electrical Specifications Power adapter input localized to regions
• Power: AC 100-240V, 50/60Hz, 1.3A

What's Included

• NETGEAR PR460X 10G/Multi-Gigabit Dual-WAN Pro Router with Insight Cloud Management
• DC power adapter (varies by region)
• Ethernet cable
• Installation guide
