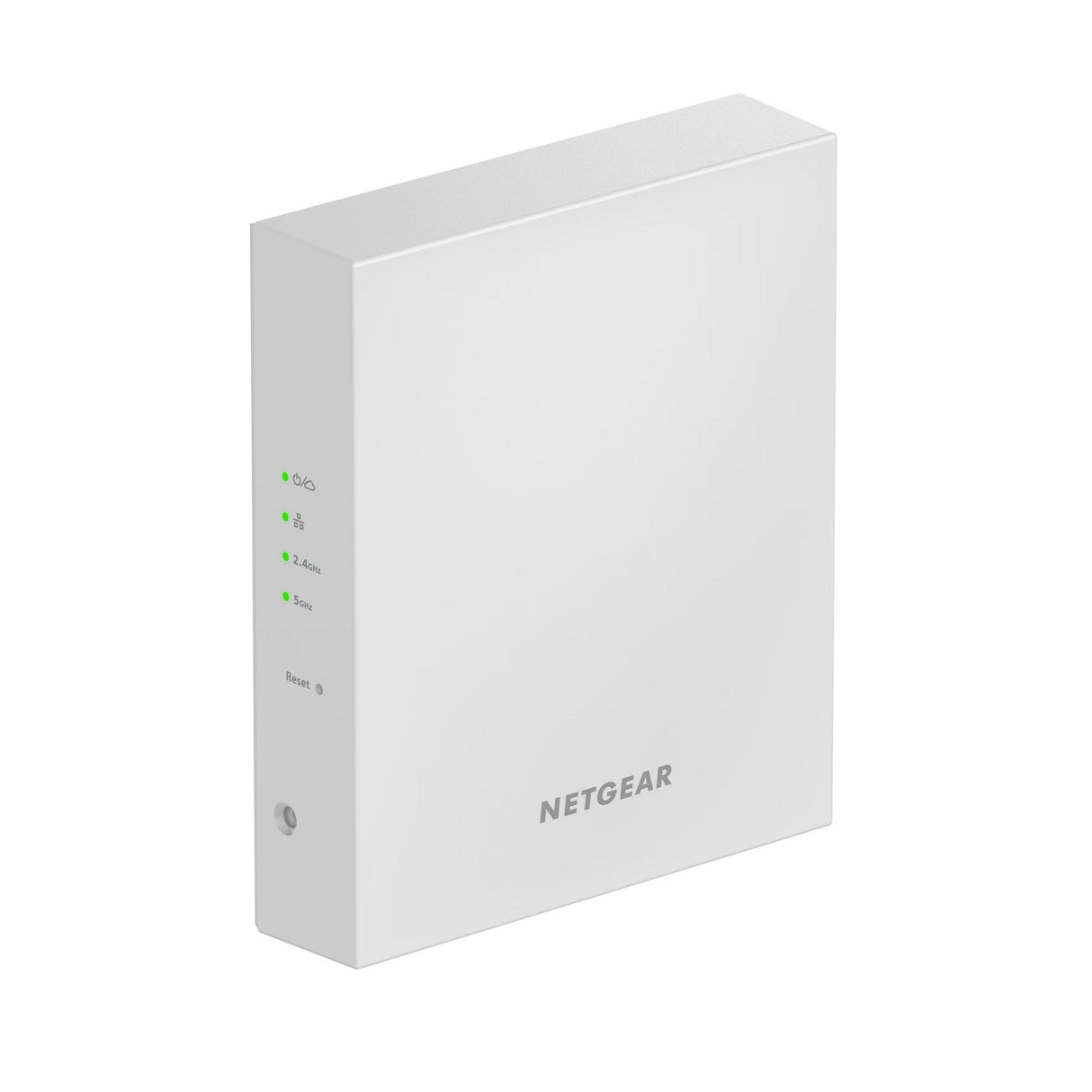

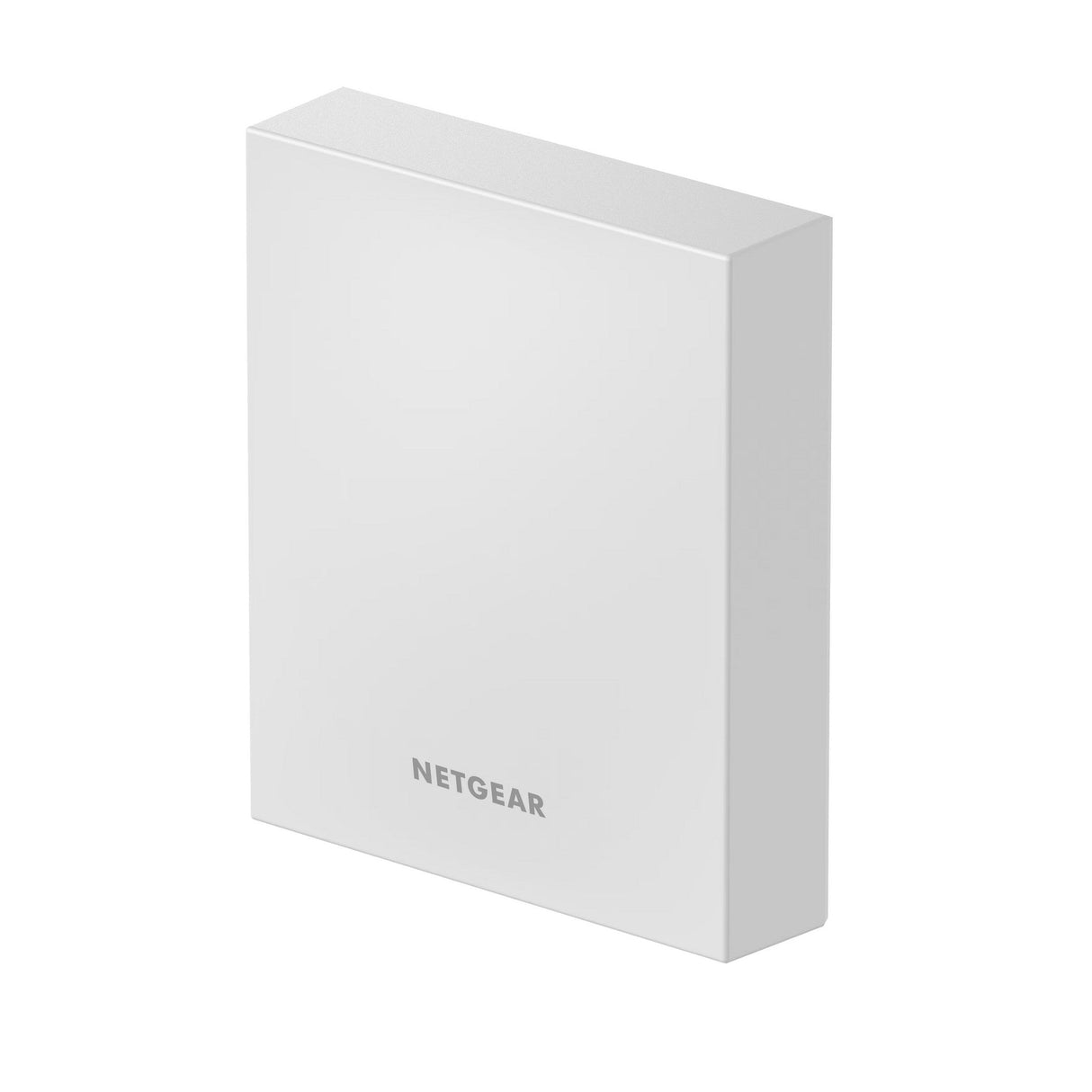

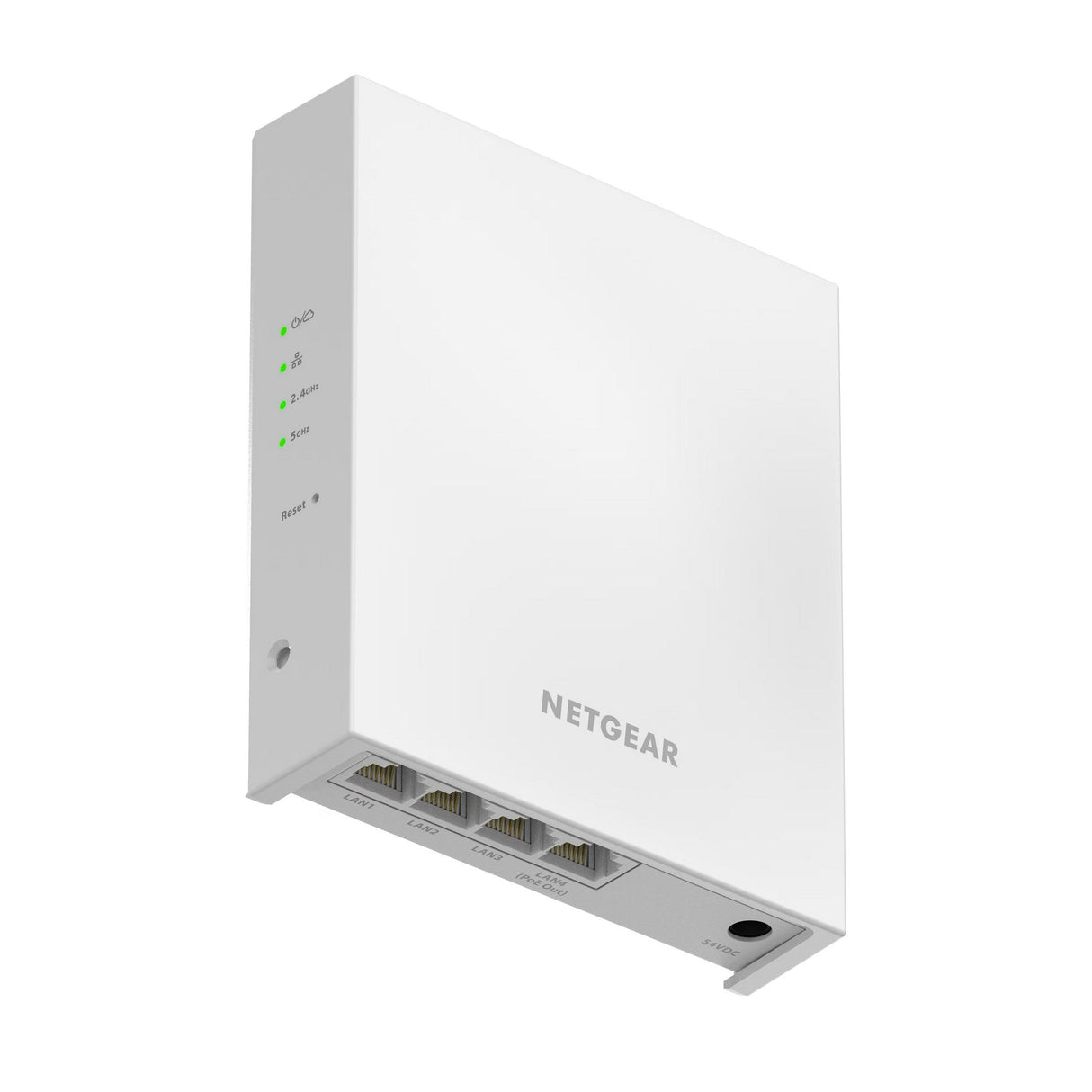

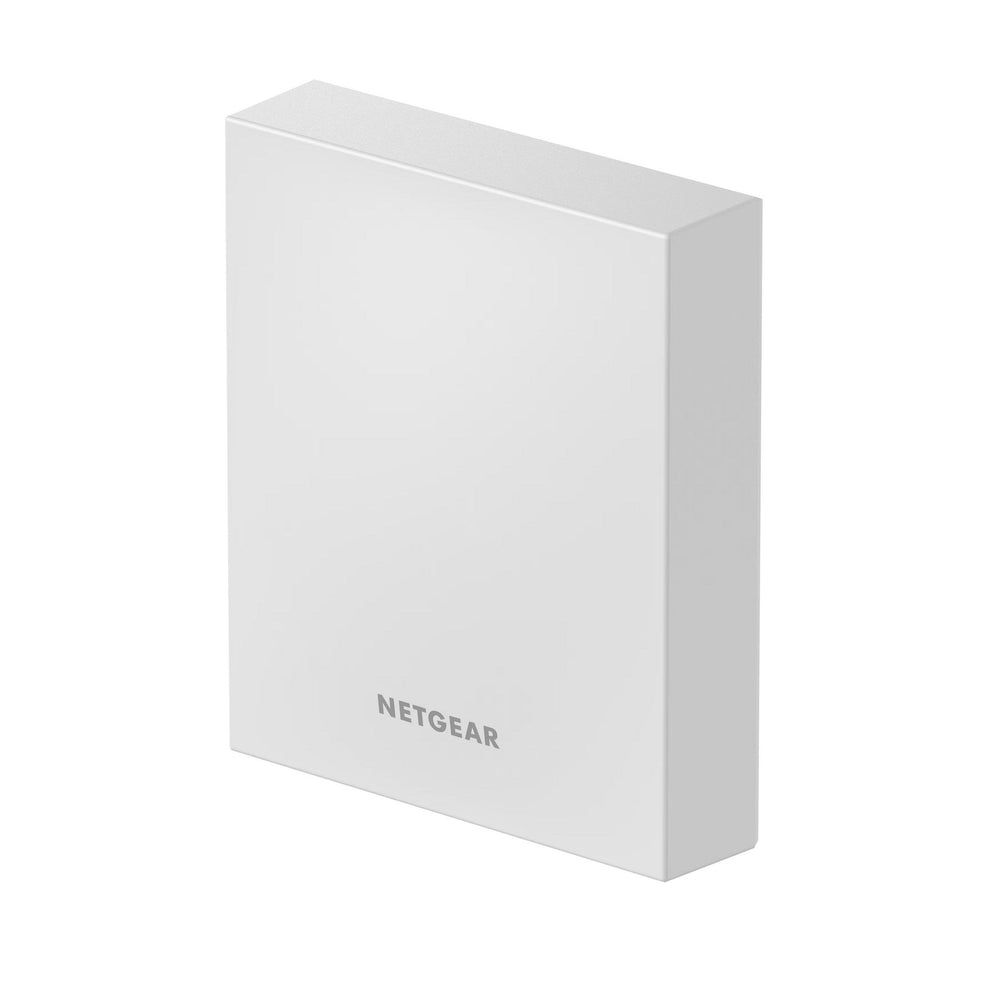

NETGEAR WAX610W-100NAS Insight Managed WiFi 6 AX1800 PoE Access Point

NETGEAR WAX610W-100NAS Insight Managed WiFi 6 AX1800 PoE Access Point

The NETGEAR WAX610W WiFi 6 Access Point delivers AX1800 dual-band wireless performance for business environments that need secure, managed connectivity. It combines 2.4GHz and 5GHz WiFi 6, PoE deployment, four additional Gigabit LAN ports, Insight cloud management, and wall-mount installation in one compact access point.

Use this Insight Managed WiFi 6 access point for hotels, multi-dwelling units, classrooms, school campuses, and small business networks. It is built for buyers who need to purchase a business WiFi 6 access point, install a PoE wireless access point, or upgrade guest WiFi with secure network segmentation.

The WAX610W supports WPA, WPA2, WPA3, WPA2 and WPA3 Enterprise, VLAN support, guest network captive portal, MAC address filtering, and 802.1x RADIUS authentication. OFDMA, bidirectional MU-MIMO, BSS Coloring, Target Wake Time, band steering, and Instant WiFi Mesh help modern networks serve more devices with better efficiency.

Insight Managed WiFi 6 AX1800 Performance

• AX1800 Dual-Band WiFi: Delivers aggregate throughput up to 1.8Gbps across 2.4GHz and 5GHz bands.
• 2x2 Wireless Streams: Provides 2x2 transmit and receive performance on both 2.4GHz and 5GHz bands.
• PoE Deployment: Uses a Gigabit Ethernet uplink with PoE+ input for simplified single-cable installation.
• Four LAN Ports: Adds four Gigabit LAN ports for wired devices such as printers, displays, phones, and cameras.
• Insight Management: Supports app-based setup, monitoring, and management through NETGEAR Insight.
• Guest Network Control: Supports eight SSIDs, VLANs, captive portal, and bandwidth management for segmented access.
• Enterprise Security: Supports WPA, WPA2, WPA3, WPA2/WPA3 Enterprise, 802.1x RADIUS, and MAC authentication.
• Mesh Expansion: Supports Instant WiFi Mesh wireless backhaul with compatible NETGEAR Insight managed access points.

Technical Specifications

• Product Type: Insight Managed WiFi 6 AX1800 wireless access point
• Model: WAX610W
• North America Ordering Part Number: WAX610W-100NAS
• WiFi Standard: IEEE 802.11ax WiFi 6
• Wireless Standards: 5GHz: 802.11a/n/ac/ax; 2.4GHz: 802.11b/g/n/ax
• Wireless Mode: 2x2 transmit and receive on 5GHz; 2x2 transmit and receive on 2.4GHz
• Maximum Theoretical Throughput: AX1800, 1.8Gbps
• Maximum Throughput Per Band: 5GHz: 1200Mbps; 2.4GHz: 600Mbps
• Antenna Gain: Internal 3.4dBi at 2.4GHz; internal 3.8dBi at 5GHz
• OFDMA: Yes
• OFDM: Yes
• BSS Coloring: Yes
• Multi-User MIMO: Bidirectional MU-MIMO
• Target Wake Time: Yes
• WiFi Range: 1,000 square feet
• SSID Wireless Networks: 8
• Centralized Management: NETGEAR Insight App
• Management: NETGEAR Insight secure cloud and local network management
• NETGEAR Insight Subscription: 1-year subscription included
• Power over Ethernet: 802.3at/af

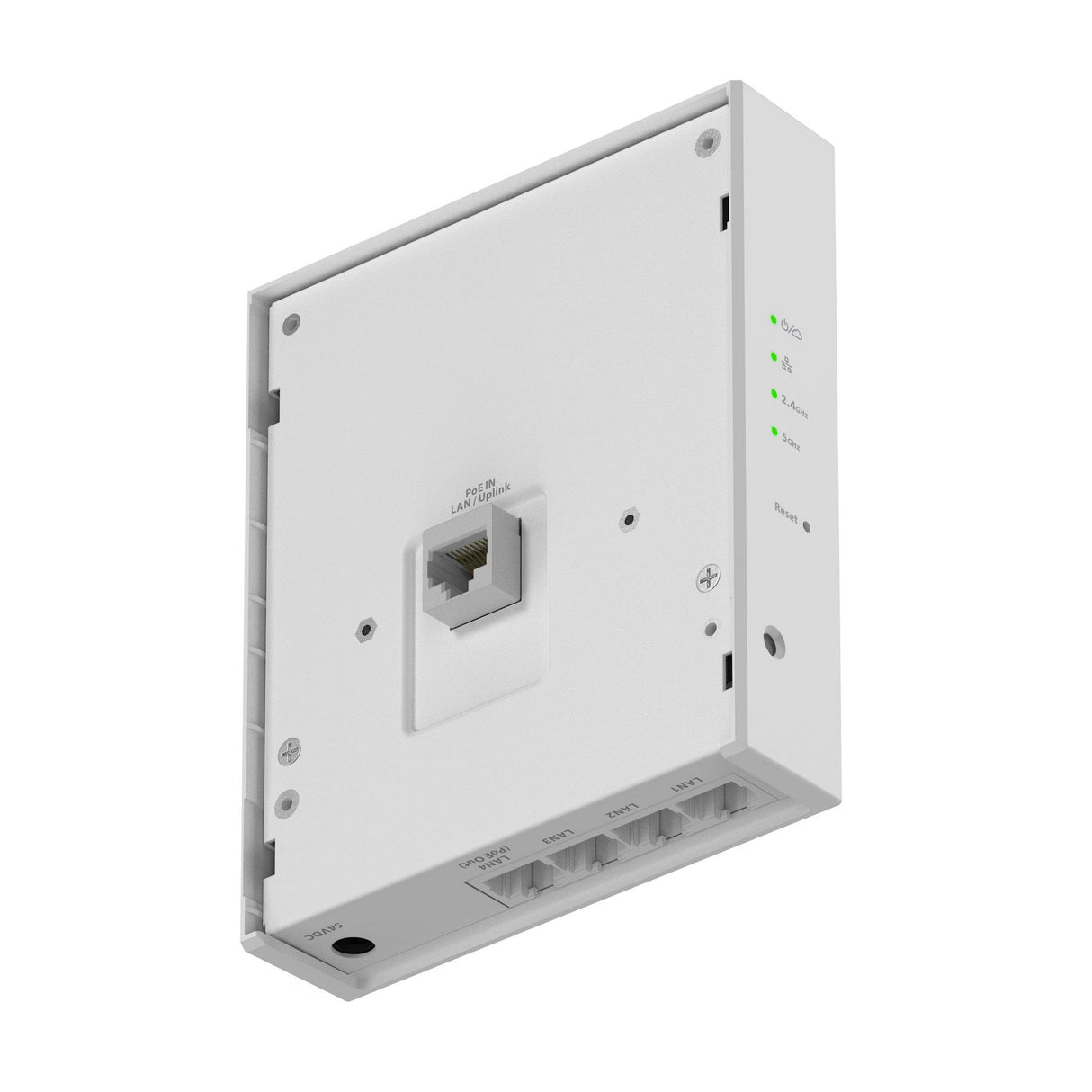

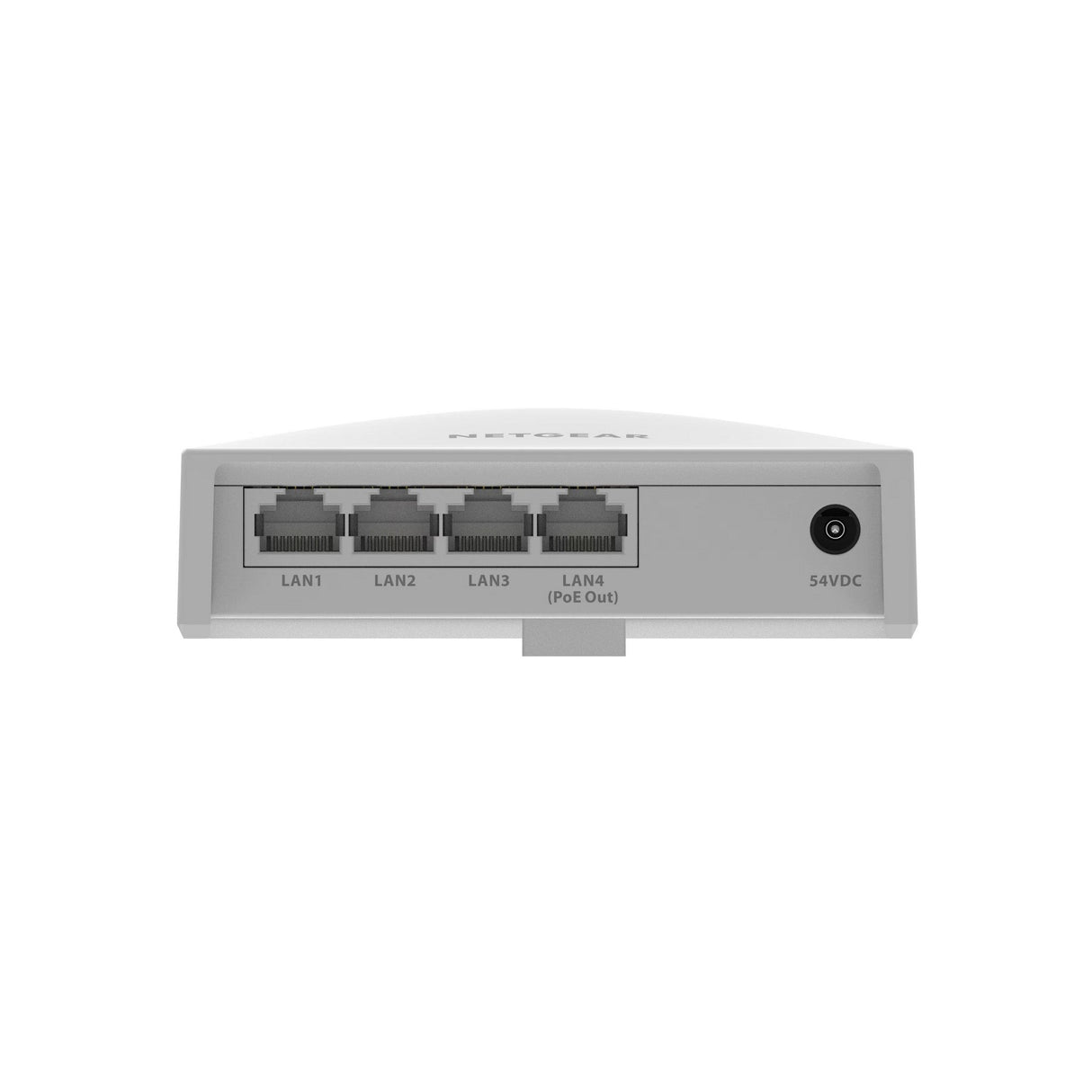

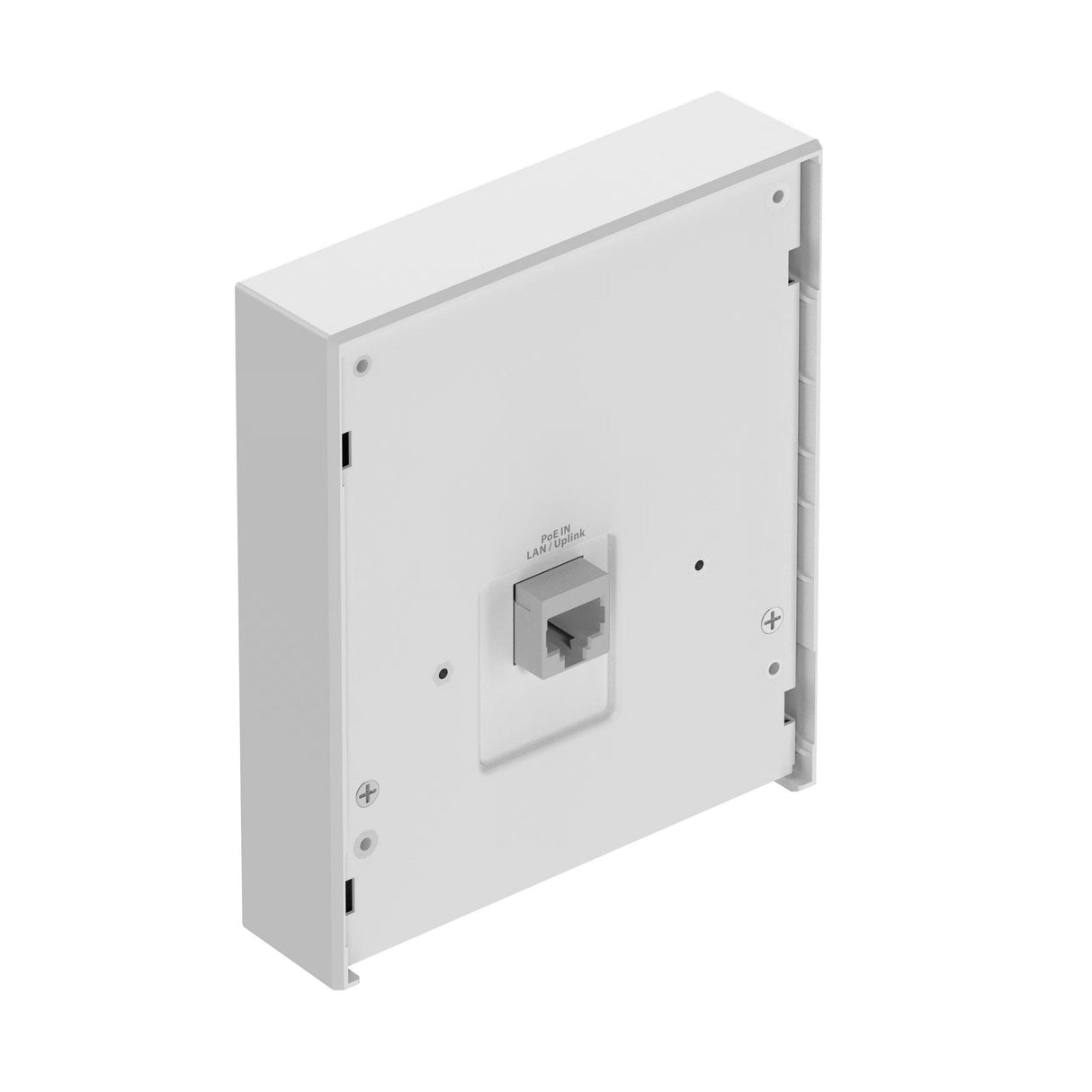

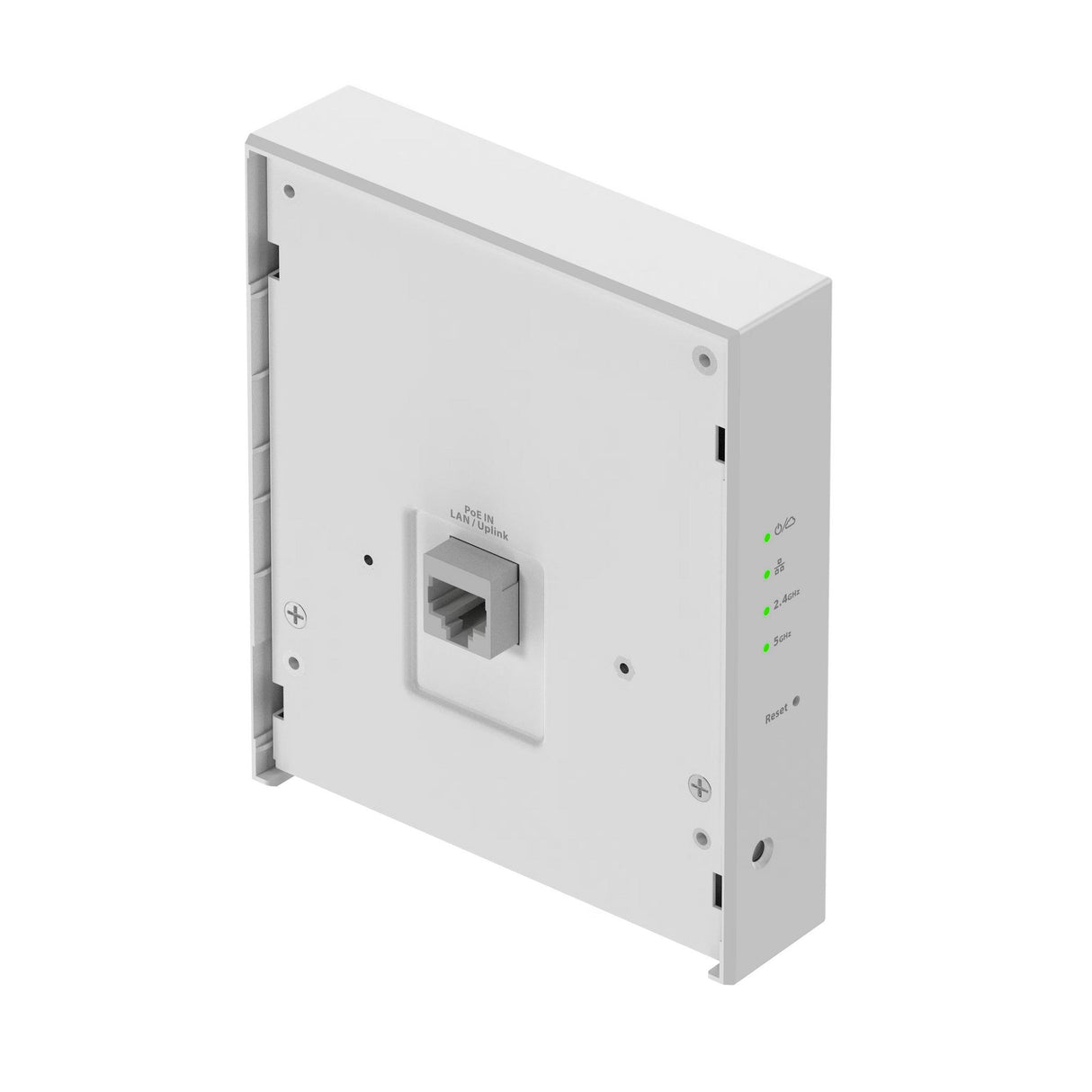

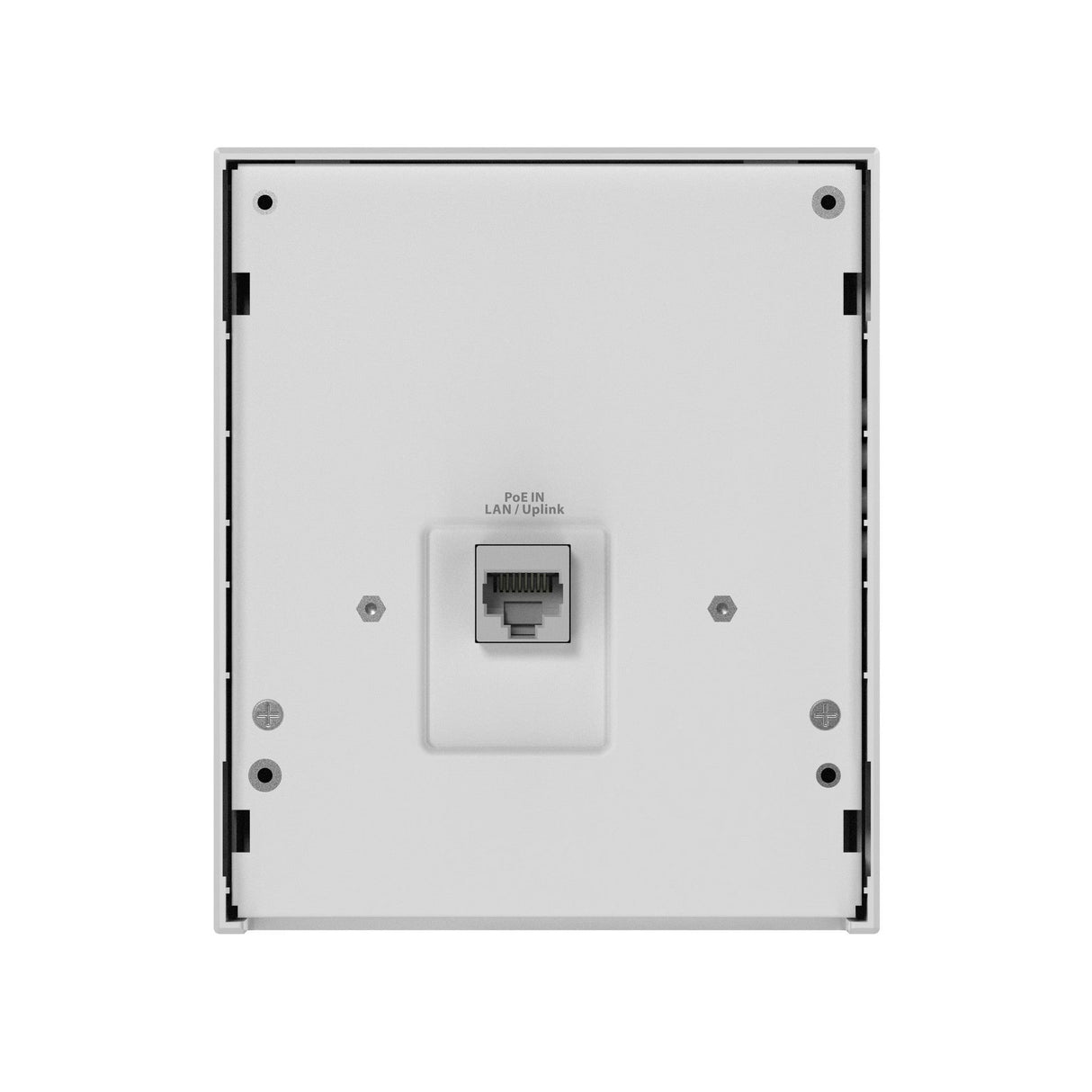

• Physical Interfaces: 1 x GbE uplink with PoE+ input; 4 x GbE LAN ports; LAN4 with PoE output

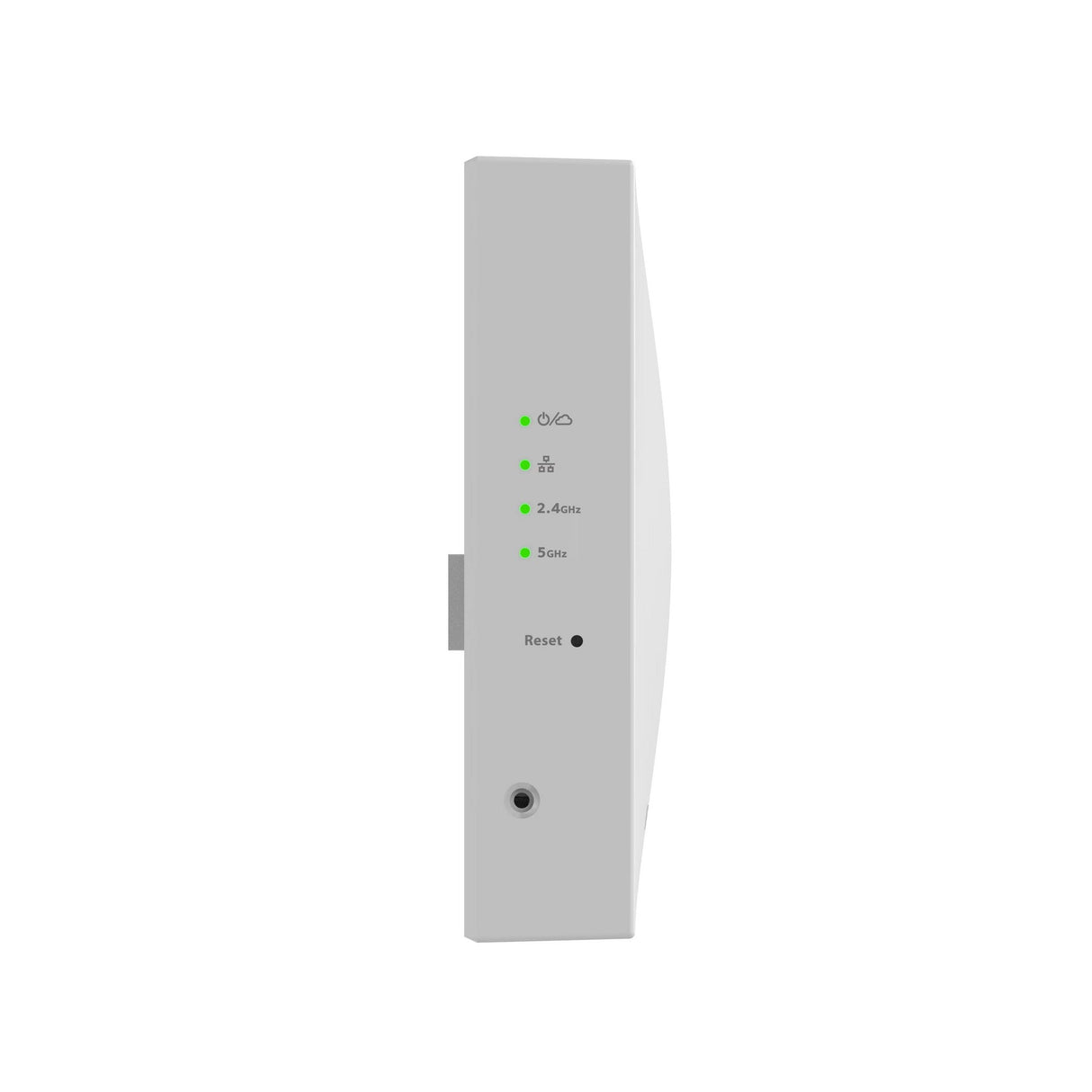

• LED Indicators: Power/Cloud, LAN, 2.4GHz, 5GHz
• Secure Socket Layer: Yes
• NAT Support: Yes
• Router Mode: Yes
• Fast Roaming: Yes
• WDS Wireless Distribution System: Yes
• Bridge Modes: Point-to-point wireless and point-to-multipoint wireless
• Repeater Mode: Yes
• Simultaneous Bridge and Wireless Client Association: Yes
• Instant WiFi Mesh: Wireless backhaul to form mesh network
• Adjustable Transmit Power Control: Yes
• Device Detection: Identifies wireless client device types on the network
• Wireless Multimedia Prioritization: Yes
• Security: WPA, WPA2, WPA3, 802.11i
• Enterprise Security: WPA2 and WPA3 Enterprise
• Wireless Access Control: Yes
• MAC Address Authentication: Yes
• MAC Address Filtering: Yes
• 802.1x RADIUS Support: EAP TLS, TTLS, PEAP
• Neighbor AP Detection: Yes
• Block SSID Broadcast: Yes
• VLAN Support: Yes
• Guest Network/Captive Portal: Yes
• Bandwidth Management: Yes
• Link Layer Discovery Protocol: Yes
• Band Steering: Yes
• Operating Temperature: 32°F to 104°F
• Dimensions: 4.33" W x 5.12" D x 1.34" H
• Weight: 0.85 lbs

What's In the Box

• WAX610W Insight Managed Wireless Access Point
• Wall Mount Kit
• Installation Guide
