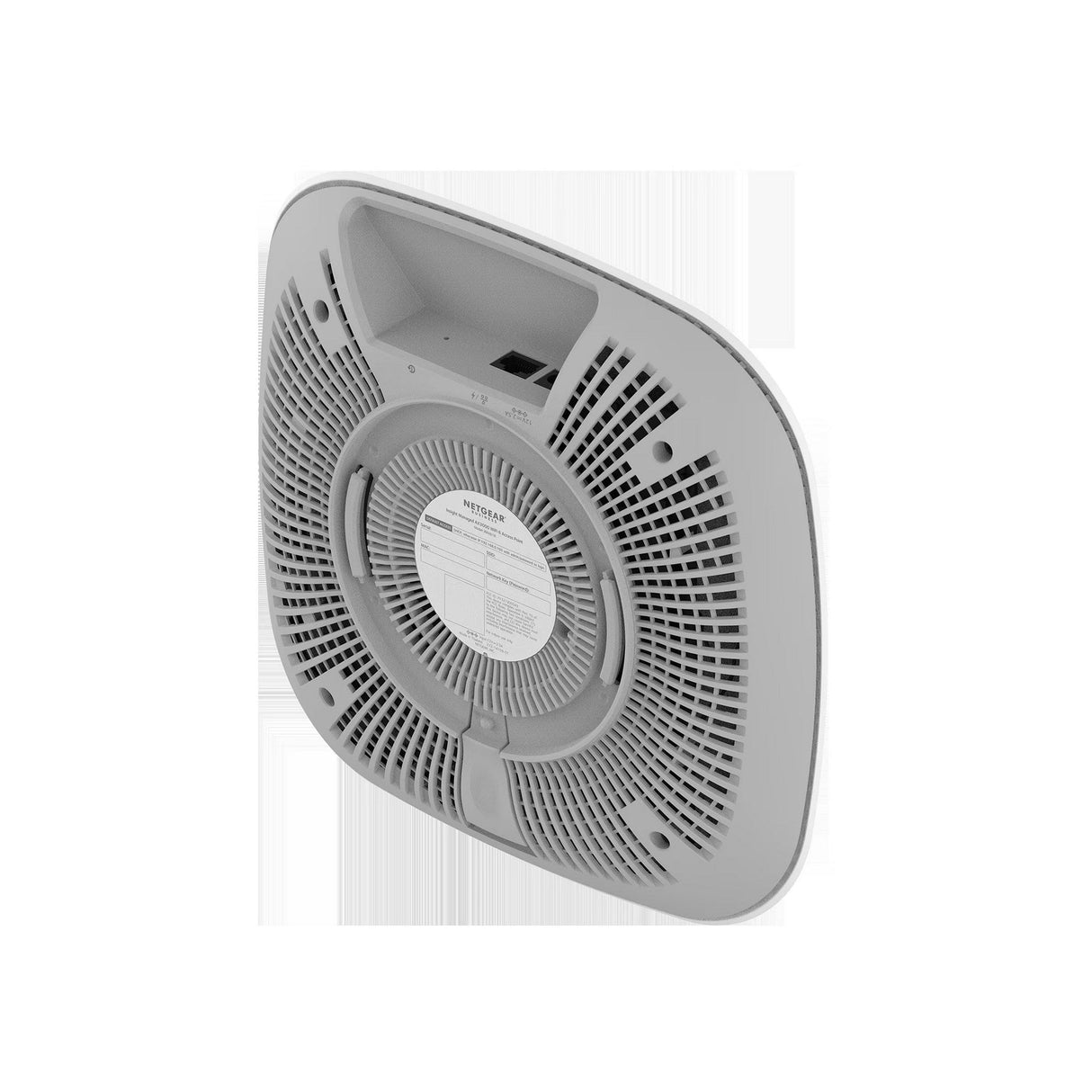

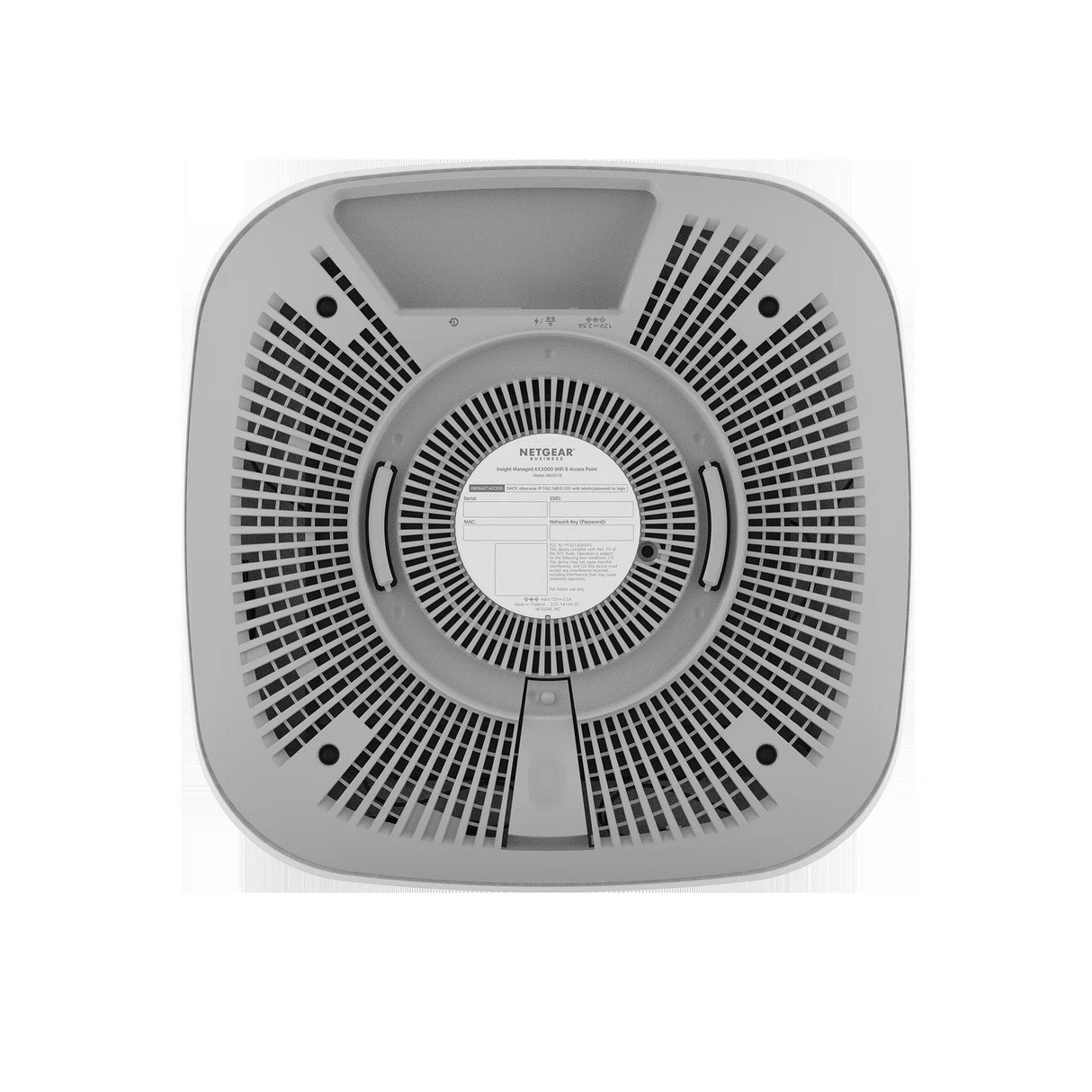

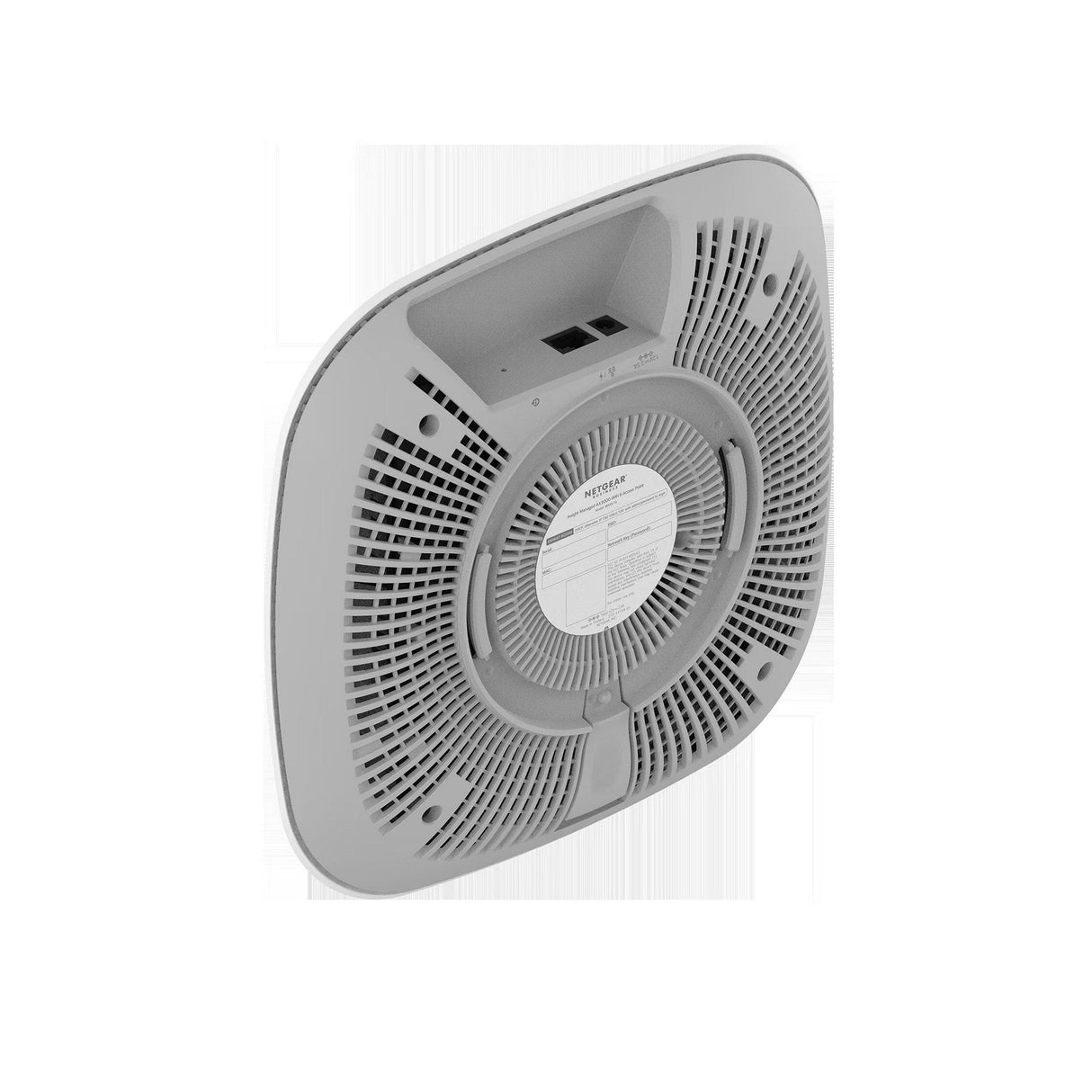

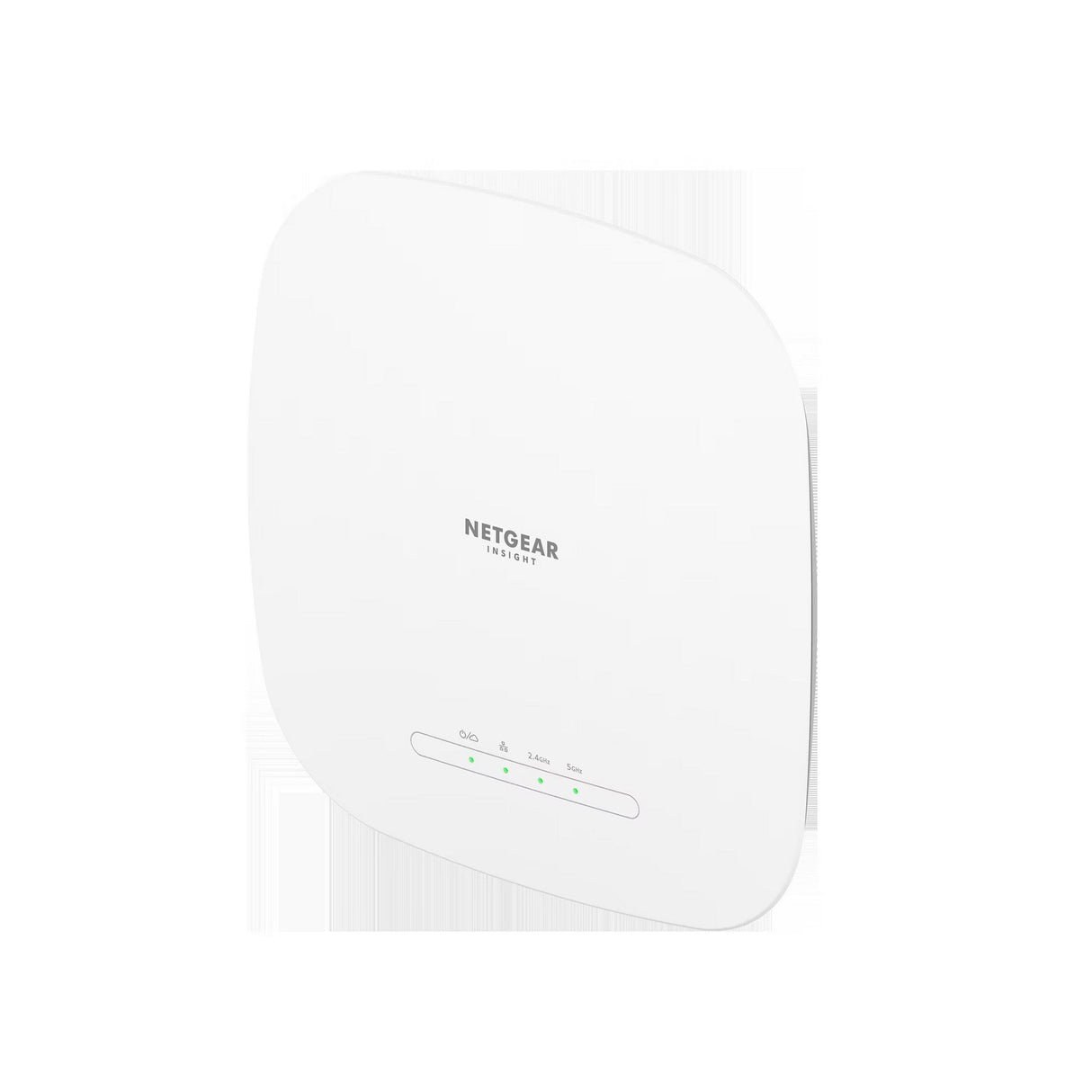

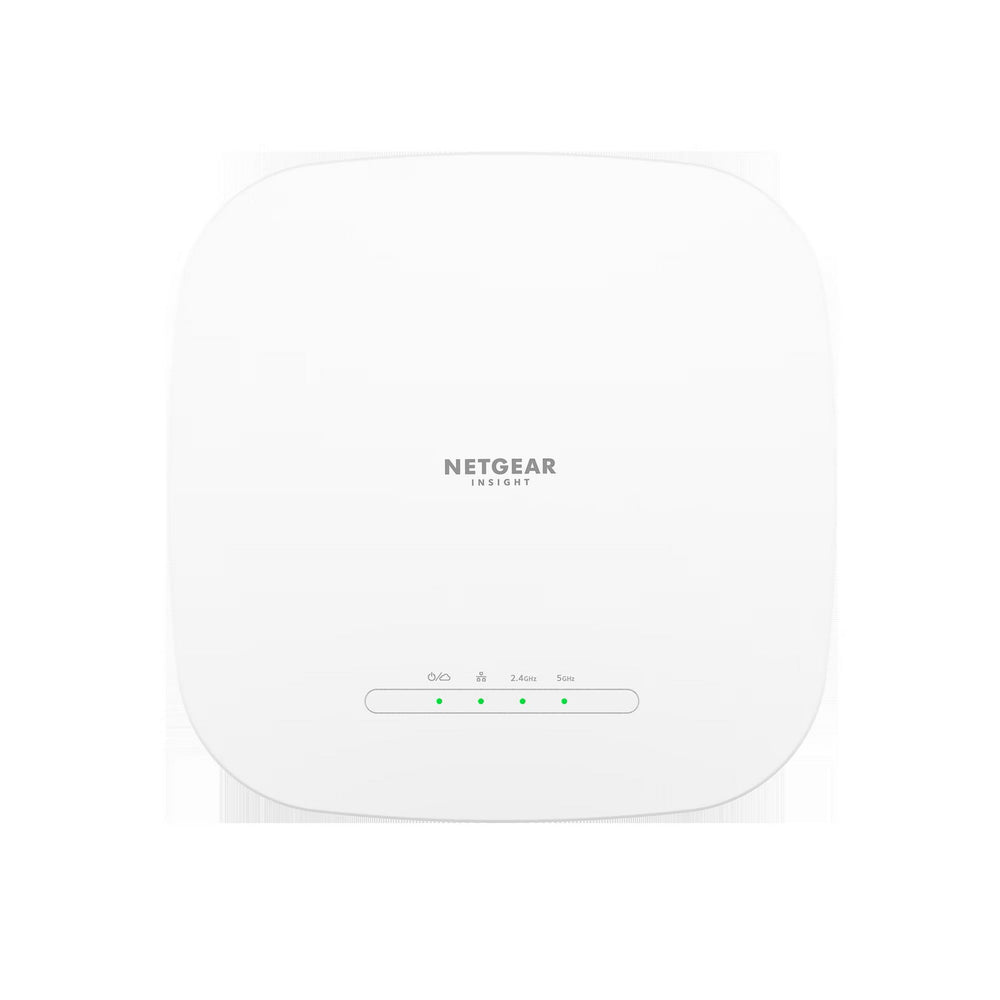

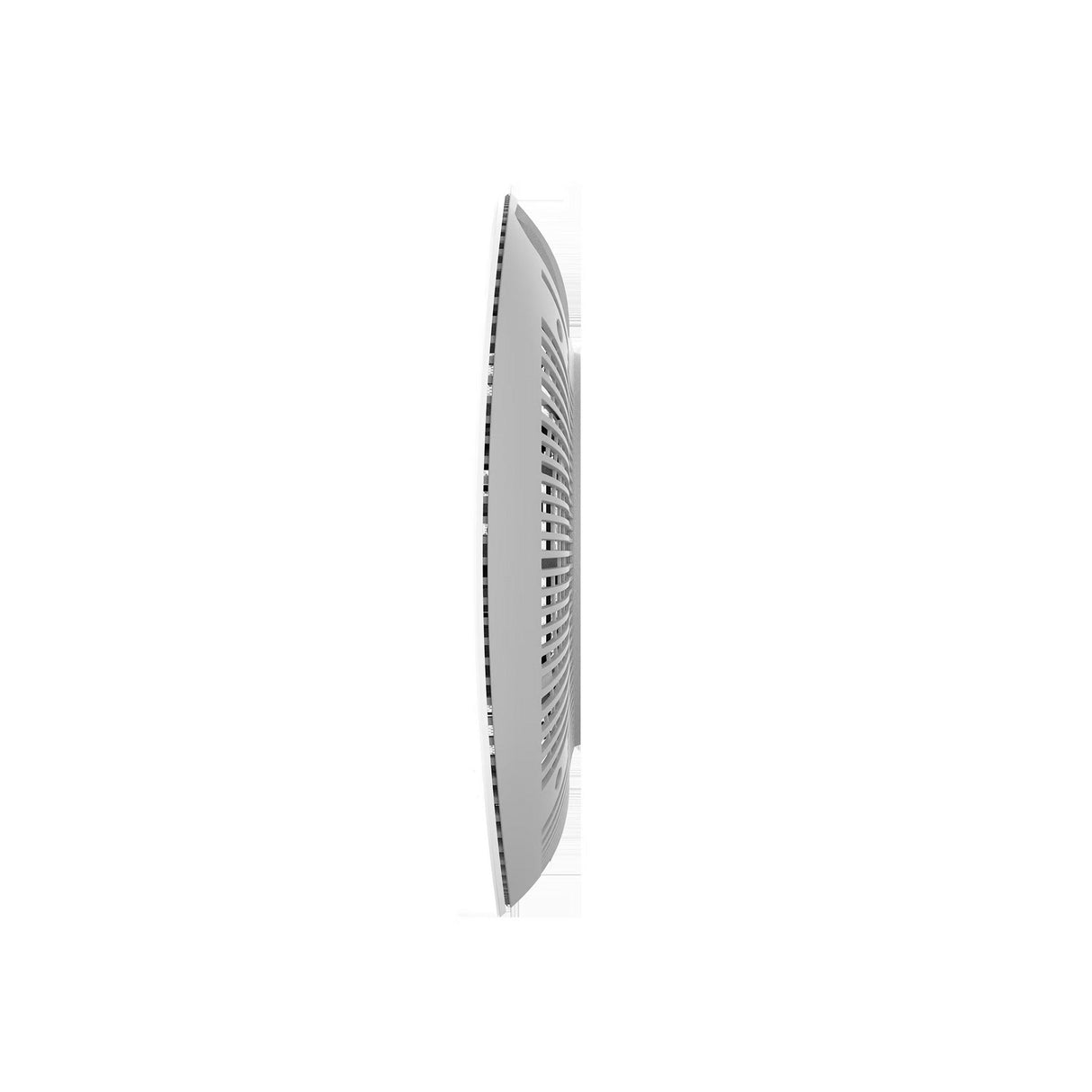

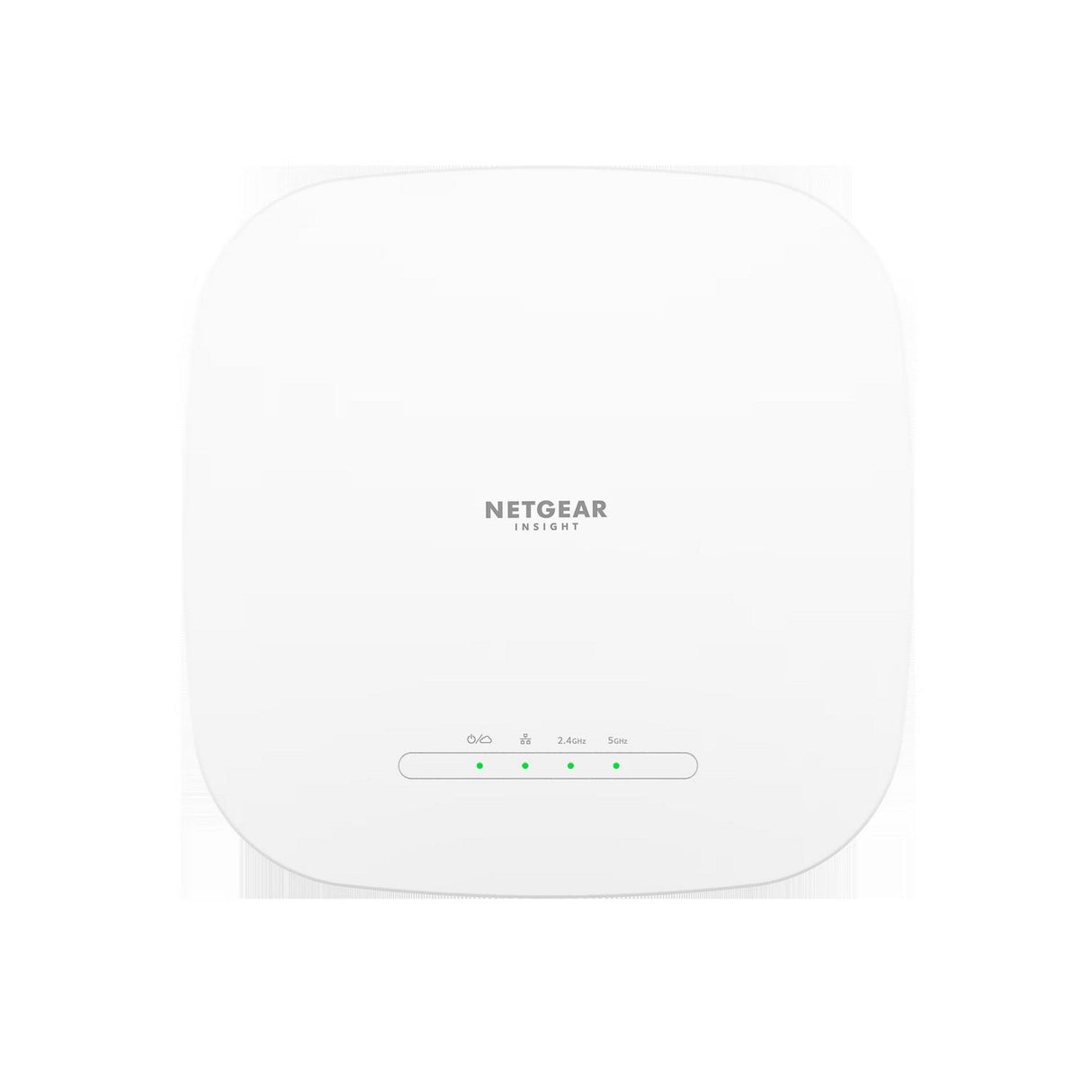

NETGEAR WAX615-100NAS Insight Managed WiFi 6 AX3000 PoE Access Point
Free Shipping
Estimated Shipping Widget will be displayed here!
Condition: New
Description
NETGEAR WAX615-100NAS Insight Managed WiFi 6 AX3000 PoE Access Point
The NETGEAR WAX615-100NAS WiFi 6 AX3000 Access Point delivers dual-band 2x2 wireless performance for small and medium business networks. It provides up to 3Gbps total throughput, a 2.5GbE PoE port, Insight cloud management, WPA3 security, and eight SSIDs for segmented professional WiFi.
Use this Insight Managed WiFi 6 access point for schools, hotels, restaurants, conference centers, offices, and high-density business environments. It fits buyers who need to purchase a business WiFi 6 access point, install a multi-gig PoE wireless access point, or expand secure managed WiFi coverage.
The WAX615 supports 160MHz channelization on 5GHz, OFDMA for efficient multi-device traffic, and bidirectional MU-MIMO for simultaneous client communication. It also supports VLANs, captive portal guest access, 802.1x RADIUS authentication, and Instant WiFi Mesh with compatible NETGEAR Insight managed access points.
AX3000 Dual-Band WiFi 6 Performance
- AX3000 Throughput: Delivers up to 3Gbps total theoretical wireless throughput across 2.4GHz and 5GHz bands.
- 160MHz 5GHz Channelization: Increases 5GHz channel width for higher WiFi 6 throughput with compatible devices.
- 2.5GbE PoE Port: Uses one multi-gig Ethernet port for network connectivity and Power over Ethernet deployment.
- Insight Management: Supports NETGEAR Insight app and cloud portal management for setup, monitoring, and control.
- Enterprise Security: Supports WPA, WPA2, WPA3, WPA2/WPA3 Enterprise, MAC authentication, and 802.1x RADIUS.
- Network Segmentation: Provides eight SSIDs with VLAN support, captive portal guest access, and bandwidth management.
- Mesh Expansion: Supports Instant WiFi Mesh wireless backhaul with compatible Insight managed access points.
- Flexible Mounting: Includes hardware for wall or ceiling installation, with freestanding placement also supported.
Technical Specifications
- Product Type: Insight Managed WiFi 6 AX3000 dual-band multi-gig PoE wireless access point
- Model: WAX615
- North America Ordering Part Number: WAX615-100NAS
- WiFi Standard: IEEE 802.11ax WiFi 6
- Wireless Standards: 5GHz: 802.11a/n/ac/ax; 2.4GHz: 802.11b/g/n/ax
- Wireless Mode: 2x2 transmit and receive on 5GHz; 2x2 transmit and receive on 2.4GHz
- Channelization: 5GHz: 20/40/80/160MHz; 2.4GHz: 20/40MHz
- Maximum Theoretical Throughput: AX3000, 3Gbps
- Maximum Throughput Per Band: 5GHz: 2400Mbps; 2.4GHz: 600Mbps
- Antenna Gain: Internal 2.94dBi at 2.4GHz; internal 2.84dBi at 5GHz
- Maximum Wireless Transmit Power: 2.4GHz: 20.03dBm; 5GHz low band: 29.35dBm
- Maximum Users: 256
- Concurrent Users: 60
- Ideal Use: Small and medium business
- Ethernet Interface: 1 x 100/1000/2.5GBASE-T RJ45 port with Auto Uplink and Auto MDI-X
- Power over Ethernet: IEEE 802.3af and IEEE 802.3at
- PoE Power Consumption: 21.2W
- Power Adapter: 12V DC, 2.5A; not included
- LED Indicators: Power and cloud connection, LAN speed, 2.4GHz status, 5GHz status
- Centralized Management: NETGEAR Insight App
- Remote Management: Insight or standalone management
- NETGEAR Insight Subscription: 1-year subscription included
- WMM Wireless Multimedia Prioritization: Yes
- WDS Wireless Distribution System: Yes
- OFDM/OFDMA: Yes
- BSS Coloring: Yes
- Multi-User MIMO: Bidirectional MU-MIMO
- Target Wake Time: Yes
- Secure Socket Layer: Yes
- Router Mode: No
- Bridge Modes: Point-to-point wireless and point-to-multipoint wireless
- Repeater Mode: Yes
- Simultaneous Bridge and Wireless Client Association: Yes
- Adjustable Transmit Power Control: Yes
- Device Detection: Identifies wireless client device types on the network
- Security: WPA, WPA2, WPA3, 802.11i
- Enterprise Security: WPA2 and WPA3 Enterprise
- Wireless Access Control: Identifies authorized wireless network devices
- MAC Address Authentication: Yes
- MAC Address Filtering: Yes
- 802.1x RADIUS Support: EAP TLS, TTLS, PEAP
- Neighbor AP Detection: Yes
- Block SSID Broadcast: Yes
- SSID Wireless Networks: 8
- VLAN Support: Yes
- Guest Network/Captive Portal: Yes
- Bandwidth Management: Yes
- Link Layer Discovery Protocol: Yes
- Band Steering: Yes
- Instant WiFi Mesh: Wireless backhaul to form a mesh network
- Mounting Options: Wall mount, ceiling T-bar mount, or freestanding placement
- Installation Environment: Indoor use only
- Operating Temperature: 32°F to 104°F
- Dimensions: 9.5" W x 9.5" D x 1.58" H
- Weight: 1.6 lbs
What's In the Box
- WAX615 Insight Managed Wireless Access Point
- Mounting Plate
- Metal Bracket
- Metal Clip with Lock Screw
- 4 x Short Screws
- 3 x Phillips Head Screws and Anchors for Mounting
- Installation Guide
