Description

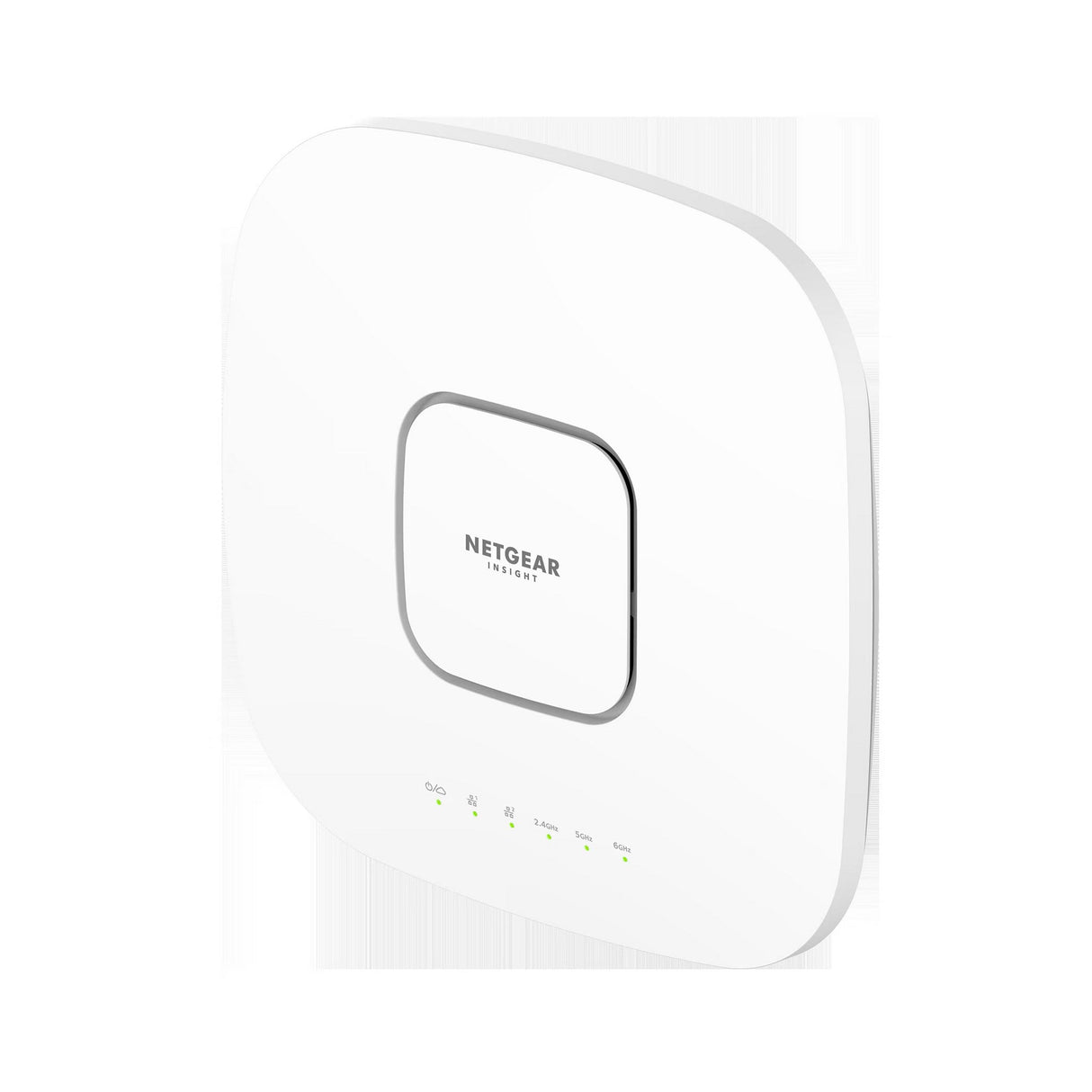

NETGEAR WAX630E-100NAS Insight WiFi 6E AXE7800 Tri-Band Access Point
The NETGEAR WAX630E-100NAS WiFi 6E AXE7800 Access Point delivers tri-band business wireless across 2.4GHz, 5GHz, and 6GHz bands. It provides up to 7.8Gbps total WiFi throughput, 8 data streams, 2.5GbE PoE++ connectivity, and Insight cloud management for high-density professional networks.
Use this Insight Managed WiFi 6E access point for schools, hotels, restaurants, conference centers, offices, and small to medium business environments. It fits buyers who need to purchase a business WiFi 6E access point, install a tri-band PoE++ wireless access point, or expand managed WiFi with 6GHz capacity.
The WAX630E supports 160MHz channelization on both 5GHz and 6GHz bands for higher throughput with compatible WiFi 6E devices. OFDMA, bidirectional MU-MIMO, BSS Coloring, Target Wake Time, WPA3, VLANs, captive portal, and NETGEAR Insight management support secure, efficient multi-device network deployment.
AXE7800 Tri-Band WiFi 6E Performance
- Tri-Band WiFi 6E: Adds the 6GHz band alongside 2.4GHz and 5GHz for expanded spectrum and reduced congestion.
- AXE7800 Throughput: Delivers up to 7.8Gbps total theoretical wireless throughput across three bands.
- 8-Stream Design: Uses 2x2 operation on 2.4GHz, 4x4 operation on 5GHz, and 2x2 operation on 6GHz.
- 160MHz Channel Support: Supports 160MHz channels on both 5GHz and 6GHz for higher WiFi 6E performance.
- Multi-Gig PoE++: Includes a 2.5GbE PoE port plus an additional 1GbE Ethernet port for wired network flexibility.
- Insight Management: Supports NETGEAR Insight app and cloud portal management with a 1-year Insight subscription included.
- Enterprise Security: Supports WPA, WPA2, WPA3, WPA2/WPA3 Enterprise, 802.1x RADIUS, VLANs, and MAC authentication.
- Instant WiFi Mesh: Forms wireless backhaul with compatible NETGEAR Insight managed access points.
Technical Specifications
- Product Type: Insight Managed WiFi 6E AXE7800 tri-band multi-gig wireless access point
- Model: WAX630E
- North America Ordering Part Number: WAX630E-100NAS
- WiFi Technology: WiFi 6E, IEEE 802.11ax tri-band WiFi, AXE7800, 8 streams
- Wireless Standards: 6GHz: 802.11ax; 5GHz: 802.11a/n/ac/ax; 2.4GHz: 802.11b/g/n/ax
- Backward Compatibility: IEEE 802.11a/b/g/n/ac WiFi
- WiFi Bands: Tri-band 6GHz, 5GHz, and 2.4GHz
- Maximum Theoretical Throughput: AXE7800, up to 7.8Gbps
- Maximum Throughput Per Band: 6GHz: 2400Mbps; 5GHz: 4800Mbps; 2.4GHz: 600Mbps
- Wireless Mode: 2x2 transmit and receive on 6GHz; 4x4 transmit and receive on 5GHz; 2x2 transmit and receive on 2.4GHz
- Channelization: 5GHz: 20/40/80/160MHz; 6GHz: 20/40/80/160MHz
- WiFi Range: 3,000 square feet
- Antenna Gain: Internal 4.4dBi at 2.4GHz; internal 6.3dBi at 5GHz; internal 3.1dBi at 6GHz

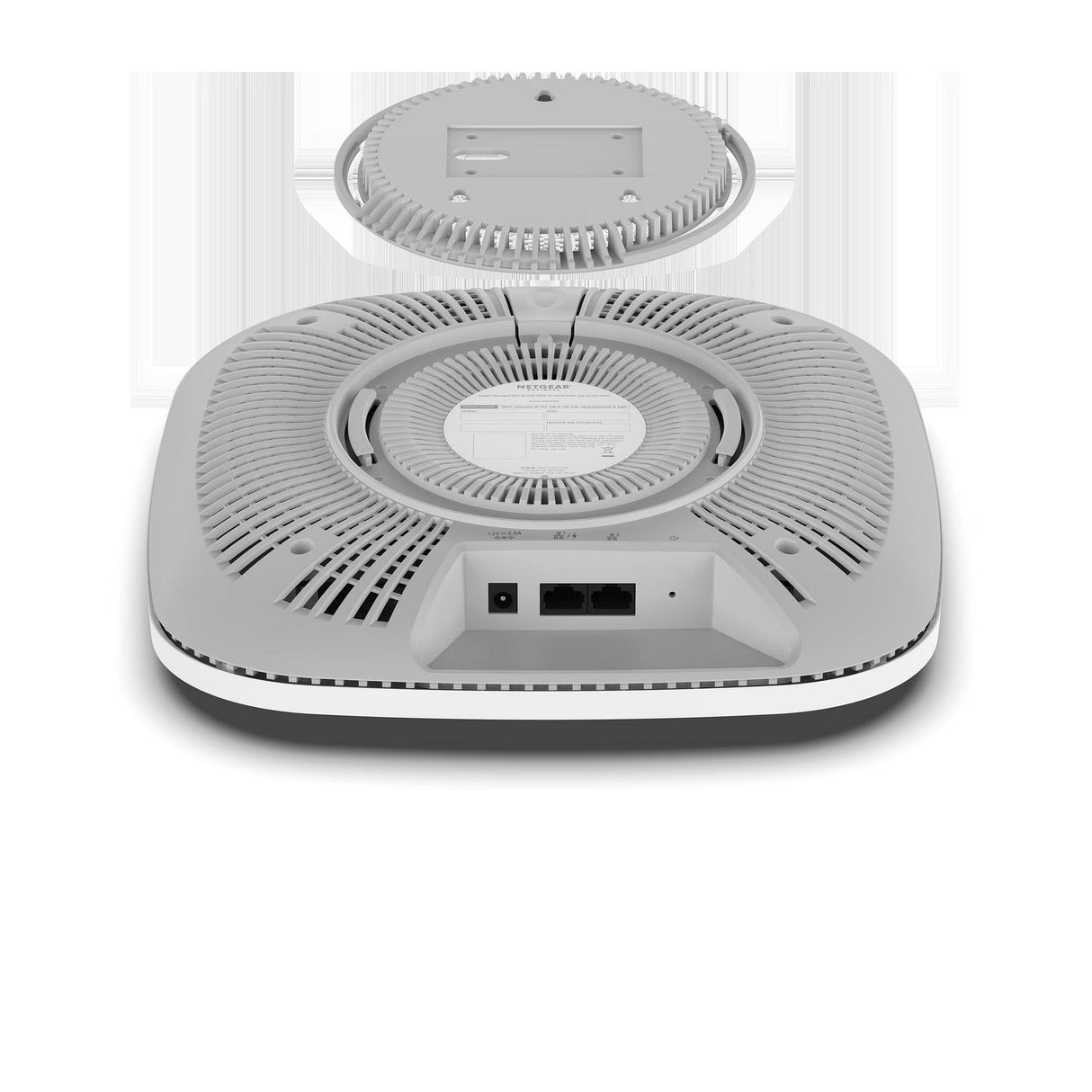

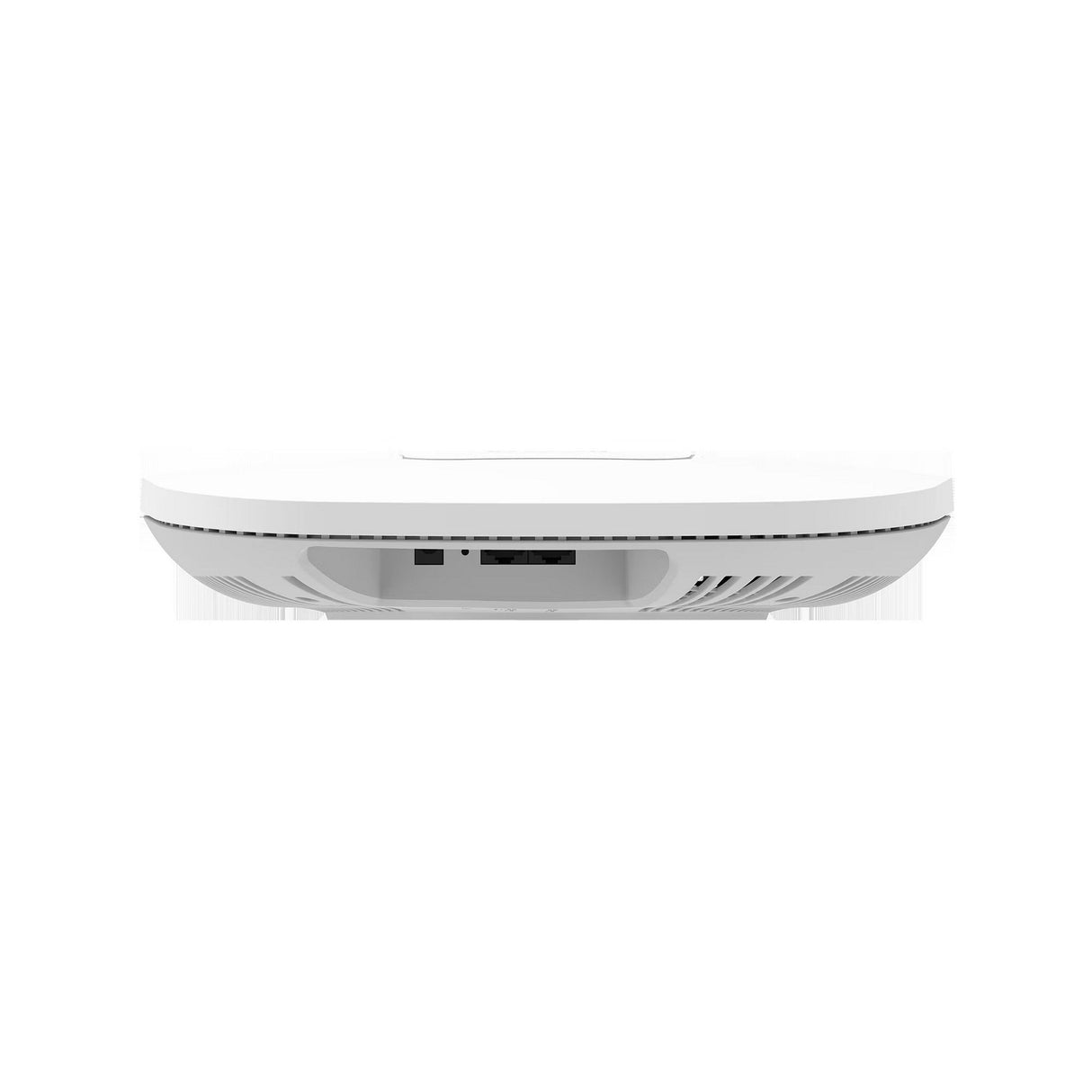

- Ethernet Ports: 1 x 2.5GbE Ethernet port; 1 x 1GbE Ethernet port
- PoE Support: IEEE 802.3bt and IEEE 802.3at
- PoE Power Consumption: 27.64W
- Power Adapter: 12V DC, 3.5A; not included
- SSID Wireless Networks: 8
- Centralized Management: NETGEAR Insight App
- Remote Management: NETGEAR Insight cloud portal and local management
- NETGEAR Insight Subscription: 1-year subscription included
- OFDMA: Yes
- OFDM: Yes
- BSS Coloring: Yes
- Multi-User MIMO: Bidirectional MU-MIMO
- Target Wake Time: Yes
- Beamforming: Beamforming+
- WMM Wireless Multimedia Prioritization: Yes
- Secure Socket Layer: Yes
- Wireless Distribution System: Yes
- Bridge Modes: Point-to-point wireless and point-to-multipoint wireless
- Repeater Mode: Yes
- Simultaneous Bridge and Wireless Client Association: Yes
- Adjustable Transmit Power Control: Yes
- Device Detection: Identifies wireless client device types on the network
- Instant WiFi Mesh: Wireless backhaul to form a mesh network
- Security: WPA, WPA2, WPA3, 802.11i
- Enterprise Security: WPA2 and WPA3 Enterprise
- Enhanced Open Security: Yes
- Wireless Access Control: Identifies authorized wireless network devices
- MAC Address Authentication: Yes
- MAC Address Filtering: Yes
- 802.1x RADIUS Support: EAP TLS, TTLS, PEAP
- Neighbor AP Detection: Yes
- Block SSID Broadcast: Yes
- VLAN Support: Yes
- Dynamic VLAN: Yes
- Guest Network/Captive Portal: Yes
- Bandwidth Management: Yes
- Link Layer Discovery Protocol: Yes
- Band Steering: Yes

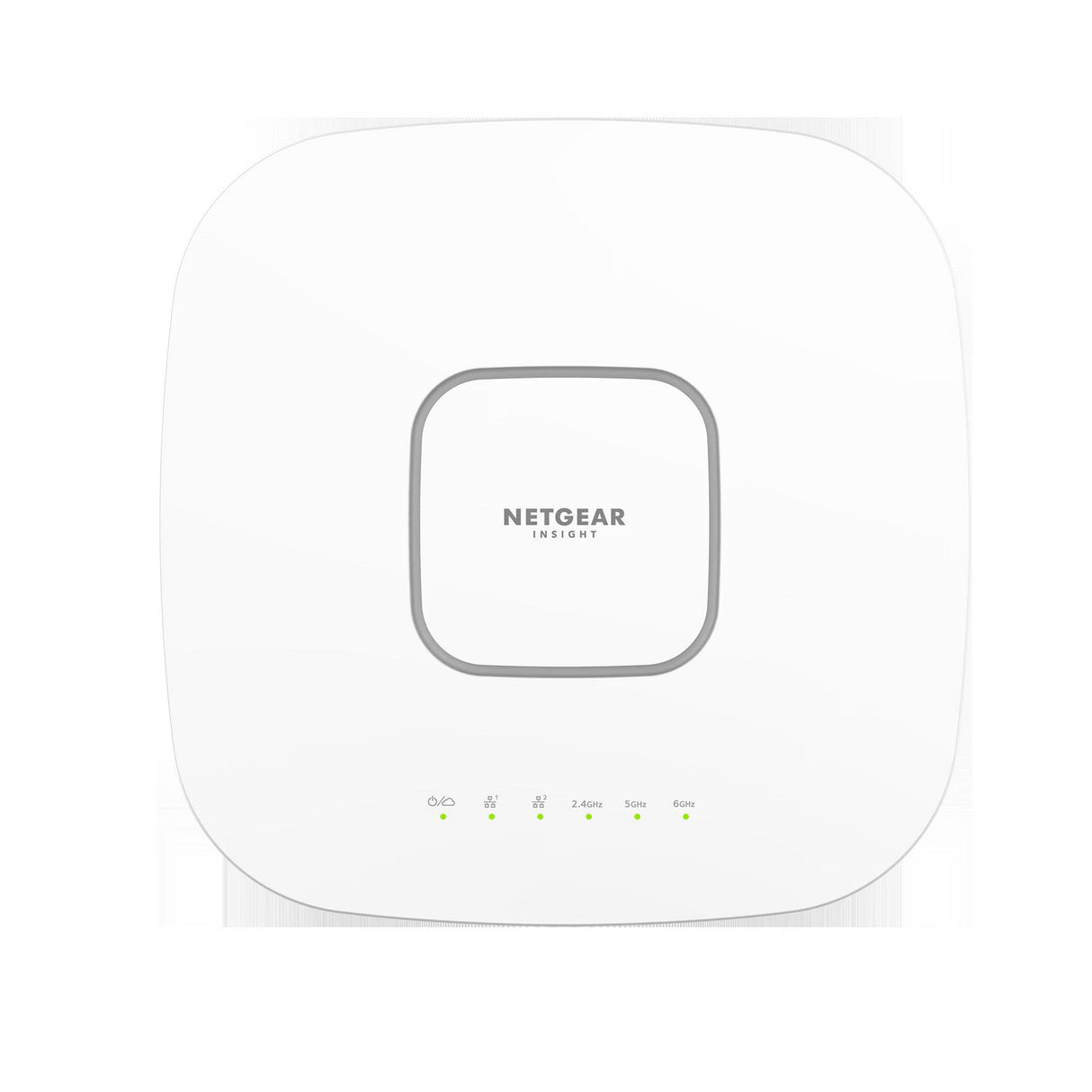

- LED Indicators: Power and cloud connection; two LAN ports; 2.4GHz, 5GHz, and 6GHz radios

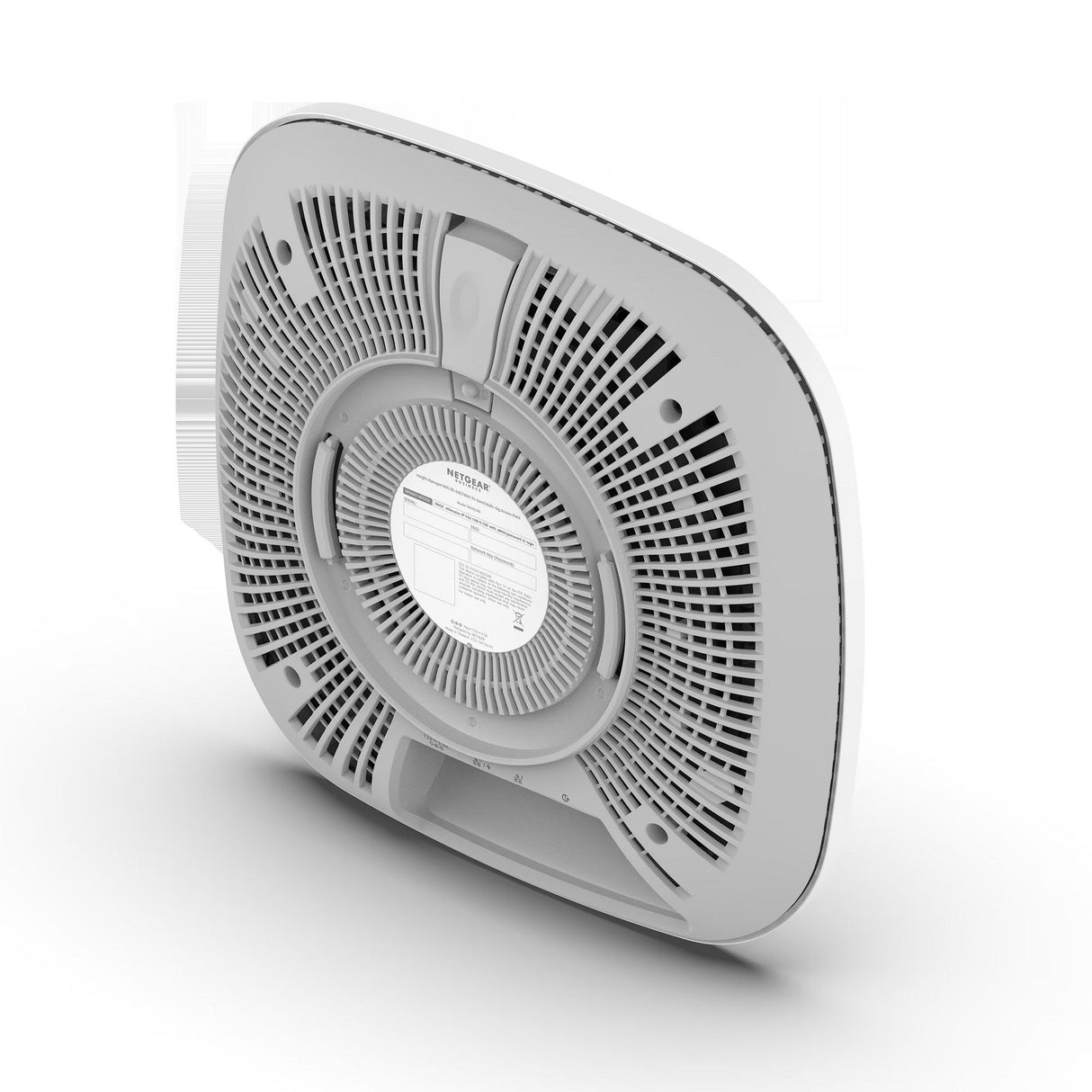

- Mounting Options: Wall or ceiling mount
- Installation Environment: Indoor use only
- Operating Temperature: 32°F to 104°F
- Requirements: Broadband Internet service; Android phone, iPhone, or computer with Chrome or Safari browser and Ethernet or WiFi connection
- Dimensions: 10.49" W x 10.56" D x 2.18" H
- Weight: 2.31 lbs
What's In the Box
- WAX630E Insight Managed Wireless Access Point
- Wall/Ceiling Mount Kit
- Installation Guide
