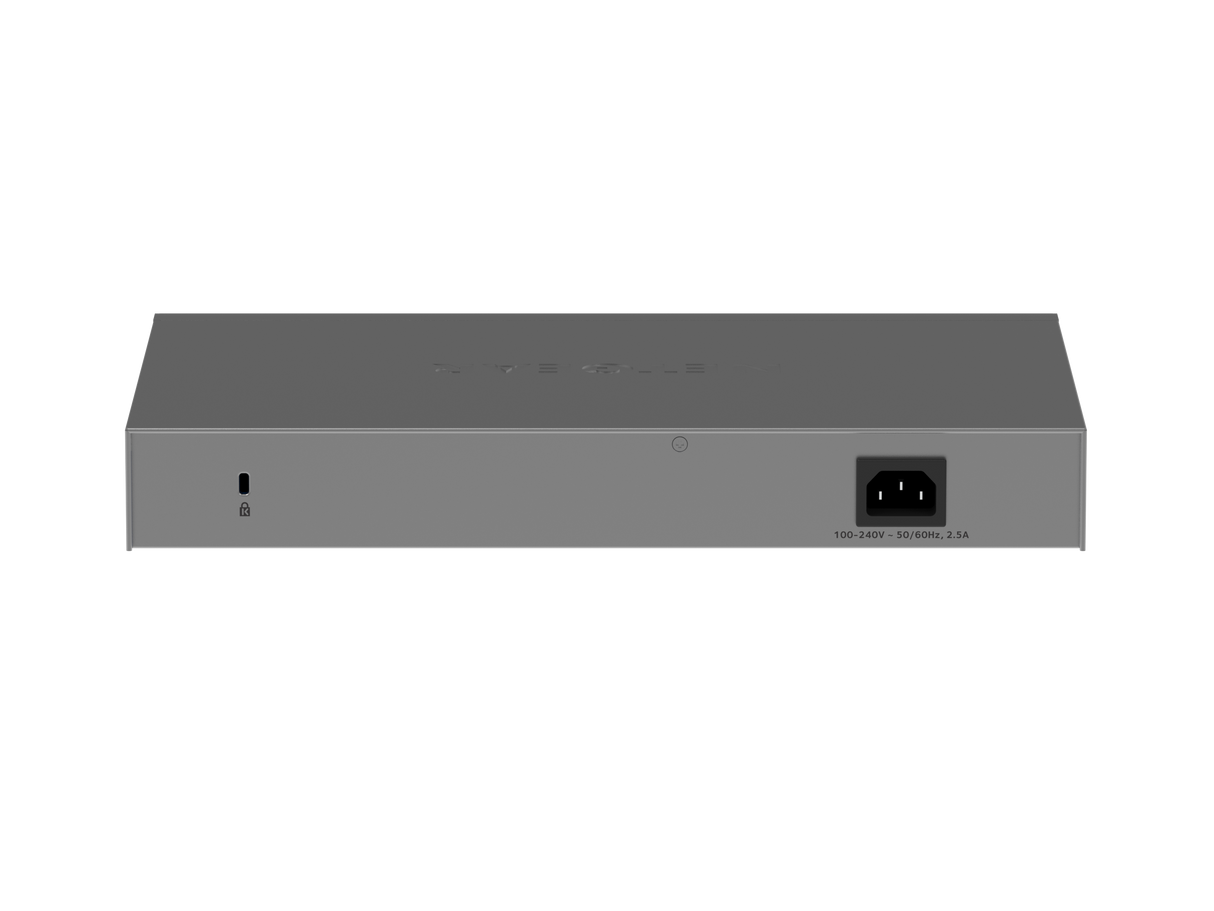

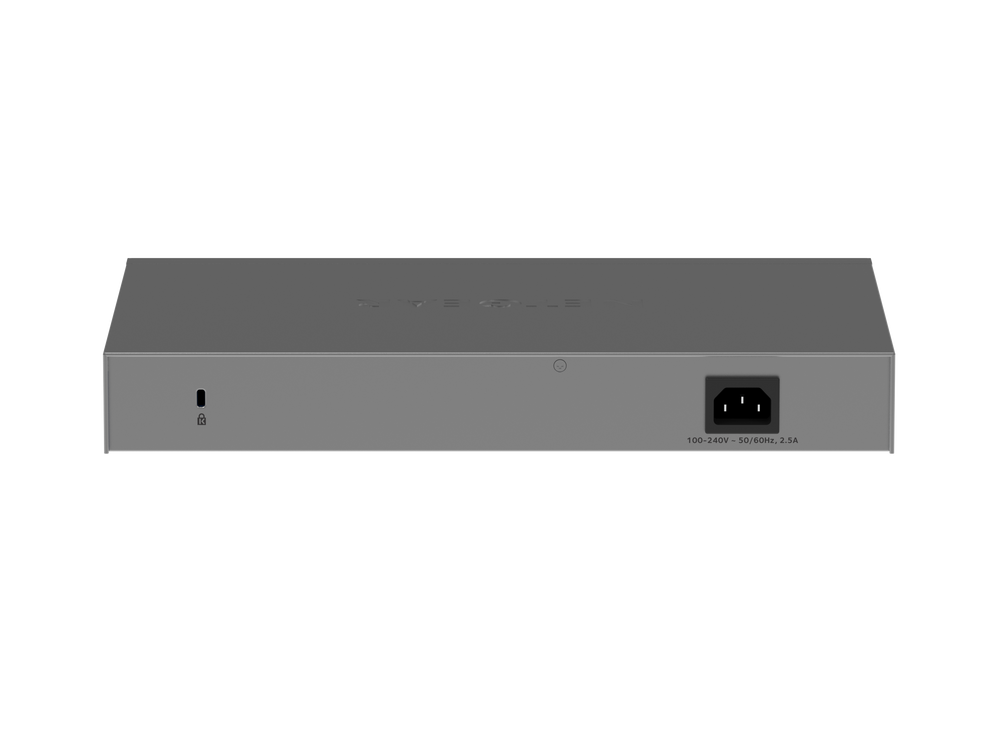

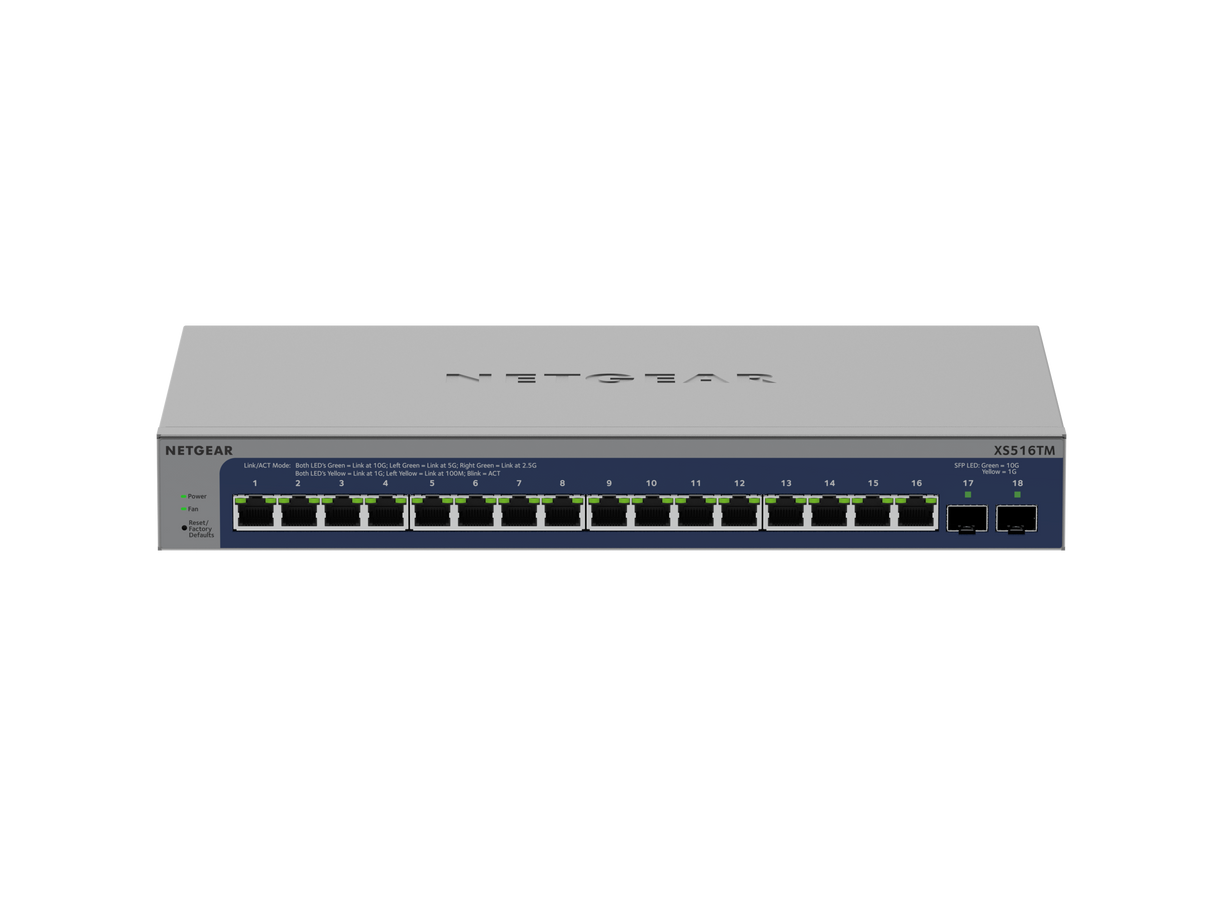

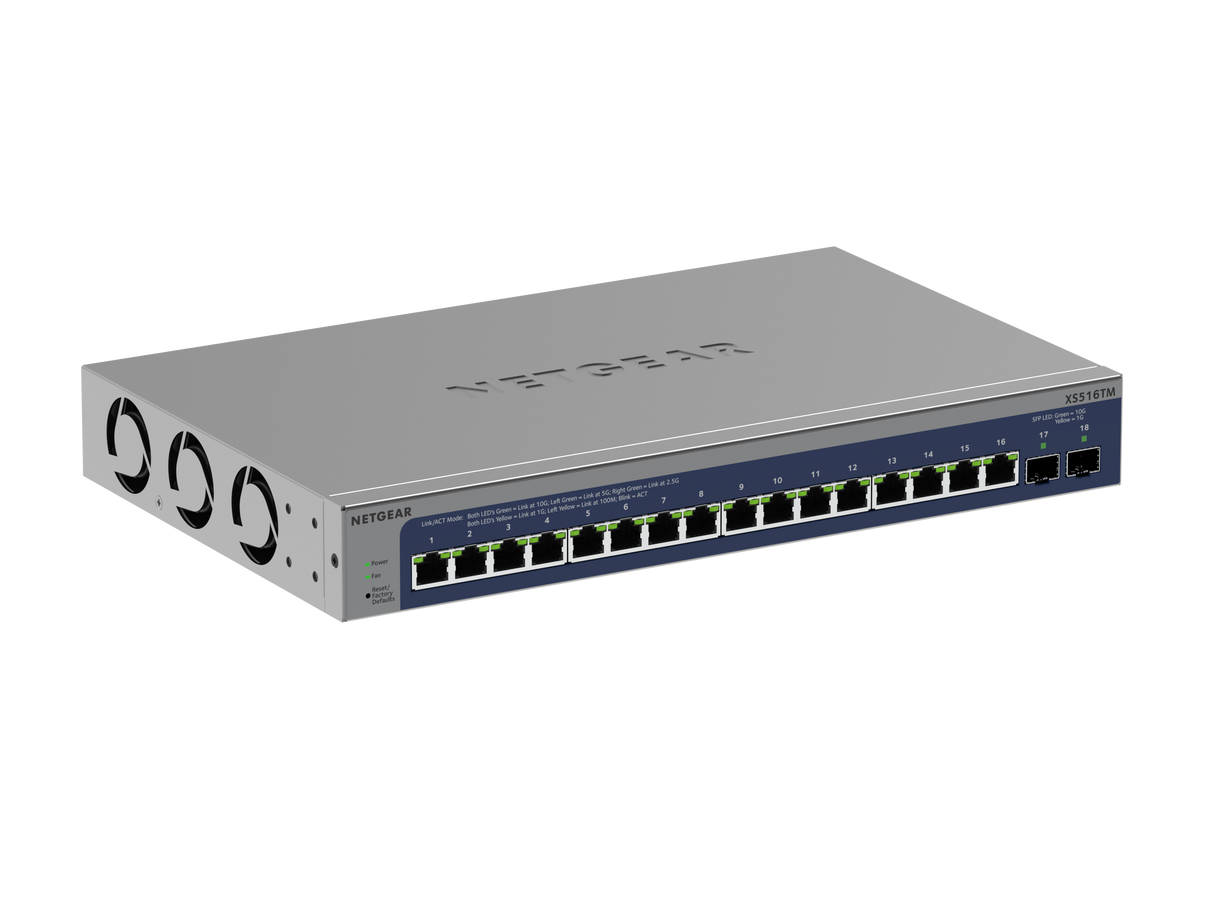

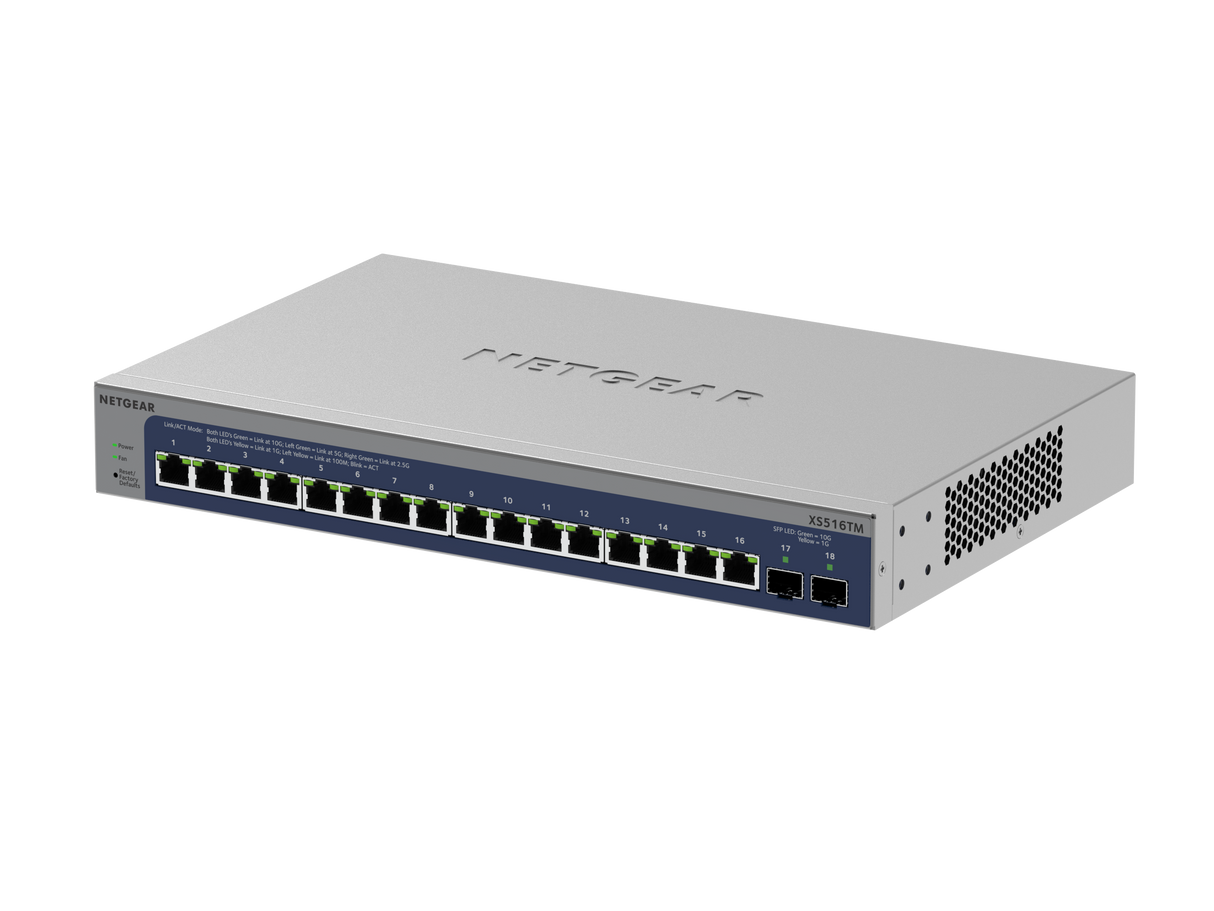

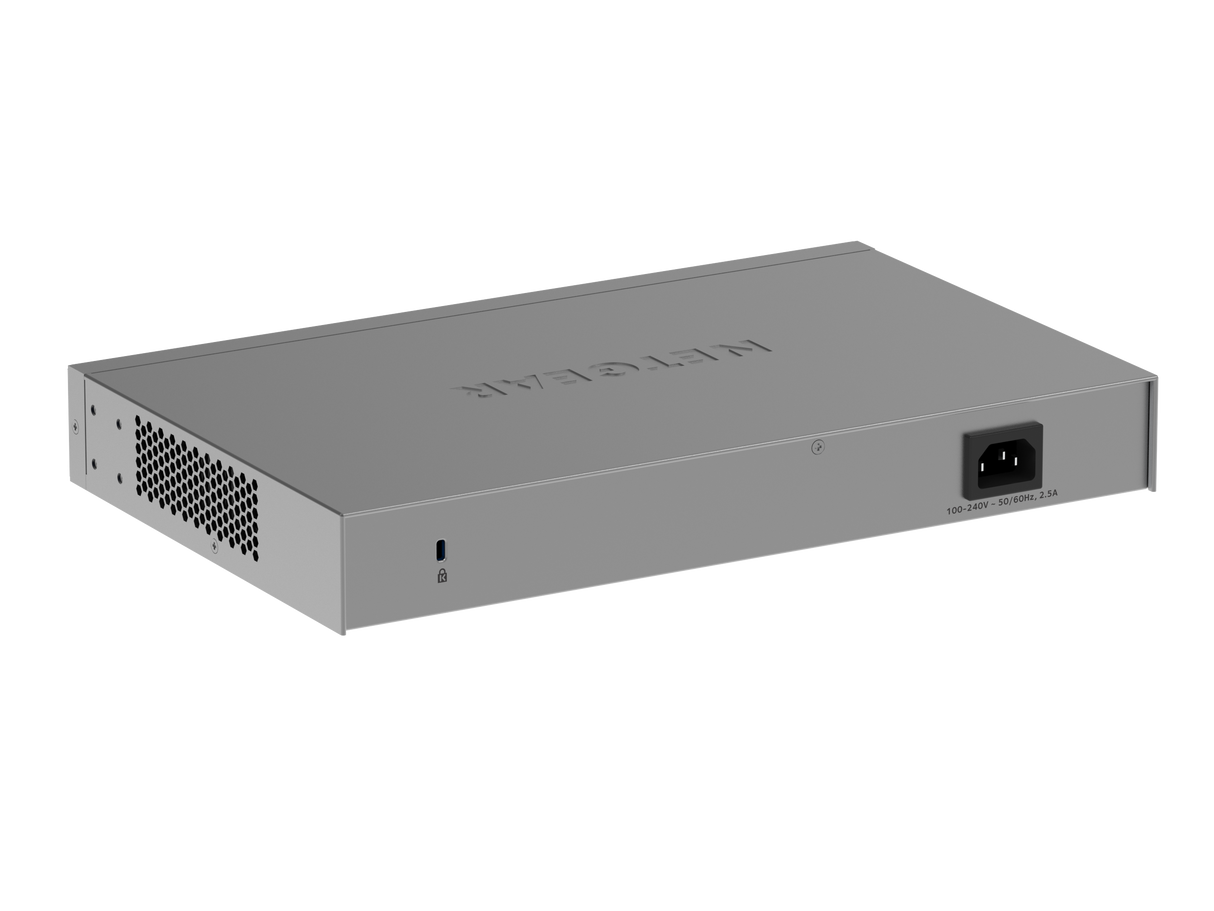

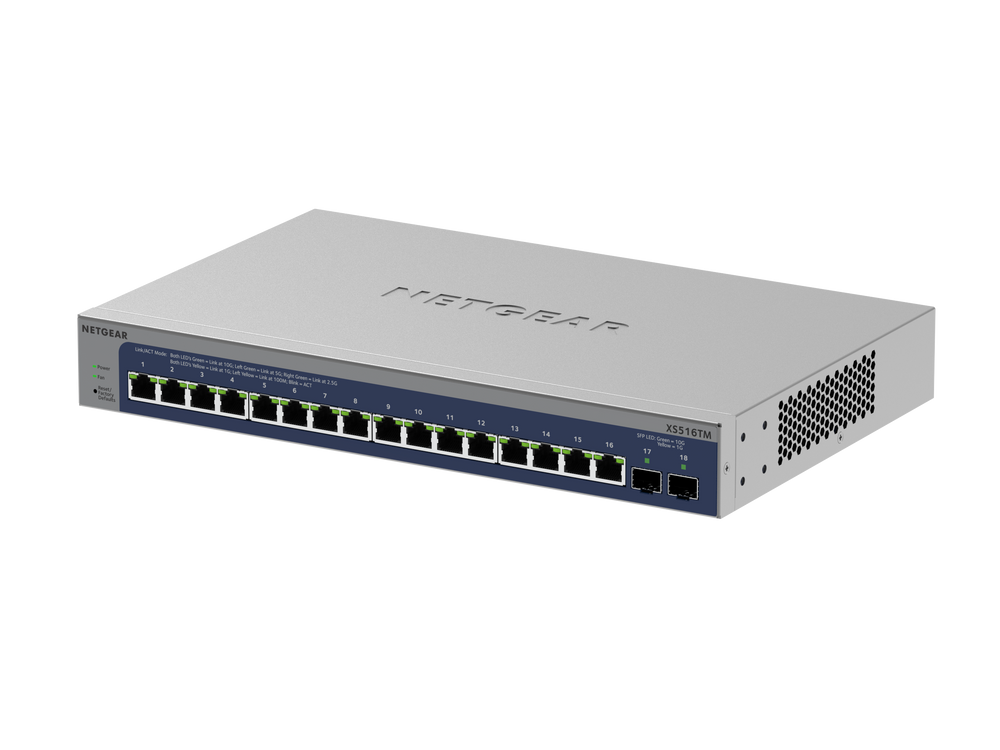

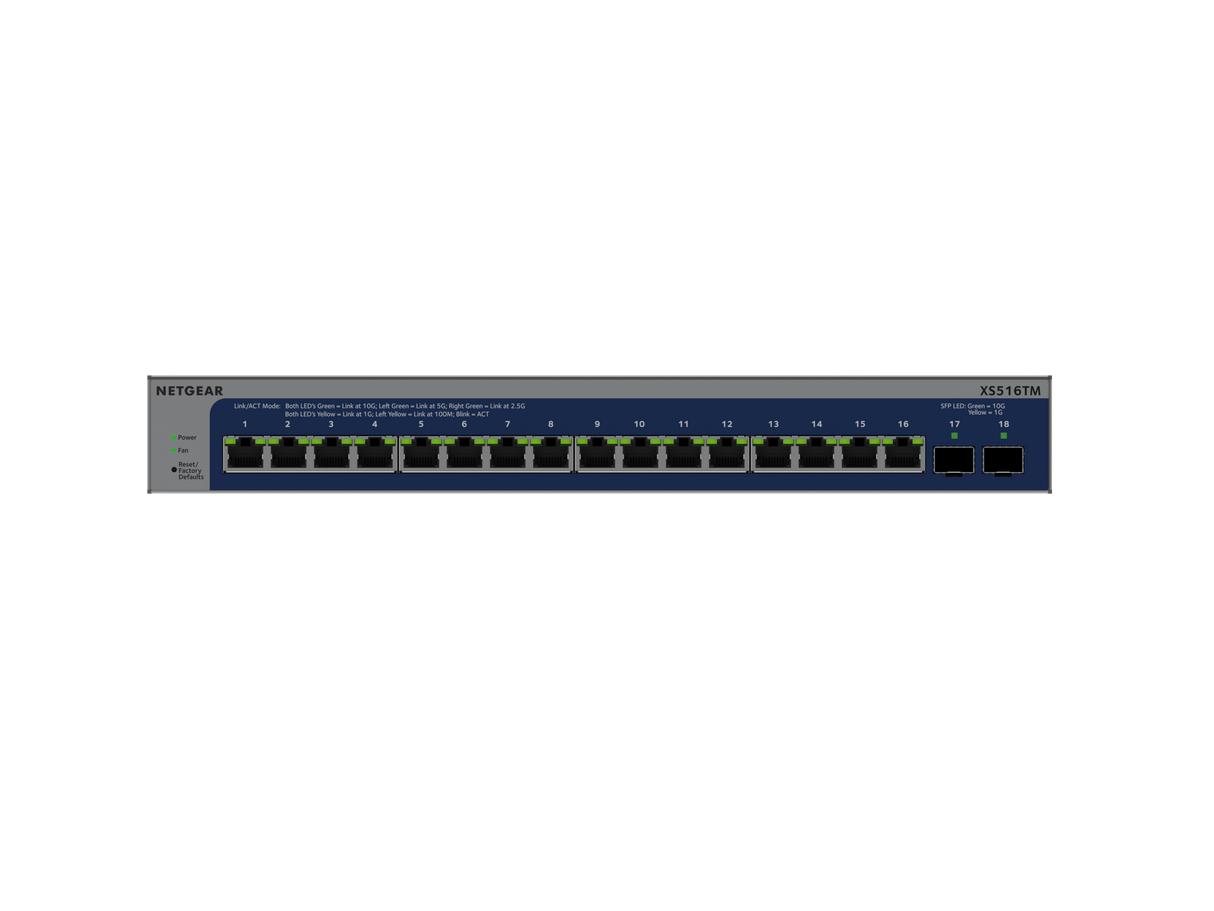

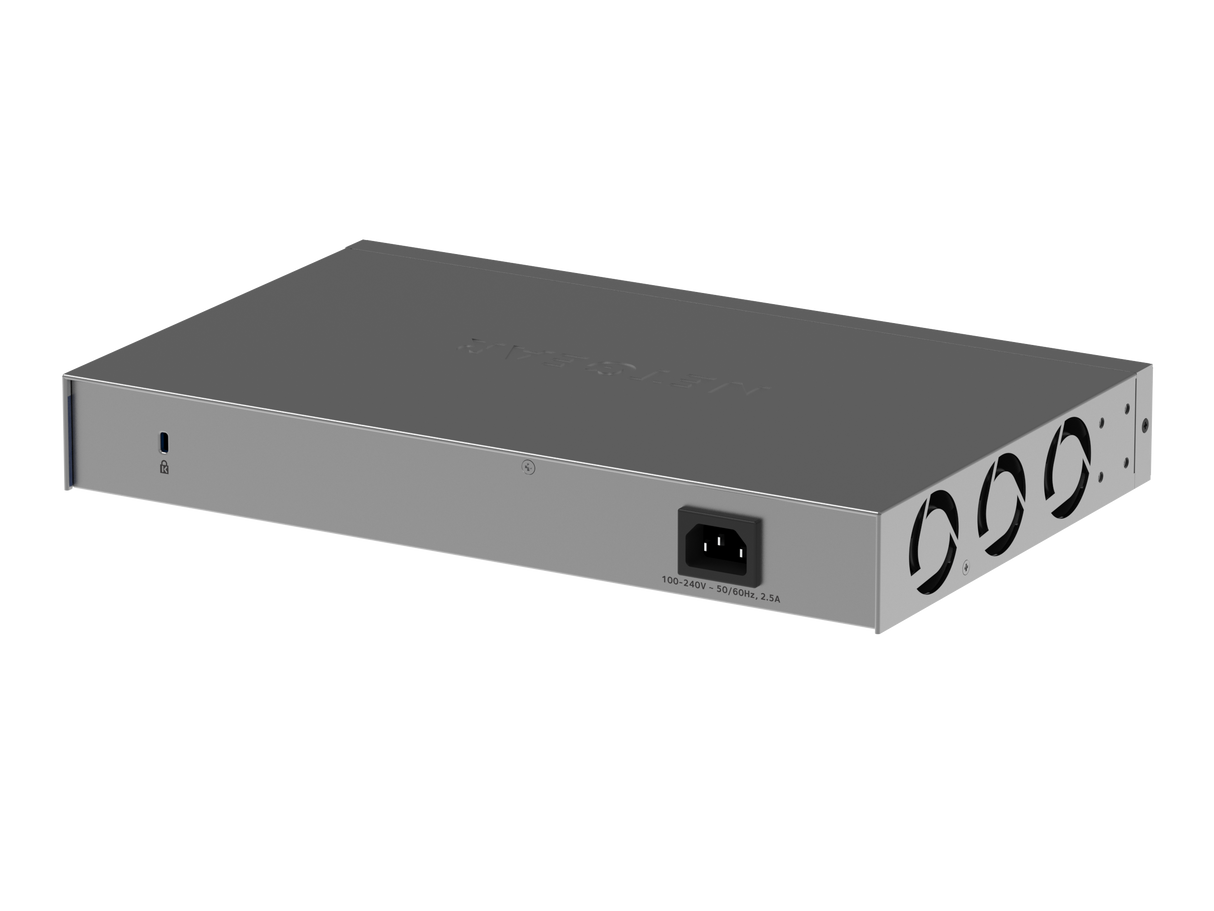

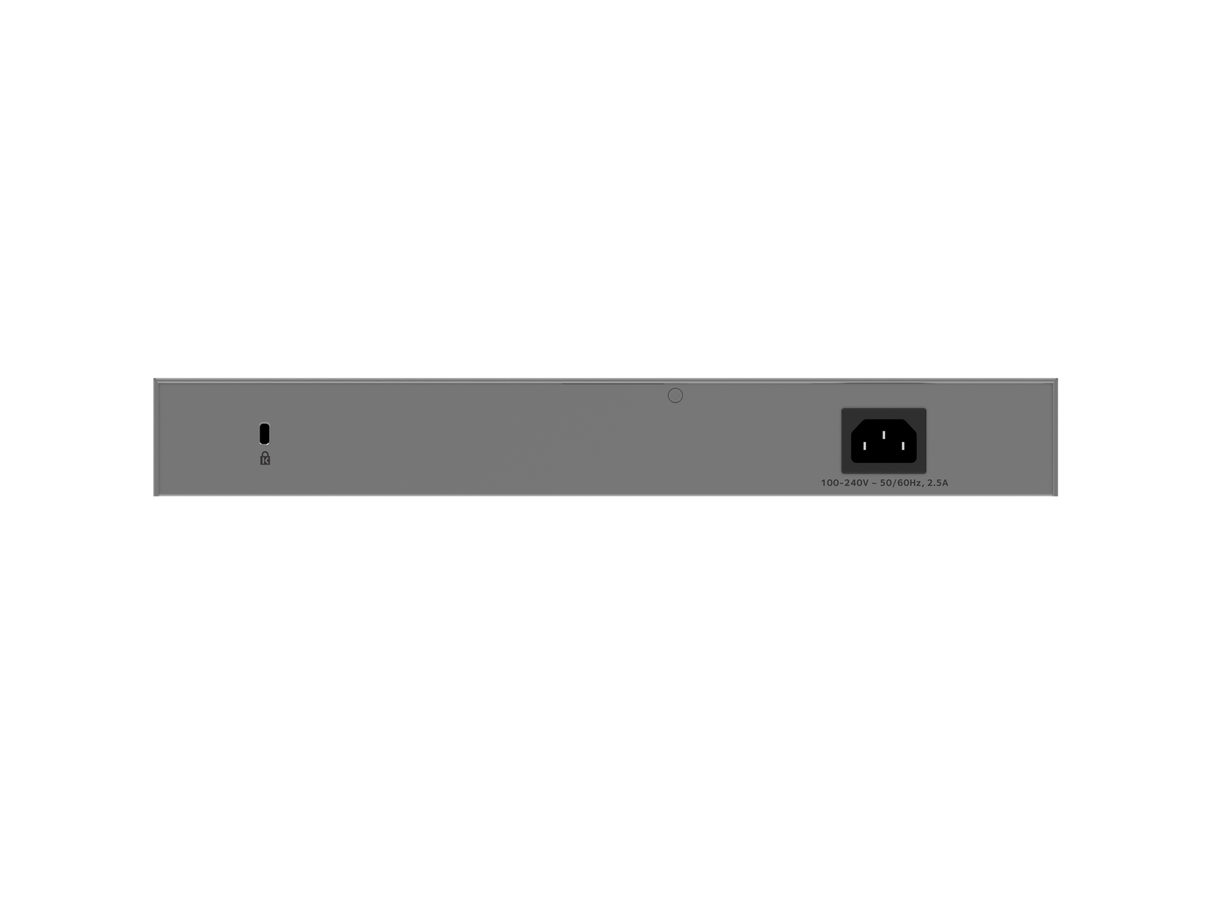

NETGEAR XS516TM 16-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports

NETGEAR XS516TM 16-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports

The NETGEAR XS516TM is a 16-port 10G/Multi-Gigabit smart switch with two dedicated 10G SFP+ ports, built for businesses moving past gigabit speeds. It supports demanding workloads such as virtualization, VoIP, video streaming, IP surveillance, and faster access points, and includes one year of NETGEAR Insight Cloud Management for local or remote administration.

Configurable L2+/L3 Lite features cover 512 VLANs with routing and dynamic assignment, static routes, MLD snooping, and DoS prevention, backed by 16K MAC entries and a 4 MB buffer. Multi-gigabit 2.5G and 5G speeds run over existing Cat5E cabling, Energy Efficient Ethernet trims power from the 63.9 W maximum draw, and the internal-supply chassis installs on a desktop, wall, or rack.

Key Features

• 16 x 10G/Multi-Gigabit ports plus 2 dedicated 10G SFP+ ports
• One year of NETGEAR Insight Cloud Management included
• Configurable L2+/L3 Lite feature set with 512 VLANs and static routing
• 2.5G and 5G speeds over existing Cat5E cabling
• Energy Efficient Ethernet and DoS prevention
• Desktop, wall-mount, or rackmount placement with internal power supply
• NETGEAR ProSAFE Limited Lifetime Hardware Warranty

Specifications

• Width: 330mm (13in)
• Depth: 206mm (8.12in)
• Height: 43mm (1.7in)
• Weight: 2.45kg (5.4lb)
• 10G/Multi-Gigabit ports: 16
• 10G SFP+ ports: 2
• Max MAC entries: 16K
• Buffer size: 4MB
• VLAN (Number Supported): 512
• VLAN routing: Yes
• Dynamic VLAN assignment: Yes
• MLD Snooping: Yes
• Static route: Yes
• Host ARP table: 1024
• EEE: Yes
• DoS Prevention: Yes
• Internal/External Power Supply/Adapter: Internal Power Supply
• Max consumption (Watts): 63.9W
• FAN: 3
• Acoustic Noise Level @25C (dBA): 27.35 dBA
• Operating Temperature: 0° to 50° C
• MTBF: 506,741.9 hours (57.8 years)
• NETGEAR Insight Cloud Management: NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.

What's Included

• NETGEAR XS516TM 16-port 10G/Multi-Gigabit Smart Switch with Insight Cloud Management
• Power cord (varies by region)
• Wall mount kit
• Rackmount kit
• Installation guide
• Warranty: Backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. *This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase. Intended for indoor use only.
• Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing 1, 3, or 5-year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
