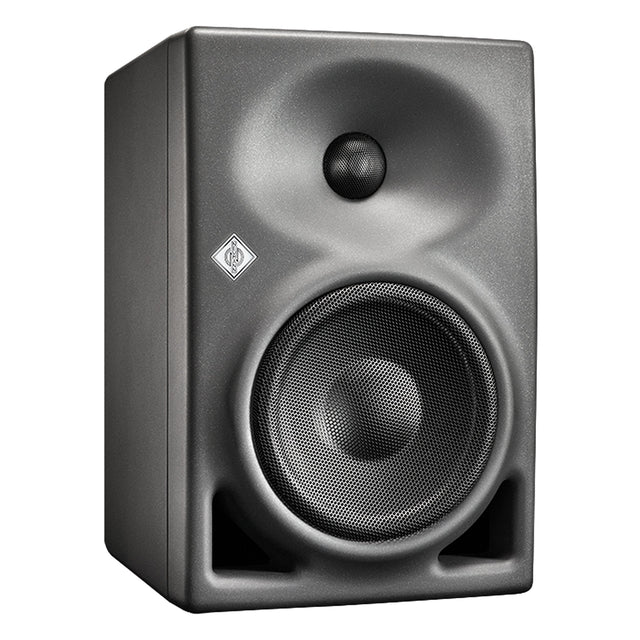

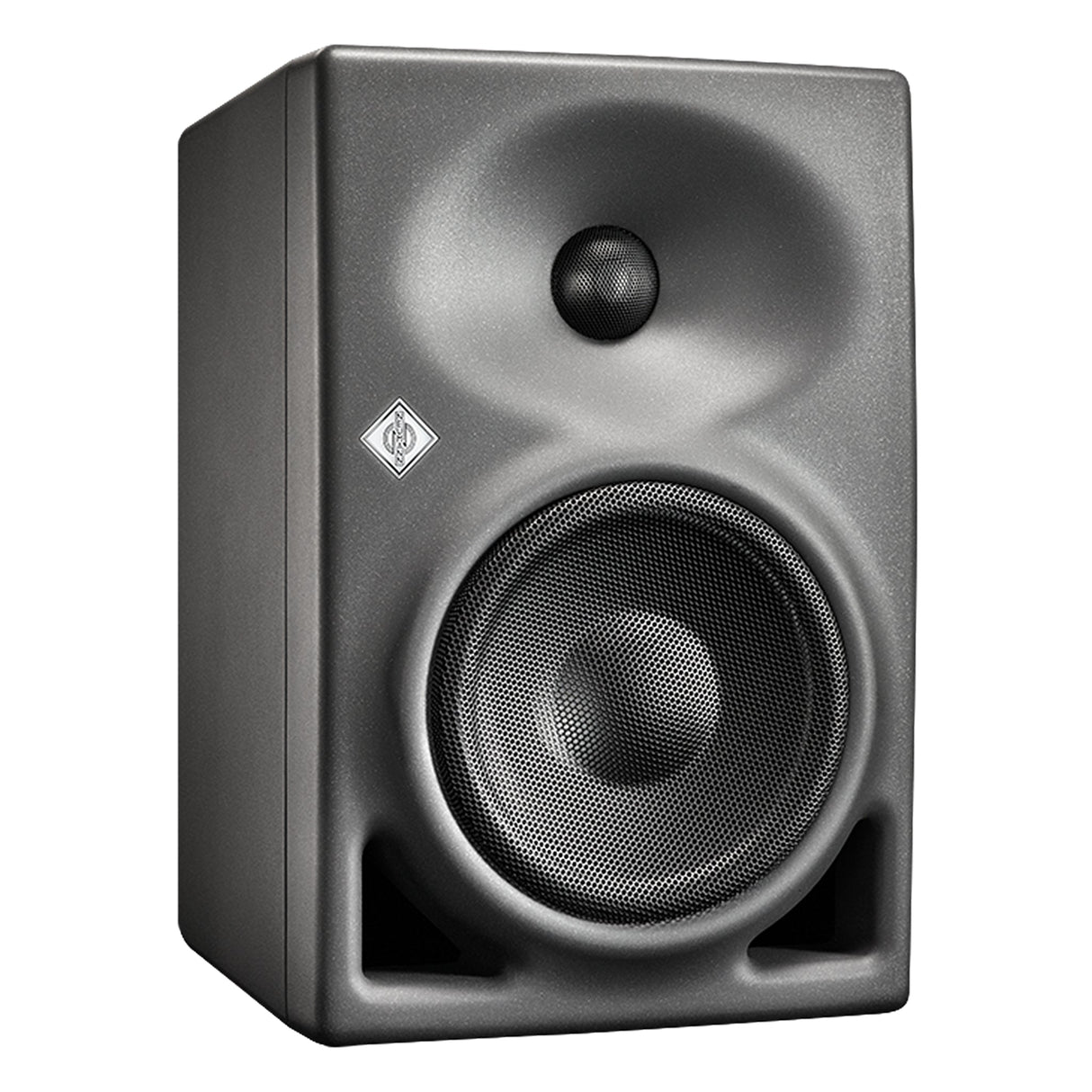

Neumann KH 120 Active, Bi-Amplified Two-Way Nearfield Monitor, 5.25 + 1-Inch Driver with Aluminum Cabinet (Used)

Like New: Open box product with no signs of use.

Neumann is excited to introduce its latest innovation, the Neumann KH120 Active, Bi-Amplified Two-Way Nearfield Monitor, 5.25” + 1” Driver with Aluminum Cabinet, representing the first product in the new line of Neumann Studio Monitors.

The KH 120 A studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.

Key Features

Made by one of the industry's leading transducer manutacturers
Elliptical Mathematically Modelled Dispersion waveguide provides smooth off-axis response and accurate monitoring in non-ideal acoustical environments
Powerful titaniunm fabric dome drivers provide low-distortion high-frequency reproduction
Composite sandwich cone driver designs dampen breakup modes and reduce harmonic distortion

Technical Specs

Low Frequency Driver
5.25" (133mm) Composite Sandwich Woofer
High Frequency Driver
1" (25mm) Titanium Fabric Dome Tweeter
Amplifier
Bass: 50W, 80W Peak
Treble: 50W, 80W Peak
Crossover
2kHz, 24dB/Oct, 4th Order
Frequency Range
52Hz - 21kHz ±3dB
Maximum Sound Pressure Level (SPL)
111.1 dB
Input Impedance
10 kOhms
Input Gain
0 to -15dBu
Output Level
94, 100, 108, and 114dB
CMRR
> 56dB @ 15kHz
Equalization
4-Position Switches for High, Mid, and Bass
Connectors
1 x XLR Input
1 x Power Input
Cabinet
Painted Aluminum
Indicators
Red/White Illuminated Neumann Logo
Shielded
Yes
Protection
Low and High Limiters, Overheating
Mounting
2 x M8 Mounting Points
Power Requirements
100-240VAC, 50/60Hz
Power Consumption
Idle: 20W
Full Output: 200W
Operating Temperature
50 to 104°F (10 to 40°C)
< 90% Relative Humidity
Dimensions (HXWXD)
10.9 x 7.1 x 8.6"
Weight
13.7 lbs (6.2Kg)
