Neumann KM 184 Small-Diaphragm Cardioid Condenser Microphone (Matte Black)
Elevate your recordings to the industry standard with the Neumann KM 184 small-diaphragm condenser microphone. Widely regarded as the global studio standard, this cardioid microphone delivers an exceptionally clear, detailed, and uncolored sound, making it an essential tool for any professional recording studio or home setup.
The KM 184 utilizes a sophisticated pressure-gradient transducer and a modern transformerless circuitry to provide a dynamic range that is 24dB greater than its predecessors, coupled with an impressively low self-noise level of just 13dB-A. This combination ensures that even the quietest acoustic performances are captured with pristine clarity, free from distortion, while its high SPL handling (up to 138dB) allows it to excel on loud sources like percussion.
Engineered with a subtle, gentle rise at about 9kHz, the KM 184 offers a tonal balance that is both fresher and livelier, perfectly accentuating the "air" and detail in acoustic guitars, strings, and, most famously, the sizzle in drum overheads and hi-hats. Whether you are miking an orchestra, an acoustic ensemble, or setting up a stereo pair for room capture, the sleek, matte black KM 184 is a versatile and reliable high-quality miniature microphone that guarantees professional-grade results.
Key Features
- Pristine Cardioid Pickup Pattern: Highly effective at suppressing rear-incident sound, making it ideal for stereo recording (XY, ORTF, or Spaced Pair) and focused spot miking in live or studio environments.
- Optimized for Clarity: Features a gentle high-frequency rise at 9kHz to enhance presence and brilliance, especially beneficial for acoustic instruments, pianos, and drum cymbals.
- Advanced Transformerless Circuitry: Ensures superior technical specifications, low self-noise (13dB-A), and the ability to handle extremely high sound pressure levels (138dB Max SPL) without distortion.
- Versatile Operation: Designed for trouble-free use with all professional equipment, including follow-up gear that may be unbalanced, and requires standard 48V phantom power.
- Compact & Discreet Design: The small-diaphragm capsule and slender body allow for easy placement in tight spaces and discreet positioning on camera.
Specifications
- Acoustical Operating Principle: Pressure Gradient Transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz – 20 kHz
- Sensitivity at 1 kHz into 1 kΩ: 15 mV/Pa
- Rated Impedance: 50 Ohms
- Rated Load Impedance: 1,000 Ohms
- Equivalent SPL (Self-Noise, DIN/IEC 651): 13 dB-A
- Signal-to-Noise Ratio (DIN/IEC 651): 81 dB
- Maximum SPL for THD 0.5%: 138 dB
- Maximum Output Voltage: 10 dBu
- Supply Voltage: 48 V ± 4 V (Phantom Power)
- Current Consumption: 3.2 mA
- Matching Connector: XLR 3F
- Weight: Approx. 80 g (2.8 oz)
- Dimensions (Diameter x Length): 0.86" x 4.2" (22 mm x 107 mm)
Package Content
- Neumann KM 184 Small-Diaphragm Condenser Microphone (Matte Black)
- Stand Mount/Clip

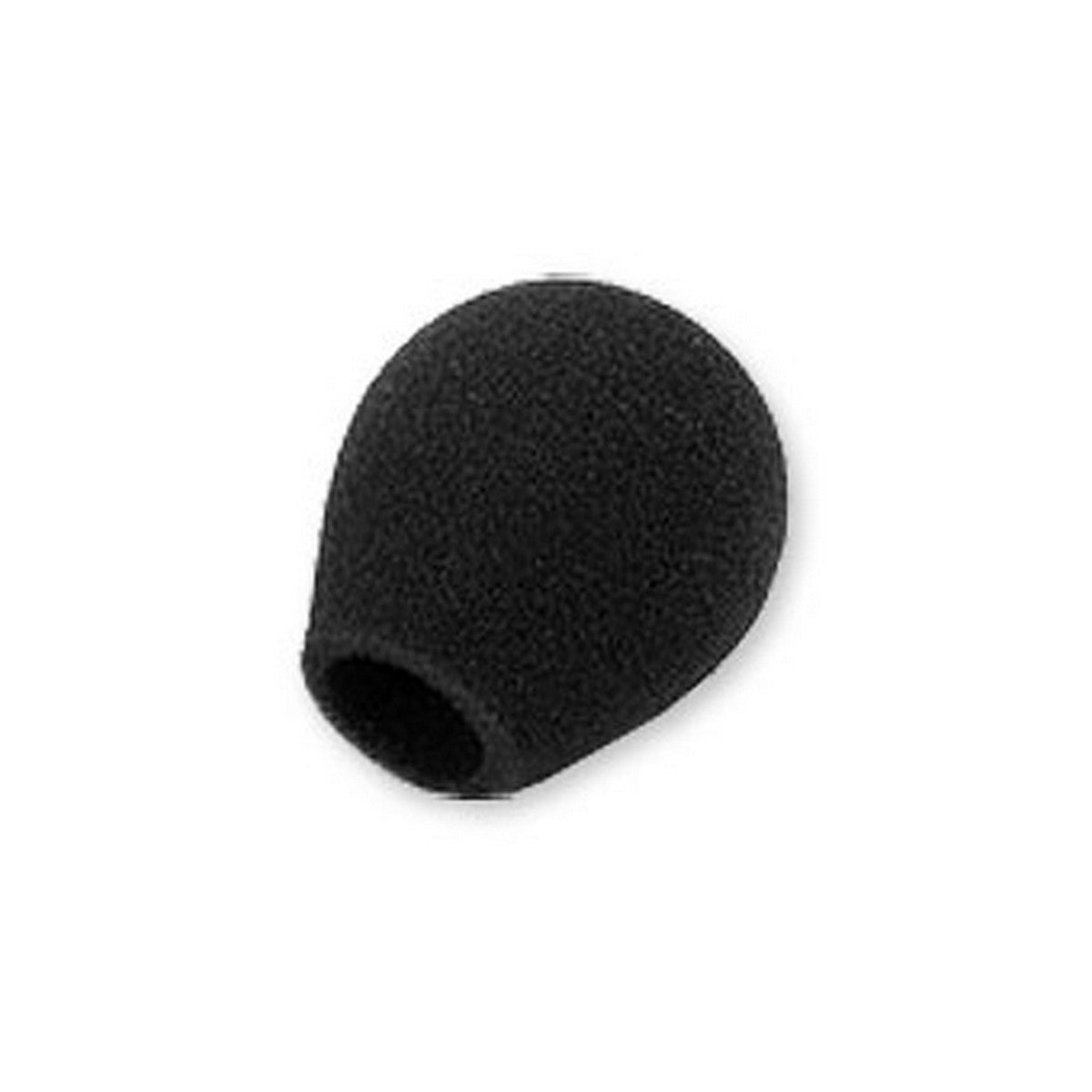

- Windscreen (typically foam or similar accessory)
- Wooden Box or Padded Case (for secure storage)
