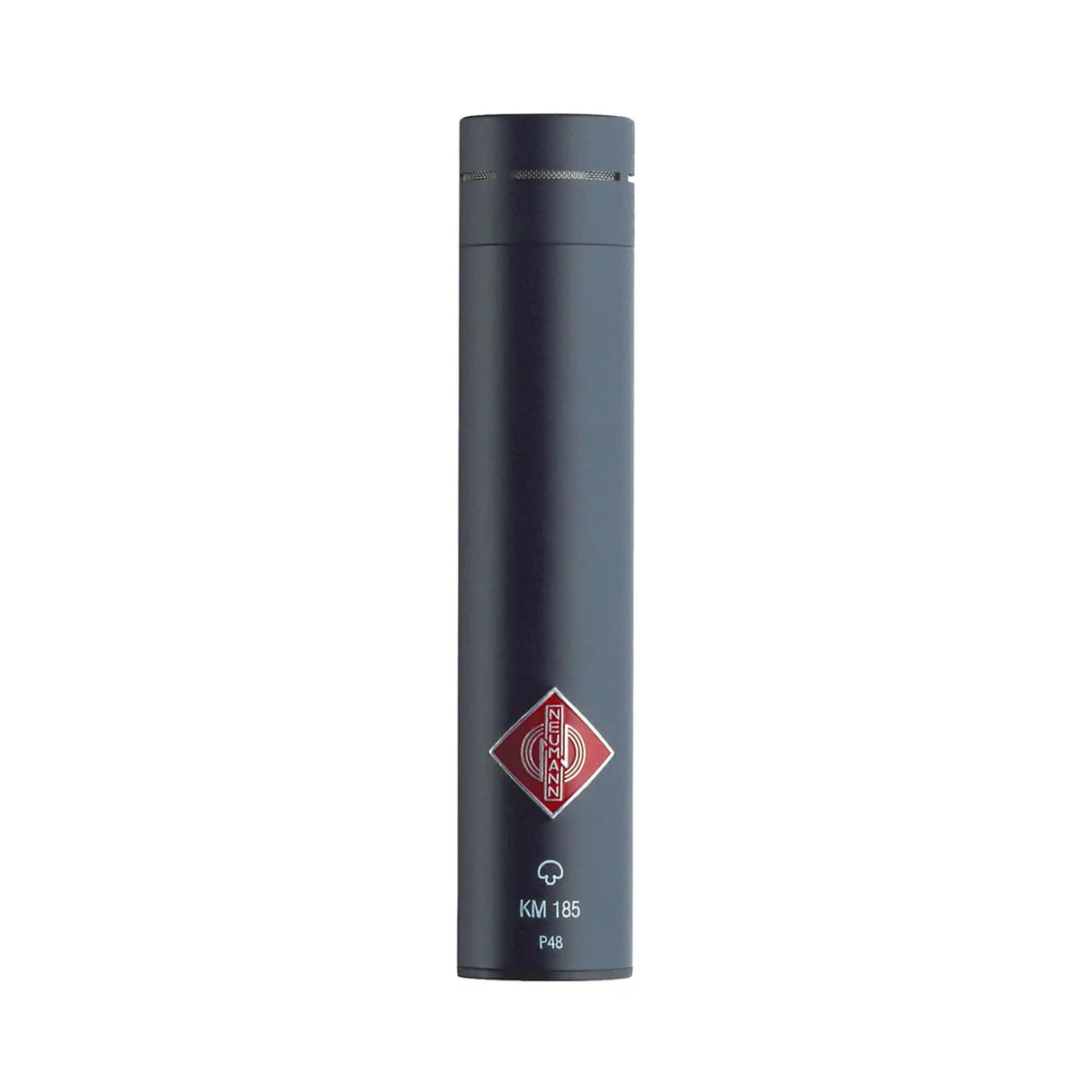

Neumann KM 185 MT Hypercardioid Mic with K50 Capsule, SG21BK, WNS100 Matte Black

Neumann KM 185 MT Hypercardioid Mic with K50 Capsule, SG21BK, WNS100 Matte Black

Elevate your recordings and live sound with the Neumann KM 185 Miniature Condenser Microphone, a world-class standard for engineers seeking uncolored, transparent audio reproduction. Part of the renowned Series 180, the KM 185 features a precisely engineered hypercardioid polar pattern that delivers exceptional off-axis rejection (specifically at 120°) without any unwanted sonic coloration. This crucial feature makes it a powerhouse in complex multi-microphone setups, ensuring tight focus on your source—perfect for separating a snare drum from a nearby hi-hat.

The state-of-the-art capsule and innovative transformerless electronics provide an incredibly wide dynamic range (127 dB), combining a remarkably low self-noise of just 15 dB-A with the ability to handle extremely high Sound Pressure Levels (SPL) up to 142 dB without distortion. Its linear frequency response, featuring a gentle treble lift around 10 kHz, adds desirable brilliance to any source without sounding harsh. Whether miking acoustic guitars, pianos, orchestral instruments, or using it as a visually unobtrusive spot microphone on stage, the Neumann KM 185 delivers the faithful, studio-quality sound you expect from the industry's most trusted name.

Key Features

• Hypercardioid Polar Pattern: Tight, frequency-independent pickup pattern provides excellent rejection of rearward sound (at 120°) to minimize bleed and maximize isolation in multi-mic arrangements.
• Uncolored & Transparent Sound: Designed for faithful, uncompromised reproduction of acoustic events, making it ideal for critical classical and acoustic recording.
• Exceptional Clarity: Transformerless circuitry and low self-noise (15 dB-A) ensure a clean, detailed signal, capturing the full nuance of delicate sources.
• High SPL Handling: Safely records loud sources like drums and percussion with a maximum SPL of 142 dB without fear of distortion.
• Studio and Stage Versatility: Compact, unobtrusive design is perfect for television, radio, and discreet stage miking of virtually all acoustic instruments.
• Long Cable Run Support: Low output impedance allows for cable runs up to 300 meters (1000 feet) without transmission loss.

Specifications

• Acoustical Operating Principle: Pressure gradient transducer
• Directional Pattern: Hypercardioid
• Frequency Range: 20 Hz – 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 10 mV/Pa ± 1 dB
• Maximum SPL for THD 0.5%: 142 dB
• Equivalent Noise Level (A-weighted): 15 dB-A
• Signal-to-Noise Ratio (A-weighted, re. 94 dB SPL): 79 dB
• Rated Impedance: 50 ohms
• Matching Connector: XLR 3 F
• Supply Voltage (P48): 48 V ± 4 V
• Weight: approx. 80 g
• Dimensions (Diameter x Length): 22 mm x 107 mm

Package Content (KM 185 Single Microphone)

• KM 185 Microphone (Nickel or Matte Black variant)
• WNS 100 Windscreen
• SG 21 bk Stand Mount Swivel
