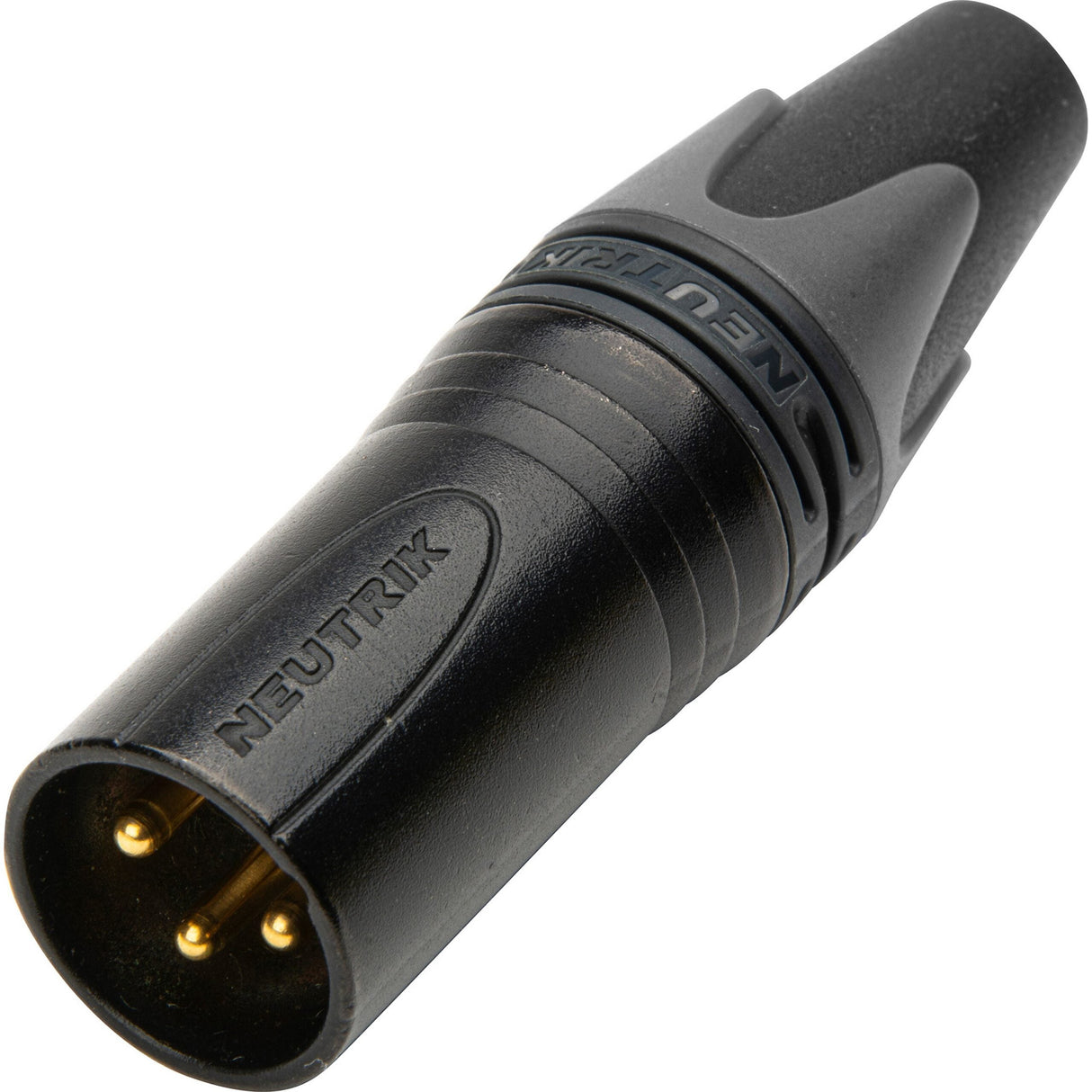

Neutrik NC3MXX-BAG-D 3-Pin Male XLR Connector Black/Silver, 100 Pack

Neutrik NC3MXX-BAG-D 3-Pin Male XLR Connector Black/Silver, 100 Pack

Neutrik NC3MXX-BAG 3 pole male cable connector with black metal housing and silver contacts in a Bulk 100 pack.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Key Features

• Male connector with improved locking recess without “window”, more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, long lasting and dependable
• Internal thread on shell is well protected against any damage
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Specifications

Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 3 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 Degrees C to +80 Degrees C

Installation / Use Cases

• Use as a 3-pin male XLR cable connector for audio cable assembly and repair.
• Suitable for building or servicing XLR microphone cables, audio cables, and professional signal cables.
• Use in production, broadcast, studio, live sound, installation, and service departments that need bulk XLR connectors.
• Suitable for cable outer diameters from 3.5 mm to 8.0 mm.
• Use the improved chuck type strain relief for higher pull-out force and easier assembly.
• Use the polyurethane boot gland to help protect against cable bending stress.
• Suitable for applications that require a rugged zinc diecast shell, black chromium shell plating, and silver contacts.

Package Contents

• 100 x Neutrik NC3MXX-BAG-D 3-Pin Male XLR Connector Black/Silver
