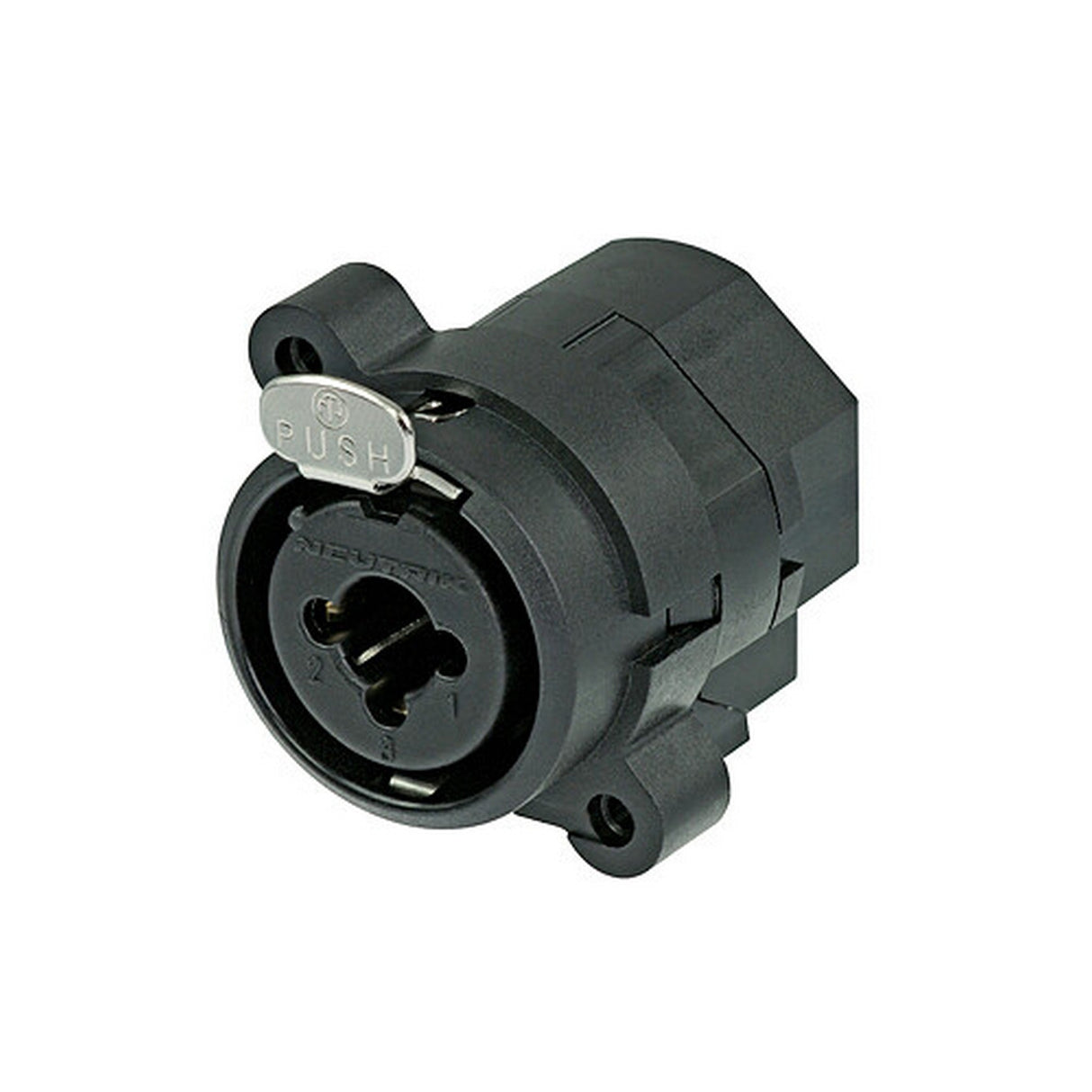

Neutrik NCJ6FI-S 3-Pole XLR Female Solder Type Combo Connector
Description
Description
Neutrik NCJ6FI-S 3-Pole XLR Female Solder Type Combo Connector
3 pole XLR female receptacle with 1/4” stereo jack without switching contact, solder cups.
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4” jack.
Key Features
- Combined XLR receptacle and 1/4” phone jack
- Balanced or line inputs in one XLR shell
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
Technical Specifications
Connection Type
Combo
Gender
female
Electrical
Contact resistance
< 10 mΩ (XLR)
Contact resistance
< 20 mΩ (jack)
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
7.5 A (XLR)
Rated current per contact
7.5 A (Jack)
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 25 N
Withdrawal force
≤ 25 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 7 mm 0.27”
Wiresize
Mounting direction
Rear mounting
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
PA66
Locking element
Steel Ck67
Environmental
Flammability
UL 94 V-0
Temperature range
-30 Degrees C to +80 Degrees C
