Neutrik NP3X Audio 1/4 Inch TRS Slim Male Connector
Neutrik | SKU: NEU-NP3X
Authorized Dealer
Loading...
$797
Unit price
/
Unavailable
In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description

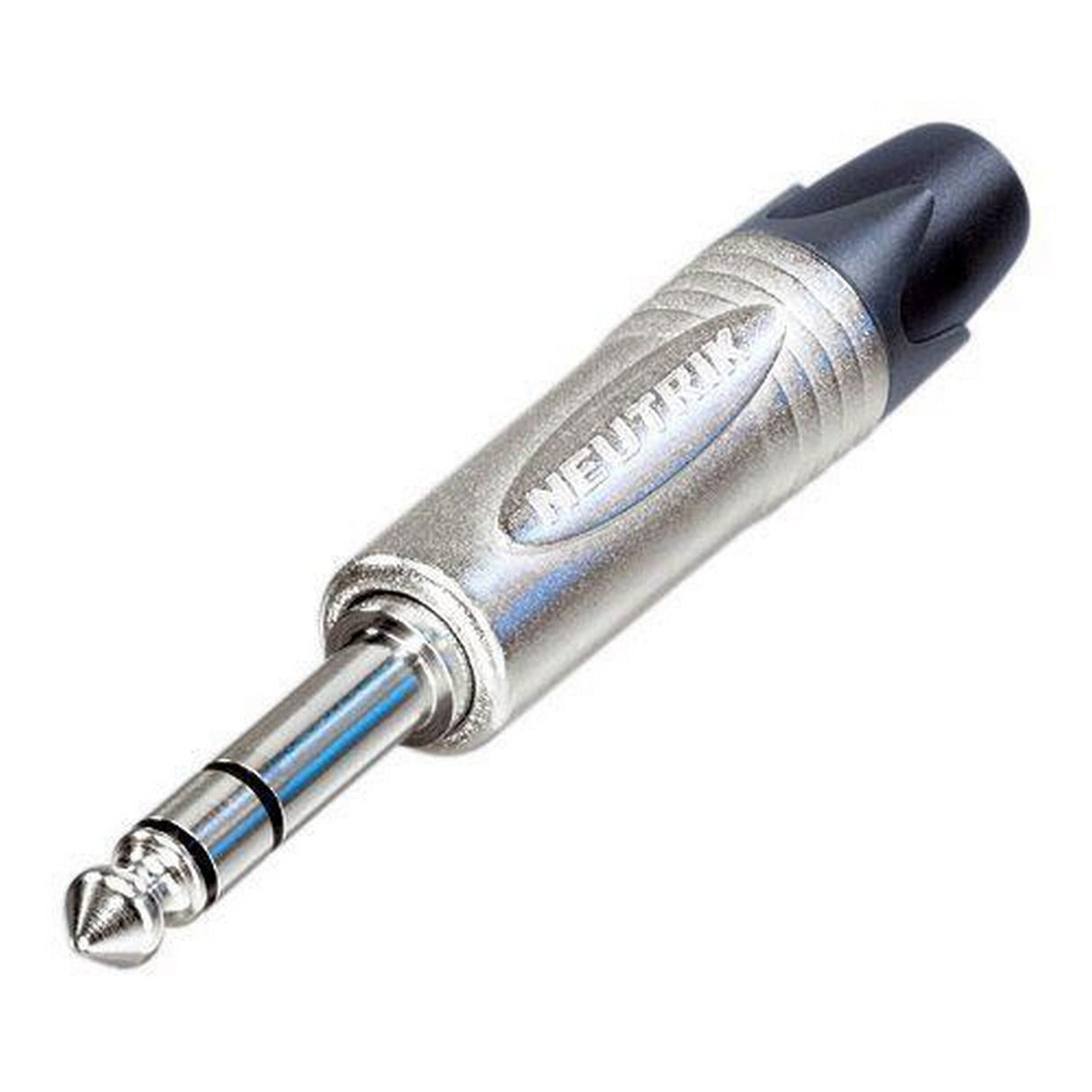

Neutrik NP3X Audio 1/4 Inch TRS Slim Male Connector
Overview
- 3 pole 1/4” professional phone plug, nickel contacts, nickel shell
- The heavy-duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4” plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
- The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
- The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Key Features
- Extra slim 1/4” plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Technical Specifications
- Title: NP3X
- Connection Type: Plug
- Gender: male
-
Electrical
- Contact resistance: depends on mating connector m2
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 G2 (initial)
- Rated current per contact: depends on mating connector A
- Rated voltage: < 50 V
-
Mechanical
- Cable O.D.: 4 - 7 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 1 mm?
- Wiresize: 18 AWG
- Wiring: Solder contacts
-
Material
- Bushing: Polyacetal (POM) + PU
- Contact plating: 2 m Ni (Su)
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
-
Environmental
- Standard compliance: IEC 60603-11 / EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 degrees C to +65 degrees C
Installation / Use Cases
- Use the 3-pole 1/4-inch TRS male connector for assembling professional audio cables with soldered terminations.
- The 14.5 mm slim shell is suitable for high-density jackfields with 15.88 mm jack pitch.
- Suitable for guitar cables, audio cables, snakes, speakers, amplifiers, and mixing desks.
Package Contents
- Neutrik NP3X Audio 1/4 Inch TRS Slim Male Connector
Frequently Asked Questions
What type of connector is the Neutrik NP3X?
The NP3X is a 3-pole 1/4-inch professional male phone plug.
How wide is the Neutrik NP3X shell?
The slimline shell measures 14.5 mm wide.
What cable diameter does the NP3X support?
The connector supports cable outer diameters from 4 to 7 mm.
What wire size can the Neutrik NP3X accommodate?
The NP3X supports wire sizes up to 1 mm² or 18 AWG.
How are wires terminated on the NP3X?
The connector uses solder contacts.
What type of strain relief does the NP3X use?
It uses Neutrik's chuck-type strain relief for cable retention.
