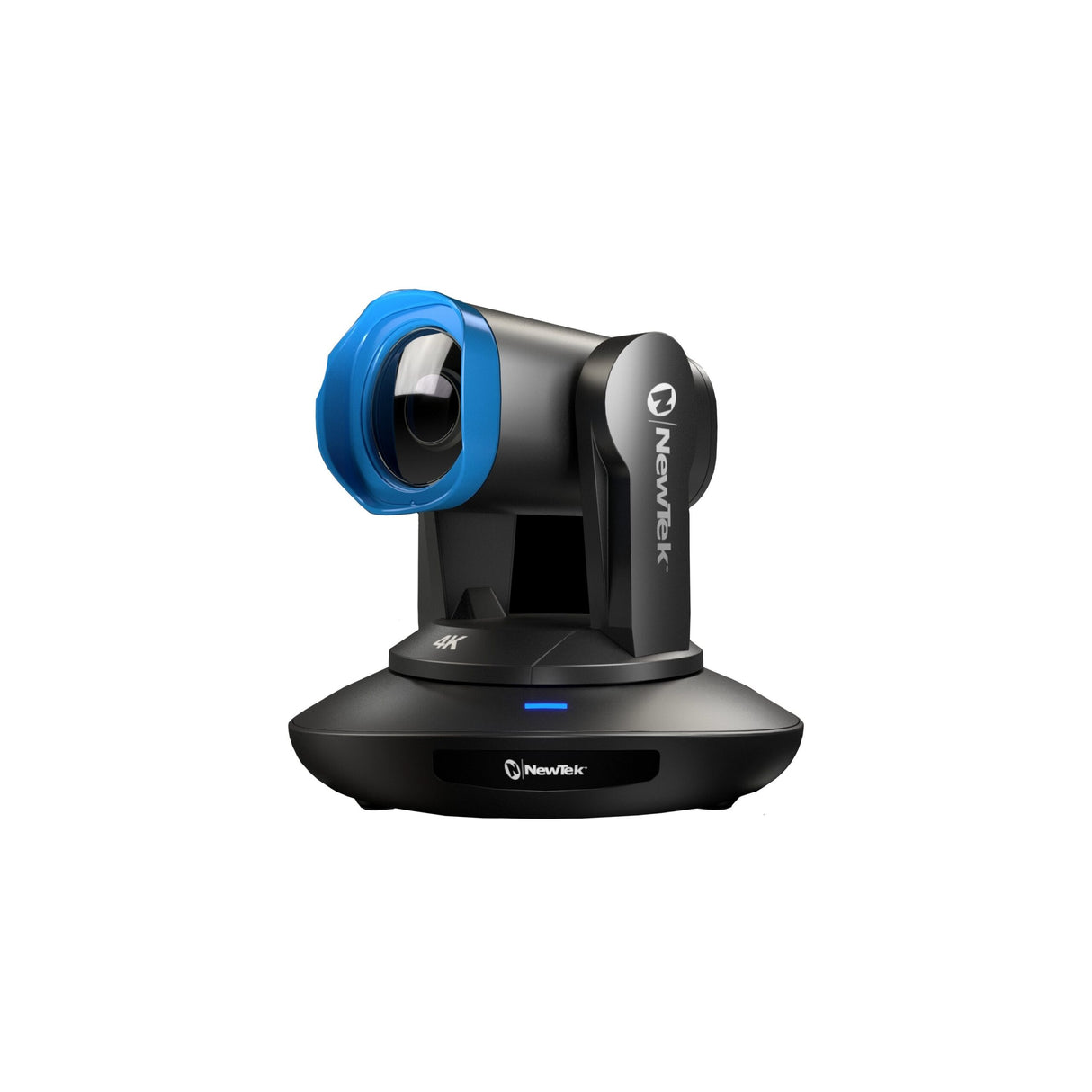

NewTek PTZ3 UHD 30x PTZ Camera
NewTek PTZ3 UHD 30x PTZ Camera
Introducing the expertly engineered PTZ3 UHD
Truly mastering the art of capture, the PTZ3 UHD is the best and easiest way of getting the highest quality video and audio onto any network and into any production.
Mastering Audio
For the first time in a NewTek UHD camera, Professional XLR audio input seamlessly runs with equipment such as microphones, mixers, amplifiers, and soundboards.
Mastering Video
The PTZ3 UHD takes pan/tilt/zoom quality to new levels; ease-in and ease-out movements deliver seamless, smooth transitions for a natural, superior quality production without jittery or stuttering movements.
Mastering Connectivity
Whether it's using a single cable for audio and video, PTZ control, tally and PoE for power or connecting via NDI, NewTek PTZ Cameras simply appear on the network and can immediately be built into any workflow with ease.
Professional Audio, Pristine 4Kp60, Infinite Possibilities
The PTZ3 UHD is the only NewTek 4Kp60 camera on the market that offers both professional audio and ultra-high-definition video - all built on the unshakeable foundation of NDI
Exceptional video for any workflow.
Constructed with NDI at its core, the PTZ3 UHD guarantees the tightest integration with any NewTek live production system and any NDI workflow - offering professional audio, pristine 4Kp60 and infinite production possibilities.
Phenomenal PTZ At Your Fingertips
Bringing you the very best that PTZ cameras have to offer - all built with NDI at its core.
Vibrant Video
The only NewTek camera that offers 4Kp60 ultra-high-definition video and a state-of-the-art Sony sensor, it’s the very best way to deliver video into any IP environment.
Advanced Audio
The PTZ3 UHD has brought the need for superior audio right into focus with the Professional XLR audio input. Audio devices such as microphones and sound mixers are now easily connected.
Masterful Movement
The PTZ3 UHD offers far superior visual quality with ease-in and ease-out movements between camera presets offering natural, superior quality production, in any environment.
Connectivity At Its Core
Built to ensure that it’s the best and easiest way of getting the highest quality video and audio onto any network and into any production.
Key Features
- One ethernet cable for audio and video, PTZ control and tally
- Professional XLR audio connection
- Sony 1/1.8” 12MP Sony Sensor
- 30 x Optical Zoom
- Ease-in and ease-out movements deliver seamless, smooth transitions
- Pristine 4Kp60 UHD Video
- Offers supports for NDI|HX3
- Support for H.264, H.265 via NDI|HX
Technical Specifications
Video Output
NDI|HX, 3G-SDI, HDMI
Zoom
30 x Optical & 2x digital zoom
Audio Output
NDI|HX, HDMI, SDI
Video Formats
NDI|HX
3840*2160P60/59.94/50/30/29.97/25
1920*1080P60/59.94/50/30/29.97/25/24
1280*720P60/59.94/50/30/29.97/25
HDMI
1920*1080P60/59.94/50/30/29.97/25/24/23.98
1920*1080I60/59.94/50
1280*720P60/59.94/50/30/29.97/25
SDI
1920*1080P60/59.94/50/30/29.97/25/24/23.98
1920*1080I60/59.94/50
1280*720P60/59.94/50/30/29.97/25
Sensor
Sony 1/1.8-inch 12MP sensor.
ColorSpace
8 bits
NDI
4:2:0
HDMI & SDI
4:2:2
Shutter Speed
1/30 to 1/10,000 sec
Panning Angle
-170 Degrees to +170 Degrees
Panning Speed
Max 120°/sec
Tilting Angle
30 Degrees to +60 Degrees
Tilting Speed
Max 80°/sec
Aperture
F1.8 ~ F14
Focal Length
6.91mm~214.64mm
Horizontal Angle of View
60 Degrees (Far)-2 Degrees (Near)
Min. Object Distance
1.5m (Wide/Tele)
Min. Illumination
0.1 lux
Encoding
H.264/H.265, NDI|HX & HEVC
Audio Input
Mini XLR, 3.5mm stereo audio input (line)
Embedded Audio
NDI, HDMI,
Signal
Balanced (Mini XLR), Unbalanced (Line In)
Sample Rate
48KHz
Frequency
100Hz~20KHz
Total Harmonic distortion
-90dB
Tally
Supported
White Balance
Auto, Manual, Auto Tracking, One Push, Outdoor, Indoor
Exposure
Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Focus
Auto, Manual, Iris Auto, Manual Shutter Auto, Manual
Anti-Flicker
Off/50Hz/60Hz
Gain Control
Auto, Manual
Control
NDI
User Interface
Web based or NewTek NDI Studio Monitor applications for remote configuration, control, and monitoring
POE+
POE+ (IEEE 802.3 at)
Direct Power
DC12V
Power Consumption
12W
Operating Temperature
-10 Degrees C~50 Degrees C
Operating Humidity
20%~80%
Physical
Dimensions
8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm)
Weight
2.97lbs (1.35 kg)
Ceiling Mount
Included
Wall Mount
Included
Adapters
MiniXLR (f) to XLR(f) adapter included
