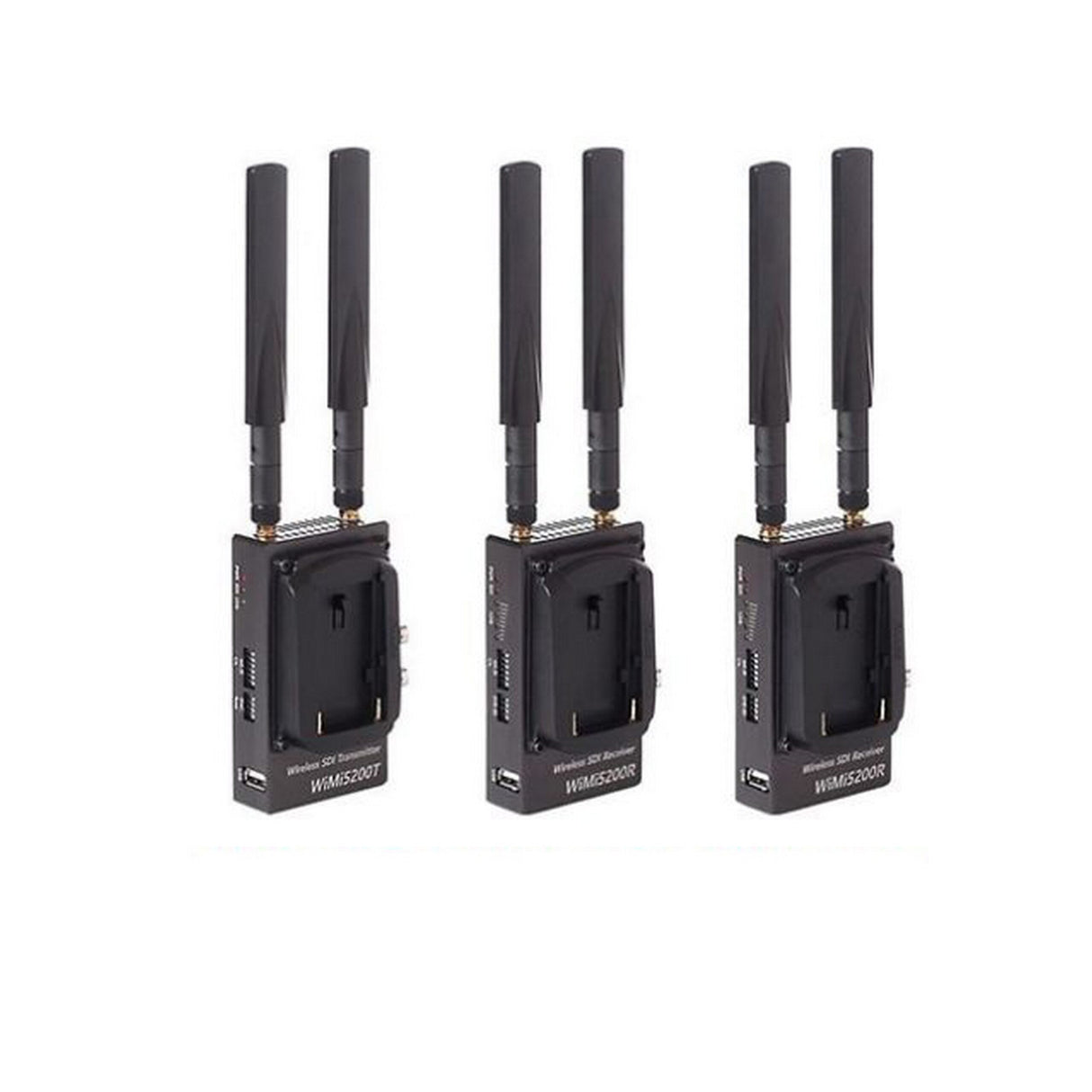

Nimbus WiMi5200 Transmission System Bundle
The WiMi5200 Wireless 3G-SDI H.264 Encoder/Decoder Set from Nimbus is a point-to-point Wi-Fi transmission system with a 1968' range and only 30ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required. The transmitter encodes and sends up to a 1080p60 SDI signal as an H.264 encoded signal, and the receiver decodes and outputs it as video. The transmitter features a 3G/HD/SD-SDI input and 3G/HD/SD-SDI loop output, and the receiver has a single 3G/HD/SD-SDI output. The set includes one L-series battery plate for the transmitter and one power adapter for the receiver, although both units support continuous power via 2-pin LEMO inputs. Both units offer a 1/4"-20 mounting thread on the bottom.
Key Features
- 1968' Range over 5 GHz Wi-Fi
- 30ms Latency
- Up to 1080p60 SDI Signals
- Transmitter: SDI Input & Loop Output
- Receiver: SDI Output
- H.264 Encoding/Decoding
- L-Series Battery Plate
- Power Adapter Included
- 1/4"-20 Mounting Threads
- DIP switch selection of Wi-Fi frequency and encoding rate
