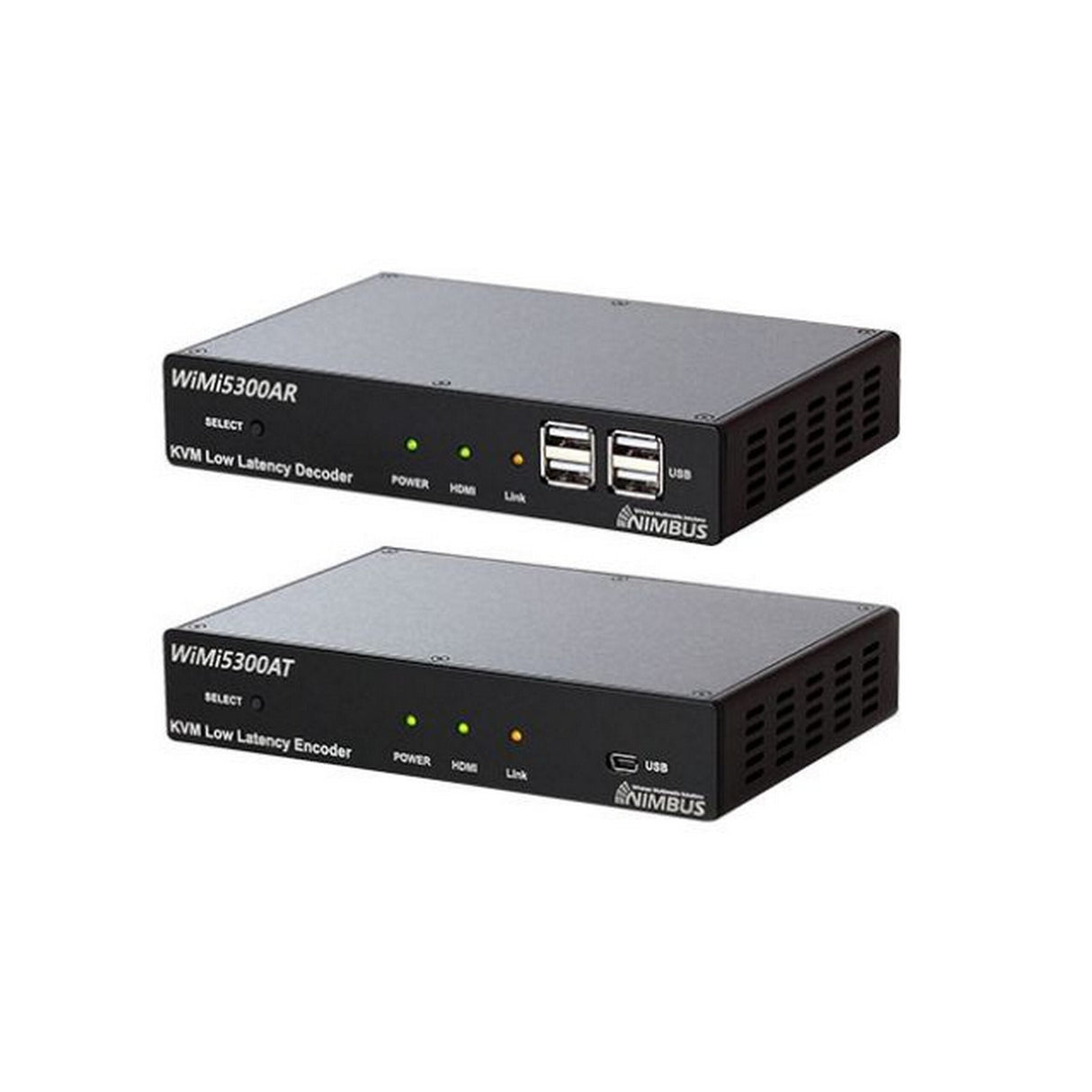

Nimbus WiMi5300A H.264 HDMI Encoder and Decoder System
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Nimbus WiMi5300A H.264 HDMI Encoder and Decoder System
Ultra-low Latency (20ms)
Full HD H.264 Encoder/Decoder & RTSP Streaming
Remote PC with no delay/IP-KVM Extender
Key Features
- H.264 (MPEG-4 Parts10: AVC)
- Baseline Profile with level 4.2
- Ultra-low latency, end-to-end (20ms), H.264 engine
- Transport 1080p60 full HD over Ethernet/Internet
- HDMI v1.3 interface
- Video formats of DTV and VESA spec.
- 2 channel Linear-PCM audio
- Maximum encoding rate of 30Mbps
- IEEE 802.3af complient Power over Ethernet (PoE) device
Save bandwidth cost - Multicasting: Unlimited decoder number with a multicast IP address
- Encoder control from multiple decoders
Live streaming/IP KVM Extender - Full HD live streaming server (Transmitter)
- RTSP streaming server (RTP/UDP)
- Keyboard/Mouse signal relaying for KVM extending over IP
- HD contents display for digital signage
- Low latency software decoder, VLC Player without WiMi5300R
Applications - Remote PC
- Control Room
- Medical Imaging
- Digital Signage
- Low-cost Full HD Encoder
- Full HD Live Streaming
- RTSP Server
- Education/Multi-Vision
Technical Specifications
Video Interfaces
HDMI (DVI): up to 1080p60, HDMI v1.3 compatible
Looped output of HDMI Input (WiMi5300AT) for local monitoring
Network Interfaces
10/100/1000 BASE-TX, Cat.5e UTP cable
IEEE 802.3af complient Power over Ethernet (PoE) device
Web UI over LAN or USB
Audio Interfaces
Digital: Linear PCM (44.1kHz/48kHz)
Stereo, 44.1kHz/48kHz 16-bit linear PCM
DTV(NTSC/PAL)
1080p60, 1080p59.94, 1080p50, 1080p30
1080p29.97, 1080p24, 1080p23.98
1080i60,1080i59.94, 1080i50
720p60, 720p59.94, 720p50
576p50, 576i50 (Output: 1080i50)
480p59.94, 480i59.94 (Output: 1080i59.94)
VESA
UXGA(1600x1200p60), SXGA(1280x1024p60),
SXGA-(1280x960), WXGA(1280x768p60),
XGA+(1152x864p75), XGA(1024x768)
