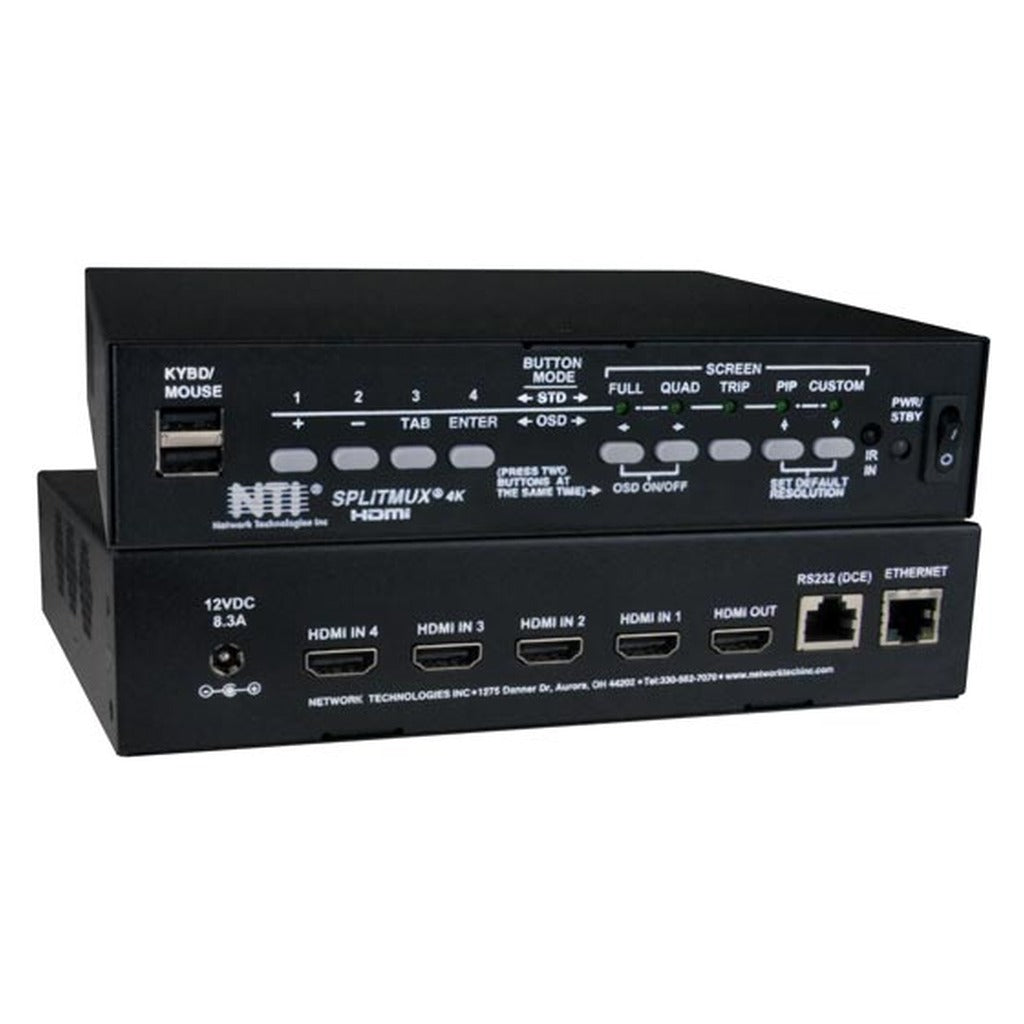

NTI SPLITMUX-4K18GB-4 4K 18Gbps HDMI Quad Screen Multiviewer

The NTI SPLITMUX-4K18GB-4 4K 18Gbps HDMI Quad Screen Splitter/Multiviewer displays real-time video from four HDMI 2.0 sources simultaneously on a single monitor at resolutions up to 4096x2160 @ 60Hz. Control rooms, security operations, broadcast monitoring, and boardrooms get fluid 60 fps performance in quad, picture-in-picture, full-screen, or fully custom windowed layouts, with each input independently scaled from its native resolution to the output.

Every input and the output are HDCP 2.2/1.4 compliant, with 36-bit input color and support for RGB and YCbCr 4:4:4/4:2:2/4:2:0 formats. Audio switching is independent of video: HDMI-embedded audio from the four sources can be switched or four-channel stereo mixed, with adjustable gain and VU indicators. Custom text labels identify each window, layouts can be saved to ten presets with zoom, pan, and crop, and multiple units cascade for larger arrays.

Configuration and control are available from the front panel, on-screen display, keyboard/mouse, RS232, and Ethernet — including a built-in HTTP/HTTPS web server for up to 16 simultaneous users, Telnet, and an HTTP REST API with JSON responses for integration into automation systems. The included 1RU rackmount kit with cable management shelf installs the compact chassis cleanly, and configuration backup/restore protects the setup. CE, RoHS, and TAA compliant, with a two-year manufacturer warranty.

Features

• Displays four HDMI 2.0 sources on one screen — quad, PiP, full screen, and custom windowed modes
• Ultra-HD 4Kx2K input and output (3840x2160 / 4096x2160 @ 24/30/60Hz), HDCP 2.2/1.4 compliant
• Fluid real-time video with up to 60 frames per second
• Independent input-to-output resolution scaling per window
• Audio switching independent of video with 4-channel stereo mixing, adjustable gain, and VU indicators
• Custom text labels per window; 10 storable custom layouts with zoom, pan, and crop
• Cascadable for video arrays larger than four sources
• Control via front panel, OSD, keyboard/mouse, RS232, Telnet, and HTTP/HTTPS web server (16 users) with JSON REST API
• Configuration backup and restore; optional IRT-UNV infrared remote
• CE, RoHS, and TAA compliant; two-year warranty

Technical Specifications

• Video inputs: 4x female HDMI, up to 4096x2160 @ 60Hz, 36-bit color, RGB / YCbCr 4:4:4, 4:2:2, 4:2:0
• Video output: 1x female HDMI, up to 4096x2160 @ 60Hz, 24-bit color, HDCP 2.2
• Latency: 50 ms @ 60Hz (60 ms @ 50Hz, 100 ms @ 30Hz)
• Ethernet: 10/100BaseT RJ45; RS232: female RJ45, 1200–115,200 bps
• Dimensions: 7.85 x 6.96 x 1.75 in (199 x 177 x 44 mm) without rackmount; 19 x 6.96 x 1.75 in with rackmount
• Power: 100–240 VAC 50/60Hz adapter (12V 8.3A output), 35W consumption
• Operating temperature: 32 to 113°F (0 to 45°C); humidity 5–90% non-condensing
• MTBF: 70,102 hours; regulatory: CE, RoHS, TAA

What's Included

• NTI SPLITMUX-4K18GB-4 quad screen multiviewer
• 1RU rackmount kit with cable management shelf
• Power adapter
