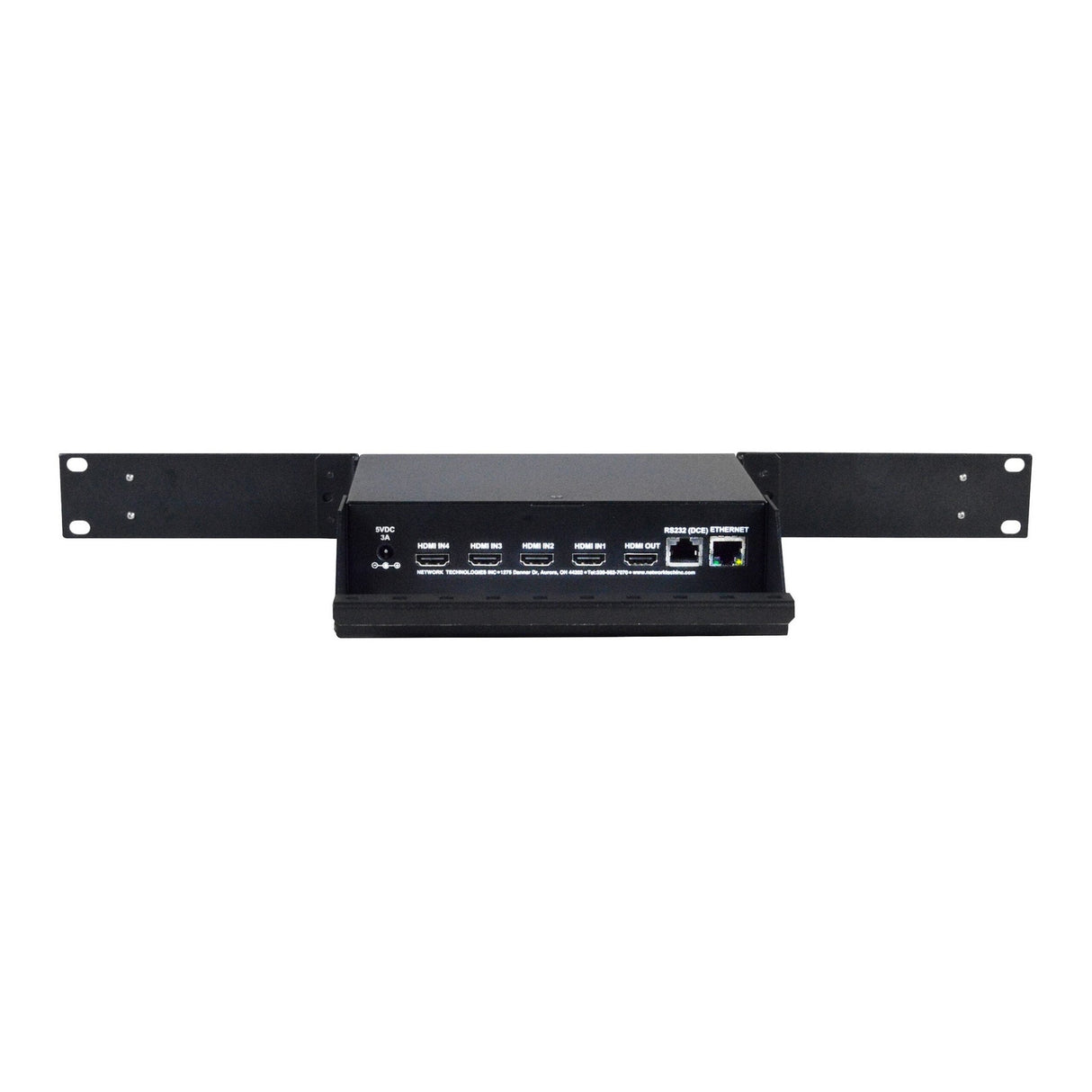

NTI SPLITMUX-HD-4RT-R HDMI Quad Screen Multiviewer, 1RU Rackmount

The SPLITMUX HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from two, three, or four different sources on a single monitor. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.

Key Features

• Quad, Picture in Picture, Full Screen, and Custom display modes (Custom Display Mode: the size, position and selection of any or all windows are customizable)
• 2- and 3-source viewing is possible with this method
• Maintain input aspect ratio if desired-no stretching necessary
• Layer display windows and adjust transparency of each video source display
• Independent video in to video out resolution
• Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
  HDCP compliant.
• Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants
• Zoom, pan, and crop the image from any source to focus on key areas
• Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active)
• Multiple audio sources can be simultaneously active in any display mode or preset layout
• Adjustable audio gain with VU level indicators for each input channel
• A customized text label can be added for each video window to provide easy input identification (UMD)
• Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included)
• Control the multiviewer through Ethernet, RS232 serial port, on screen display (OSD), front panel buttons, or IR remote
• Cascade multiviewers to display video from any number of video sources on one screen
• Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings
• Backup and restore multiviewer configurations
• Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID
• 1RU rackmount unit
• Mounted so that the front panel buttons are facing the front or back of the rack
• Includes cable management shelf

Technical Specifications

HDMI features supported
Inputs
24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr
Outputs
24- and 30-bit sRGB
Four-channel non-mixing or one channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio
Bandwidth up to 165 MHz
Inputs
2.25 Gbps
Output
2.0625 Gbps
Video Input
Four female HDMI connectors.
Supported video input resolutions:
2K Cinema (2048x1080 @ 60Hz).
HDTV resolutions to 1080p.
Computer resolutions to 1920x1200.
Supports digital HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
Multiplatform support: Windows 2000/XP/Vista/7/8, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.
Video Output
One female HDMI connector.
Supported video output resolutions
2K Cinema (2048x1080 @ 60Hz).
HDTV resolutions to 1080p.
Computer resolutions to 1920x1200.
HDMI-embedded audio switching (four-channel stereo, non-mixing or one-channel stereo, mixing).
A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
Protocols
HTTP, HTTPS.
TCP/IP, DHCP, UDP, ARP.
IPV4.
Power
110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
Power consumption
10W
Environmental
Operating temperature
32 to 122F (0 to 50C).
Storage temperature
-22 to 140F (-30 to 60C).
Operating and storage relative humidity
17 to 90% non-condensing RH.
Dimensions WxDxH (in)
Without rackmount kit
7.35x4.98x1.75 (187x126x45 mm).
With rackmount kit
19x4.98x1.75 (483x126x45 mm) (excludes cable tray).
Can be mounted so that the front panel buttons are facing the front or back of the rack.
Includes cable management tray.
Adds 3.37" to the depth.
Regulatory Approval
CE, RoHS, TAA compliant.
Item Includes
1x SPLITMUX-HD-4RT-R multiviewer
1x country-specific power cord
1x DB9 female to RJ45 female adapter
1x 5-ft CAT5e super flat patch cable
1x IR remote control with two AAA batteries
1x CD that contains the manual and NTI Discovery Tool
2x ear brackets
2x long rack ears
1x cable tray
12x flat head screws
