NTI ST-2FODVI-LC DVI Extender Via 2 LC Fiber to 4920 Feet
NTI ST-2FODVI-LC DVI Extender Via 2 LC Fiber to 4920 Feet
Free Shipping

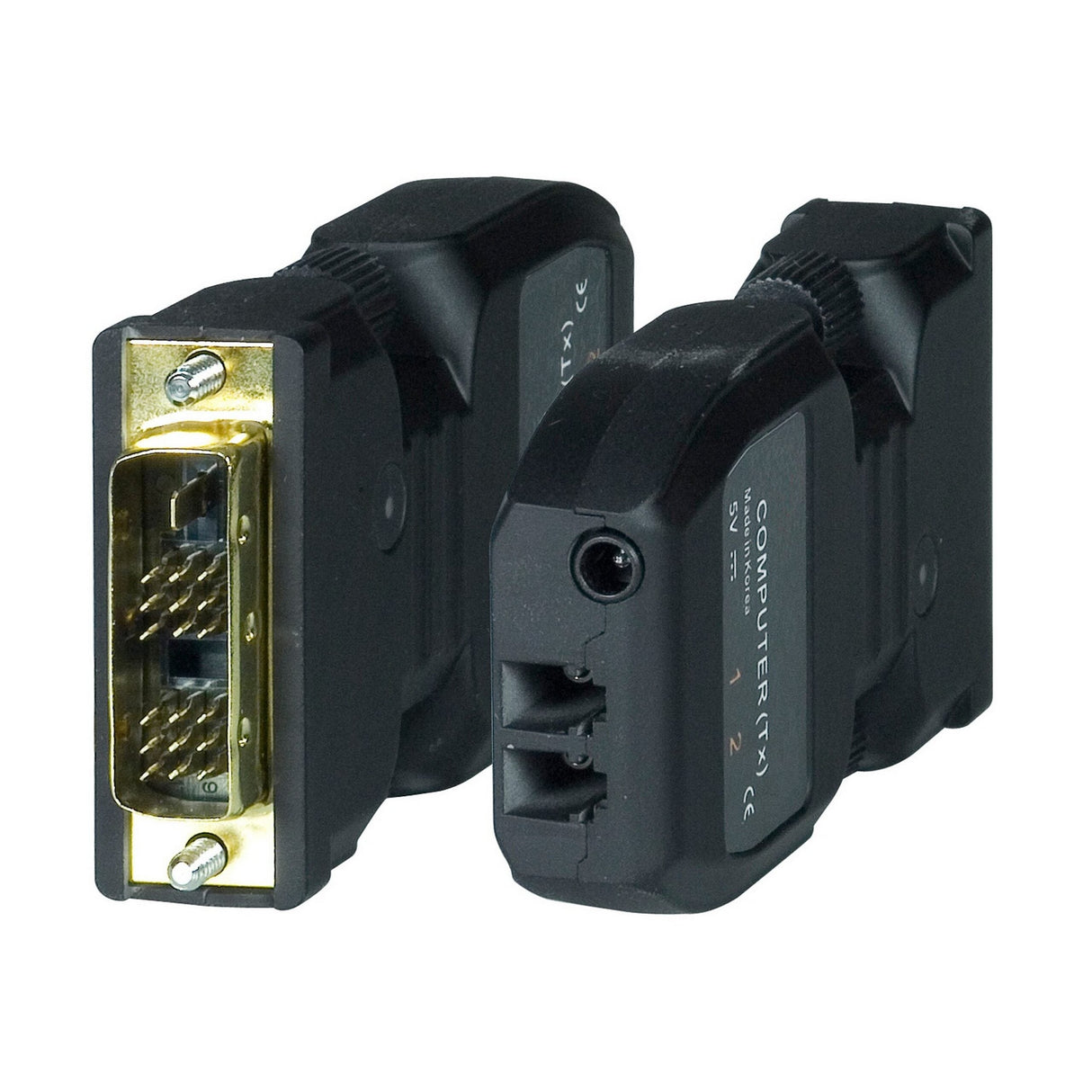

NTI ST-2FODVI-LC DVI Extender Via 2 LC Fiber to 4920 Feet
The XTENDEX ST-2FODVI-LC DVI Extender via Fiber Optic Cable locates a single link digital DVI display away from a computer up to 4,920 feet (1,500 meters) using singlemode fiber optic cable and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.
Key Features
- Supports computer resolutions to 1920x1200 (WUXGA)
- Signal transmission via two strand singlemode or multimode LC fiber optic cable no RF interference
- Using singlemode cable, extend to 4,920 feet (1,500 meters)
- Using multimode cable, extend to 1,640 feet (500 meters)
- Small form factor allowing for easy connection and placement
- Cables can be installed in conduit prior to extender installation
- EDID learning for the support of any DVI display device
- Low RFI/EMI for sensitive applications
- No software to install
Technical Specifications
Resolution: up to 1920x1200. (WUXGA)
Connectors (for transmitter and receiver): one male DVI-D single link connector and two LC fiber connectors
Maximum distance: 4,920 feet (1,500 meters) using singlemode cable and 1,640 feet (500 meters) using multimode cable
Compliant with DDWG DVI standard
EDID learning for the support of any DVI display device
Low RFI/EMI
Environmental
Operating Temperature
32 to 122F (0 to 50C)
Storage Temperature
14 to 185F (-10 to 85C)
Operating and Storage Relative Humidity
5 to 85% non-condensing RH
Dimensions WxDxH
1.5x2.7x0.6 in (38x69x15 mm)
Regulatory Approvals
CE, FCC, RoHS
Max Distance
1,640 feet (500 meters) over 50m multimode LC fiber optic cable
4,920 feet (1,500 meters) over 9micro;m singlemode LC fiber optic cable
Cables
Use a FIBER-D-LCLC-50-xxM duplex multimode LC 50-micron fiber optic cable to extend the receiver from the transmitter up to 1,640 feet (500 meters)
Use a duplex singlemode LC 9-micron fiber optic cable to extend the receiver from the transmitter up to 4,920 feet (1,500 meters)
Power
100 to 240 VAC at 50 or 60 Hz via AC adapter
Power consumption: 5 W (each transmitter and receiver)
Item Includes
1x pair of ST-2FODVI-LC DVI extender modules (local and remote).
2x country-specific power cord
1x User Manual
