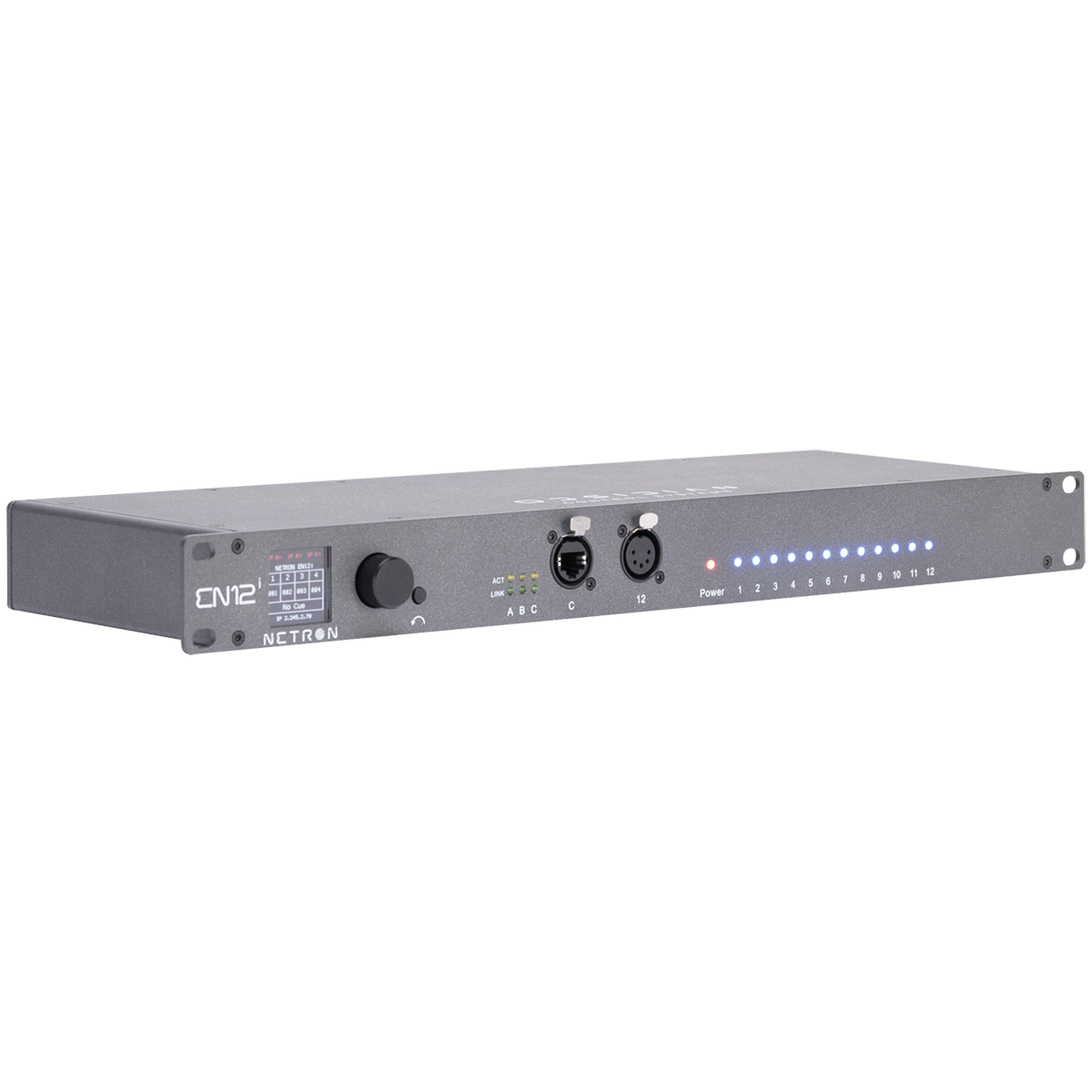

Obsidian Control Netron EN12i 12-Universe Terminal Art-Net/sACN DMX Node
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The Obsidian Control Netron EN12i is a professional 12-universe Ethernet-to-DMX gateway built for permanent installations and touring rigs that demand high-density DMX distribution in a single rack space. Housed in a rugged 19-inch 1U rackmount chassis, the EN12i converts Art-Net and sACN (E1.31) network data to twelve fully independent, RDM-compatible DMX512-A universes. The "i" designates the install-friendly terminal I/O version of the EN12, shipping with interchangeable rear connection plates β two 6-port screw-terminal block plates and two 6-port RJ45 ESTA DMX plates β so integrators can hard-wire DMX runs or patch over structured cabling without adapters.
Setup is fast and flexible: configure locally from the front-panel 1.8-inch OLED display with rotary encoder, or remotely through the built-in web interface with HTTP command support. Factory and user presets deliver plug-and-play deployment, while 99 internal cues with fade and hold times plus cue linking let the EN12i run standalone lighting states without a console β ideal for architectural, house-of-worship, theme park, and broadcast installations. Each port can be independently assigned as input or output with full merge and priority handling across protocols.
Power is equally installation-ready, accepting 100-240V AC or PoE (IEEE 802.3af) with just 9W consumption, so a single network drop can carry both data and power. With RDM E1.20 device management across all twelve ports, the Netron EN12i is a dependable backbone for any networked DMX lighting system.
Features
- 12 independent, RDM-compatible DMX512-A universes in a 1U 19" rackmount chassis
- Art-Net and sACN (E1.31) to DMX conversion with per-port input/output assignment

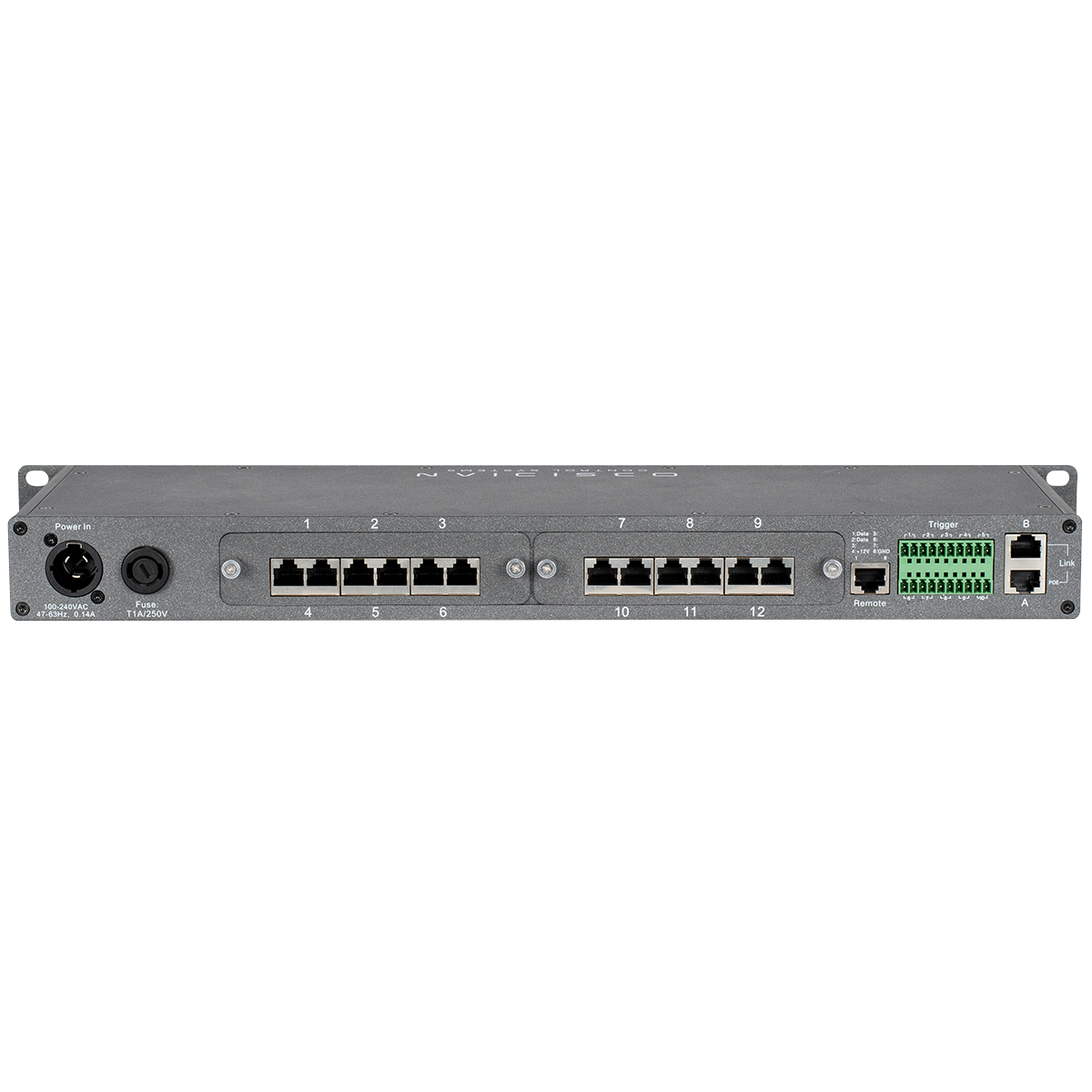

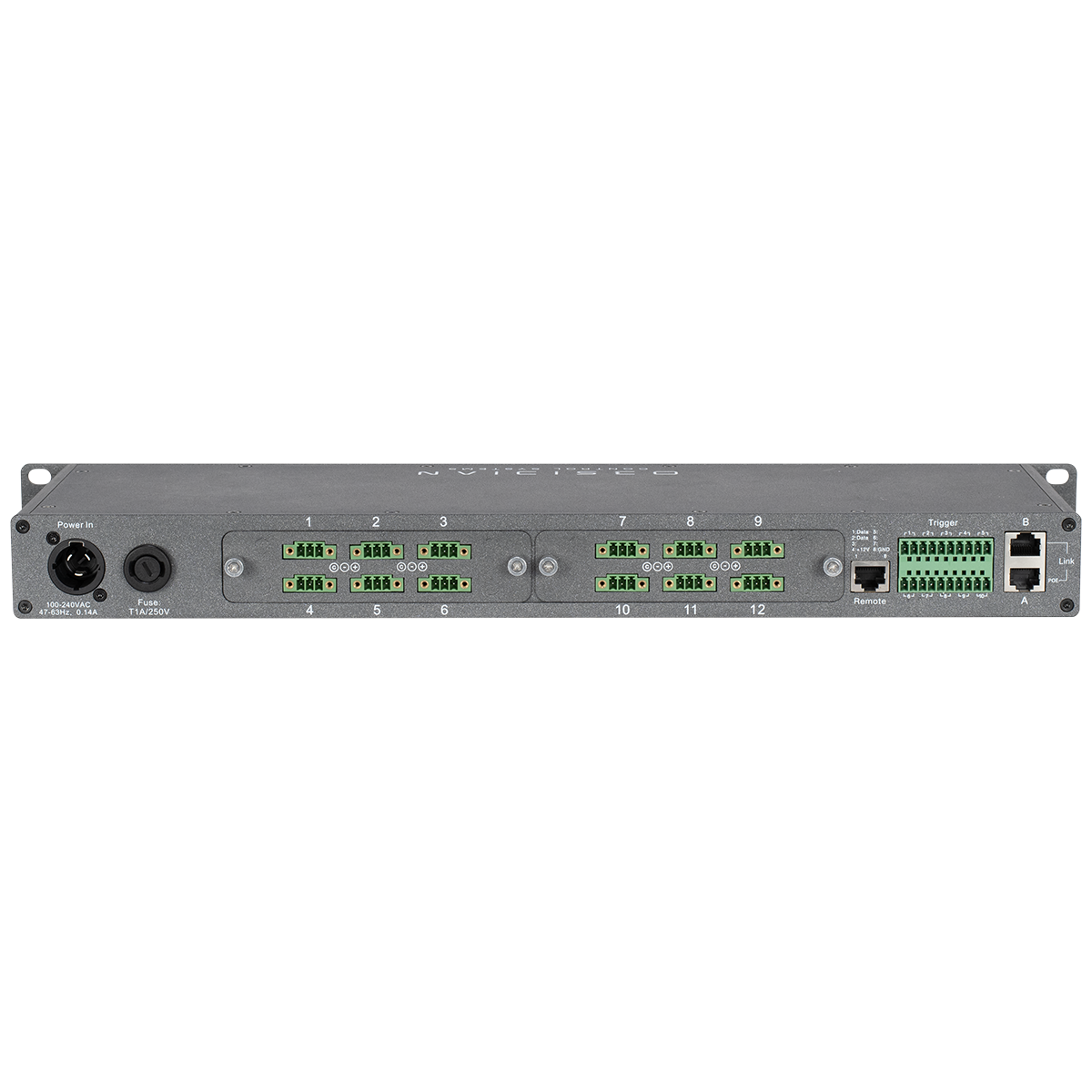

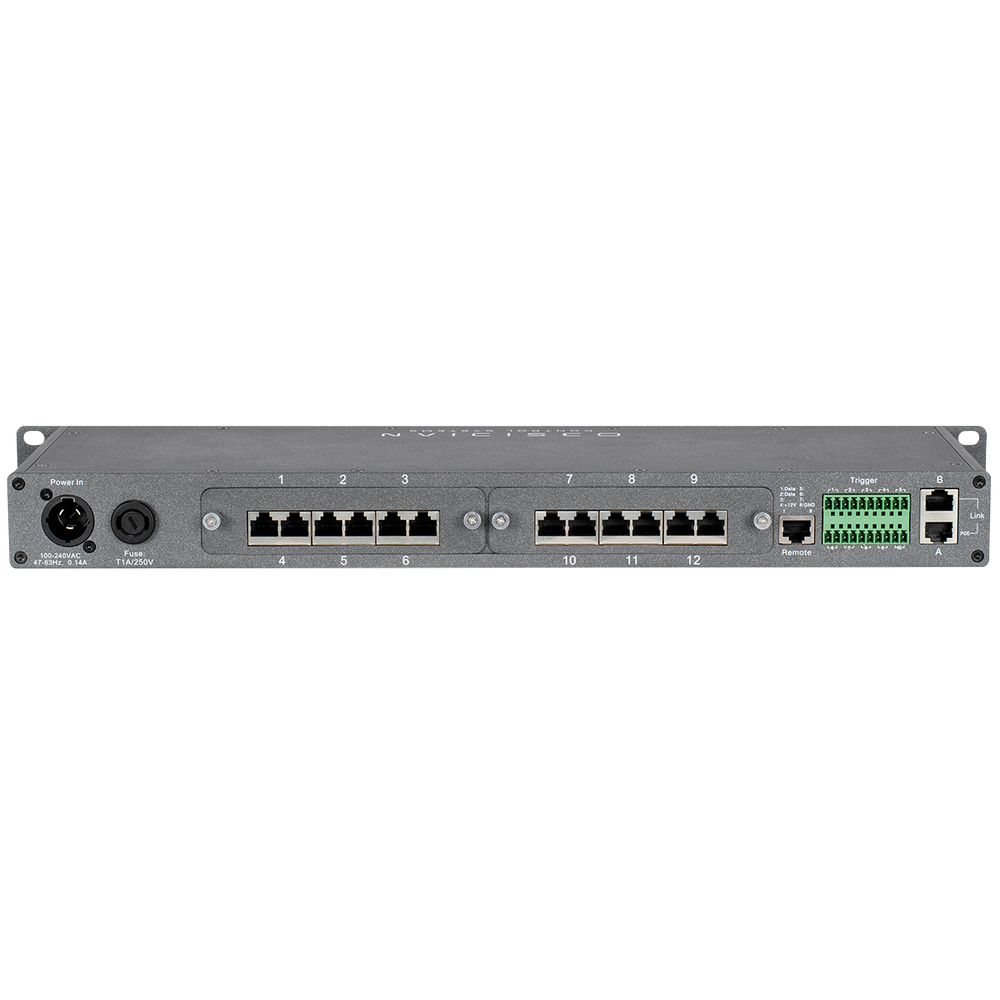

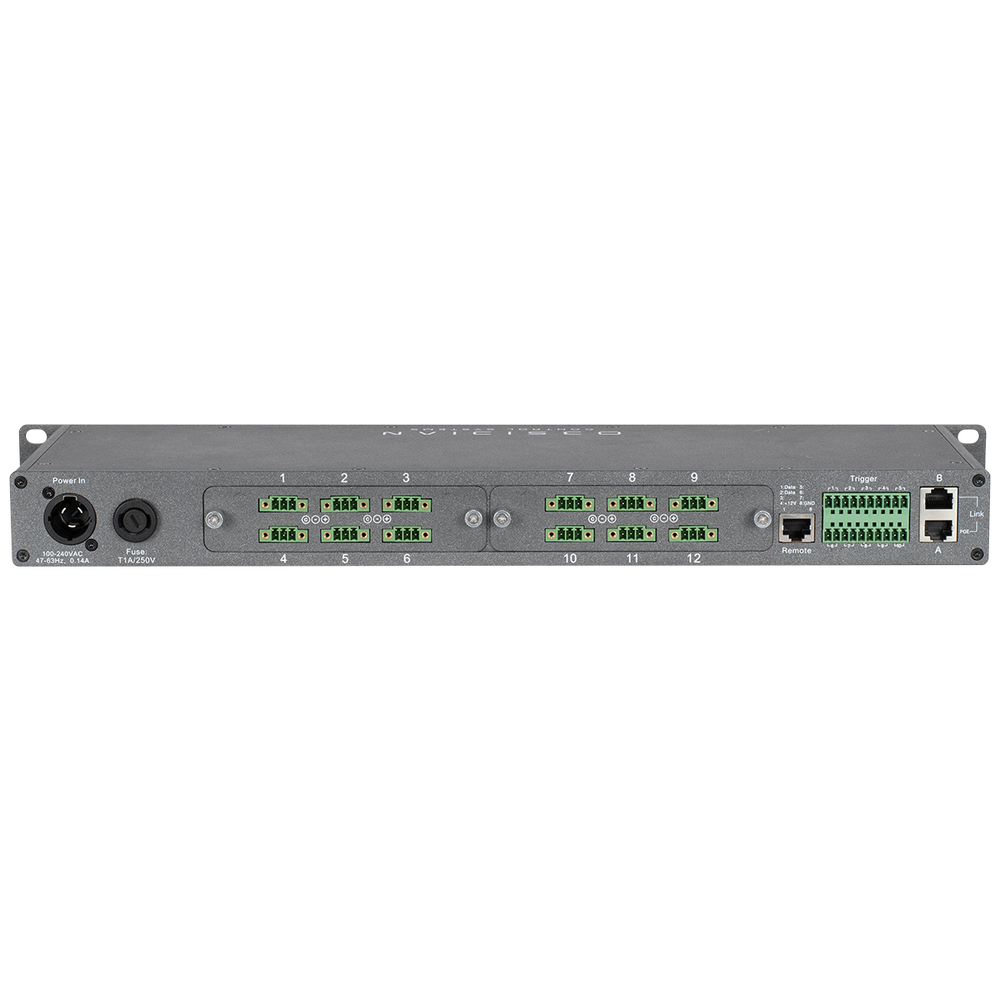

- Interchangeable rear I/O plates: 2x 6-port screw-terminal block and 2x 6-port RJ45 ESTA DMX plates included
- RDM E1.20 support for remote device management
- Dual power: AC 100-240V and PoE (IEEE 802.3af)

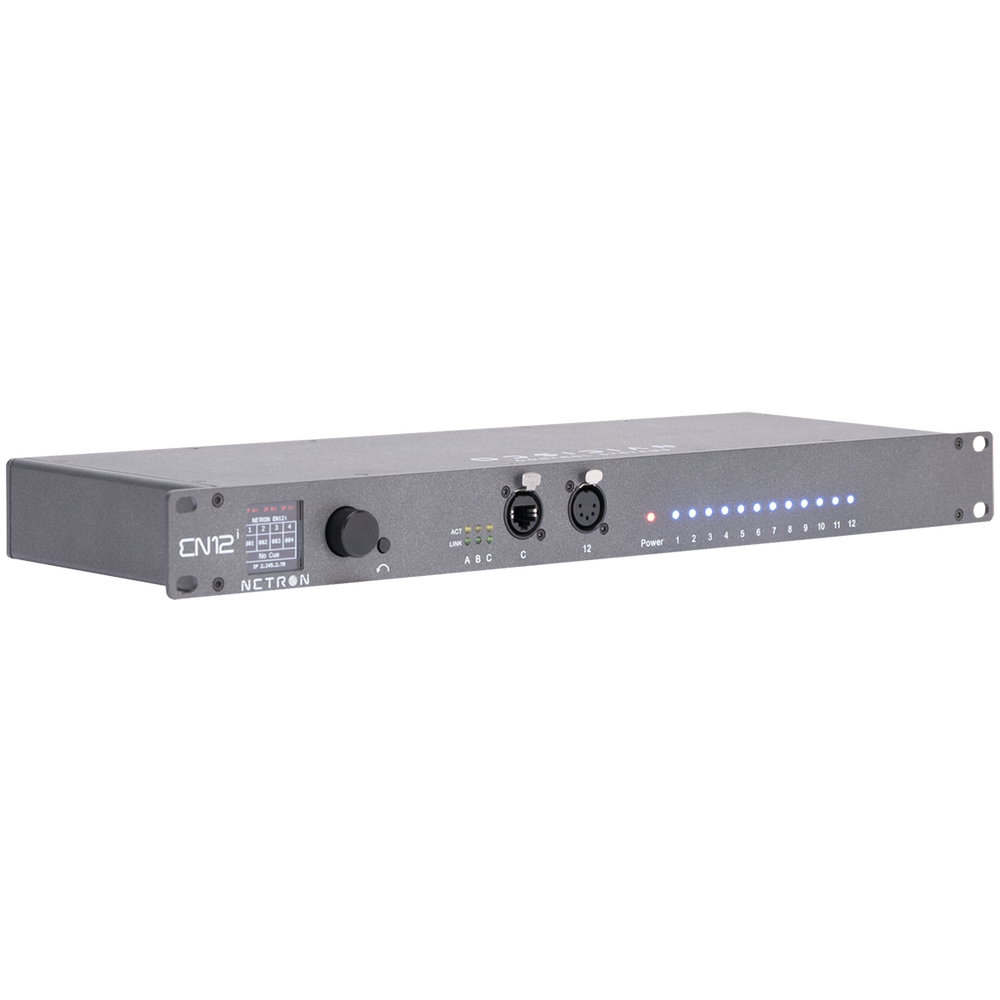

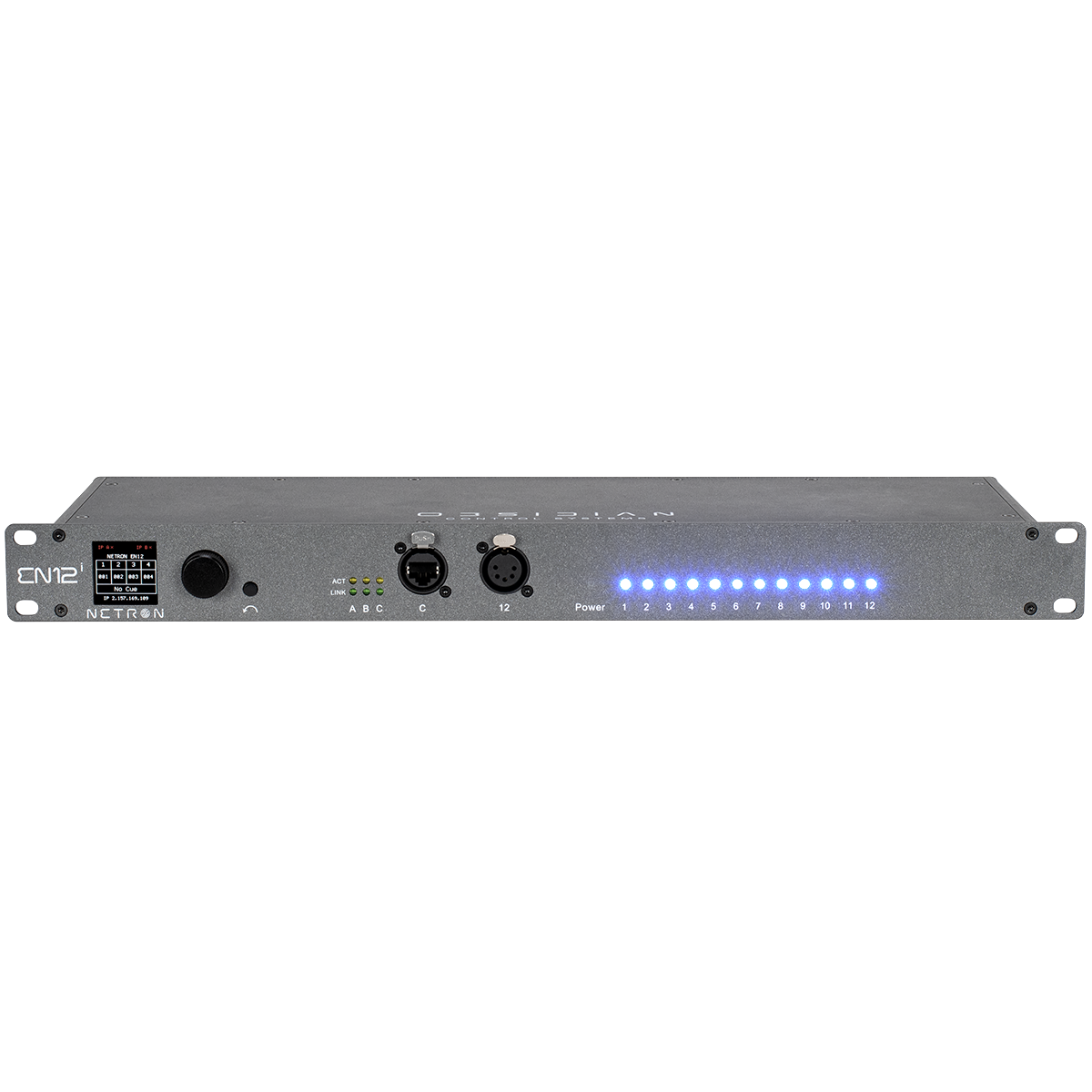

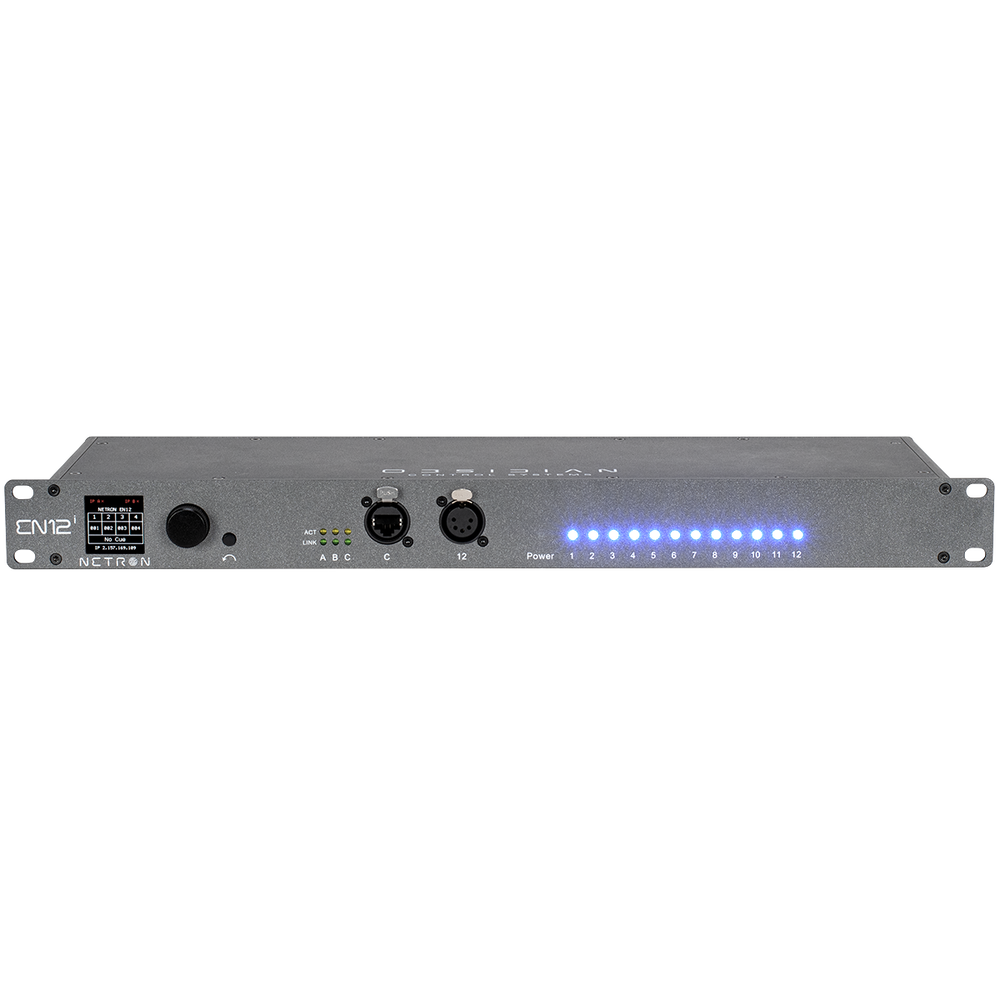

- 1.8" OLED display with rotary knob for local configuration
- Remote configuration via internal web page with HTTP command support
- Factory and user presets for plug-and-play setup
- 99 internal cues with fade/hold times and cue linking for standalone operation
Technical Specifications
- DMX Ports: 12 (wire terminal or RJ45), RDM compatible
- Protocols: sACN E1.31, Art-Net, DMX512-A E1.11 (In/Out), RDM E1.20
- Connector Options: RJ45, screw terminal, or IDC
- Power: AC 100-240V, 50/60 Hz; PoE IEEE 802.3af
- Power Consumption: 9W
- Display: 1.8" OLED with rotary knob
- IP Rating: IP20
- Form Factor: 19" 1U rackmount
- Dimensions: 482.5 x 165.8 x 44 mm (19" x 6.5" x 1.7")
- Weight: 1.8 kg (4 lbs)
What's Included
- Netron EN12i Ethernet-DMX gateway
- Power cable
- 2x 6-port RJ45 ESTA DMX connection plates
- 2x 6-port terminal block connection plates
- Terminal blocks
- IDC connectors
- Contact closure blocks
