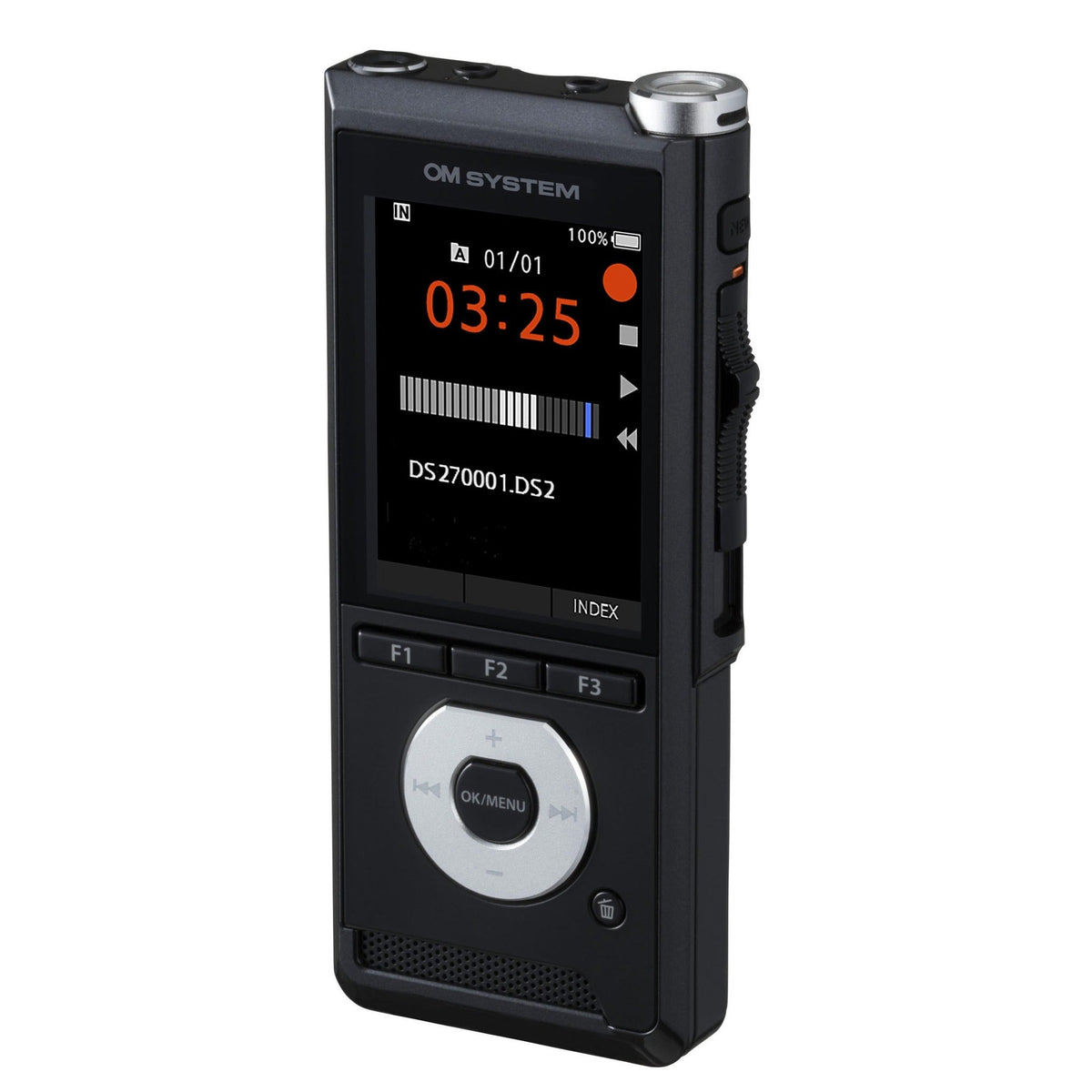

OM System DS-2700 Digital Dictation Recorder with ODMS R8 Dictation Module

Small legal offices, real-estate agents, surveyors and clinics that still dictate letters and reports will find the DS-2700 a straightforward step up from tape. Its 4-position slide switch handles record, stop, play and rewind with one thumb, and insert, overwrite and append modes make it easy to correct a dictation without starting over.

Built-in directional stereo microphones switch between a dictation mode for close speech and a conference mode that sets the two capsules at 90 degrees for meetings and interviews. Recordings are saved as DSS Pro for compact, workflow-ready files, or as PCM WAV or MP3, on 2 GB of internal memory plus an SD card slot for up to 32 GB.

A 2.4-inch color screen, up to 32 index marks per file, VCVA voice-activated recording and a rechargeable LI-92B battery rated for up to about 56 hours round out the package. This version includes an ODMS R8 Dictation Module license for managing and sending files to transcription.

Features

• 4-position slide switch for one-handed dictation control
• Insert, overwrite and append recording modes
• Directional stereo microphones with dictation and conference modes
• DSS Pro, PCM WAV and MP3 recording
• 2 GB internal memory plus SD/SDHC slot up to 32 GB
• 2.4-inch TFT color display
• Rechargeable lithium-ion battery, up to approx. 56 hours of recording
• Drop-tested to 1.5 m with an alcohol-resistant housing for medical settings

Technical Specifications

• Recording formats: DSS Pro (DS2), Linear PCM (WAV), MP3
• Internal memory: 2 GB; SD/SDHC card: 4 GB to 32 GB
• Microphones: Built-in directional stereo; sensitivity High / Mid / Low
• Display: 2.4 in TFT color LCD, 240 x 320 pixels
• Index marks: Up to 32 per file
• Frequency response (built-in mic): 50 Hz to 15,000 Hz
• Speaker: Built-in 11 x 15 mm dynamic, 320 mW max output
• Jacks: 3.5 mm microphone (2 kohm), 3.5 mm earphone (8 ohm or more)
• Battery: LI-92B lithium-ion; approx. 48 to 56 h recording depending on format
• External power: USB or F-5AC AC adapter (5 V DC)
• Interface: USB 2.0
• Dimensions: 120.8 x 49.8 x 18.6 mm (4.8 x 2.0 x 0.7 in)
• Weight: 116.5 g (4.1 oz) including battery

What's Included

• DS-2700 digital recorder
• ODMS R8 Dictation Module license (AS-R801)
• Micro USB cable (KP30)
• LI-92B rechargeable lithium-ion battery
• Instruction manual
