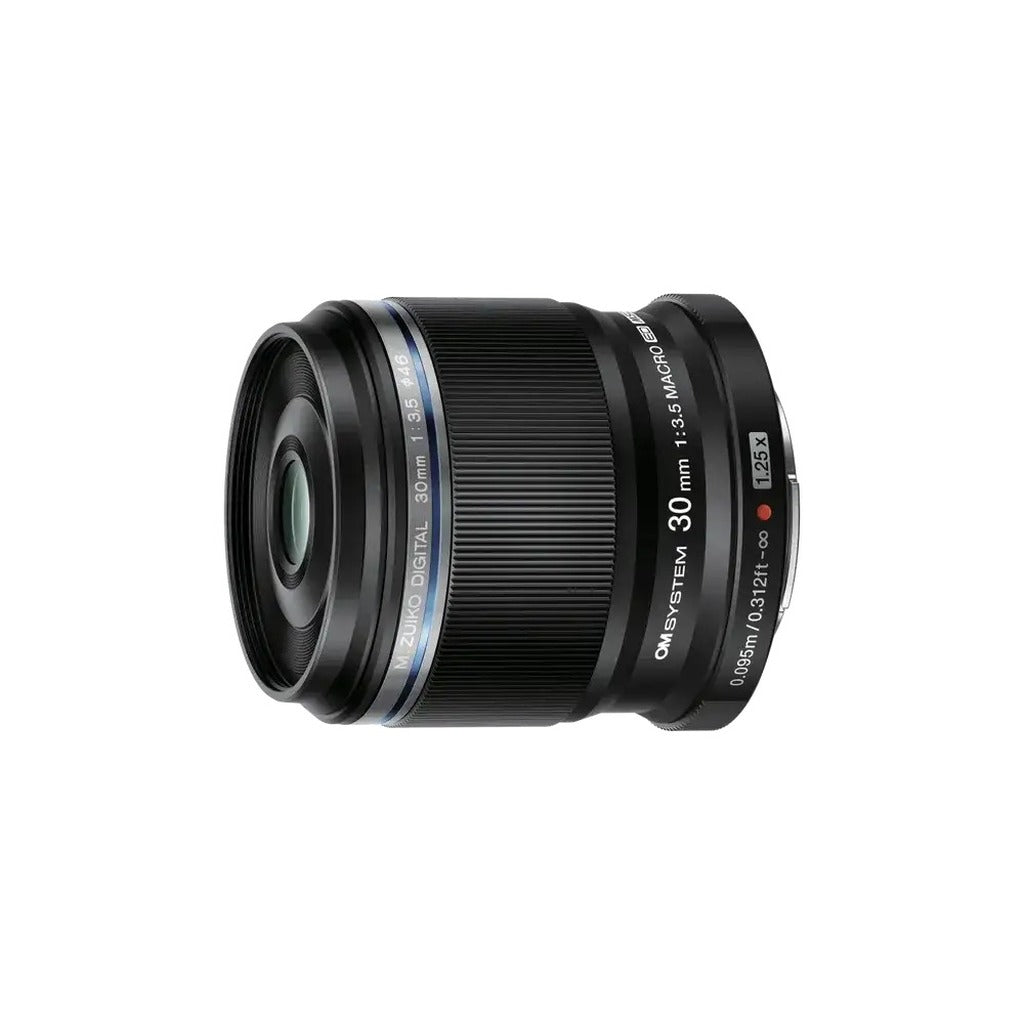

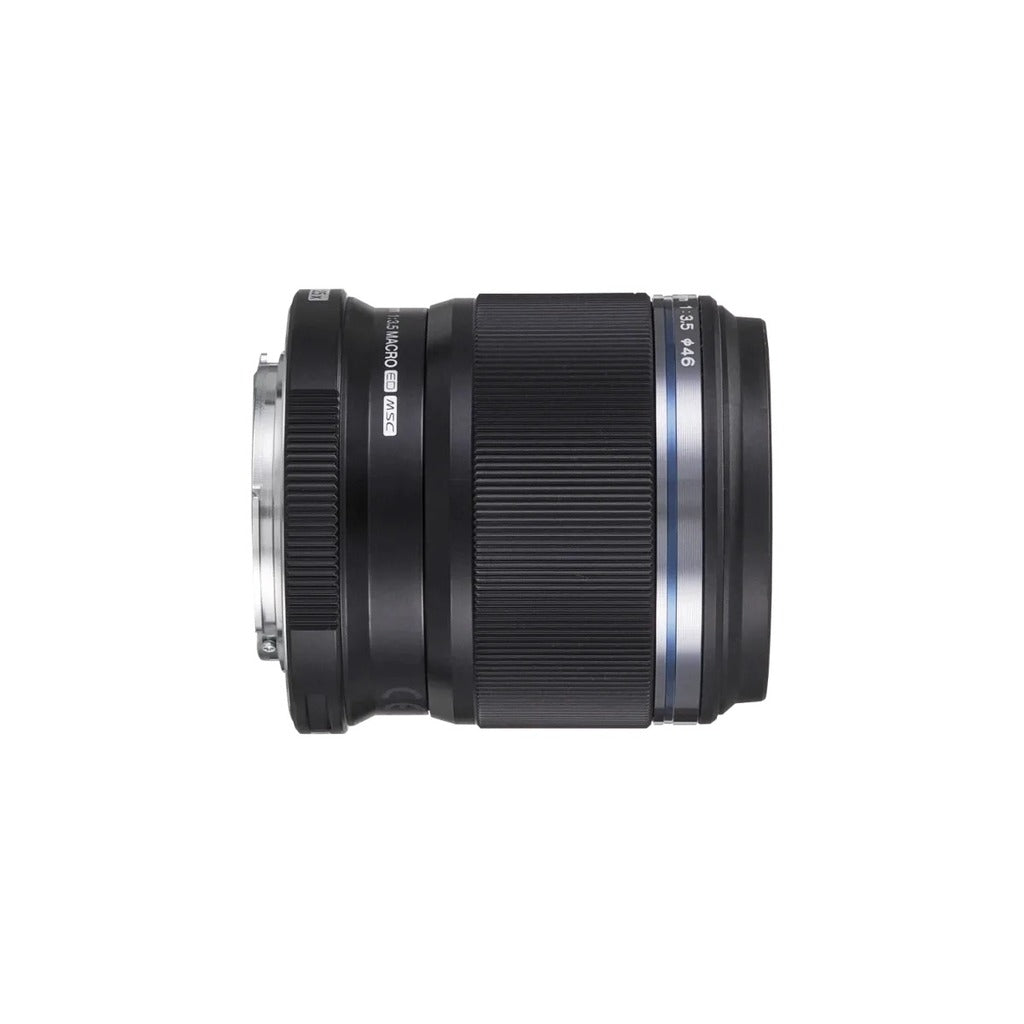

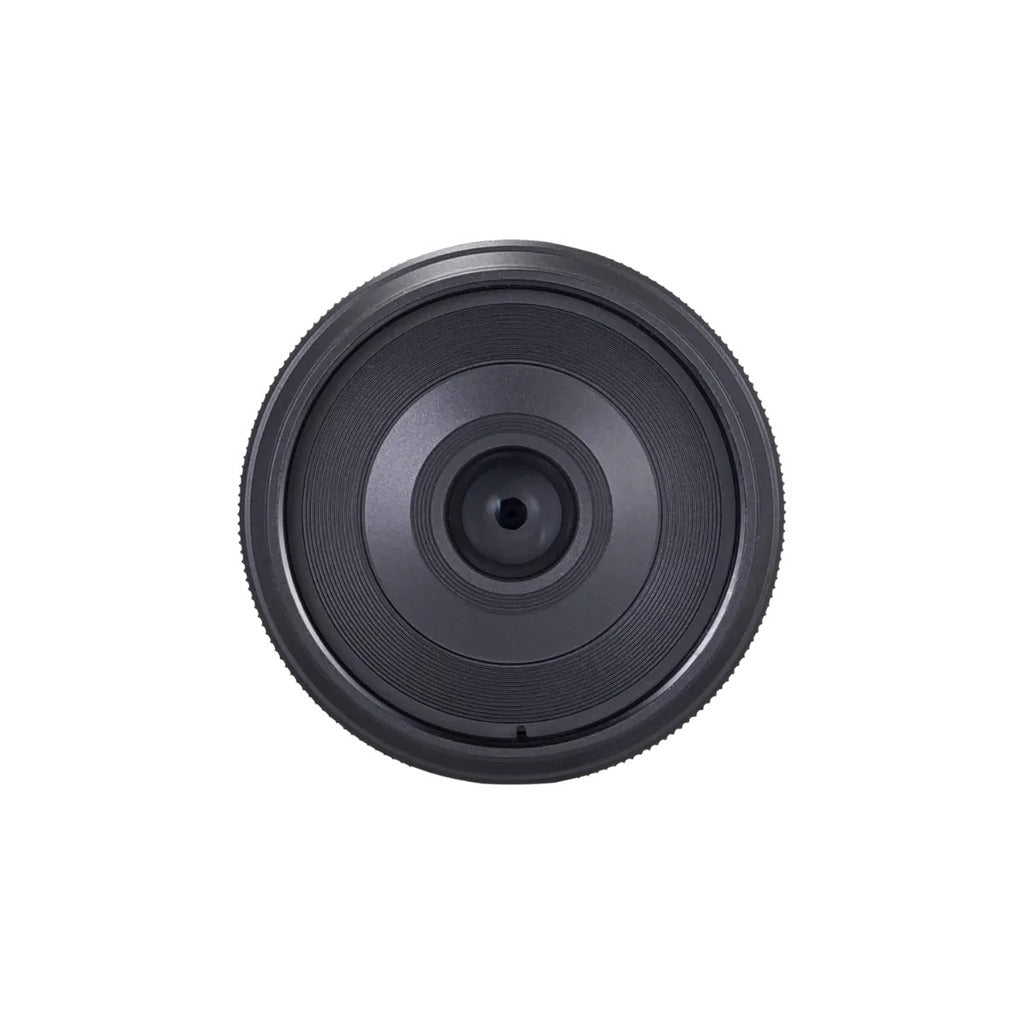

OM System M.Zuiko Digital ED 30mm f/3.5 Macro Lens

Get closer than most macro lenses allow: at its 9.5 cm minimum focusing distance, this compact prime reaches 1.25x magnification on Micro Four Thirds, which equals 2.5x in 35mm terms. That is enough to fill the frame with an insect's eye, the weave of a fabric or the fine detail of a watch movement, all without extension tubes or close-up filters.

With a 30mm focal length that frames like a 60mm lens on full frame, the M.Zuiko Digital ED 30mm f/3.5 Macro also works as a natural-perspective prime for portraits, landscapes and travel. Its optical design of 7 elements in 6 groups includes an aspherical element, an aspherical ED element and a DSA element to control aberrations and keep close-up results crisp.

Autofocus relies on a single lightweight focusing element driven by an inner-focus screw mechanism, so the lens stays compact and responsive. At just 128 g with a 46mm filter thread, it is an easy addition to any Micro Four Thirds kit for nature, product and fine art photographers who want true macro capability in a pocketable size. It is a smart, affordable way to explore macro before committing to larger specialist glass.

Features

• 1.25x maximum magnification (2.5x in 35mm format) for true macro work
• 9.5 cm closest focusing distance for frame-filling close-ups
• 30mm focal length, equivalent to 60mm in 35mm format
• Aspherical, aspherical ED and DSA elements control aberrations
• Inner-focus design with a single lightweight focusing element for fast AF
• 7-blade circular aperture for natural background blur
• Compact 128 g build with 46mm filter thread

Technical Specifications

• Mount: Micro Four Thirds
• Focal length: 30mm (60mm 35mm equivalent)
• Angle of view: 40 degrees
• Maximum aperture: f/3.5
• Minimum aperture: f/22
• Aperture blades: 7, circular
• Lens configuration: 7 elements in 6 groups (1 aspherical, 1 aspherical ED, 1 DSA)
• Closest focusing distance: 0.095 m
• Maximum magnification: 1.25x (Micro Four Thirds) / 2.5x (35mm format)
• Focus mechanism: Inner focus with screw drive
• Filter diameter: 46mm
• Dimensions: 57mm diameter x 60mm length
• Weight: 128 g
• Teleconverter compatible: No (MC-14 / MC-20)

What's Included

• M.Zuiko Digital ED 30mm f/3.5 Macro lens (Black)
• Lens cap (LC-46)
• Rear lens cap (LR-2)
• Instruction manual
• Warranty card
