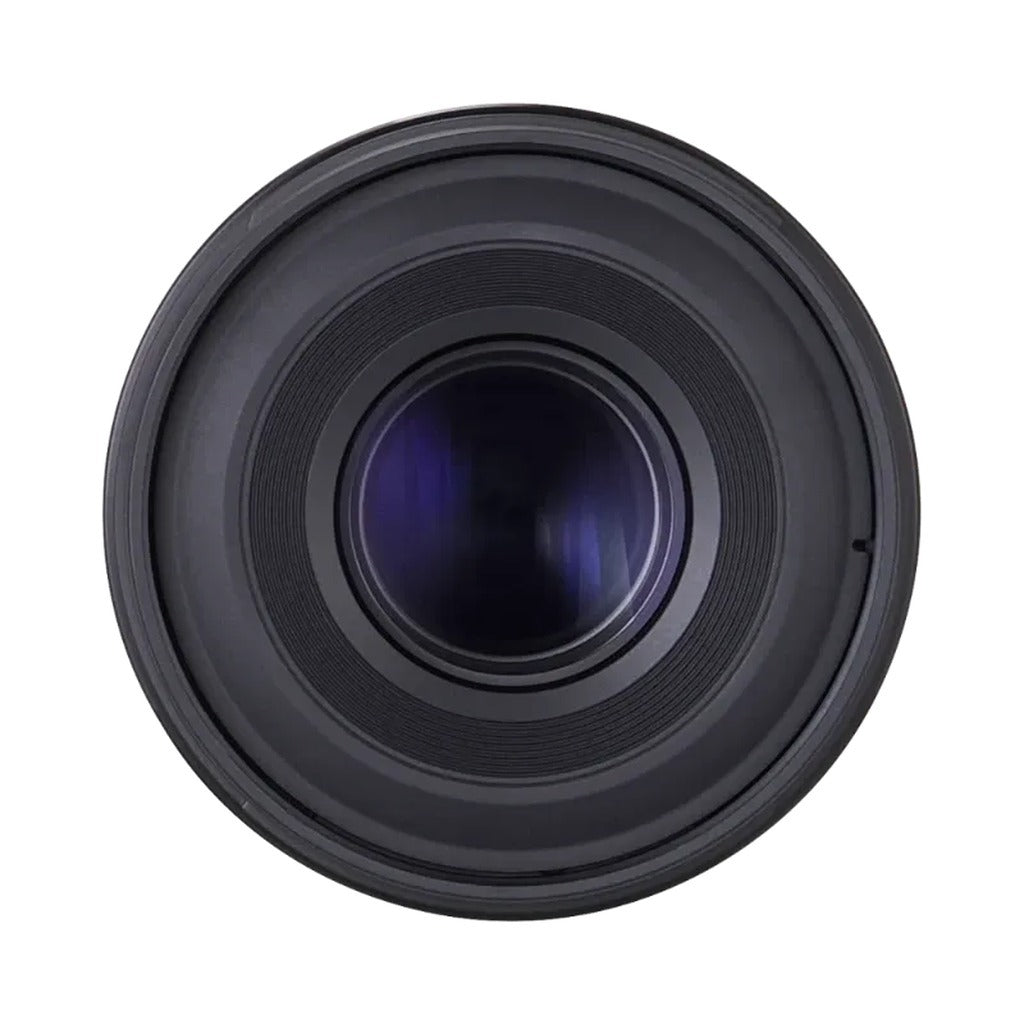

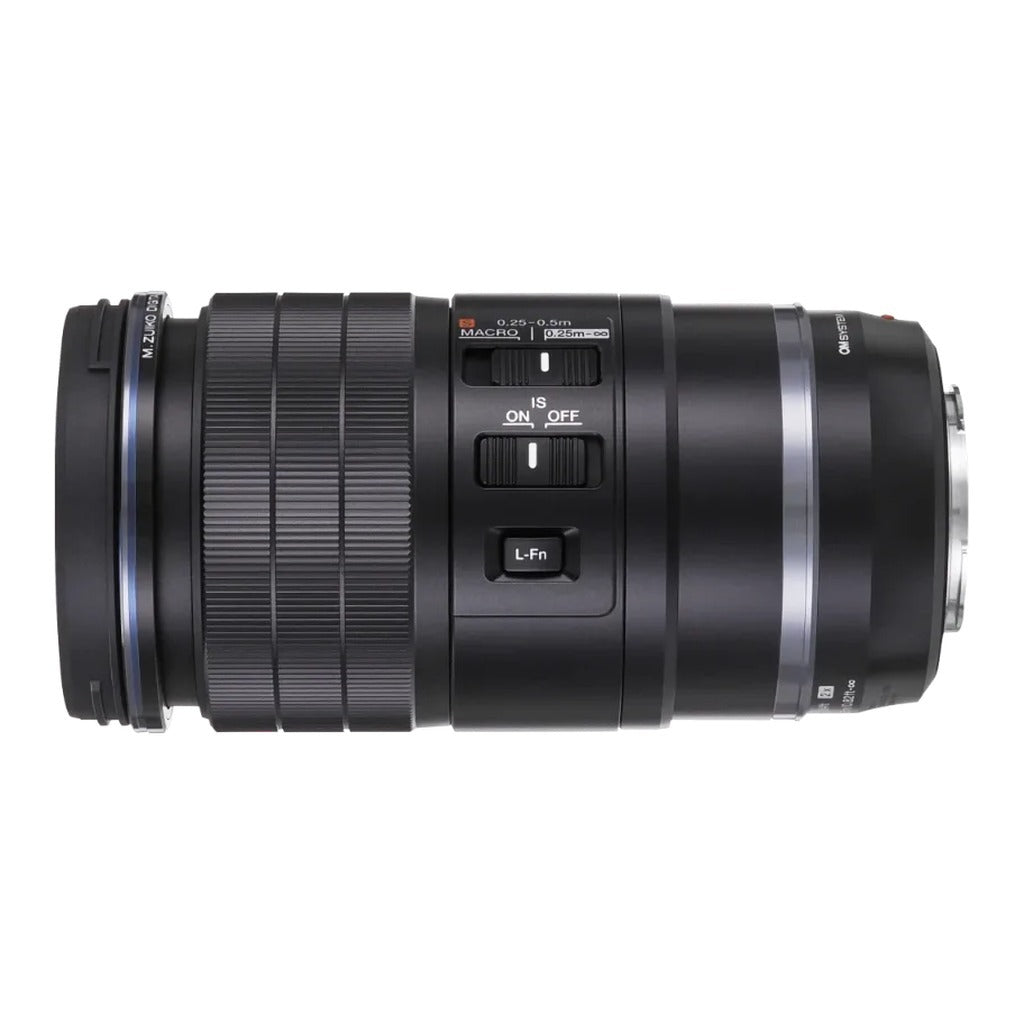

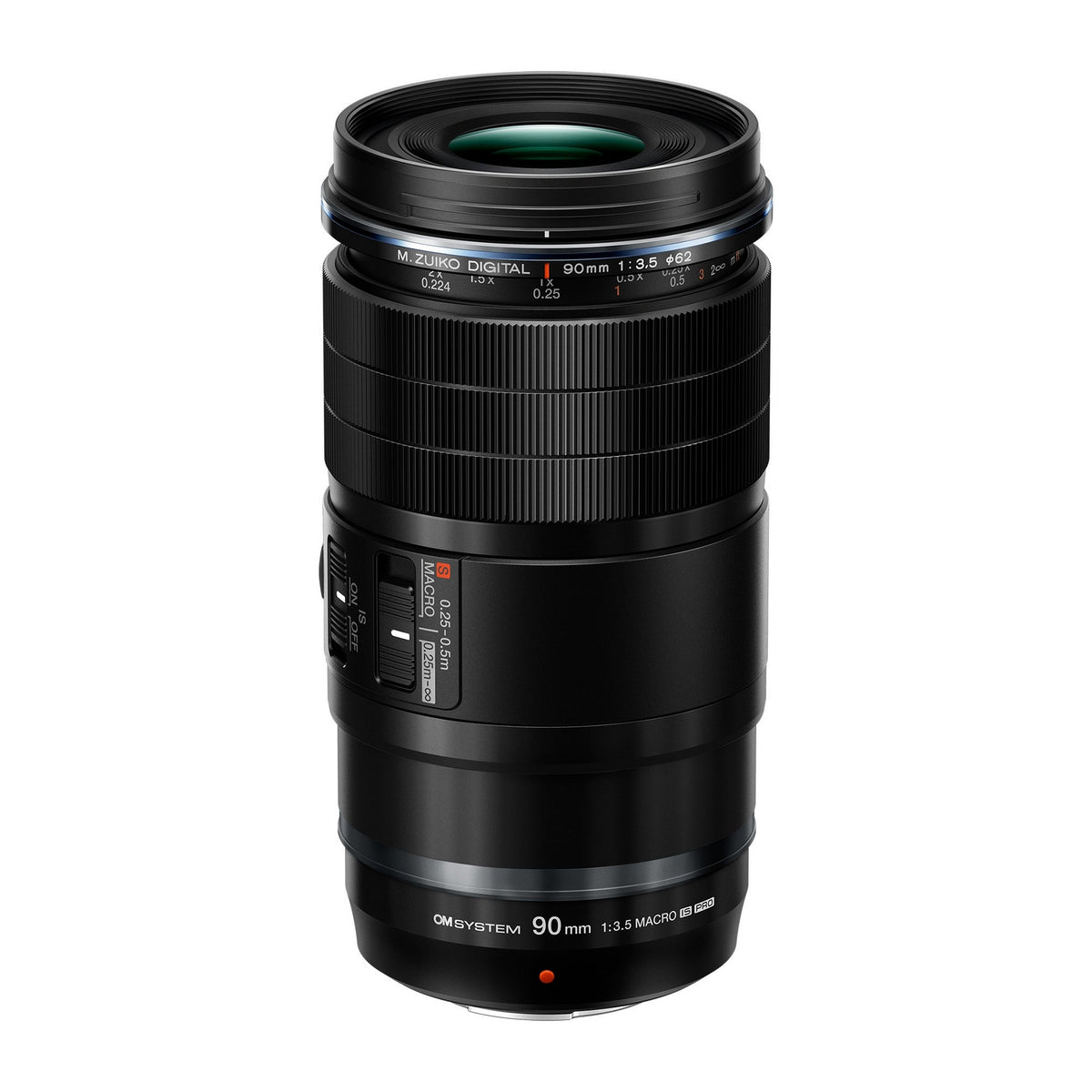

OM System M.Zuiko Digital ED 90mm f/3.5 Macro IS PRO Lens

How close is close enough? With the M.Zuiko Digital ED 90mm f/3.5 Macro IS PRO, the answer is 2x life size - 4x in 35mm-equivalent terms - with full autofocus. That makes this 180mm-equivalent telephoto macro an exceptional tool for insects, flowers, textures and product detail, and its working distance lets you fill the frame without crowding skittish subjects.

Stabilization makes extreme magnification practical without a tripod. The lens has its own VCM image stabilizer rated at up to 6 steps, rising to up to 7 steps of 5-axis Sync IS when paired with a compatible OM SYSTEM body. Inside, 18 elements in 13 groups - including two Super ED, four ED, one Super HR and one HR element - deliver high resolution from edge to edge, while the separately available MC-14 and MC-20 teleconverters push magnification as far as 4x (8x 35mm equivalent) with autofocus still active.

Field macro often means rain, dust and cold, so the 90mm is sealed to IP53 when used with a splashproof OM SYSTEM or Olympus body. At 453 g it pairs comfortably with compact bodies, and a 62mm filter thread accepts standard protection filters. It is equally at home as a sharp medium telephoto for portraits and details.

Features

• Up to 2x magnification (4x 35mm equivalent) with autofocus
• 180mm-equivalent working distance for live subjects
• Up to 7 steps 5-axis Sync IS; up to 6 steps lens IS
• 18 elements in 13 groups incl. 2 Super ED and 4 ED elements
• MC-14 / MC-20 teleconverter compatible, up to 4x (8x equivalent) magnification
• IP53 dustproof and splashproof construction
• Compact 453 g telephoto macro

Technical Specifications

• Mount: Micro Four Thirds
• Focal length: 90mm (180mm equivalent)
• Maximum aperture: f/3.5
• Minimum aperture: f/22
• Lens construction: 18 elements in 13 groups (2 Super ED, 4 ED, 1 Super HR, 1 HR)
• Angle of view: 14 degrees
• Closest focusing distance: 0.250 m (0.224 m in S-MACRO)
• Maximum magnification: 1.00x; 2.00x in S-MACRO (4.00x 35mm equivalent)
• Aperture blades: 7, circular
• Image stabilization: VCM lens IS; up to 7 steps 5-axis Sync IS, up to 6 steps lens IS
• Focusing system: High-Speed Imager AF (MSC)
• Filter size: 62mm
• Weather sealing: IP53 (with splashproof OM SYSTEM/Olympus body)
• Dimensions: 69.8 mm diameter x 136 mm length
• Weight: 453 g (without caps and hood)

What's Included

• M.Zuiko Digital ED 90mm f/3.5 Macro IS PRO lens
• LH-66E lens hood
• LC-62G front lens cap
• LR-2 rear lens cap
• CS-53 wrapping cloth
• Instruction manual
• Warranty card
