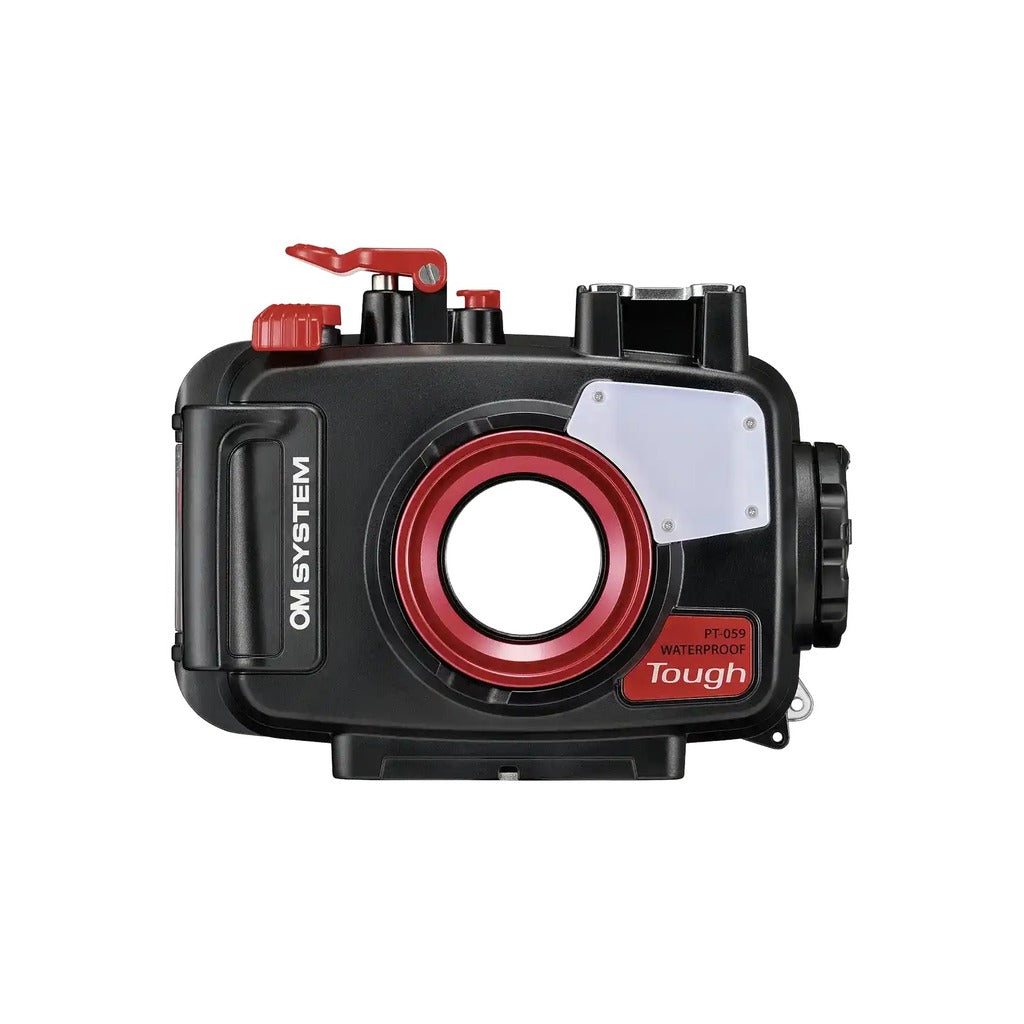

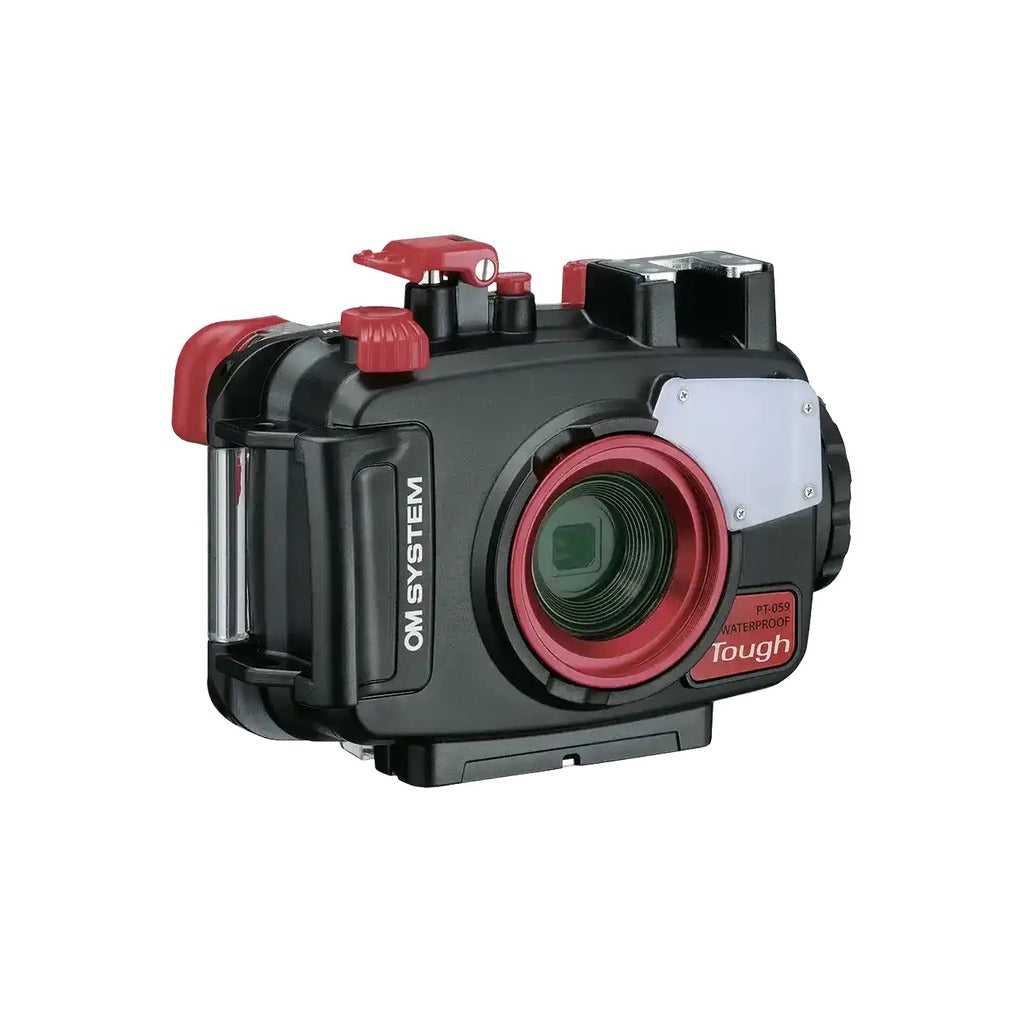

OM System PT-059 Underwater Housing for TG-7 and TG-6 Cameras, 45m

Take a TG-7 or TG-6 well past its own 15 m waterproof limit with the PT-059 underwater housing, a dedicated case rated to a depth of 45 m (147 ft). It is built for recreational and technical divers, snorkelers and underwater photographers who want the Tough camera's compact convenience on a full dive, with the camera sealed safely behind a polycarbonate shell and a coated glass lens window.

Every key control stays within reach. The housing's zoom lever, shutter button, mode dial, control dial, arrow pad, MENU, INFO, playback and movie buttons all map directly to the camera, so you can switch between Underwater Snap, Wide, Macro, HDR and Microscope modes without surfacing. A detachable monitor hood cuts glare on the LCD, and a palm grip and hand strap keep the rig steady in current.

The PT-059 is also the foundation of a larger system. An accessory mount and tripod seat accept arms and trays, a fiber-optic adapter is supplied for triggering external strobes such as the UFL-3, and the included antireflective ring prevents flare when firing the camera's own flash. Silica gel packs, silicone grease and an O-ring remover are included for pre-dive preparation and routine maintenance.

Features

• Rated waterproof to 45 m (147 ft) for TG-7 and TG-6 cameras
• Housing controls operate all key camera functions, including mode dial, zoom and movie record
• Polycarbonate body with double-sided multi-coated, water-repellent glass lens window
• Detachable monitor hood improves LCD visibility in bright water
• Fiber-optic cable adapter included for triggering external underwater flashes
• Accessory mount and tripod seat for arms, trays and lights
• Antireflective ring included to prevent internal flash reflections
• Nearly neutral buoyancy: approx. 13 g underwater with camera loaded

Technical Specifications

• Compatible cameras: TG-7, TG-6
• Depth rating: 45 m (147 ft)
• Body material: Polycarbonate
• Lens window: Glass, double-sided multi-coated with water-repellent coat
• Operating temperature: 0 to 40 C (32 to 104 F)
• Storage temperature: -20 to 60 C (-4 to 140 F)
• Dimensions: Approx. 157 x 122 x 81 mm (6.2 x 4.8 x 3.2 in)
• Weight: Approx. 484 g (17.1 oz), camera not included
• Weight underwater: Approx. 13 g in fresh water (with camera, battery and card)
• Main O-ring: POL-058
• Optional accessories: UFL-3 flash, PTCB-E02 optical fiber cable, PTSA-02/PTSA-03 short arms, PWT-1BA/PWT-1AD balance weights

What's Included

• PT-059 case body with O-ring (POL-058) installed
• Monitor hood (PFUD-08, mounted on the body) and monitor hood strap
• Lens cap (PRLC-14 OM)
• Optical fiber cable adapter (PFCA-03)
• Optical fiber cable insertion slot caps (2)
• Silicone grease (PSOLG-2)
• Silica gel 1 g (SILCA-5S) x 5
• Hand strap
• O-ring remover
• Antireflective ring (POSR-053)
• Instruction manual
