OM System TG-7 INDUSTRY Camera with NY-TGV Microscope Adapter Kit

Turn an existing binocular stereo microscope into a digital imaging station without a computer. The TG-7 INDUSTRY NY-TGV kit pairs the rugged TG-7 INDUSTRY compact camera with the NY-TGV Super Adapter, which attaches to a microscope eyepiece so inspection, research and QC teams can capture, share and document what they see.

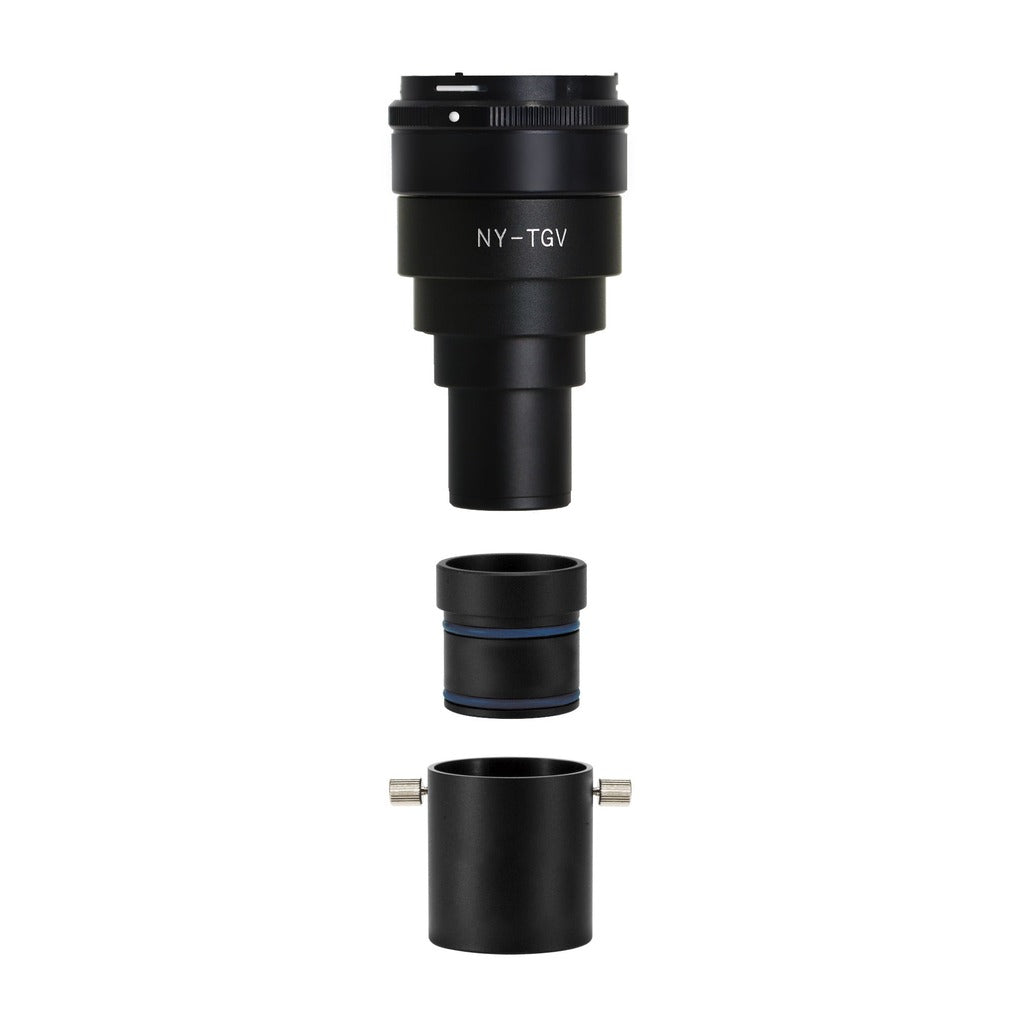

In the box, the NY-TGV Super Adapter includes optical lens units, a conversion sleeve and a C-mount sleeve. A preset Microscope Adapter custom mode drives the zoom to telephoto and disables the flash, Focus Stacking is preconfigured, and HDMI output lets a group review the live view on a large monitor - OM SYSTEM quotes roughly 200x magnification on a 23.8-inch display. Captures can be triggered remotely with the OI.Share app or the optional RM-WR2 remote.

Built for professional workflows, the INDUSTRY version adds a CALS-compatible Construction mode, date imprinting and support for write-once memory cards for tamper-resistant records, on top of the TG-7's 12MP sensor, f/2.0 4x zoom, 4K video and waterproof, shockproof, crushproof and freezeproof construction. C-mount microscopes require the separately sold U-OC Ultra C-Mount.

Features

• Complete kit: TG-7 INDUSTRY camera plus NY-TGV Super Adapter for microscope eyepieces
• Adapter set includes optical lens units, conversion sleeve and C-mount sleeve
• Preset Microscope Adapter and Focus Stacking custom modes
• HDMI output for live team review on an external monitor
• Date imprint, CALS-compatible Construction mode and write-once card support
• Remote capture via OI.Share app or optional RM-WR2 wireless remote
• Waterproof 15m, shockproof 2.1m, crushproof 100kgf, freezeproof to -10C
• C-mount microscopes need the separately sold U-OC Ultra C-Mount

Technical Specifications

• Image sensor: 1/2.33-inch CMOS, 12MP effective (12.7MP total)
• Lens: 4.5-18.0mm (25-100mm equiv.) f/2.0-4.9, 4x optical zoom, 9 elements / 7 groups, 3 aspherical
• Focus: TTL contrast AF, super macro from 1cm, focus bracketing and focus stacking, MF with peaking
• Monitor: 3.0-inch LCD, 1040K dots
• ISO: 100-12800
• Continuous shooting: approx. 20 fps (high), 5 fps (low)
• Video: 4K (3840 x 2160) 30p/25p approx. 102 Mbps; Full HD; high-speed up to 480 fps
• Interfaces: USB Type-C, micro HDMI (Type D)
• Wireless: Wi-Fi, Bluetooth, GPS
• Storage: SD/SDHC/SDXC (UHS-I)
• Battery: LI-92B Li-ion, in-camera charging
• Ruggedness: waterproof 15m, dustproof, shockproof 2.1m, crushproof 100kgf, freezeproof -10C
• Camera dimensions: 113.9 x 65.8 x 32.7mm (excluding protrusions)
• Camera weight: 249g with battery and memory card

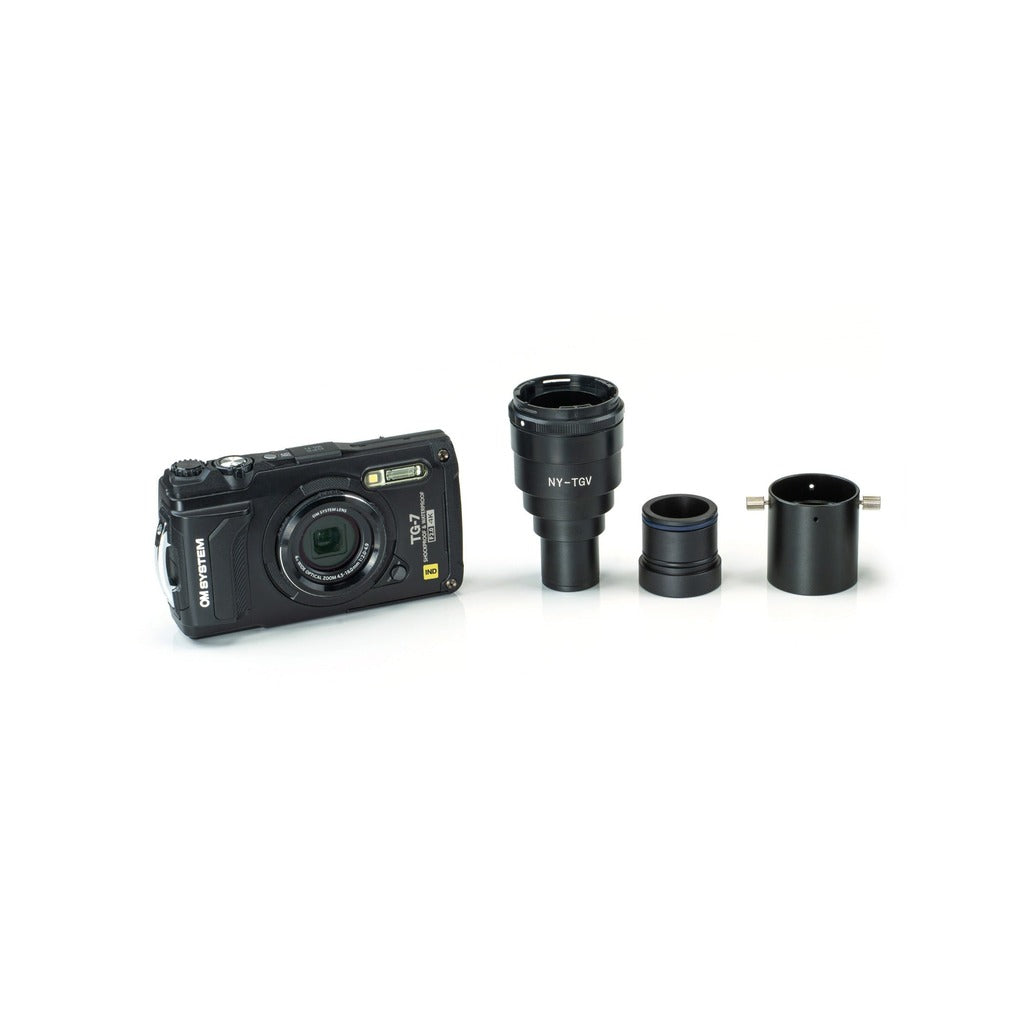

What's Included

• TG-7 INDUSTRY camera body
• NY-TGV Super Adapter (optical lens units, conversion sleeve, C-mount sleeve)
• Strap
• Battery
• USB cable
• Instruction manual
• Warranty card
