Ortofon  |  SKU: ORT-COCOONSTYLUS

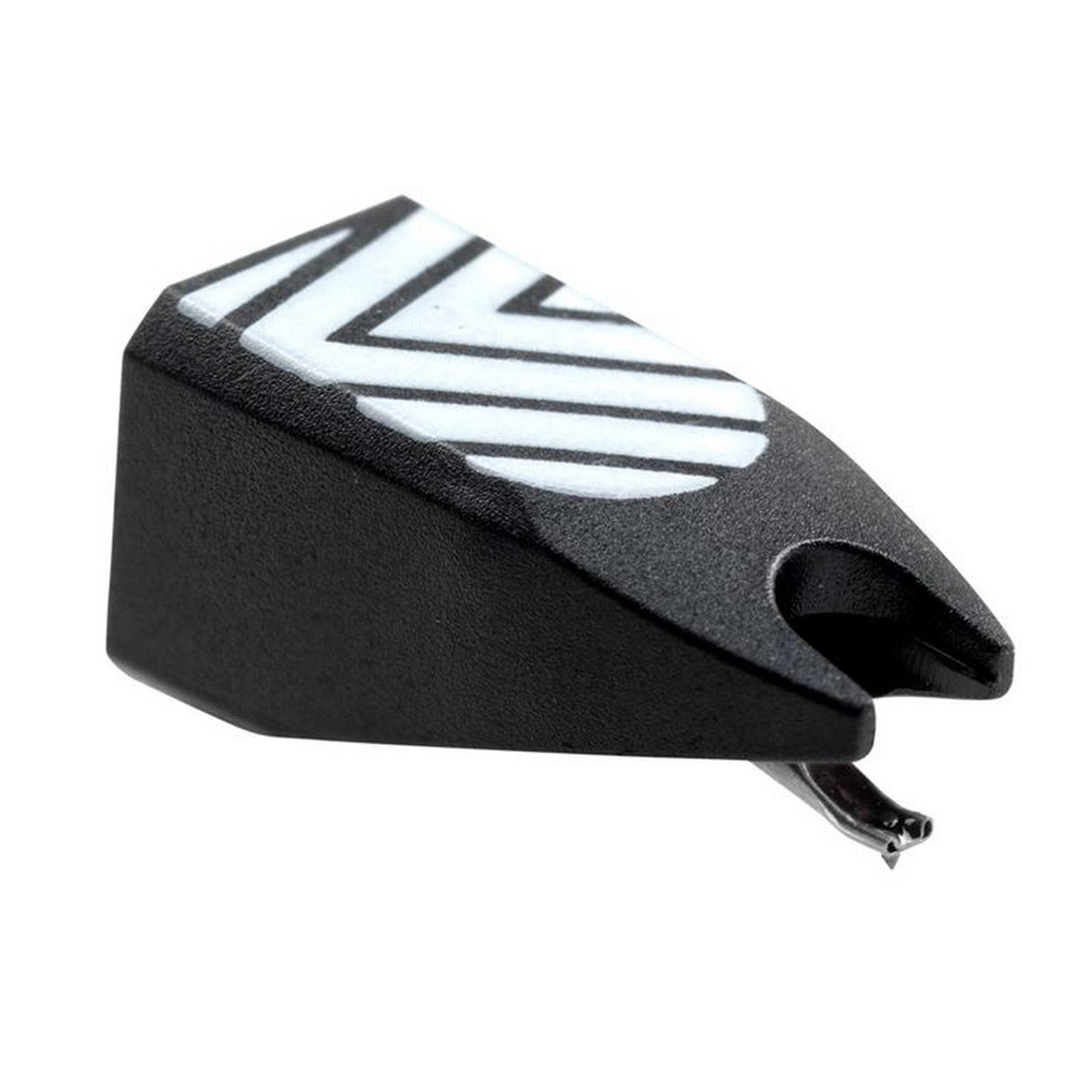

Ortofon Cocoon Elliptical Stylus

$8799

Condition: New



Ortofon Cocoon Elliptical Stylus

The Ortofon-Cocoon is the ultimate Club cartridge of superb sound quality!

Key Features

  • Direct SME mounting for easy set-up
  • Special Elliptical stylus, which can stand up to heavy back-cueing
  • High output for clear sound from a mixer/preamplifier
  • Premium sound quality
  • Extra value package includes Stylus protection guards/pair and a Stylus brush

Technical Specifications

Output voltage at 1000Hz, 5cm/sec.
8 mV
Channel balance at 1kHz
1,5 dB
Channel separation at 1kHz
23 dB
Channel separation at 15 kHz
15 dB
Frequency range at -3dB
20-22.000 Hz
Frequency response
20-20.000 Hz +/-1,5 dB
Tracking ability at 315 Hz at recommended tracking force
80 m
Compliance, dynamic lateral
7 m/m N
Stylus type
Special Elliptical
Tracking force range
2.0-5.0 g (20-50 mN)
Tracking force recommended
3.0 g (30 mN)
Concorde cartridge weight
18.5 g
