Ortofon  |  SKU: ORT-ACC-DJE

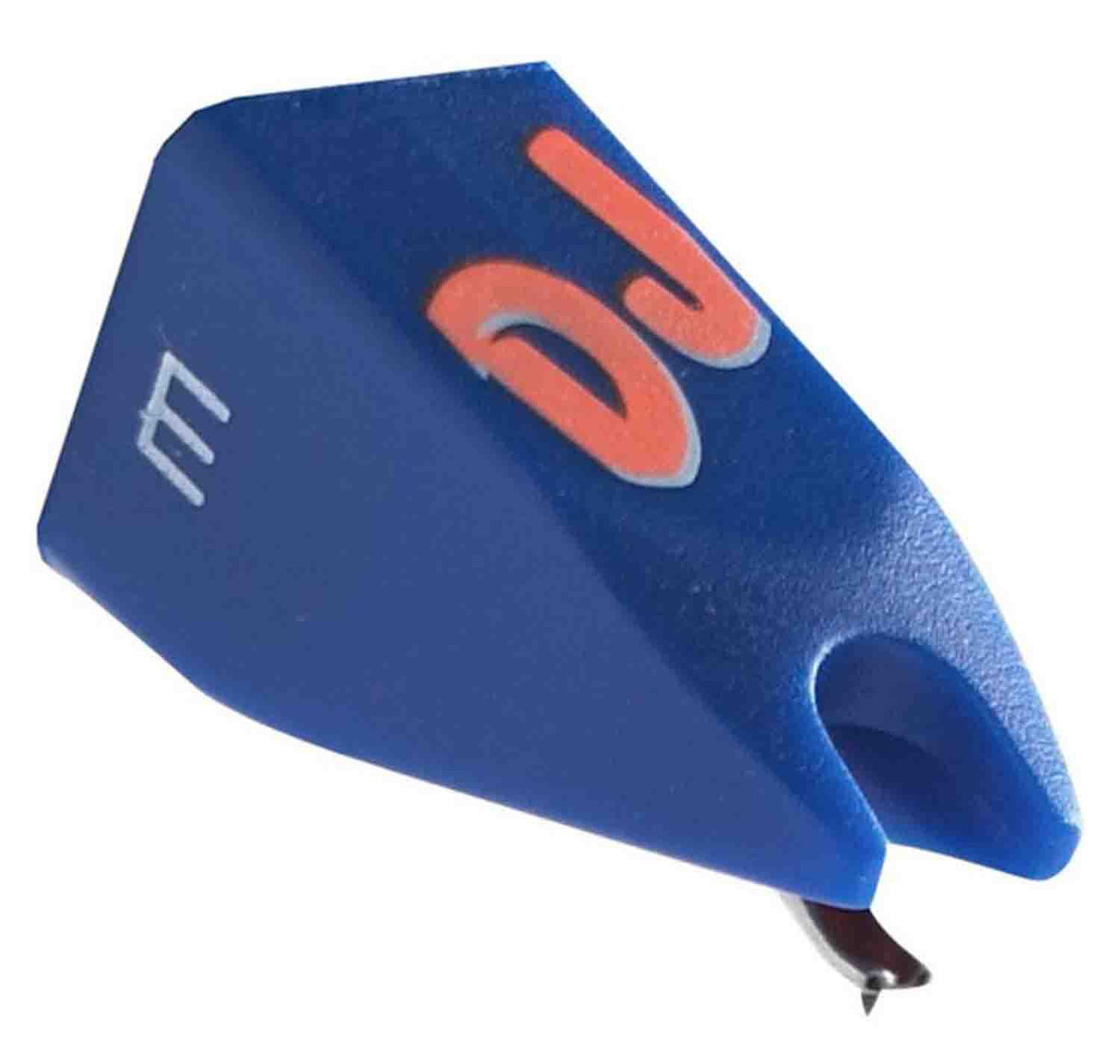

Ortofon DJE | Replacement Stylus for DJ Series Cartridge

$6699

Condition: New



Ortofon DJE Replacement Stylus for DJ Series Cartridge

Basic model for scratch and back-cueing. Outstanding rigidity by extra-strengthened cantilever.

Key Features

  • Features Special Elliptical stylus and a special developed and extremely balanced cantilever.
  • Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency. Furthermore, it equals very low record wear, an advantage for busy DJ.
  • The DJ series has been known to many as the "jack of all trades," with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied.

Technical Specifications

Output voltage at 1000Hz, 5cm/sec.
6 mV
Channel balance at 1kHz
2 dB
Channel separation at 1kHz
23 dB
Channel separation at 15 kHz
15 dB
Frequency range at -3dB
20-22.000 Hz
Frequency response
20-20.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommended tracking force
80 um
Compliance, dynamic lateral
9 um/m N
Stylus type
Special Elliptical
Stylus tip radius
r/R 13/25 um
Tracking force range
2,0-4,0 g (20-40 mN)
Tracking force recommended
3,0 g (30 mN)
Tracking angle
20 degrees
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Cartridge weight
18,5 g
Compatible with cartridges
DJ S
