Ortofon  |  SKU: ORT-DJSSTYLUSBLUE

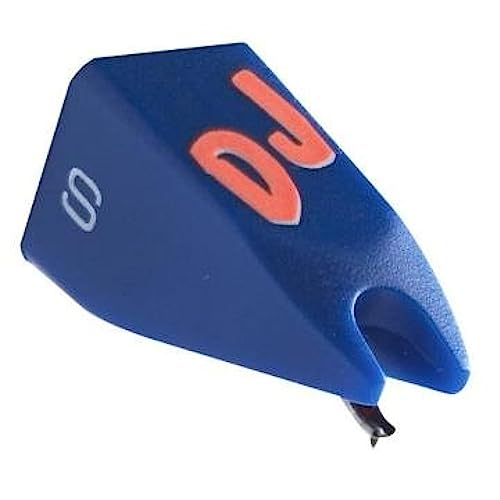

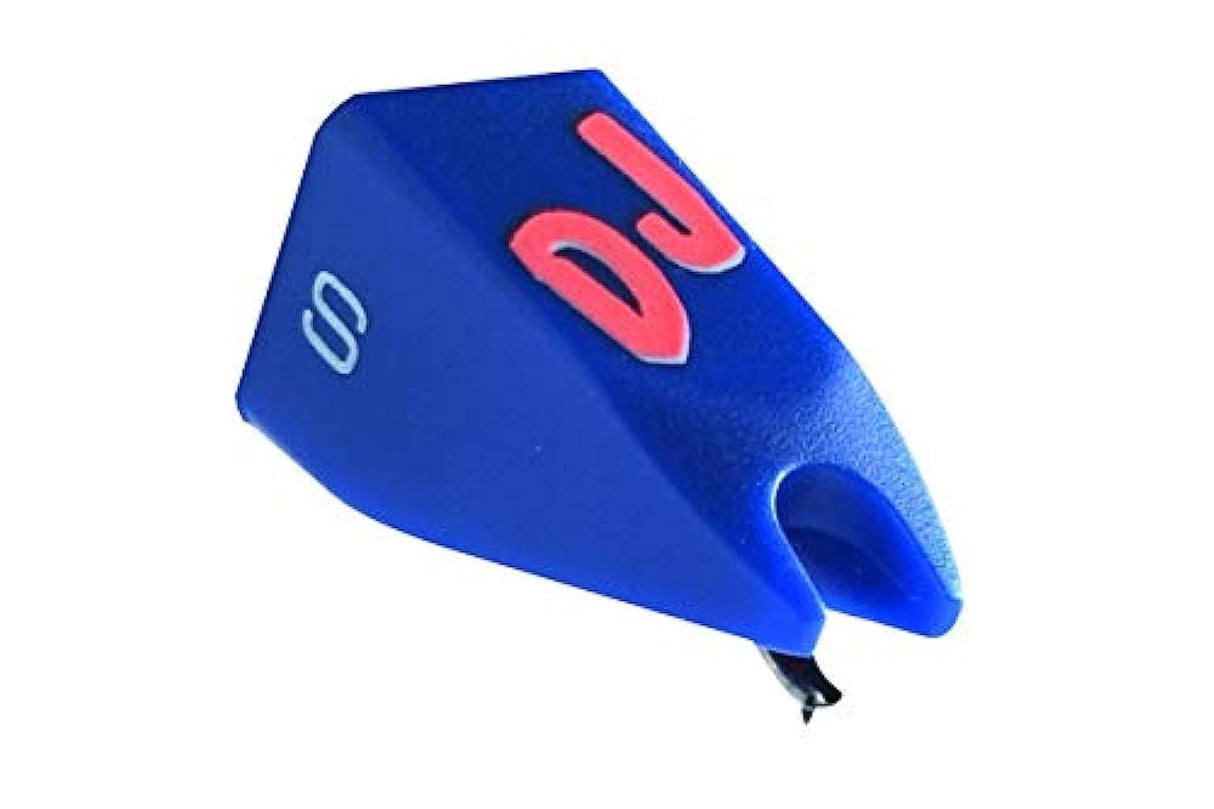

Ortofon DJS Spherical Stylus for DJ MK1 Cartridge, Blue

$6699

Condition: New



Ortofon DJS Spherical Stylus for DJ MK1 Cartridge, Blue

DJ S is a solid-built cartridge in a blue nylon material. It has a fine spherical stylus and a special developed and extremely balanced cantilever that provides outstanding rigidity. Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency. Furthermore, it equals very low record wear, an advantage for busy DJ. The DJ series has been known to many as the "jack of all trades," with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied.

Technical Specifications

Output voltage at 1000Hz, 5cm/sec.
6 mV
Channel balance at 1kHz
2 dB
Channel separation at 1kHz
23 dB
Channel separation at 15 kHz
15 dB
Frequency range at -3dB
20-20.000 Hz
Frequency response
20-18.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force
80 m
Compliance, dynamic lateral
9 m/m N
Stylus type
Spherical
Stylus tip radius
R 18 m
Tracking force range
2.0-4.0 g (20-40 mN)
Tracking force recommended
3.0 g (30 mN)
Tracking angle
20
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Concorde cartridge weight
18.5 g
