Ortofon  |  SKU: ORT-ACC-PROSOMPREMOUNT

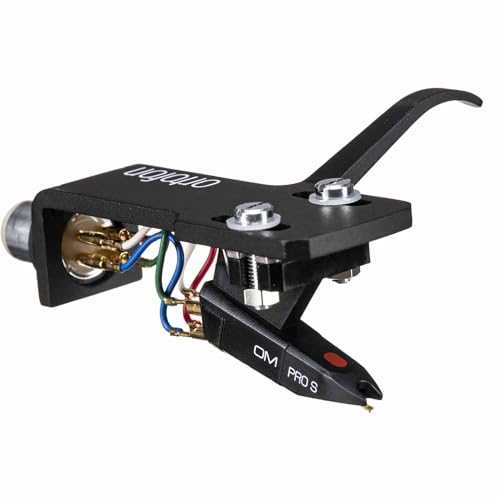

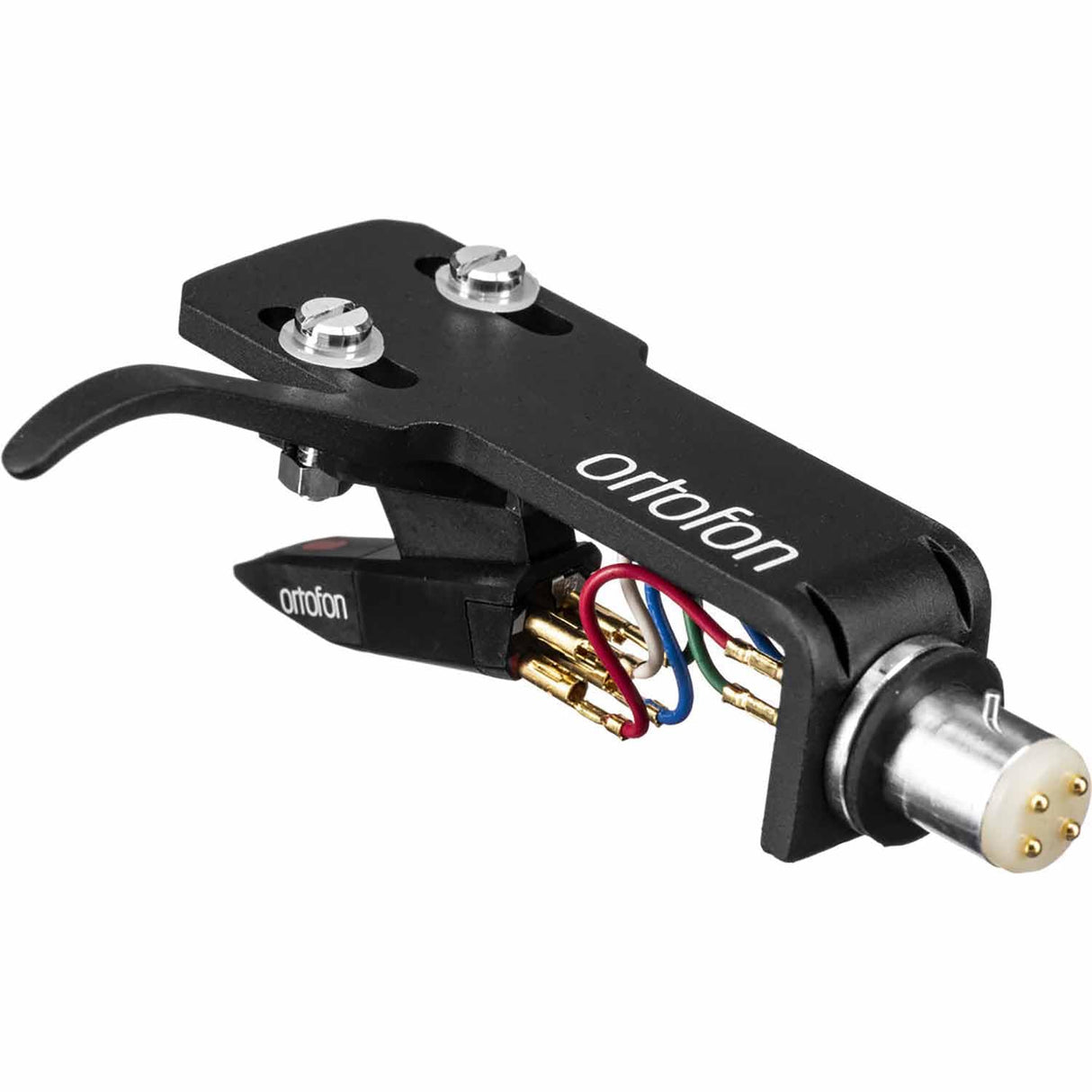

Ortofon Pro S OM Premount | Concorde Spherical DJ Turntable Cartridge Mounted on SH 4 Shell

$11799

Condition: New



Description

Ortofon Pro S OM Premount Concorde Spherical DJ Turntable Cartridge Mounted on SH 4 Shell

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

Key Features

  • Single OM Cartridge Mounted On SH-4 Headshell
  • Plastic Tray Included
  • Spherical Needle
  • 5 mV Output Voltage

Technical Specifications

Output voltage at 1000Hz, 5cm/sec.:
5 mV
Channel balance at 1kHz:
2 dB
Channel separation at 1kHz:
20 dB
Channel separation at 15 kHz:
15 dB
Frequency range at -3dB:
20-18.000 Hz
Frequency response:
20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommmended tracking force:
70 μm
Compliance, dynamic lateral:
7 μm/m N
Stylus type:
Spherical
Stylus tip radius:
R 18 μm
Tracking force range:
3,0-5,0 g (30-50 mN)
Tracking force recommended:
4,0 g (40 mN)
Tracking angle:
20°
Internal impedance, DC resistance:
750 Ohm
Internal inductance:
450 mH
Recommended load resistance:
47 kOhm
Recommended load capacitance:
200-600 pF
Concorde weight:
18,5 g
OM cartridge weight:
5,0 g
