Ortofon  |  SKU: ORT-SCRATCHSTYLUSWHITE

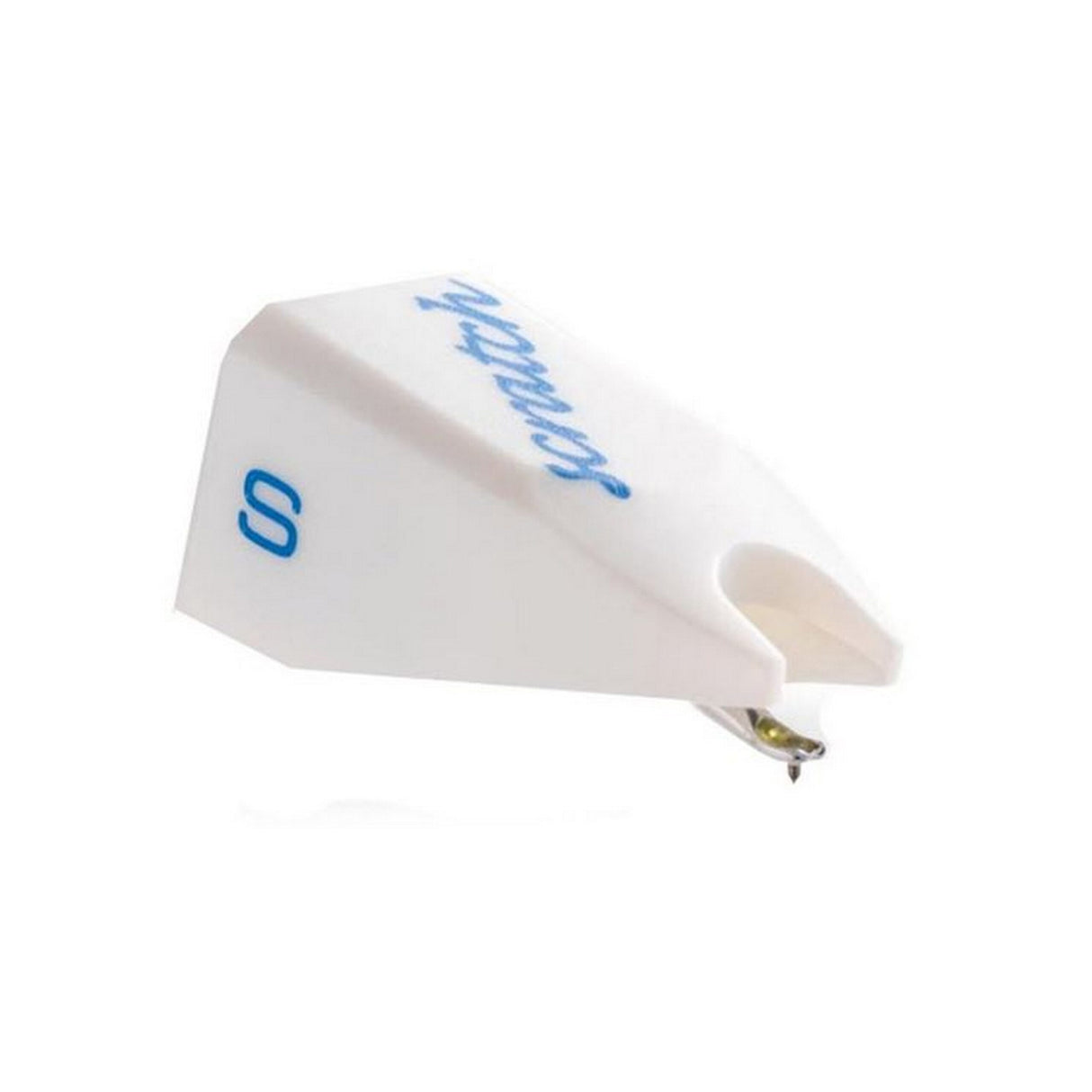

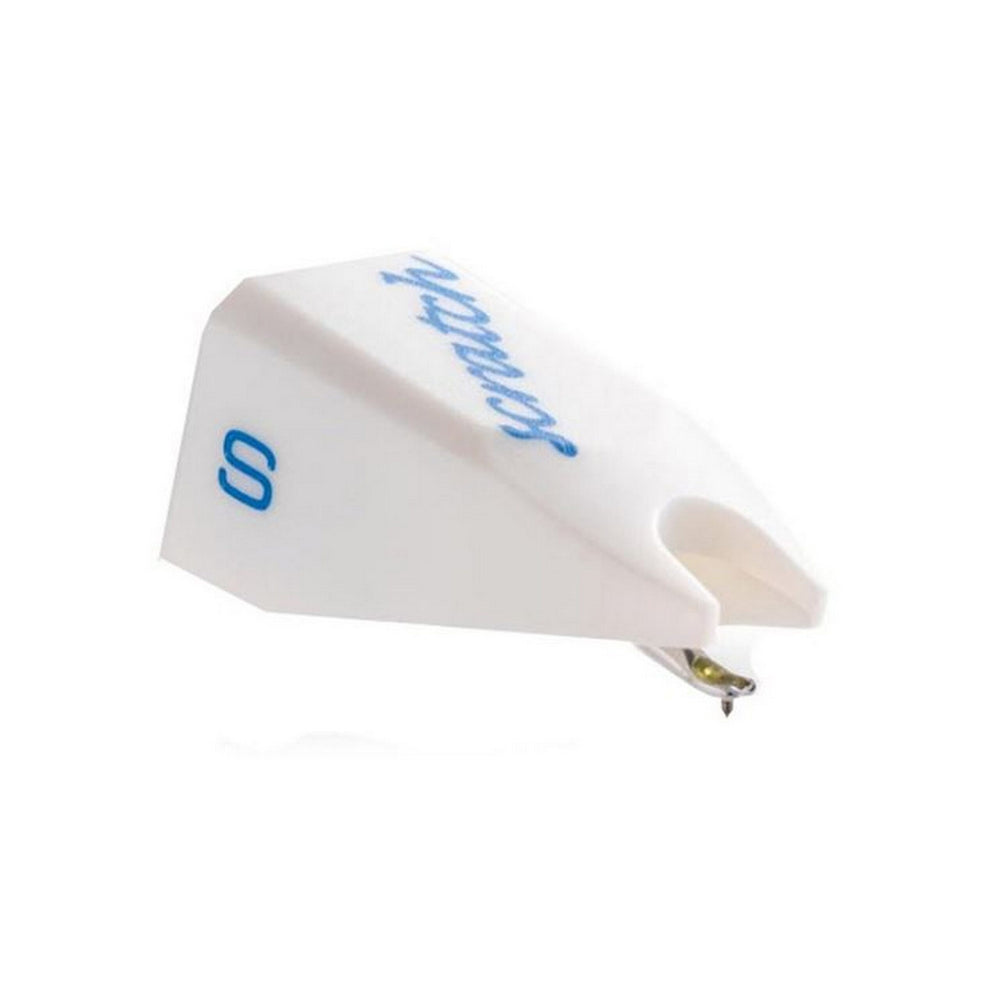

Ortofon Scratch Spherical Stylus, White

$6099

Condition: New



Description

Ortofon Scratch Spherical Stylus, White

Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

Technical Specifications

Output voltage at 1000Hz, 5cm/sec.
7 mV
Channel balance at 1kHz
1.5 dB
Channel separation at 1kHz
25 dB
Channel separation at 15 kHz
15 dB
Frequency range at -3dB
20-20.000 Hz
Frequency response
20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force
80 m
Compliance, dynamic lateral
6 m/m N
Stylus type
Spherical
Stylus tip radius
R 18 m
Tracking force range
3.0-5.0 g (30-50 mN)
Tracking force recommended
4.0 g (40 mN)
Tracking angle
20
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Concorde/OM cartridge weight
18.5 g / 5g
