Ortofon  |  SKU: ORT-STYLUS5E-30027

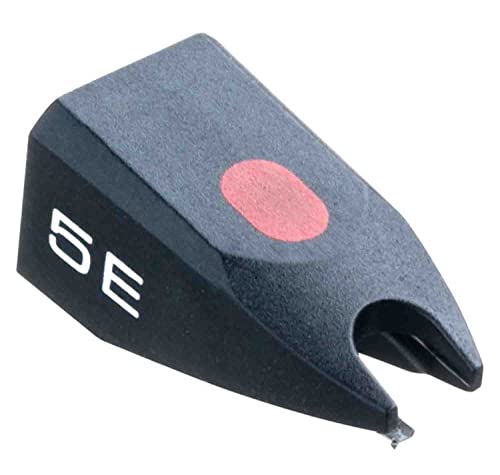

Ortofon Stylus 5e Replacement Stylus for OM-5e

$5999

Condition: New



Ortofon Stylus 5e Replacement Stylus for OM-5e

Stylus 5E for OM 5E, OMP 5E, OMB 5E, OMT 5E

Technical Specifications

Output voltage
1000 Hz, 5cm/sec. - 4 mV
Channel balance
1 kHz -- 2 dB
Channel separation
1 kHz -- 22 dB
Channel separation
15 kHz -- 15 dB
Frequency range
- 3dB - 20-25.000 Hz
Frequency response
-- 20-20.000 Hz - 2 dB
Tracking ability
315Hz at recommended tracking force *) - 65 m
Compliance, dynamic, lateral -- 20 m/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 m
Tracking force range
1.5-2.0 g (15-20 mN)
Tracking force, recommended -- 1.75 g (17.5 mN)
Tracking angle
20
