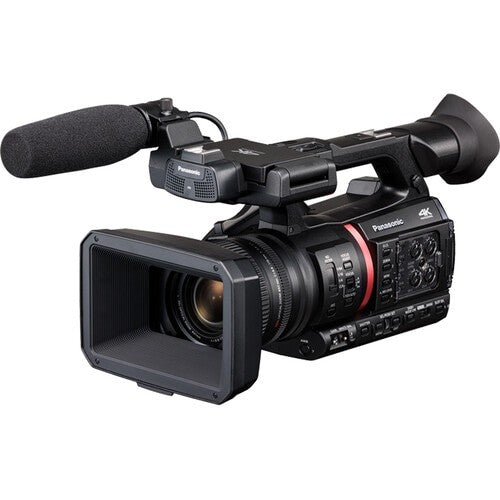

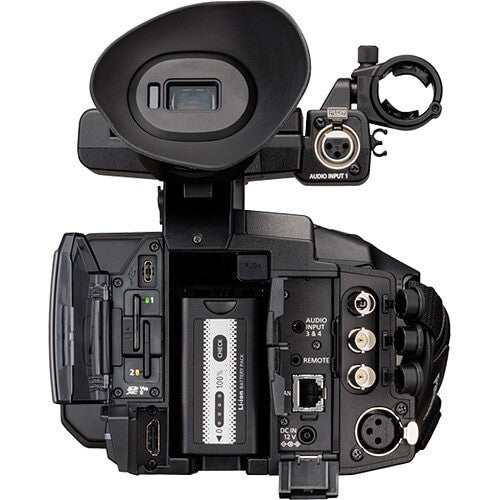

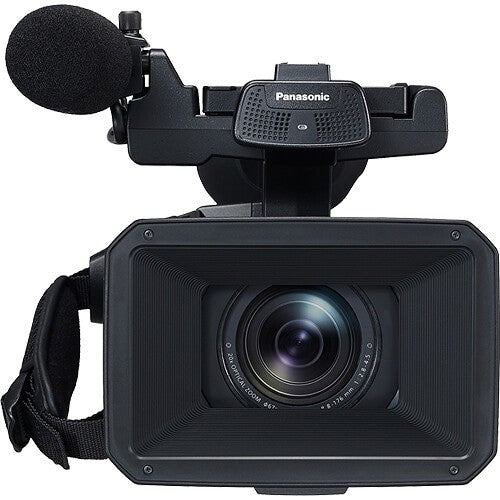

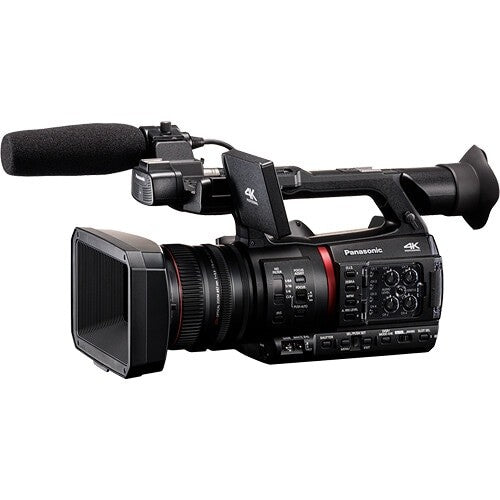

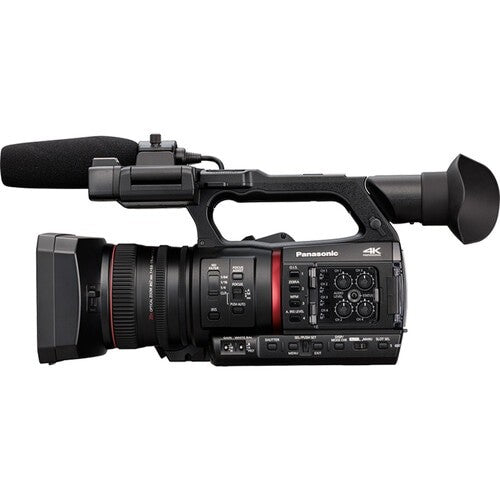

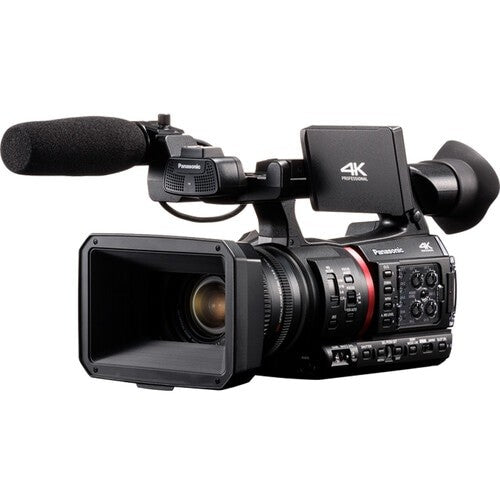

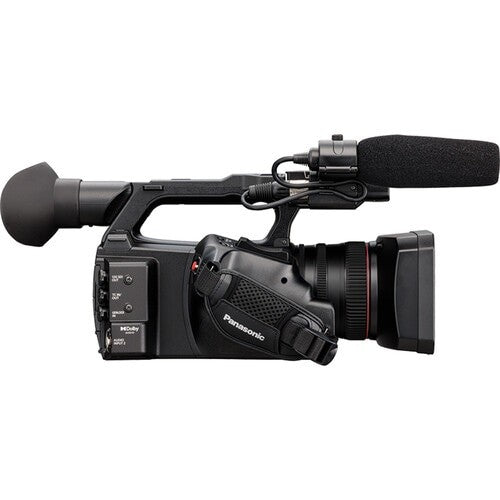

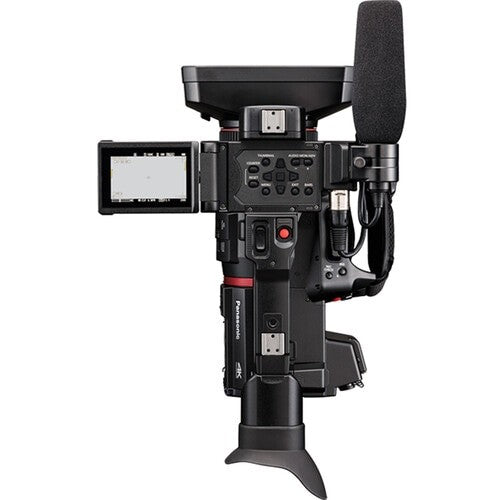

Panasonic AG-CX370 1-Inch 20x 4K60p Camcorder with NDI HX2

4K/60p 10-bit Handheld Camcorder with built-in NDI
The AG-CX370 handheld camcorder is built for next-generation performance, coupled with exceptional image quality and operability. It is optimized for production, broadcasting and live streaming with 4-channel audio and GENLOCK inputs and 12G-SDI output.

Key Features

• Expanded system capabilities with 12G-SDI output and GENLOCK input
• Versatile 4-channel audio input with independent volume controls
• Optimized IP live production with NDI® HX2
• High Shooting Quality
• Multi-Format, Multi-Codec Recording

High-quality 4K live video production
The CX370 delivers 4K/60p/10-bit MOV recording with a high-efficiency HEVC/H.265 codec. It also features a high-definition, high-sensitivity 1.0-type 15M MOS sensor, and Hybrid Log Gamma (HLG) for HDR recording – making it perfect for live broadcast environments and creating content for social media platforms. The CX370 features broadcast-quality image tuning, with 16-axis independent color correction.

Advanced IP-based live production capabilities
The high-end CX370 features built-in NDI®* HX2 IP connectivity for IP-based transmissions and camera control. When connected to NDI®-compatible devices, such as switchers and decoders, NDI® HX2 delivers smooth, high-quality IP-based live video production1. The CX370 supports 4K direct streaming via the RTMP, RTMPS, and RTSP protocols – and the next-generation, IP-based SRT protocols. When compared to predecessor CX Series camcorders, the CX370 now supports the 12G-SDI output, enabling high-quality, low-latency uncompressed 4K video to be streamed to professional broadcast equipment. The CX370 also supports simultaneous 4K output via SDI-HDMI outputs.
*NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
1 Recording, streaming and 4K output are not available in NDI HX2 mode.

Wide angle zoom lens for broadcast-quality shooting
The CX370 offers superior optical performance thanks to its powerful 24.5mm (35mm equivalent) wide-angle zoom lens, with 20x optical zoom. It features high-precision auto-focus technology with face detection, auto-tracking, and five-axis hybrid image stabilization. This detects and corrects any unwanted camera shaking, making the CX370 perfect for the stable shooting and tracking of moving subjects.

Enhanced mobility and interoperability
The CX370’s ease-of-use for production, broadcast and live streaming professionals sets it apart. Unlike the CX350 model, the camera features two balanced XLR inputs and a 3.5mm stereo mini-jack input. This enables support for up to four external microphones or line-level audio for 4-channel 24-bit LPCM audio recording. In addition to the CX370’s compatibility with the AVC-ULTRA (P2 MXF) format2, the camera supports the File Transfer Protocol3, enabling recorded clips to be shared with broadcasters via a wired network, Wi-Fi (AJ-WM50E optional) or USB tethering through a mobile phone. This streamlines production workflows and drastically reduces the time required to air content. The newly integrated GENLOCK input terminal delivers broadcast-quality synchronization in multi-camera environments, whilst visuals can be simultaneously displayed across multiple high-definition LCD displays and viewfinders. Focus and zoom settings can also be easily adjusted through wired remote control, or through IP-based networks over a LAN connection.
2Not all AVC-ULTRA formats are supported, and standard P2 cards are not compatible.
3Available through future support via planned firmware update.

Technical Specifications

General

Power

• DC 7.28 V (when the battery is used)
• DC 12 V (when the AC adaptor is used)


Power Consumption

• 26W (when the LCD monitor is used)
• 17 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)


Operating Temperature

• 0 °C to 40 °C (32 °F to 104 °F)


Operating Humidity

• 10 % to 80 % (no condensation)


Weight*1

• Body: approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories)
• Shooting: approx. 2.3 kg (5.07 lb) (including lens hood, battery, and microphone holder)


Dimensions*1

• 180 mm (W) x 173 mm (H) x 311 mm (D) (7-1/8 inches x 6-13/16 inches x 12-1/4 inches) (excluding protrusion and eye cup)\

Camera Unit

Pickup Device

• 1.0-type (effective size) MOS solid state image sensor


Effective Pixels

• 15,030,000 pixel


Lens

• Optical image stabilizer lens, optical 20x motorized zoom
• F value: F2.8 to F4.5
• Focal length: f=8.8 mm to 176 mmm, 35 mm equivalent: 24.5 mm to 490 mm


Filter Diameter

• 67 mm


Optical Filter

• ND Filter: Clear, 1/4, 1/16, 1/64
• IR Filter: Incorporates the ON/OFF control function


Shortest Shooting Distance (M.O.D.)

• Approx. 10 cm (W), 1.0 m (T) from the front lens


Gain Setting

• L/M/H selector switch
• GAIN/ISO mode = dB
• –3 dB to 18 dB (adjustable in 1 dB steps)
• 24 dB, 30 dB, 36 dB switched (when assigning [S. GAIN] to the USER button)
• GAIN/ISO mode = ISO
• ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500,
• ISO 3200, ISO 4000, ISO 5000, ISO 6400, ISO 8000, ISO 10000, ISO 12800


Color Temperature Setting

• ATW, ATW LOCK, A ch, B ch,
• preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)


Shutter Speed

When [SYSTEM MODE] = 59.94 Hz

• 59.94i/59.94p mode
• 29.97p mode
• 23.98p mode


When [SYSTEM MODE] = 50.00 Hz

• 50i/50p mode
• 25p mode


Shutter Speed (Slow Shutter)

When [SYSTEM MODE] = 59.94 Hz

• 59.94i/59.94p mode
• 29.97p mode
• 23.98p mode


When [SYSTEM MODE] = 50.00 Hz

• 50i/50p mode
• 25p mode


Shutter Speed (Synchro Scan)

When [SYSTEM MODE] = 59.94 Hz

• 59.94i/59.94p mode
• 29.97p mode
• 23.98p mode
• When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode
• 25p mode


Shutter Open Angle

• 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)


VFR Recording Frame Rate

• When [SYSTEM MODE] = 59.94 Hz
  1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps)
• When [SYSTEM MODE] = 50.00 Hz
  1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)


Super Slow Recording

• When [SYSTEM MODE] = 59.94 Hz
  1920 x 1080 (FHD): shooting frame rate 120 fps
• When [SYSTEM MODE] = 50.00 Hz
  1920 x 1080 (FHD): shooting frame rate 100 fps


Sensitivity

• When [HIGH SENS.] mode
• F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)
• F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)

Horizontal Resolution

• 2000 TV or higher (UHD: center)
• 1000 TV or higher (FHD: center)


i.Zoom

• x32 (FHD), x24 (UHD)


Digital Zoom

• x2/ x5/ x10


Lens Hood

• Hood with lens cover

Memory Card Recorder

Recording Media

• SDHC memory card, SDXC memory card
• UHS-I/UHS-II UHS Speed Class 3 supported,
• Video Speed Class V90 supported
  Please see the "Available Memory Card" table.


Recording Slot

• SDXC UHS-II card slot x 2*2


Recording Pixels

• 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD)
• (AVC-Intra50: 1440 × 1080, 960 × 720)


System Frequency

• 59.94 Hz/50.00 Hz


Recording File Format

• MOV (AVC), MOV (HEVC), AVCHD, P2 MXF



2 Slot Functions

• Relay Rec, Simultaneous Rec, Background Rec


Special Recording Functions

• Pre Rec, Interval Rec, Time Stamp

Digital Video

Quantization

• MOV
• AVCHD
• P2


Video Compression Format

• MOV: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile
• P2: AVC-Intra422/AVC-LongG50/AVC-LongG25/AVC-LongG12: MPEG-4 AVC/H.264 High Profile
• P2: AVC-Intra200/AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile

Digital Audio

Recording Audio Signal

• MOV
• AVCHD
• P2



Headroom

• 12 dB/18 dB/20 dB switchable (menu)

AVC Proxy

File Format

• MOV


Video Compression Format

• H264/AVC High Profile


Audio Compression Format

• AAC-LC


Recording Time

• Approx. 13 min. per 1 GB of AVC-G6 2CH MOV
  *These are reference values for continuous recording using the Panasonic products. The recording time may differ depending on the scene or the number of clips.

Live Streaming

Video Compression Format

• H.264/MPEG-4 AVC Main Profile,
• H.264/MPEG-4 AVC High Profile


Video Resolution

• 3640 x 2160 (UHD), 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 360 x 180


Streaming Method

• Unicast, Multicast


Frame Rate

• System frequency = 59.94 Hz: 24 fps, 30 fps, 60 fps
• System frequency = 50.00 Hz: 25 fps, 50 fps


Bit Rate

• 3640 x 2160 (UHD): 75 Mbps, 50 Mbps, 25 Mbps, 12 Mbps, 8 Mbps
• Other than those above: 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps


Audio Compression Format

• AAC-LC, 48 kHz/16 bit, 2 ch


Network Protocol

• RTSP/RTP/RTMP/RTMPS/SRT

Video Output

SDI OUT

• BNC x 1, SDI REC REMOTE supported
• 4K(12G/6G), HD (3G/1.5G) 0.8 V [p-p], 75 Ω,
• Output format (4:2:2 10 bit):
  • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
  • 1280 x 720: 59.94p, 50p


HDMI OUT

1. HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
   Output format (4:2:2 10 bit):
   • 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
   • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
   • 1280 x 720: 59.94p, 50p


VIDEO OUT

• 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 O

Audio Input/Output

Built-inMicrophone

• Stereo microphone


AUDIO INPUT 1/2

• XLR (3-pin) x 2 (INPUT1, INPUT2)
• Input high impedance, LINE/MIC/MIC+48V (switchable SW)
• MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)
• LINE: +4 dBu/0 dBu (switchable menu)


AUDIO INPUT

• φ3.5 mm stereo mini jack, unbalance
• MIC: -40 dBV (0 dB=1 V/Pa, 1 kHz)
• Plug-in power compatible, supply voltage:2.5 V±0.5 V
• Input impedance: Approx. 2kΩ (when plug-in power is ON)
• Approx.20kΩ (when plug-in power is OFF)


SDI OUT

• Linear PCM 4 ch


HDMI OUT

• Linear PCM 4 ch (switchable menu)


Headphone

• 3.5 mm diameter stereo mini jack x 1


Speaker

• 20 mm diameter, round x 1

Other Input/Output

GENLOCK IN

• BNCx1, 1.0V [p-p], 75Ω


TC IN/OUT

• BNC x 1, Used as the input and output terminals (switchable menu)
• Input: 1.0 V to 4.0 V [p-p] 10 kΩ
• Output: 2.0 V ± 0.5 V [p-p] low impedance


Remote

• 2.5 mm diameter super mini jack
  *The analog control remote controller used with previousPanasonic models may not be used with this device.


LAN

• RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
• NDI® HX2 supported


USB 2.0 HOST

• Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)


USB 3.0 DEVICE

• USB 3.1 GEN1 Type-C, USB Mass storage function
• No USB bus power function


DC IN 12V

• DC 12 V EIAJ Type 4

Monitor/Viewfinder

LCD Montor

• 3.2 type TFT LCD color monitor (3:2), approx. 1,620,000 dots,
• Touch panel video display (16: 9) area: Approx. 1,370,000 dots


Viewfinder

• 0.39 type OLED (organic EL display), approx. 2,360,000 dots, video display (16: 9) area: approx. 1,770,000 dots

What's Included

• Panasonic AG-CX370 Panasonic 7.28V 43Wh Lithium-Ion Battery for DVX200 and CX10 (5900mAh) Panasonic Battery Charger for AG-VBR & Other Batteries AC Adapter with Power Cord Microphone Holder Kit Shoulder Strap Eye Cup Lens Hood Grip Belt Warranty: Limited 1-Year Manufacturer Warranty
