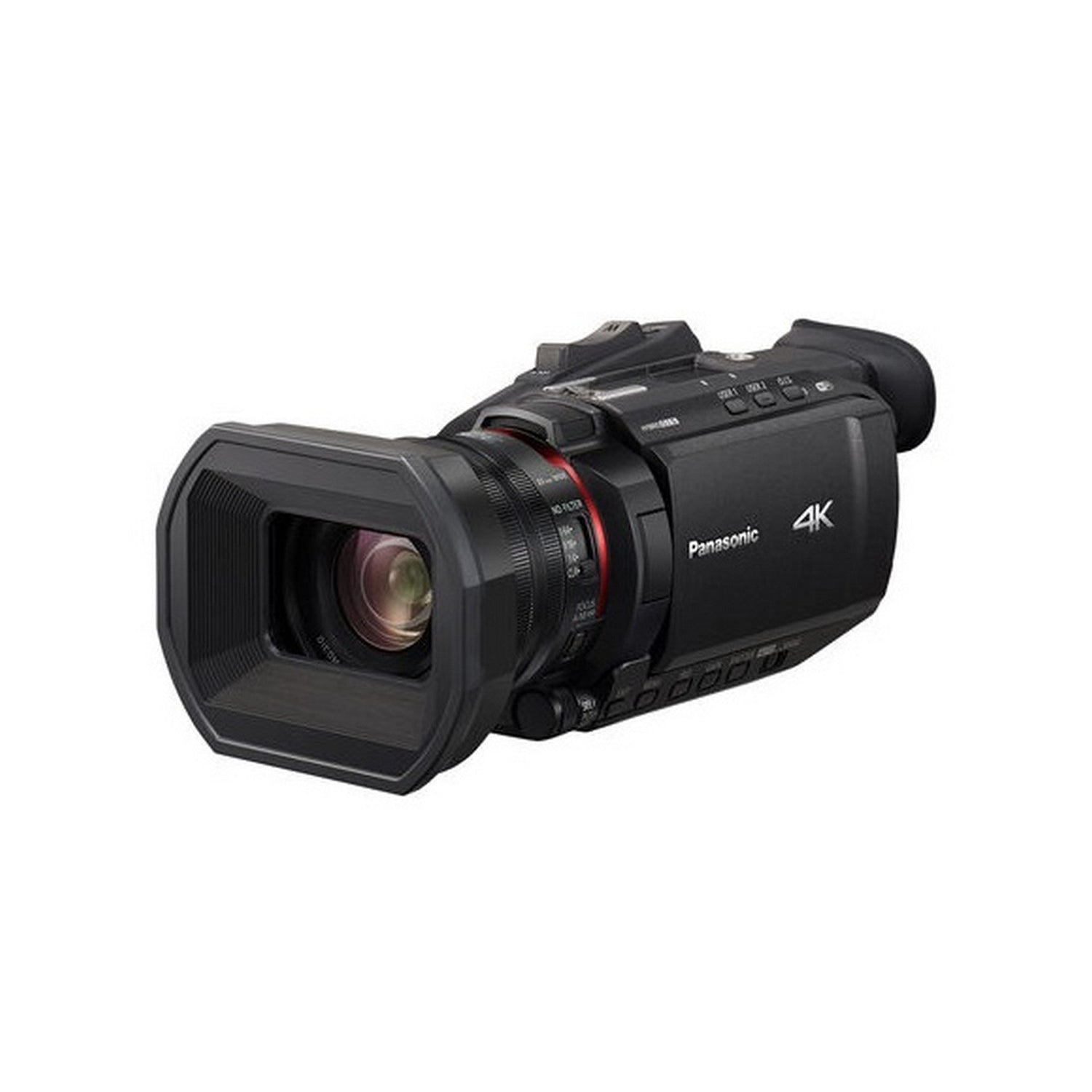

Panasonic HC-X1500 Live Streaming 4K Camcorder with 24X Optical Zoom

The X1500 is a small lightweight 4K 60p professional video camera. Offering the on-site mobility and portability demanded by professionals, it enables high-quality 4K 60p recording. Achieving high-spec optical performance with a wide-angle 25mm*2 lens and 32x i. ZOOM (4K recording), Panasonic's exclusive high-precision AF provides high-speed, accurate focusing for both 4K and Full-HD shooting.

Key Features

• Manual rings, ND filters, and 24-bit high resolution linear PCM audio recording, 4: 2: 2 10-bit internal recording, double SD card slots
• HD live streaming supported by built-in Wi-Fi
• <4K RECORDING> 4K 60p recording in a small and light body with a heat-dispersing design
• Wide-angle 25mm 24x optical zoom with 5-Axis Hybrid O. I. S (Optical Image Stabilization) and high-speed and focusing.
• The 3. 5-inch monitor (2, 760K-dots) with electrostatic touch panel, plus up/down tiltable viewfinder (1, 555K-dot). Simultaneous LCD output is available.

Technical Specifications

Imaging
Sensor Resolution
Actual: 8.57 Megapixel
Effective
8.29 Megapixel
Sensor Type
1/2.5” MOS Sensor
Image Stabilization
Optical in Integrated Lens
Built-In ND Filter
Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Shutter Speed
1/1 to 1/30 sec
Gain
0 to 30 dB
Minimum Illumination
1.5 Lux at 1/30 Shutter Speed
White Balance
2000 to 15,000K
Lens
Focal Length
4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm)
Optical Zoom Ratio
24x
Max Digital Zoom
48x
Maximum Aperture
f/1.8
Minimum Aperture
f/4
Optical Design
14 Elements in 11 Groups
Minimum Focus Distance
Wide
0.3' / 0.1 m
Telephoto
3.9' / 1.2 m
Filter Size
62 mm
Control Rings
Focus
Zoom
Iris
Focus Control
Autofocus
Manual Focus
Recording
Recording Modes
AVCHD/MOV/MP4 4:2:0 10-Bit
3840 x 2160p up to 50/60 fps
1920 x 1080p up to 50/60/120 fps
AVCHD/MOV/MP4 4:2:2 10-Bit
3840 x 2160p at 25/30 fps
1920 x 1080p at 25/30/50/60 fps
Variable Frame Rates
4.8 Up to 120 fps
Still Image Support
JPEG
IP Streaming
RTMP, RTP, RTSP
1920 x 1080 at 25p, 30p, 50p, 60p (0.5 to 24.00 Mb/s)
RTMP, RTP, RTSP
1280 x 720 at 25p, 30p, 50p, 60p (0.5 to 24.00 Mb/s)
RTMP, RTP, RTSP
640 x 360 at 25p, 30p, 50p, 60p (0.5 to 24.00 Mb/s)
RTMP, RTP, RTSP
320 x 180 at 25p, 30p, 50p, 60p (0.5 to 24.00 Mb/s)
Interface
Video Connectors
1 x HDMI Output
Audio Connectors
1 x 1/8” / 3.5 mm Stereo Headphone Output
Built-In Microphone Type
Stereo
Other I/O:1 x USB Micro-B Input
1 x 2.5 mm Output
Wireless Interfaces
2.4 GHz Wi-Fi 4 (802.11n)
Monitor
Size
3.5”
Resolution
2,760,000 Dot
Display Type
Articulating Touchscreen LCD
EVF
EVF Display Type
LCD
Screen Size
.24”
EVF Resolution
1,560,000 Dots
Power
Battery Type
Panasonic AG-VBR Series
Power Connectors
1 x Barrel (12 VDC) Input
Power Consumption
7.9 W
Environmental
Operating Temperature
32 to 104 Degrees F / 0 to 40 Degrees C
Operating Humidity
10 to 80%
Physical
Accessory Mount
1 x multi-Interface Shoe
Tripod Mounting Thread
1/4”-20 Female
Built-In Light
No
Dimensions
10.12 x 5.08 x 3.66” / 257 x 129 x 93 mm (Without Handle)
Weight
2.65 lb / 1.2 kg
