Peavey ProComm TRUE D UHF Wireless Handheld Microphone System

Peavey ProComm TRUE D UHF Wireless Handheld Microphone System

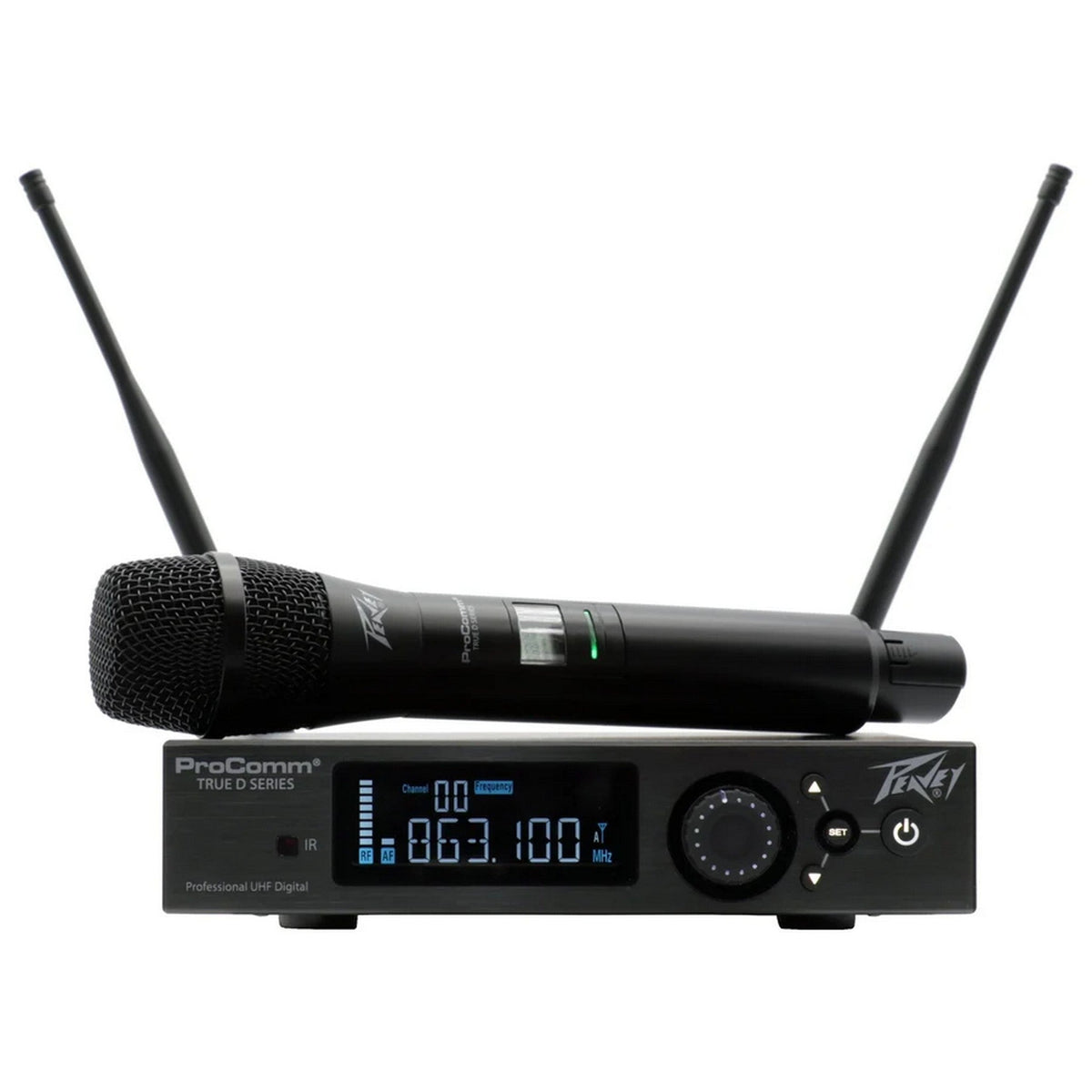

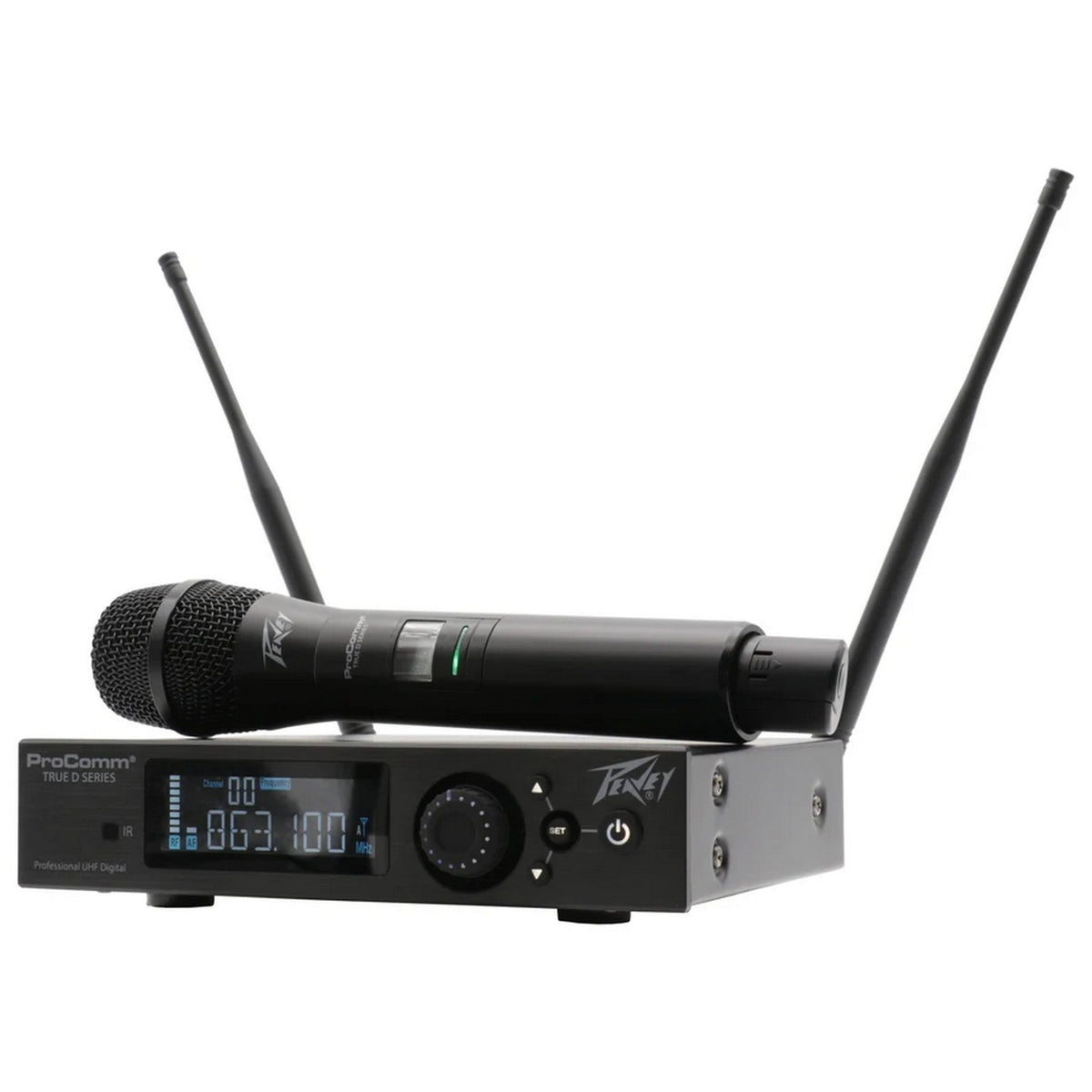

The Peavey ProComm TRUE D UHF Wireless Handheld Microphone System combines a handheld transmitter with a compact true-diversity receiver for professional live sound applications. Automatic channel scanning helps identify available UHF frequencies, while infrared synchronization coordinates transmitter and receiver settings. A color LCD provides operating information for convenient setup and monitoring.

Designed for live vocal performances, houses of worship, conferences, schools, and event production, the ProComm TRUE D offers flexible wireless microphone operation. Its true-diversity receiver uses two antennas to improve reception by selecting between available antenna signals. The AutoScan function simplifies frequency selection in environments where other wireless equipment may cause interference. Infrared (IR) synchronization transfers the selected frequency to the handheld transmitter, reducing the need for manual adjustments. The North American version operates within the 512-542 MHz UHF frequency range, with support for multiple simultaneous systems depending on regional regulations and available frequencies.

The half-rack receiver features a metal enclosure, detachable BNC antennas, and a color display for monitoring wireless operation. The receiver provides information about the selected frequency, channel, incoming radio-frequency signal, audio level, antenna selection, and transmitter mute status. The handheld microphone also features a display showing frequency, battery status, gain, and mute information. Balanced XLR and unbalanced 1/4" audio outputs support connections to professional mixers, PA systems, and recording equipment. With automatic frequency management, pilot-tone signaling, and a durable transmitter design, this wireless system provides practical control for demanding vocal applications.

Key Features

• True-Diversity UHF Reception: Dual-antenna reception helps maintain wireless signal reliability by selecting between available antenna signals.
• Automatic Frequency Scanning: Built-in AutoScan functionality searches for available operating frequencies, simplifying setup in environments with competing wireless signals.
• Infrared Frequency Synchronization: IR communication transfers receiver frequency settings to the handheld transmitter for convenient channel coordination.
• 512-542 MHz North American Frequency Range: Operates within the designated UHF frequency band for the North American configuration.
• Color LCD Receiver Display: Displays operating frequency, channel information, RF and audio levels, active antenna, and transmitter mute status.
• Metal Receiver and Handheld Housing: Durable enclosures accommodate frequent handling during live performances, rehearsals, and professional events.

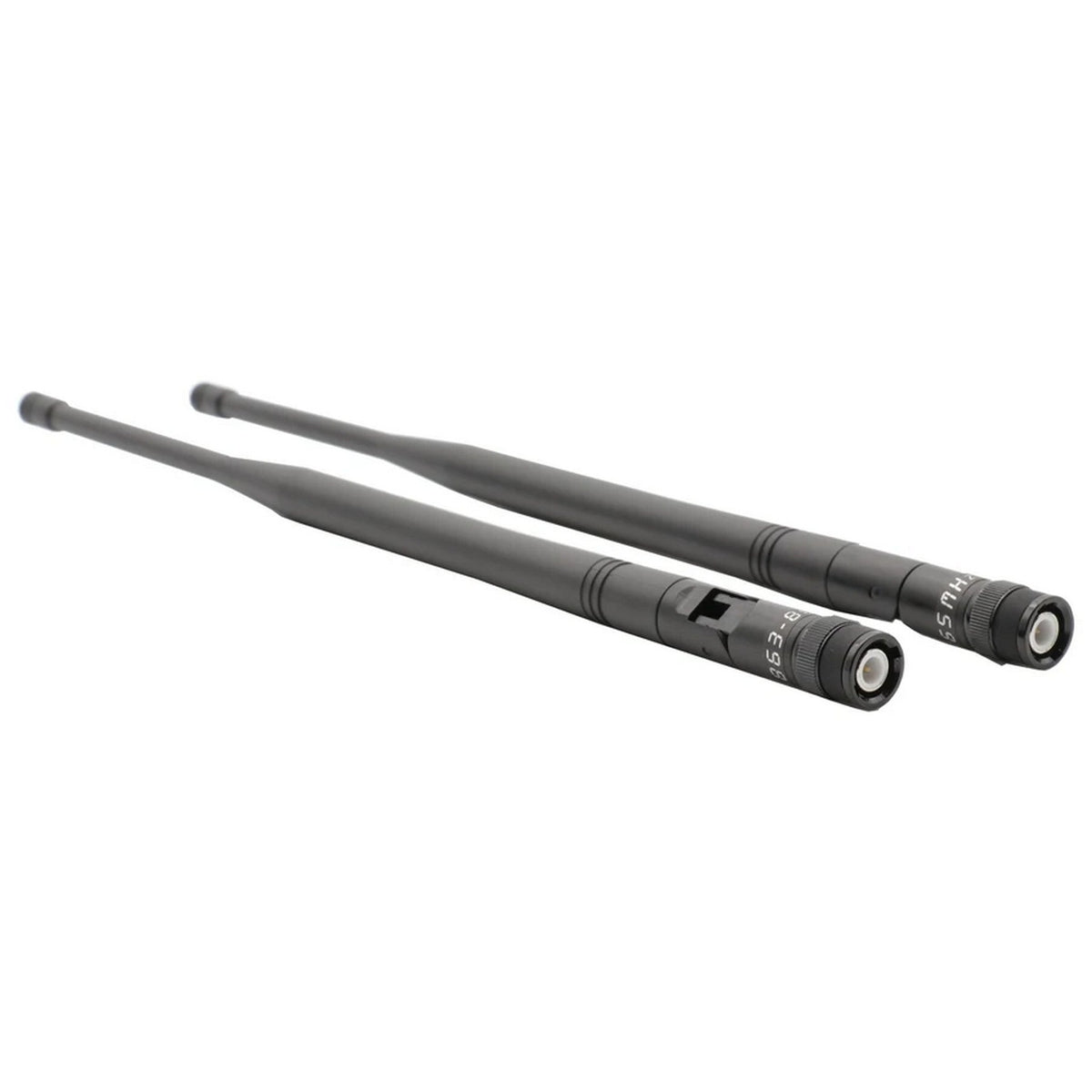

• Detachable BNC Antennas: Two removable receiver antennas provide flexible installation and transportation options.
• Professional Audio Connectivity: Balanced XLR and unbalanced 1/4" outputs support integration with compatible mixers, sound reinforcement equipment, and audio interfaces.

Technical Specifications

General Specifications

• Brand: Peavey
• Model: ProComm TRUE D
• Manufacturer Part Number: 03622130
• Product Type: Professional UHF Wireless Handheld Microphone System
• System Configuration: Handheld Transmitter and True-Diversity Receiver
• Wireless Technology: UHF
• Reception Type: True Diversity
• North American Operating Frequency Range: 512-542 MHz
• Automatic Channel Scanning: Yes
• Infrared Frequency Synchronization: Yes
• Pilot-Tone Signaling: Yes
• Multiple-System Operation: Up to 8 Simultaneous Systems, Subject to Regional and RF Conditions

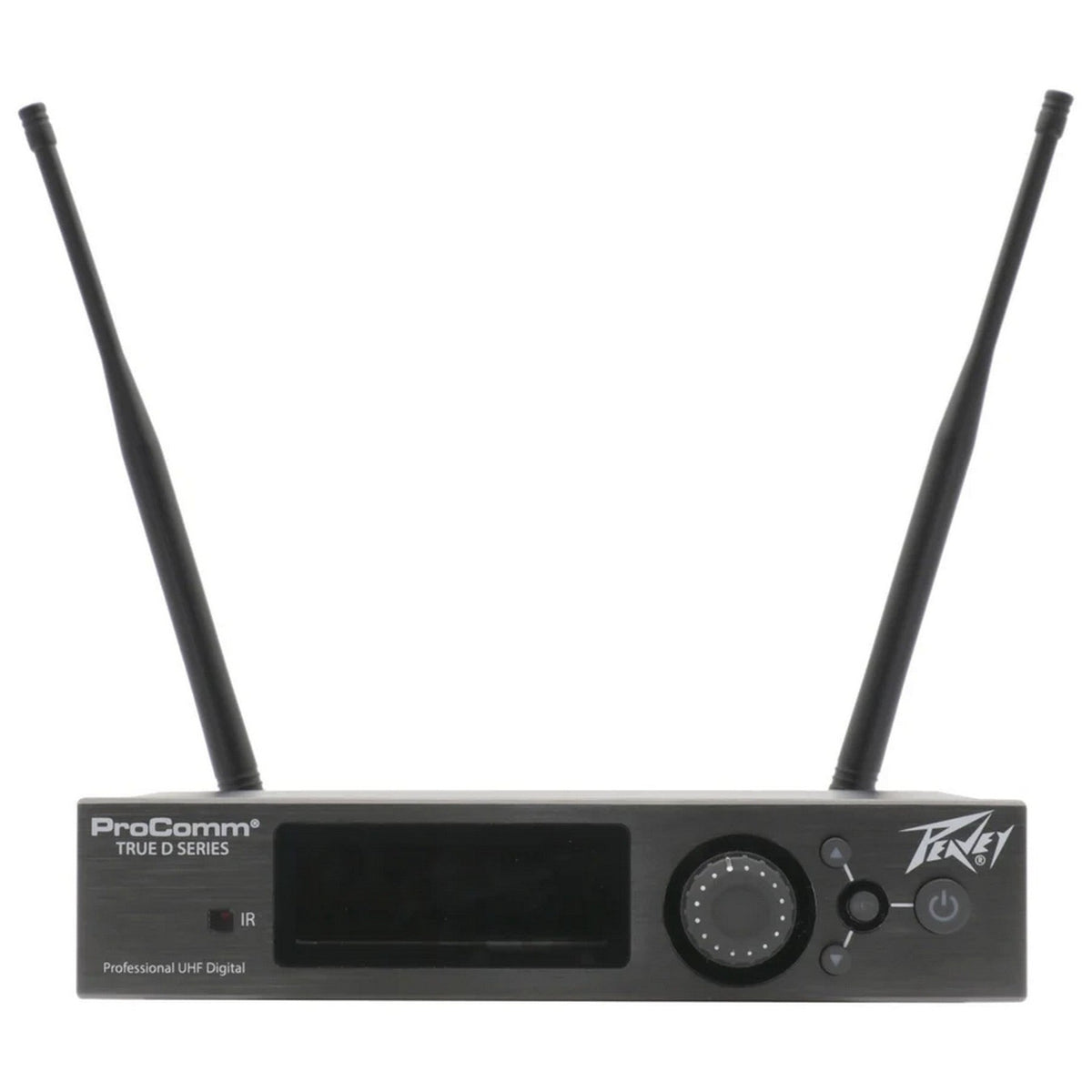

Wireless Receiver Specifications

• Receiver Type: True-Diversity UHF
• Receiver Configuration: Half-Rack Width
• Receiver Enclosure: Metal
• Receiver Display: Color LCD
• Receiver Display Information: Channel Number, Operating Frequency, RF Level, Audio Level, Active Antenna, and Transmitter Mute Status
• Antenna Configuration: Dual Detachable Antennas
• Number of Antennas: 2
• Antenna Connector Type: BNC
• Frequency Selection: Automatic Channel Scanning
• Transmitter Synchronization: Infrared
• Receiver Volume Control: Adjustable
• Receiver Power Control: On/Off
• Frequency Lock Function: Yes

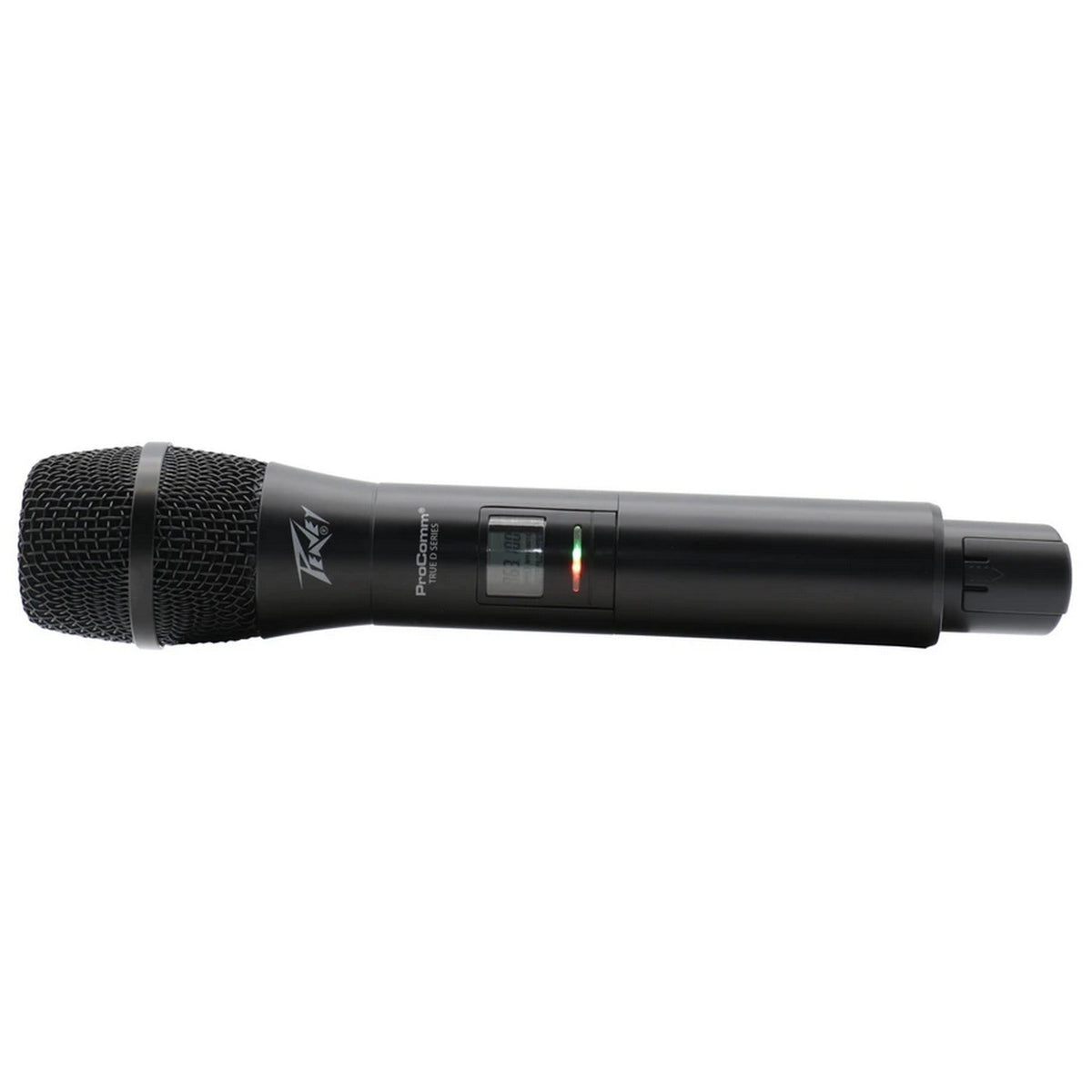

Handheld Transmitter Specifications

• Transmitter Type: Wireless Handheld Microphone
• Transmission Technology: UHF
• Transmitter Enclosure: Metal
• Transmitter Display: Integrated Status Display
• Transmitter Display Information: Operating Frequency, Battery Status, Gain, and Mute
• Frequency Synchronization: Infrared
• Transmitter Power Control: On/Off

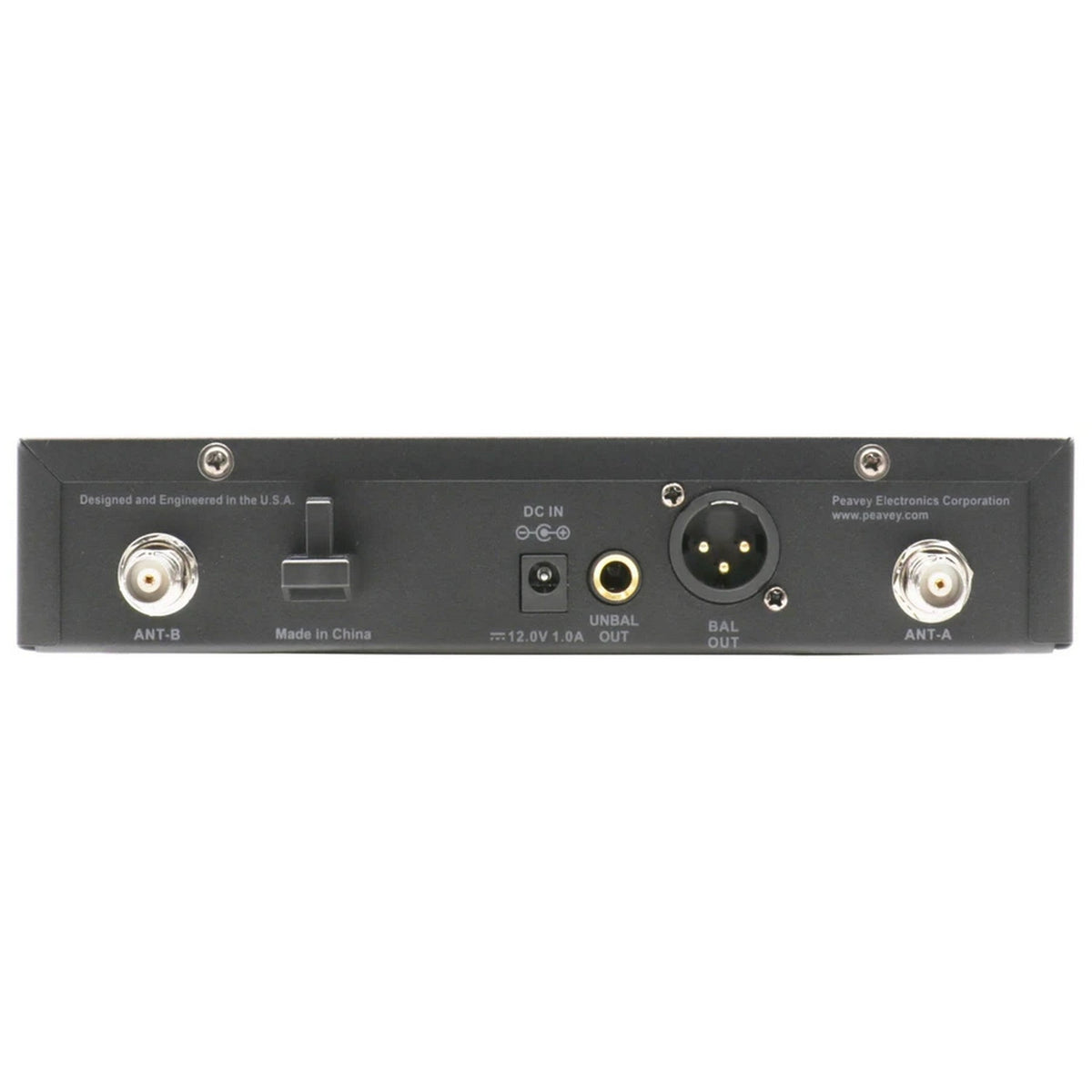

Audio Connections

• Balanced Audio Output: XLR
• Unbalanced Audio Output: 1/4"
• Output Applications: Mixing Consoles, PA Systems, and Compatible Audio Recording Equipment

Wireless Operation and Monitoring

• Automatic Frequency Search: Yes
• IR Transmitter Pairing: Yes
• Receiver RF Level Monitoring: Yes
• Receiver Audio Level Monitoring: Yes
• Antenna Selection Indication: A/B
• Transmitter Battery Status Monitoring: Yes
• Transmitter Gain Status: Displayed
• Transmitter Mute Status: Displayed

Shipping Specifications

• Shipping Length: 16"
• Shipping Width: 14"
• Shipping Height: 4"
• Shipping Weight: 6 lb
